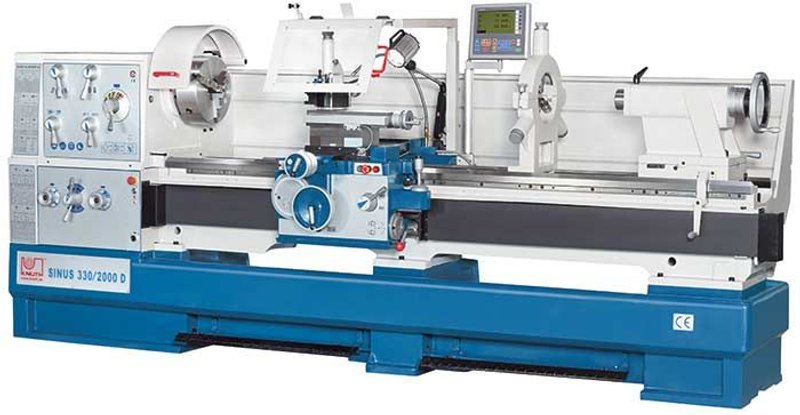

Sinus 330/1500 D | Sinus 330/2000 D | Sinus 330/3000 D | Sinus 400/2000 D | Sinus 400/1500 D | Sinus 400/3000 D |
| Working Area | | Workpiece length (max.) | 59 in | 79 in | 118 in | 79 in | 59 in | 118 in | | Turning diameter over bed | 26 in | 26 in | 26 in | 31 in | 31 in | 31 in | | Turning-¯ over support | 17 in | 17 in | 17 in | 22 in | 22 in | 22 in | | Turning diameter without gap bridge | 35 in | 35 in | 35 in | 41 in | 41 in | 41 in | | Gap bridge length | 13 in | | Bed width | 16 in | | Travels | | Travel X-axis | 14.5 in | 14.5 in | 14.5 in | 16.5 in | 16.5 in | 16.5 in | | Travel Z1-axis | 9 in | | Swing range of top slide | 45¡ | 45¡ | 45¡ | 70¡ | 70¡ | 70¡ | | Headstock | | Spindle speed | (16) 25 - 1,600 rpm | | Spindle bore | 4 in | | Spindle mount | D1-8 | | Spindle taper | MT 5 | | Rapid Feed | | Rapid Feed X-axis | 78.74 in/min | | Rapid Feed Z-axis | 157.48 in/min | | Feed | | Feed X-axis | (25) 0.00087 - 0.02913 in/R | | Feed Z-axis | (25) 0.00173 - 0.05827 in/R | | Tapping | | Tapping, metric | (54) 0,45 - 120 mm | (54) 0,45 - 120 mm | (54) 0.02 - 5 in mm | (54) 0.018 - 4.72 in mm | (54) 0,45 - 120 mm | (54) 0.45 - 120 mm | | Tapping, diametric | (42) 0,88 - 160 DP | | Tapping, module | (46) 0.01 - 2.36 in | | Tapping, withworth | (54) 7/16 - 80 TPI | | Tailstock | | Tailstock quill diameter | 4 in | | Tailstock taper | MT 5 | | Tailstock quill stroke | 9 in | | Tailstock traverse adjustment | ±0,5 in in | ± 0,5 in in | ± 12,5 in | ± 0,4 in in | ± 11 in | ± 11 in | | Drive Capacity | | Motor rating main drive | 10.1 Hp | | Measures and Weights | | Overall dimensions (length x width x height) | 127x49x63 in | 147x49x63 in | 186x49x63 in | 148x45x76 in | 128x45x45 in | 187x45x76 in | | Weight | 6,160 lbs | 6,380 lbs | 7,260 lbs | 7,700 lbs | 7,084 lbs | 8,514 lbs |

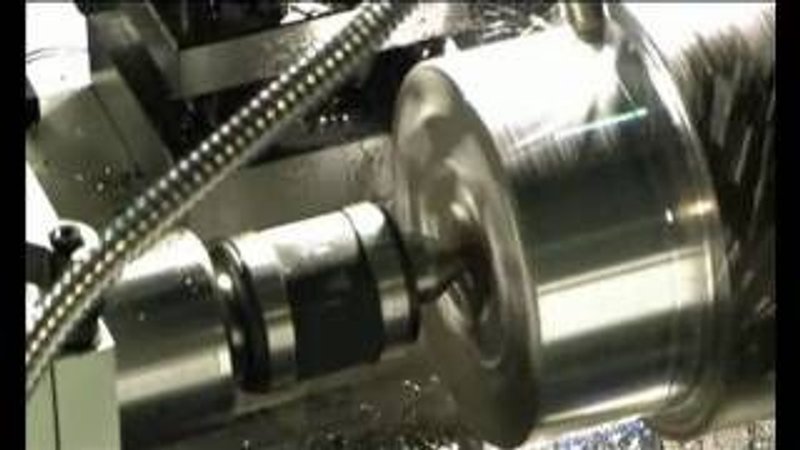

- Removable bridge for machining of large parts
- High accuracy and low-noise operation even at high cutting power
- Heavy and large bed
- Hardened guide ways (>HB 400)
- 4 in spindle capacity for machining of large parts
- Manual central lubrication
- clutch for soft startup with heavy parts
- Automatic lubrication of headstock and main drive
- Protected lead screw
- Overload protection for feed shaft and lead screw
- Support moves in linear and cross direction via rapid feed
3-axis position indicator - More accuracy
- Lower error rate
- Increased productivity
- Resulting in valuable time savings
- For increased productivity
- Easy to read display
- Operator-specific features
- Convenient keyboard layout
- Resolution: 0.0004 / 0.0002"
- Default coordinates
- Axis position is maintained when display is turned off
- Hole circle pattern calculation
- Calculator function
- Storage for 10 tools
- Radius / diameter toggle
- Mm/inch conversion
- Easy expansion and maintenance-free operation
- Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
- 3-axis position indicator
- 3-jaw chuck ¯ 13"
- 4-jaw chuck (15" diam.) face plate ¯ 23"
- face plate ¯ 20"
- dog plate

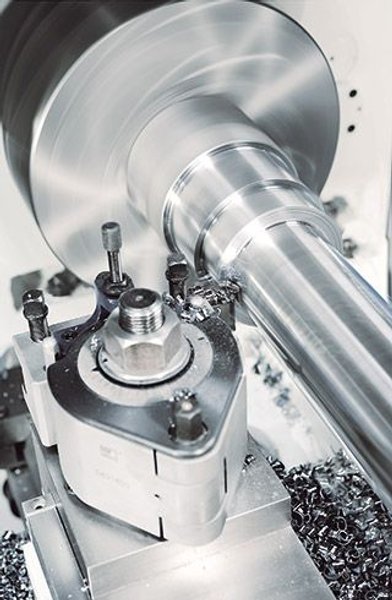

- quick tool changer head WD
- quick change tool holder WD1D 40180
- fixed splash guard (wall)
- coolant system
- steady and follow rests
- taper turning unit
- chuck guard
- LED work lamp
- reducing sleeves
- dead center
- operating tools
- operator instructions
|
