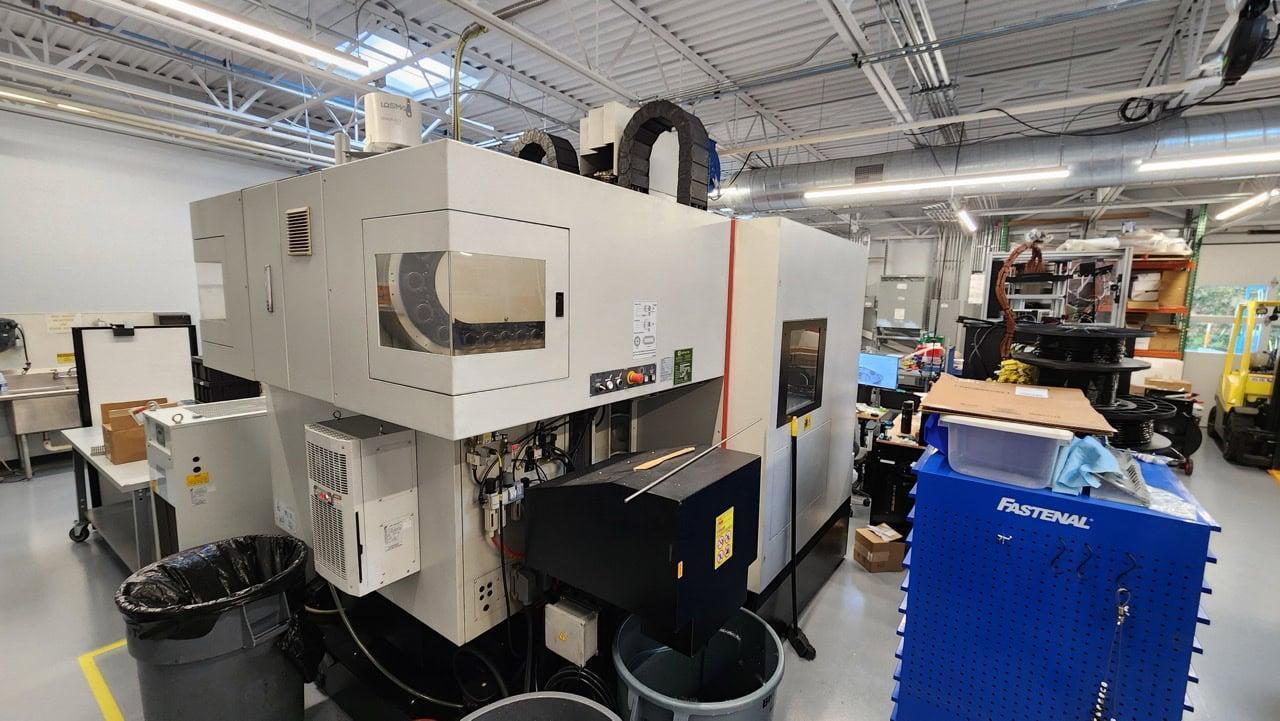

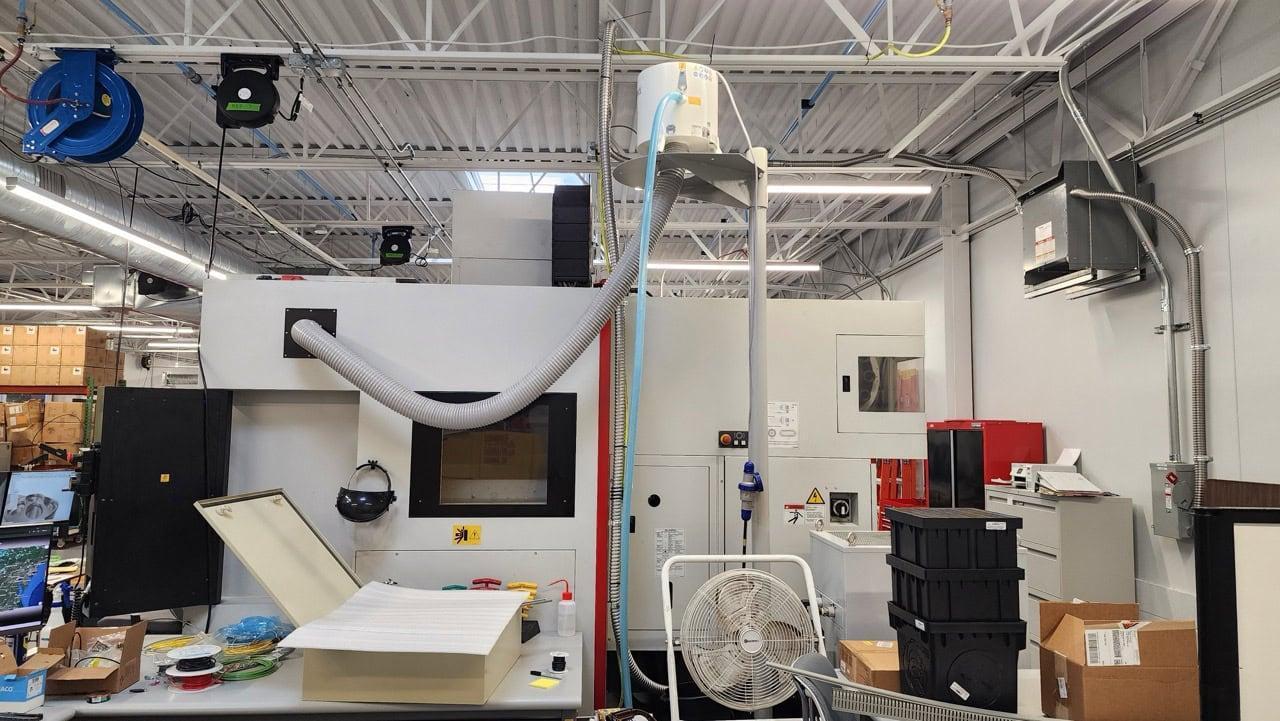

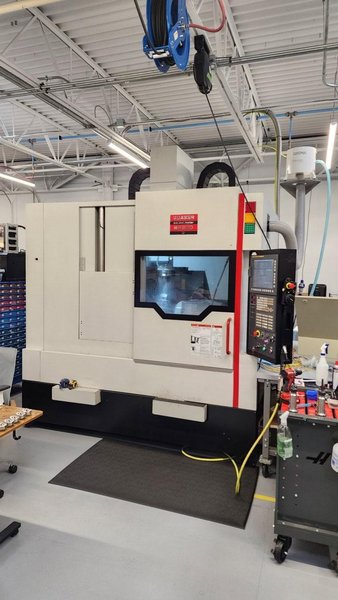

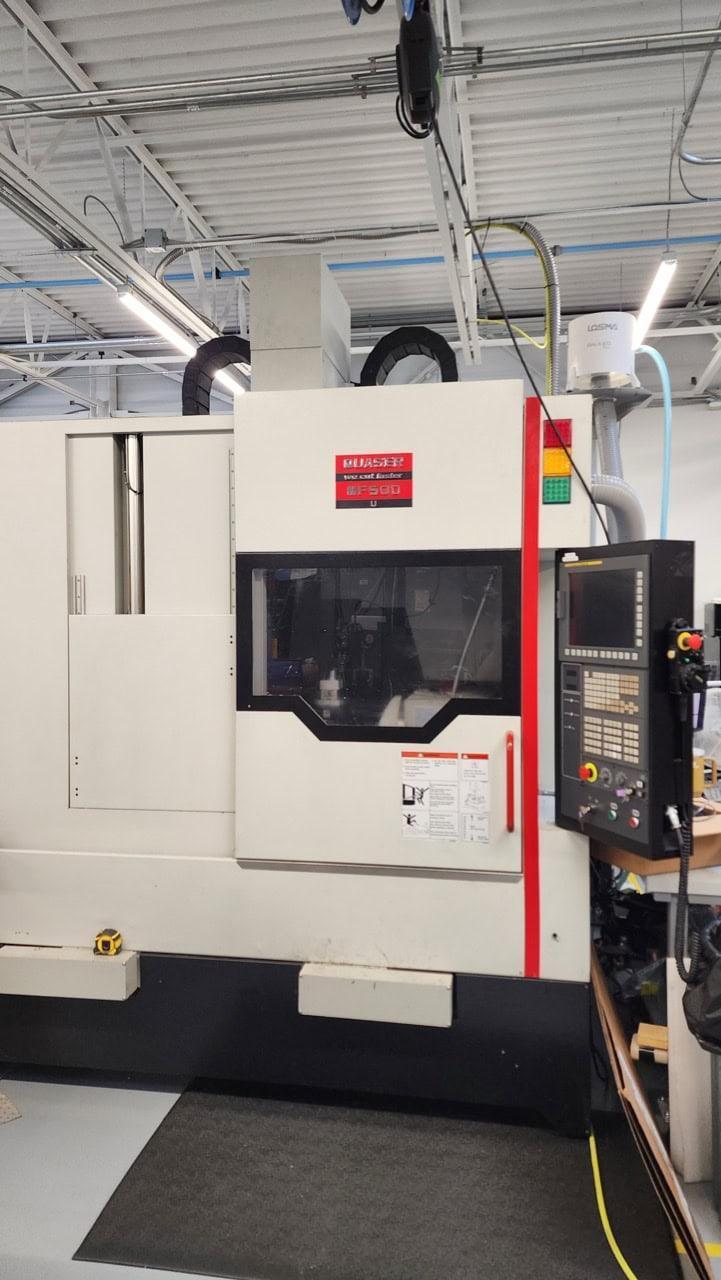

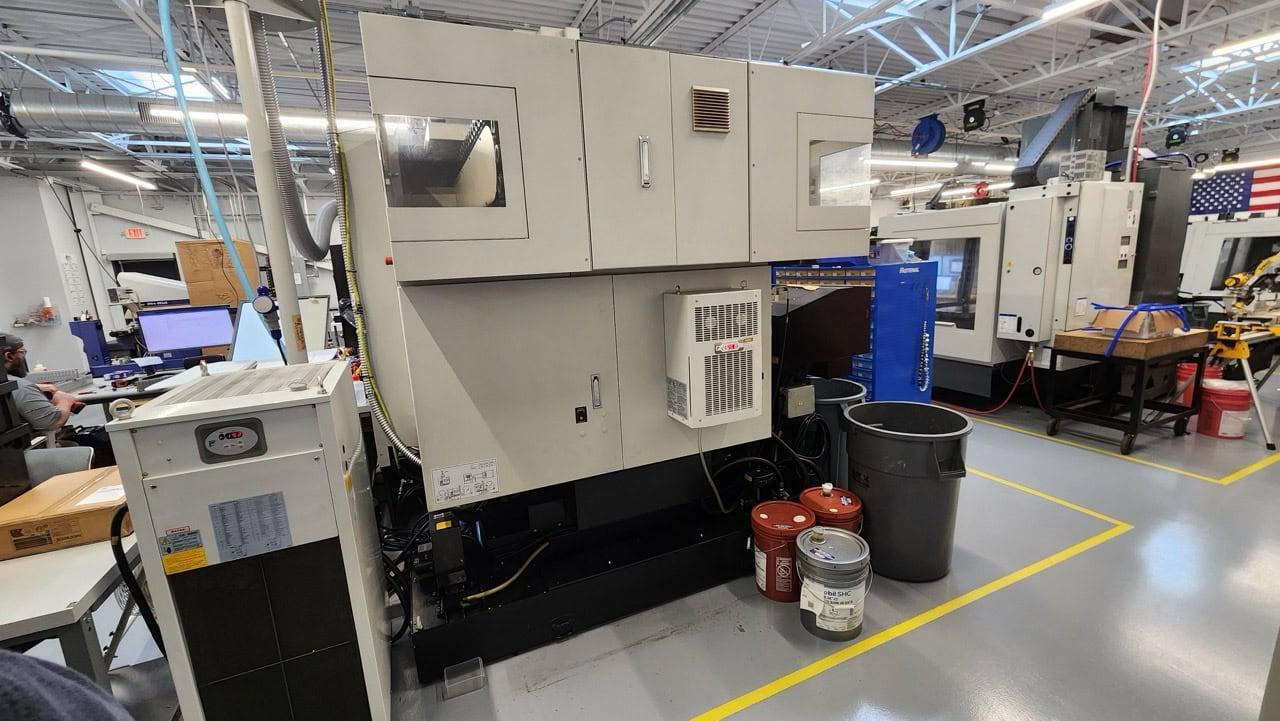

Quaser MF500U.15C 5-Axis VMC, 2018 – Through Spindle Coolant, Chip Conveyor, LOW HOURS

Table Diameter: 16.14″ Max Swing: 19.7″ X-Axis Travel: 21.65″ Y-Axis Travel: 24.8″ Z-Axis Travel: 24.0″ A-Axis Travel: +30° ~ -120° C-Axis Travel: 360° Continuous Table Load Capacity: 441 lbs Max Workpiece Size: 19.7″ × 11.8″ Table Surface To Spindle Nose: 0.79″ ~ 20.9″ Spindle Taper: BBT40 Max Spindle Speed: 15,000 RPM Tool Magazine Capacity: 120 (Dual-Arm) Max Tool Diameter: 3.0″ Max Tool Diameter (Without Adjacent Tool): 4.9″ Max Tool Length: 11.0″ Max Tool Weight: 15.4 lbs Tool Change Time (CTC): 9 sec Repeatability (ISO 10791-4): 0.0003″ Machine Height: 125″ Floor Space (W×D): 89.8″ × 126.8″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

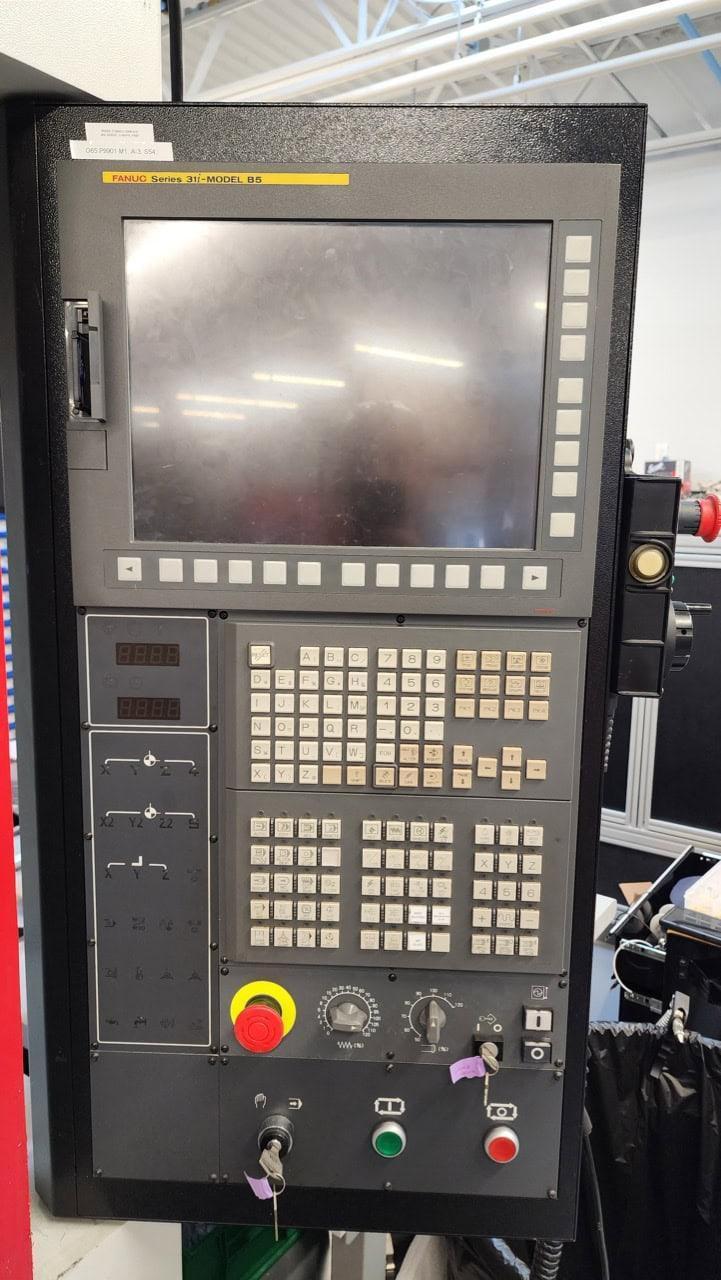

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,FANUC 31i-B5 CNC Control System 120 Tool Automatic Tool Changer (Dual-Arm) Full 5-Axis Rotary/Trunnion Table 15,000 RPM Spindle Coolant Through Spindle System Automatic Lubrication System Chip Conveyor Rigid Tapping Work Light And Status Light All Available Manuals

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
