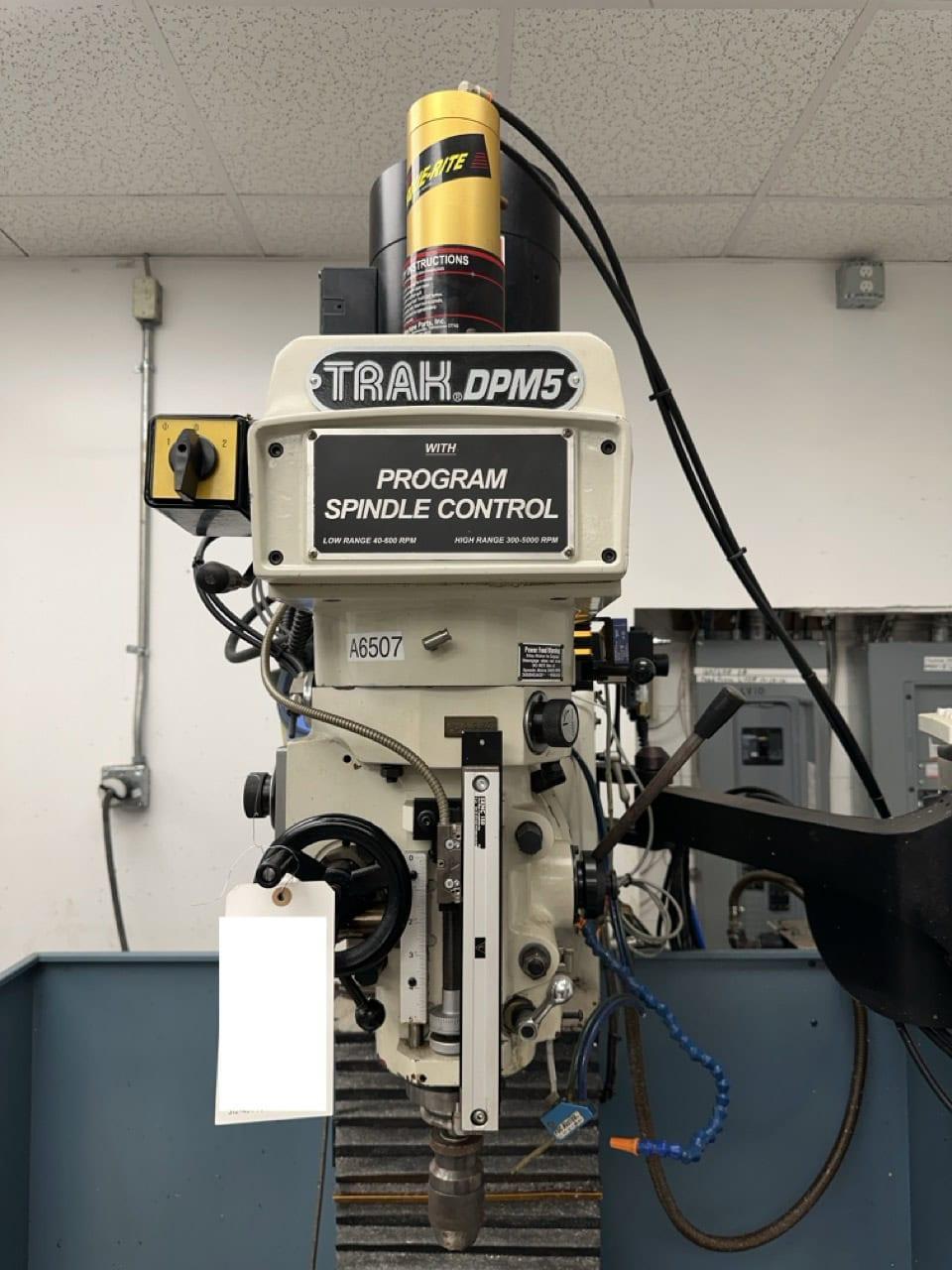

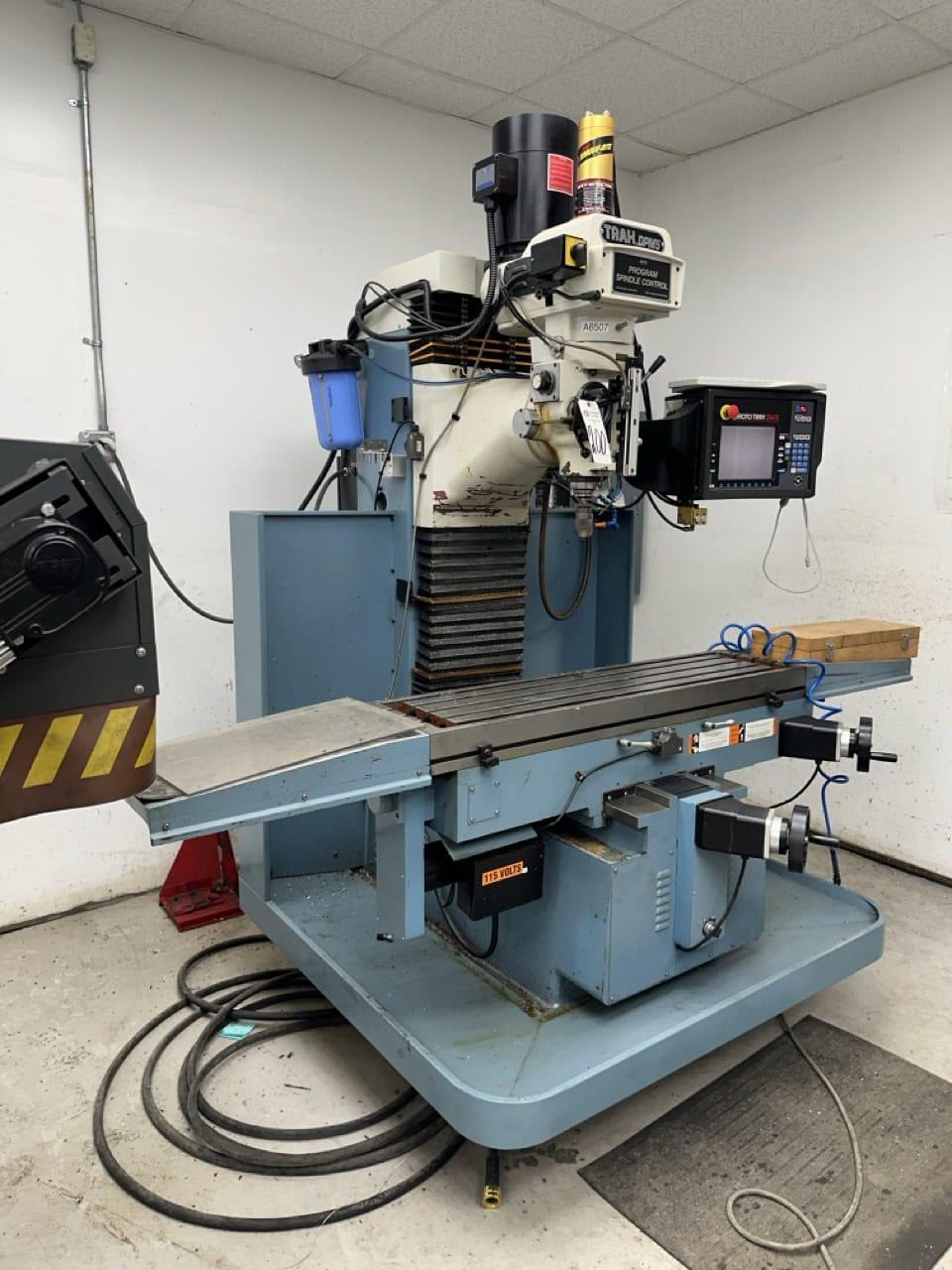

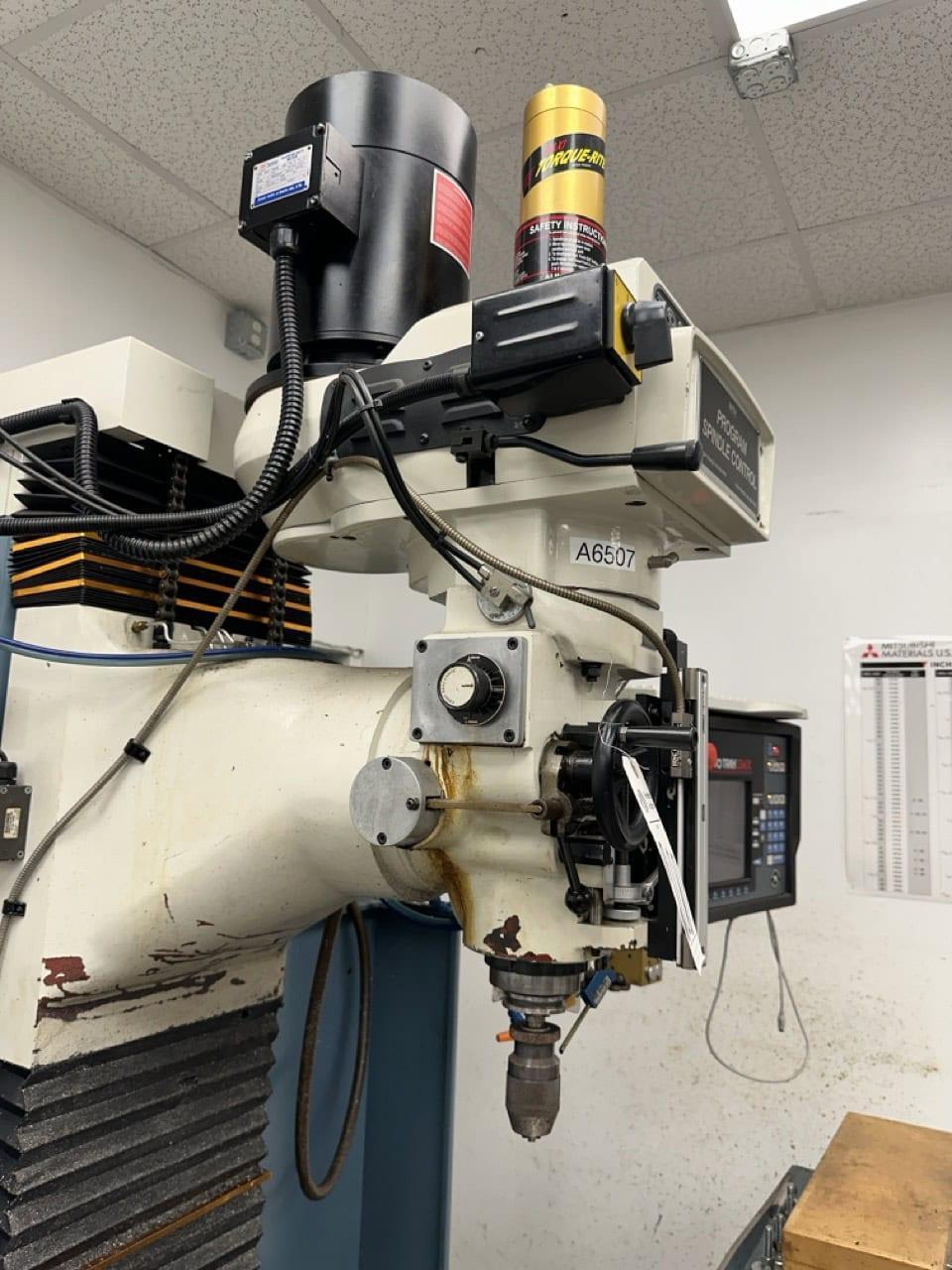

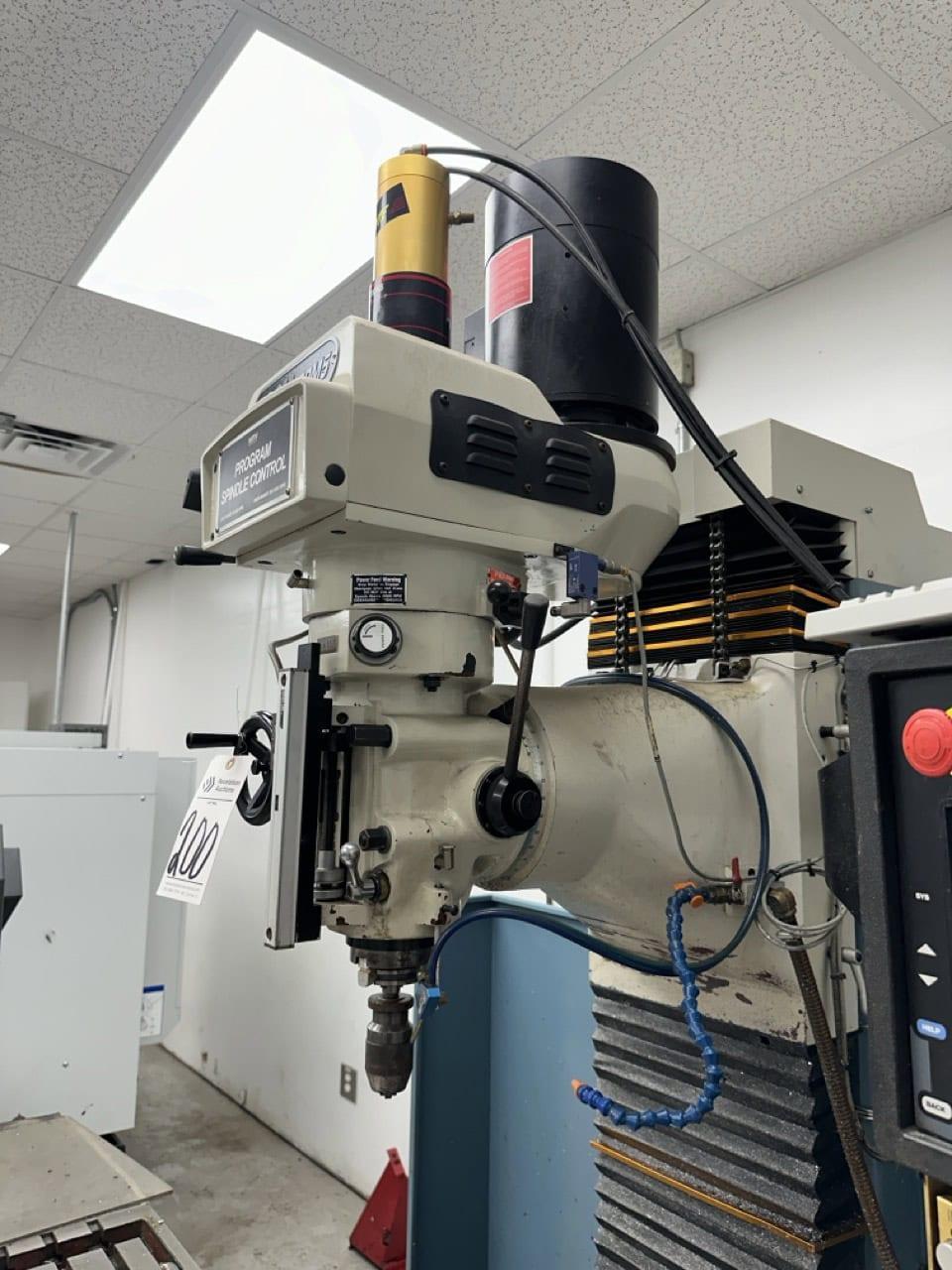

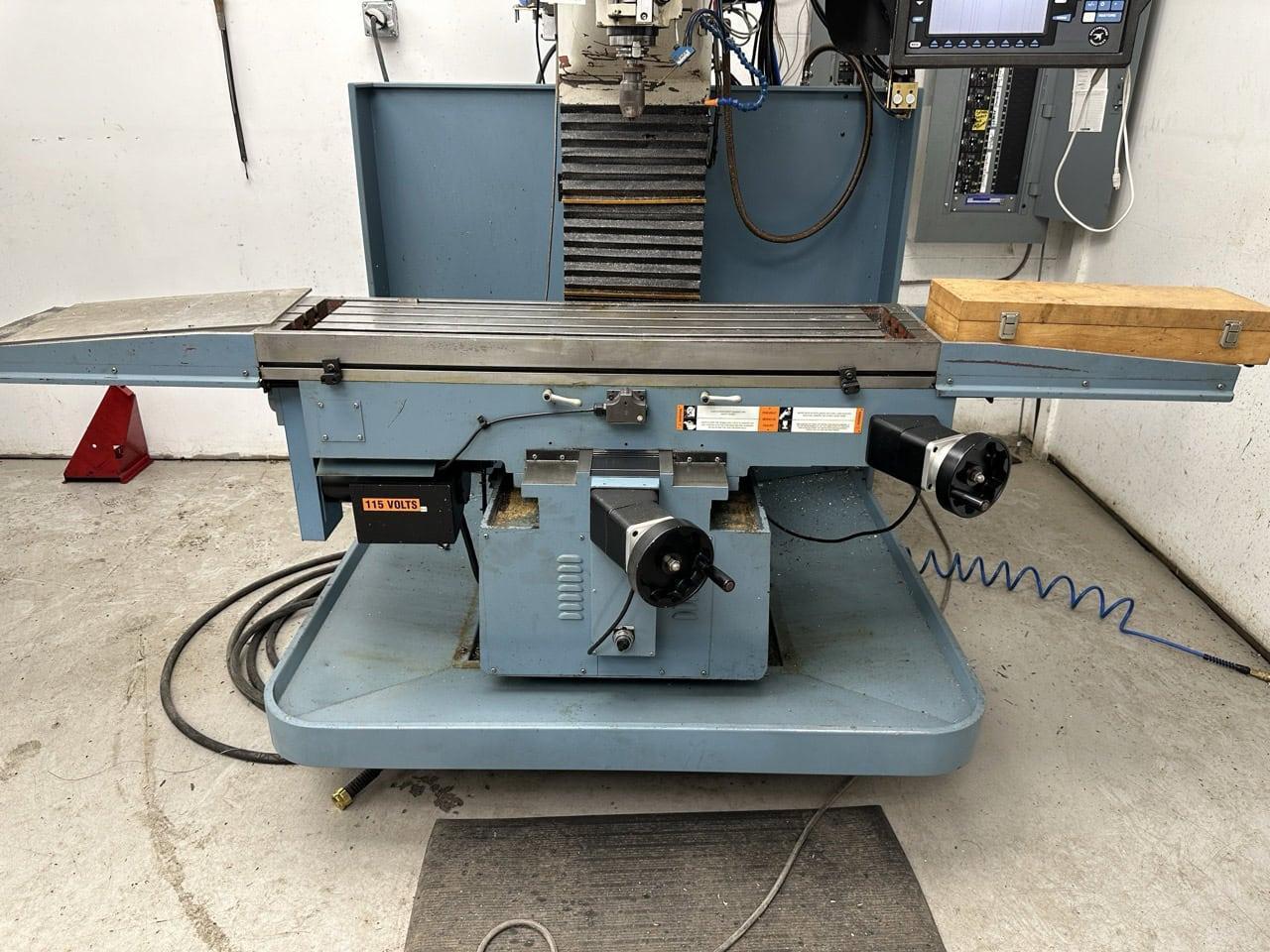

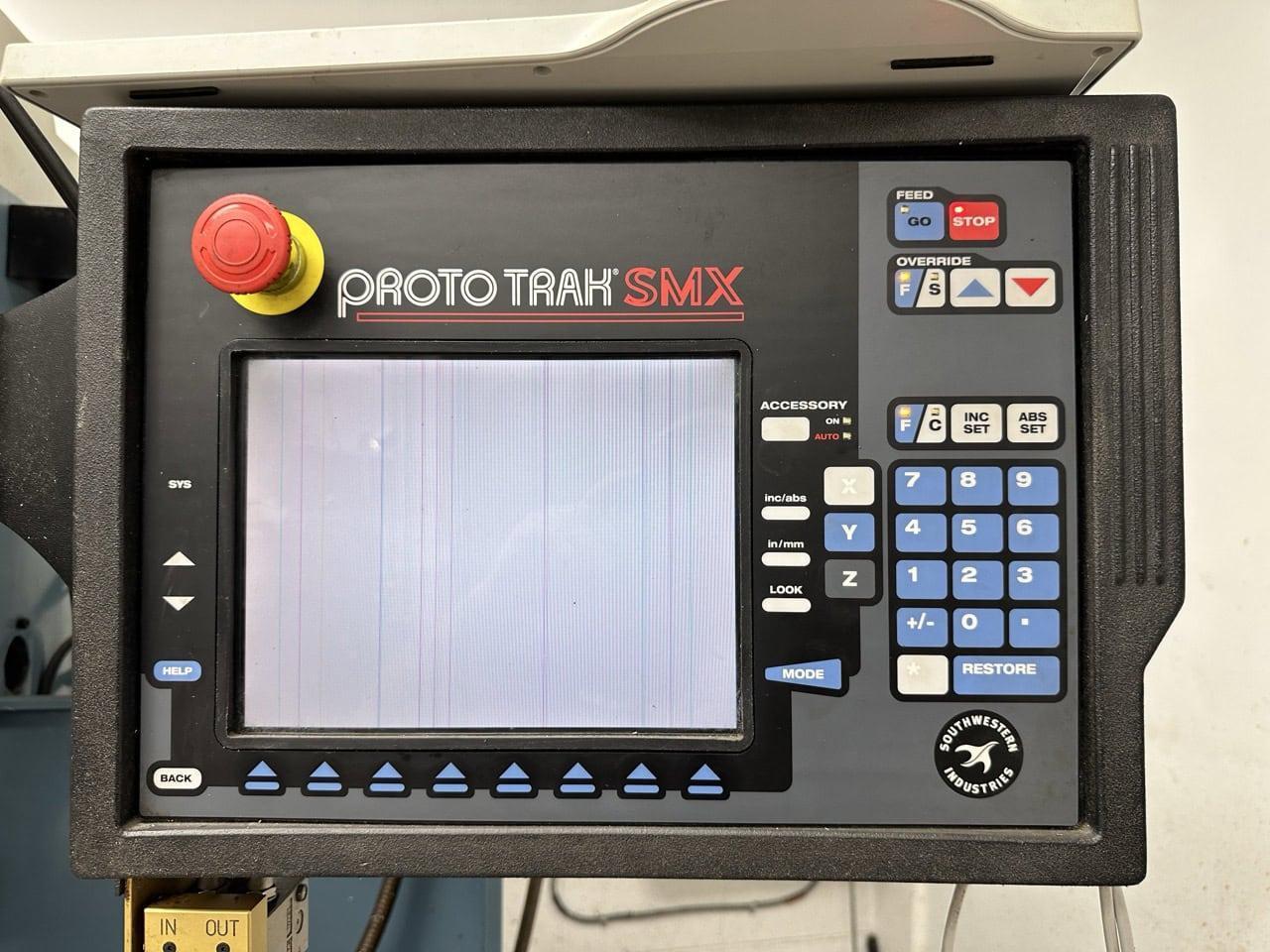

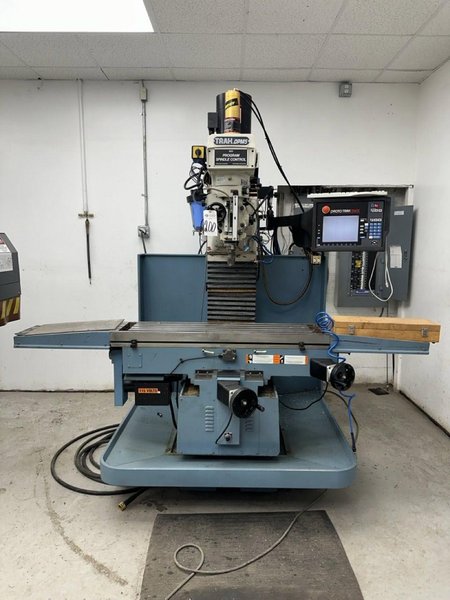

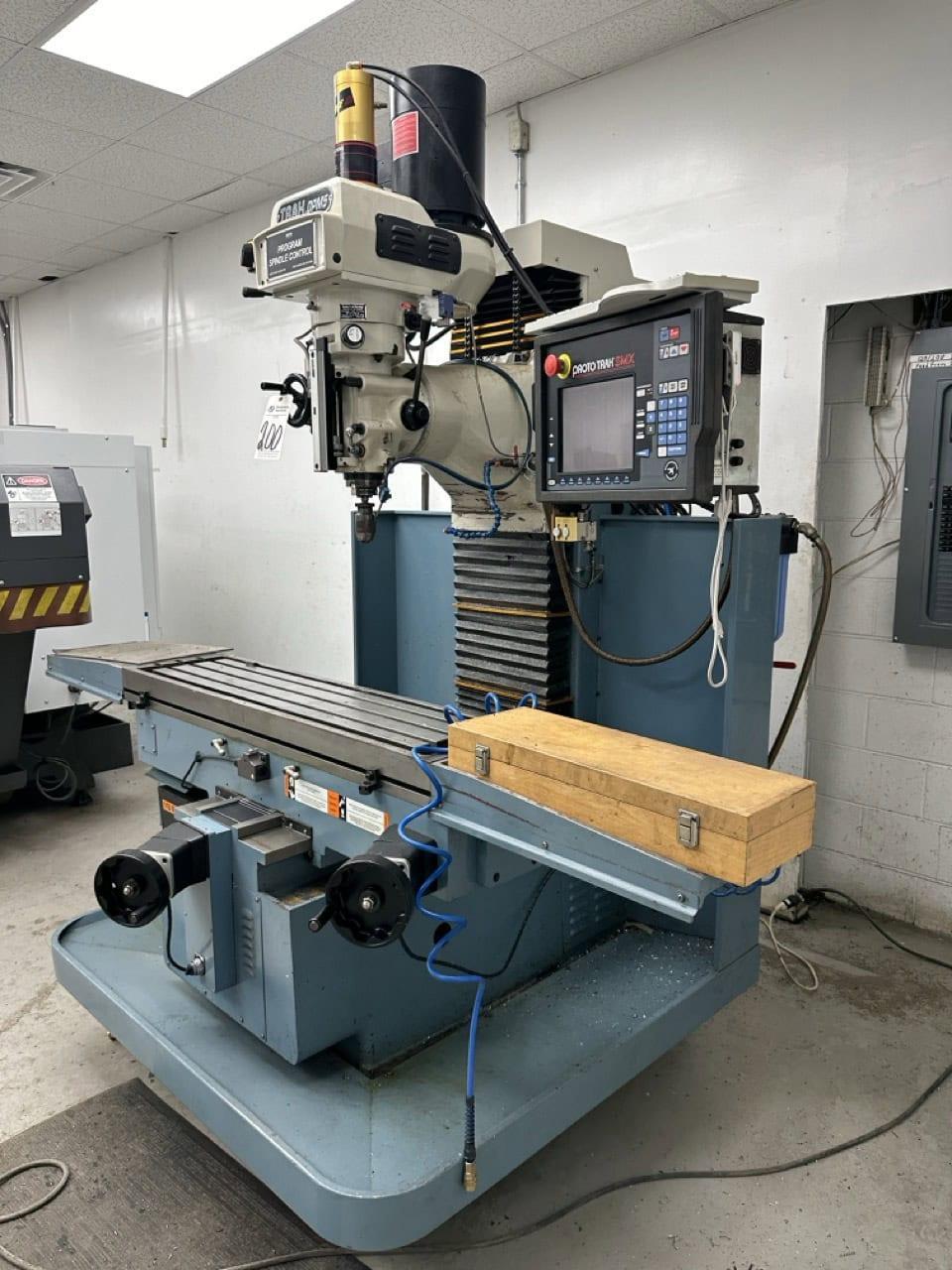

Southwest Industries TRAK DPMSX5P CNC Bed Mill, 2009 – ProtoTRAK SMX Control – 5 HP Spindle,

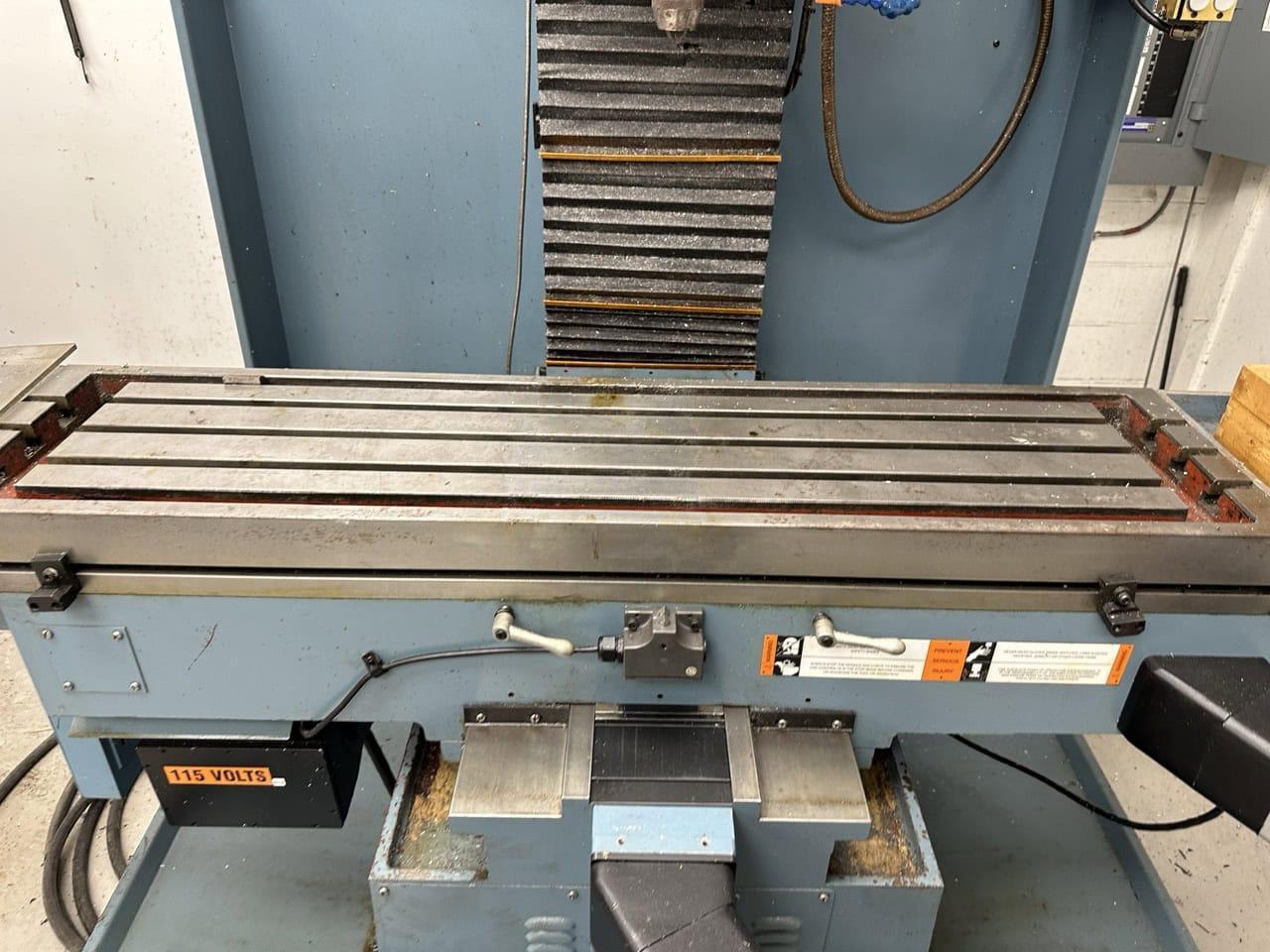

TABLE SIZE – 50″ X 12″TRAVEL (X, Y, Z AXIS) – 40 X 20 X 23.5″ QUILL DIAMETER – 3 15/16″ MAXIMUM QUILL TRAVEL – 5″ SPINDLE TAPER – NMTB 40 SPINDLE SPEED RANGE – 40-600, 300-5000 SPINDLE CENTER TO COLUMN FACE – 20″ SPINDLE MOTOR POWER – 5 HP POWER REQUIREMENTS, CONTROL – 110V; 1P; 8A POWER REQUIREMENTS, MACHINE – 220V;3P; 17A MAXIMUM WEIGHT OF WORKPIECE – 1760 LBS. HEIGHT OF TABLE FROM BOTTOM OF BED – 41″ MAX SPINDLE NOSE TO TABLE – 23.5″ MIN HEIGHT – 87″ MAX HEIGHT – 98″ WIDTH OF MACHINE INCLUDING TABLE – 94″ LENGTH WITH ELECTRIC BOX DOOR CLOSED – 71″ OVERALL WIDTH INCL FULL TABLE TRAVERSE – 136″ OVERALL LENGTH WITH ELECTRICAL DOOR OPEN – 81″ FOOTPRINT OF MACHINE – 24″ X 48.4″ WEIGHT NET / SHIPPING LBS. – 4400 / 4600 RAPID TRAVERSE X, Y, Z – 150 IPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,
