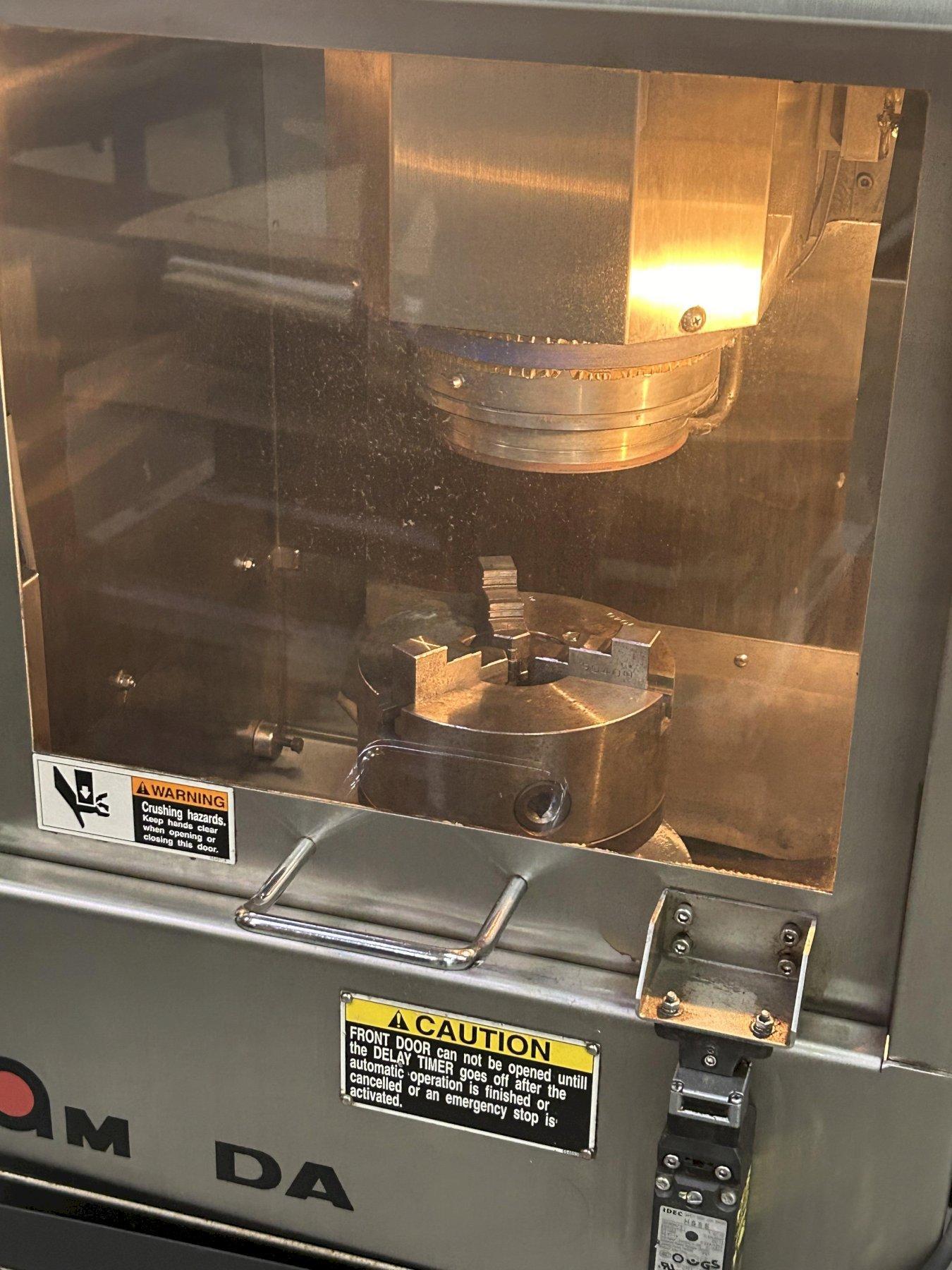

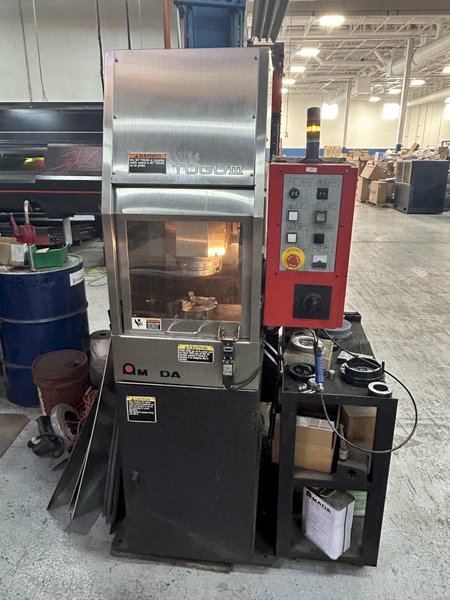

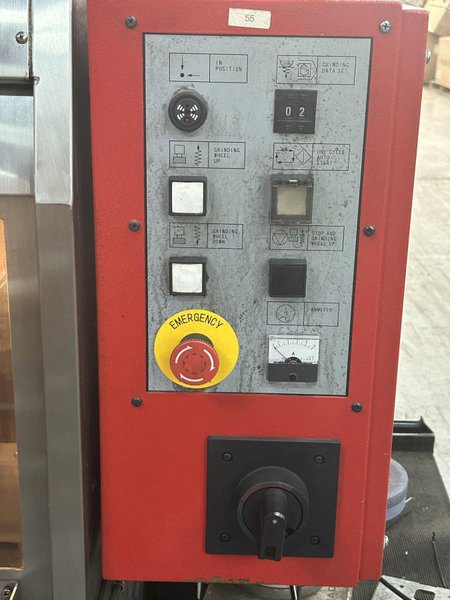

Amada Togu III Automatic Punch & Die Grinder, 2012
Brand
Category
Type
Model
Togu-III
Stock #
831482
Year
2012
Condition
Not specified
Location
Michigan
|
Machine Weight: 1058 lb
Grinding Wheel: 5.31″
Max Diameter Tool Size: 6.30″
Max. Grinding: 0.039″
Main Axis Motor: 2 HP 2 P
Main Axis Rotation Speed: 3000 RPM (60Hz)
Main Axis Travel: 9.45″
Main Axis Feed Motor: DC Servo Motor 0.05 HP
Main Axis Feed Speed- High: 23.6 IPM
Main Axis Feed Speed-Middle: 2.36 IPM
Main Axis Feed Speed-Low: 0.002 IPM
Table Motor: 0.134 HP 4P
Table Rotation Speed: 72 RPM (60 Hz)
Cooling Water Pump Motor 0.08 Hp 2P
Cooling Water Pump Motor Flow: 0.9 CFM (60Hz)
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
