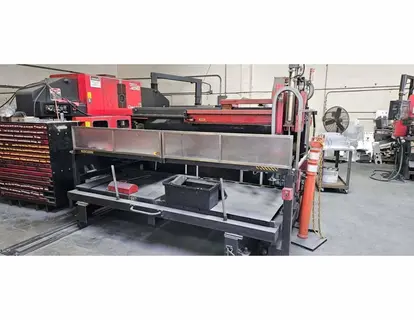

Amada MP1225-NJ Auto Sheet Loader, 1993
Brand
Category
Type
Model
MP1225-NJ
Stock #
158580
Year
1993
Condition
Not specified
Location
Not specified
|
Cycle Time (Load/Unload): 25 Seconds
Maximum Sheet Size: 4′ x 8′
Minimum Sheet Size: 27.5″ x 11.8″
Material: Mild Steel, Stainless Steel, Aluminum
Material Thickness Range: 24 gauge – 10 Gauge Loading Height Max: 10.25″ Including Skid Height of 4″ Material Cart Weight Capacity: 4,400 lbs.
Pallet Material Separation: Edge Lifter, Magnetic Separator
Pallet: 2 Pallets (raw materials & finished parts) Electrical Requirements: 200V – 3 Phase (For MP 1225NJ) Electrical Supply Capacity: 10 KVA (Not Including NCT Machine)
Air Requirements: 75 PSI., 31.8 CFM
Overall Dimensions (L x W x H): 180″ x 140″ x 90″ Approximate Weight: 11,250 lbs.
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
