Yaskawa Motoman ArcWorld System 6200-750 Robotic Welding Cell, 2022 – 2 AR1440 Robots, Miller Power Source, Wire Feeder

System Overview System Type: Pre-engineered robotic arc welding cell Model: ArcWorld 6200-750 Year: 2022 Configuration: Dual-zone Ferris wheel positioner with two robots

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Robot: AR1440 Axes: 6 Payload: 26.5 lbs Max Reach: 56.7” Repeatability: ±0.0008” Weight: 330 lbs

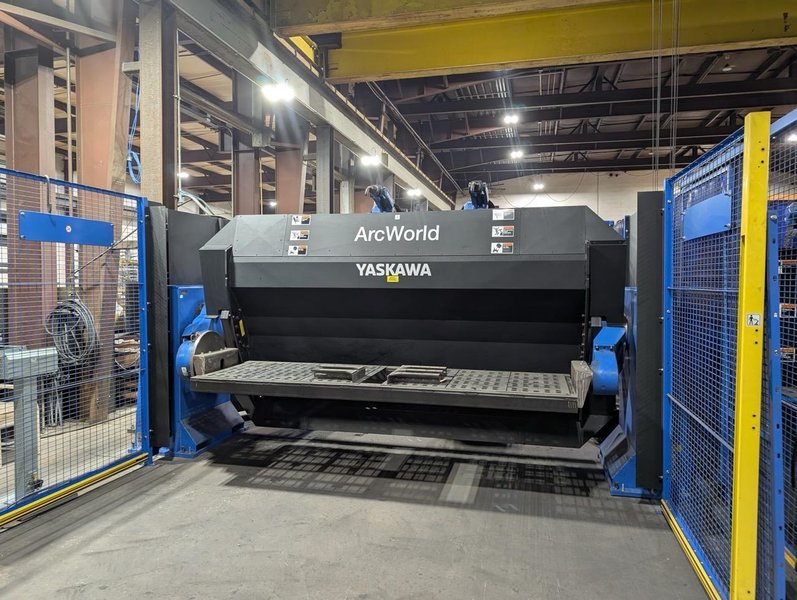

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Positioner: RM2-750 Type: Ferris wheel-style, servo-driven Payload per Side: 1,653 lbs Rotation Clearance: Requires 96–120” front clearance Control: 3-axis AC servocontrol Fixture Diameter Capacity: Up to ~60” depending on tooling

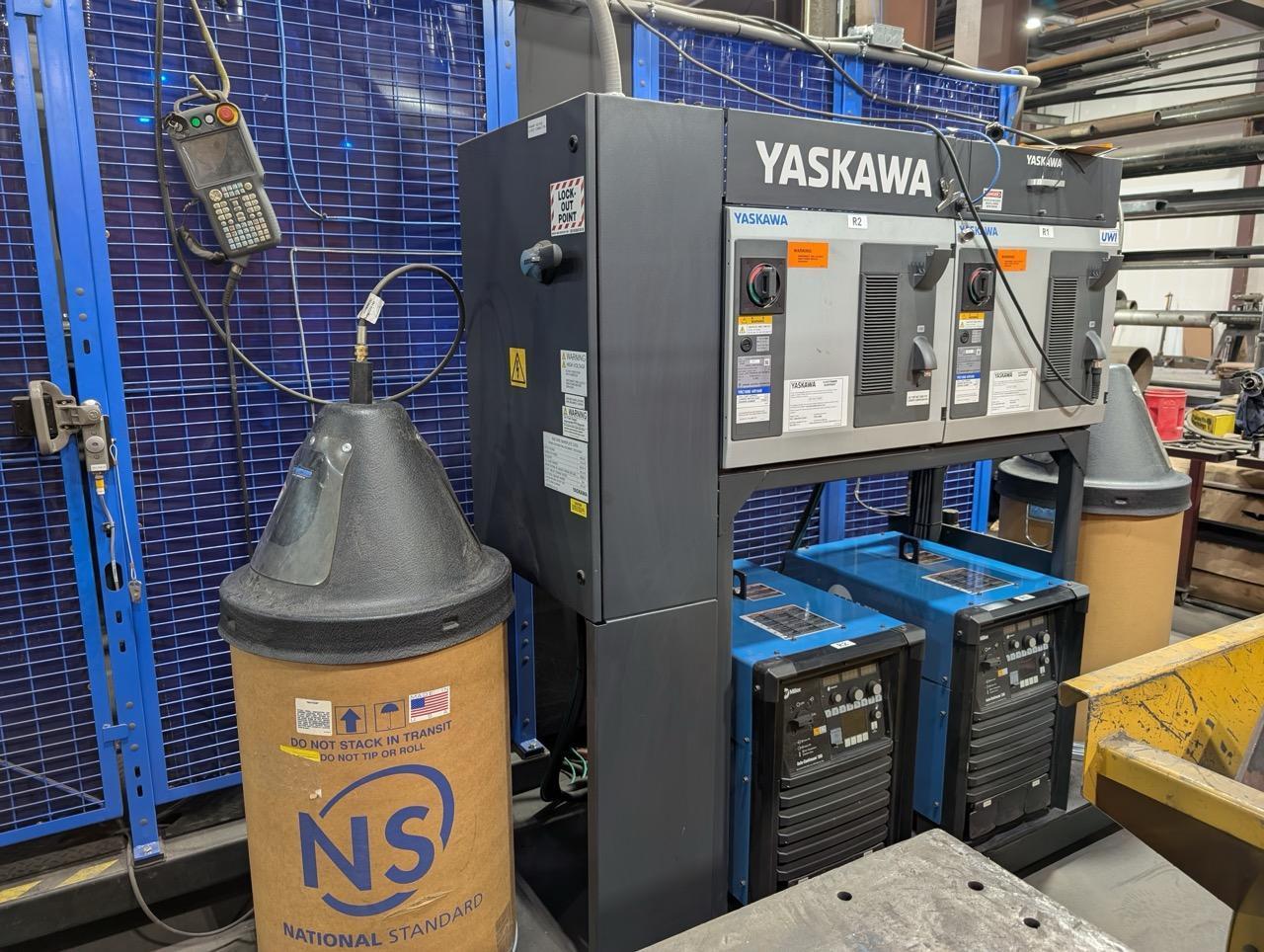

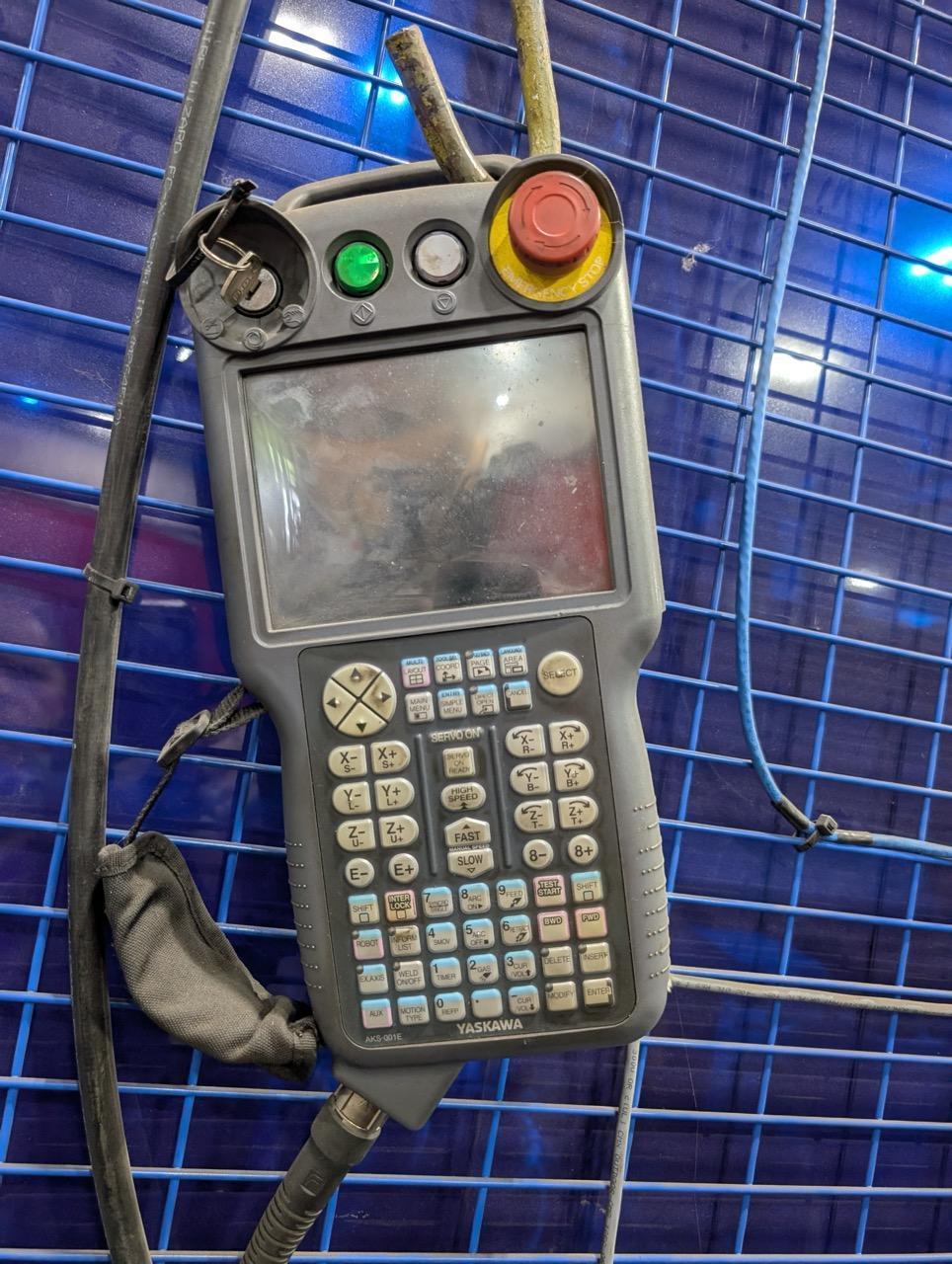

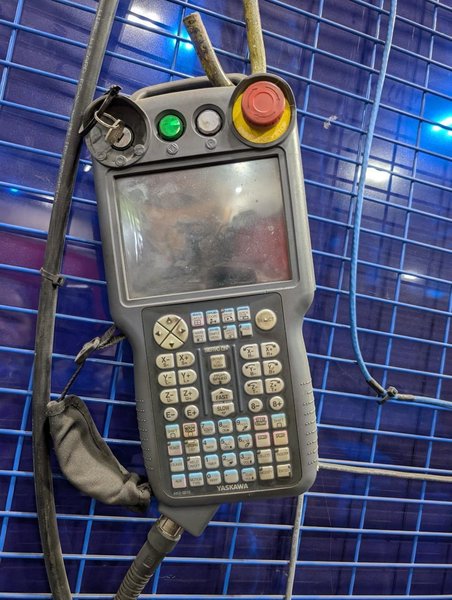

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Controller: YRC1000 Dimensions: 19.7”(W) × 15.7” (H) × 7.9”(D) Weight: 55 lbs Power Supply: 200–230V AC, 3-phase, 50/60 Hz Cooling: Forced air ventilation Interface: Touchscreen pendant with Ethernet, USB, and I/O ports

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,System Footprint & Integration Overall Width: 240” Depth: 120” Height: 96–108” Safety Features: Light curtains, interlocked doors, emergency stops Mobility: Forklift pockets and lifting eyes for relocation

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

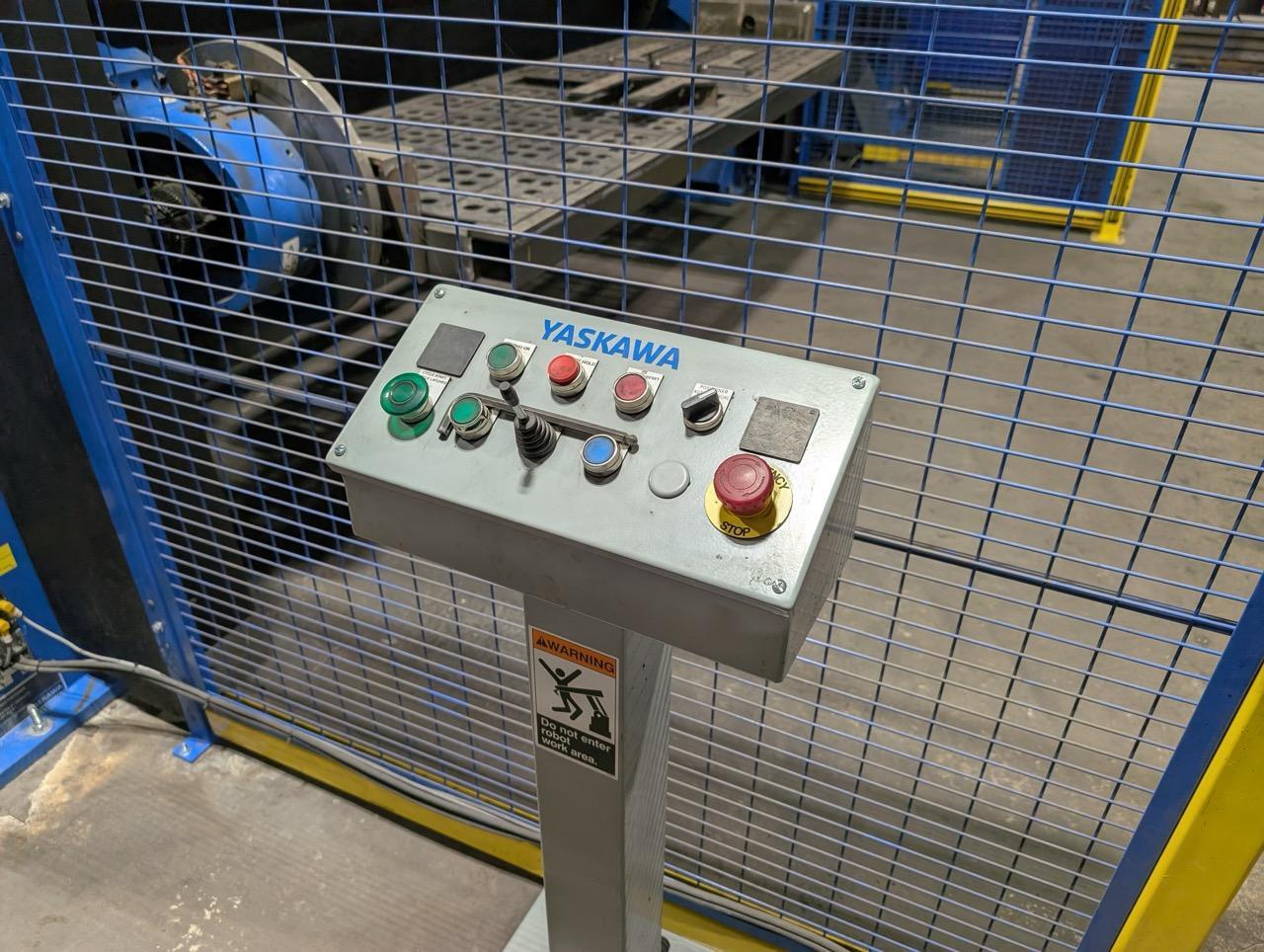

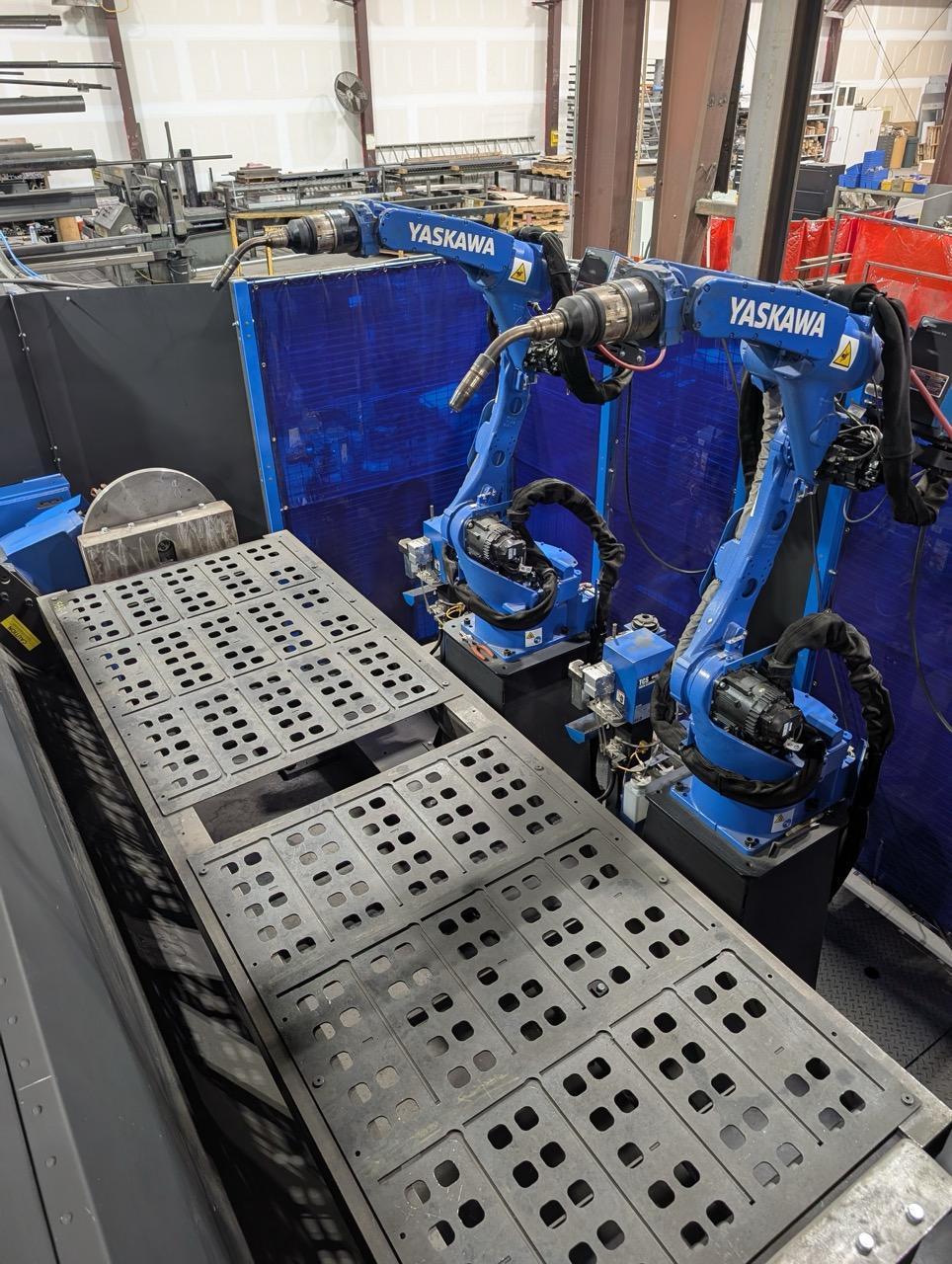

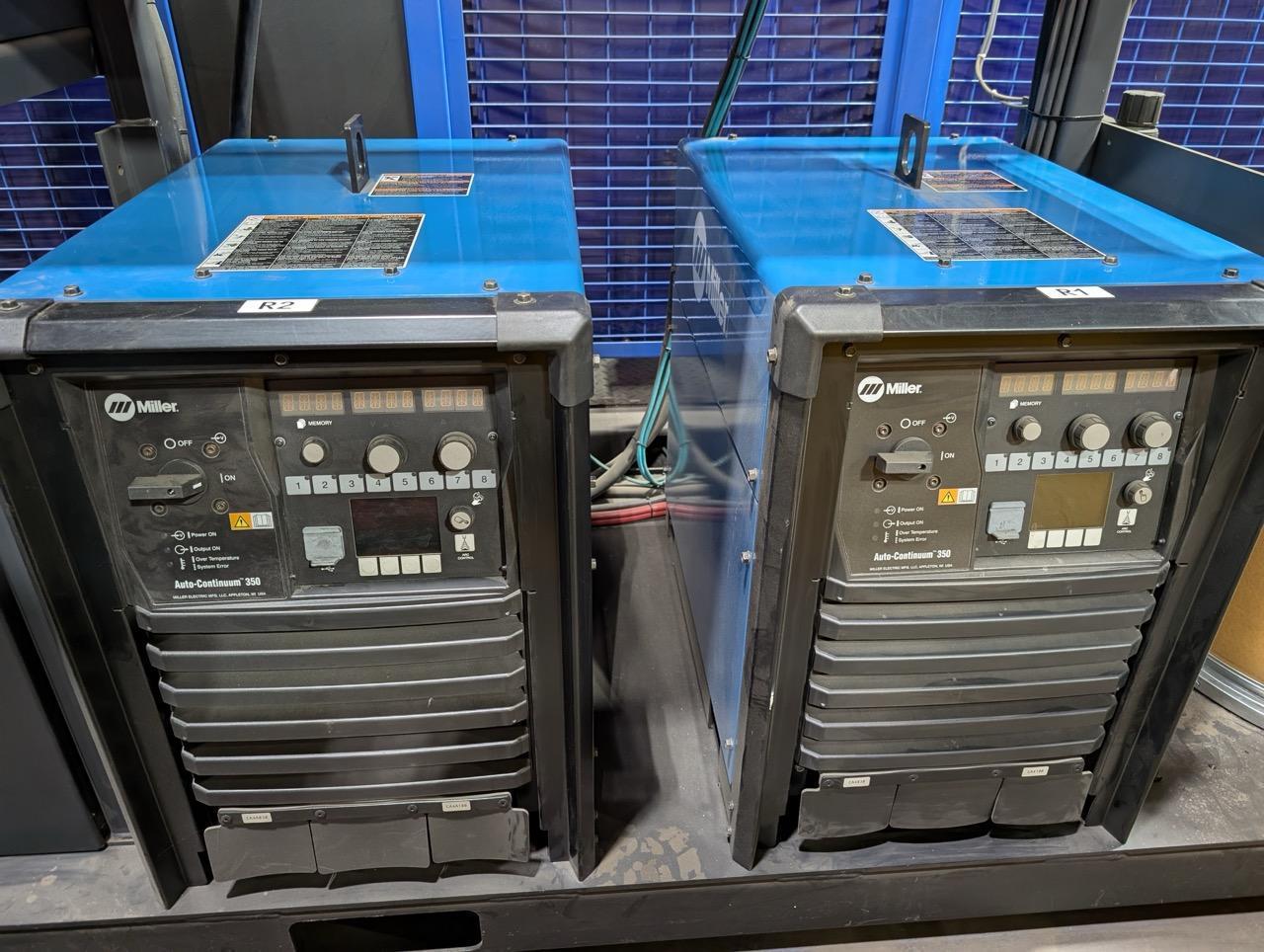

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,2 AR1440 Robots RM2-750 Positioner Fence Kit Operator Pedastal Pneumatic Valve Kit Miller Auto Continuum 350 Power Source (2) Miller Wire Feeders (2) Torch Cleaner

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
