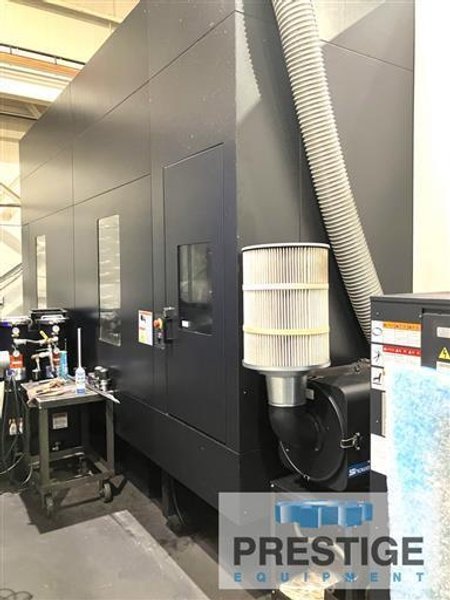

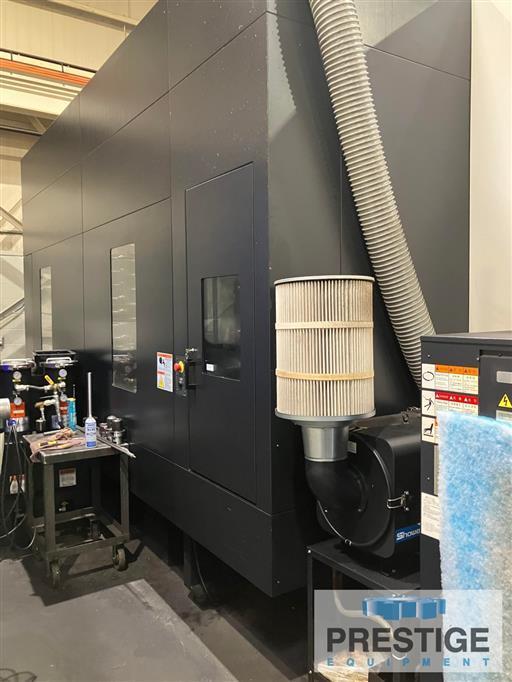

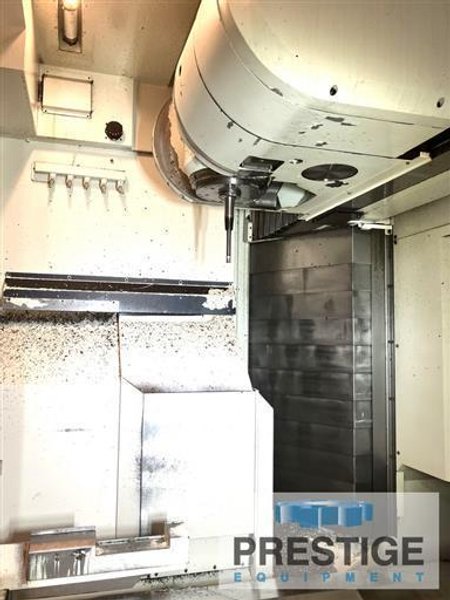

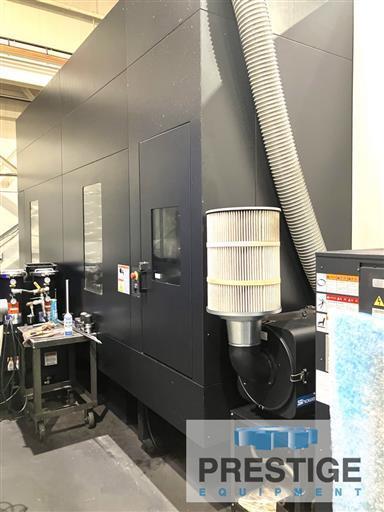

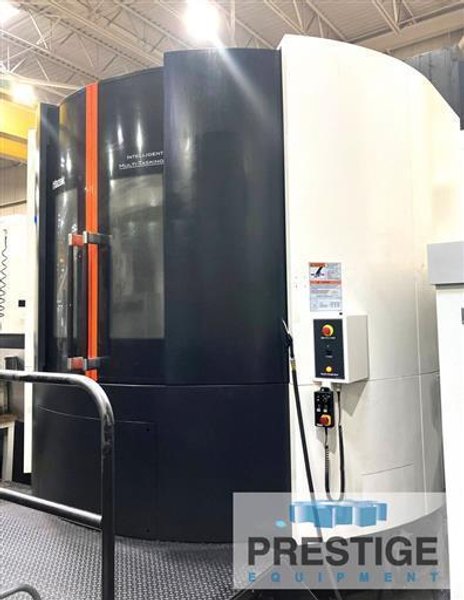

Mazak Vortex e1060-V/8 5-Axis Machining Center

Specifications:
X-Axis 73.82"
Y-Axis 41.73"
Z-Axis 52.95"
B-Axis, 150 Degree (Contouring) -30 Deg. to 120 Deg.
C–Axis .001 Deg.
Pallets (2), 39.4" x 39.4"
Work piece Dimensions 49.21" X 49.21"
Weight Capacity 4784 pounds
Milling Spindle Speed 10,000 RPM / 2 Windings
Spindle Taper CAT 50
Horsepower 50 Int. / 40 Cont.
Horsepower 50 Int. / 40 Cont.
Tool Changer Capacity 120 ATC
Tool Diameter 5.31" / 10.24"
Tool length 19.69"
Tool Weight 66 Pounds
Rapid Traverse X, Y, Z Axis 1653 IPM
B Axis 30 RPM
C Axis 25 RPM
Machine Weight 85,800 pounds



Equipped With:

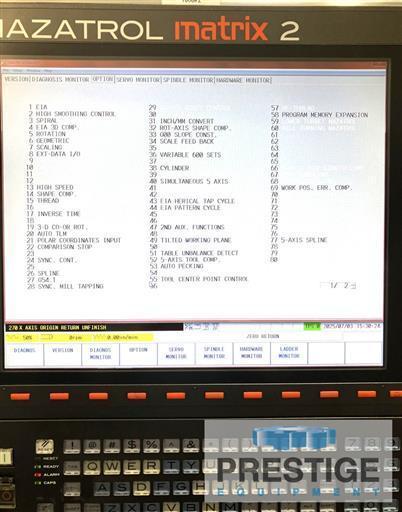

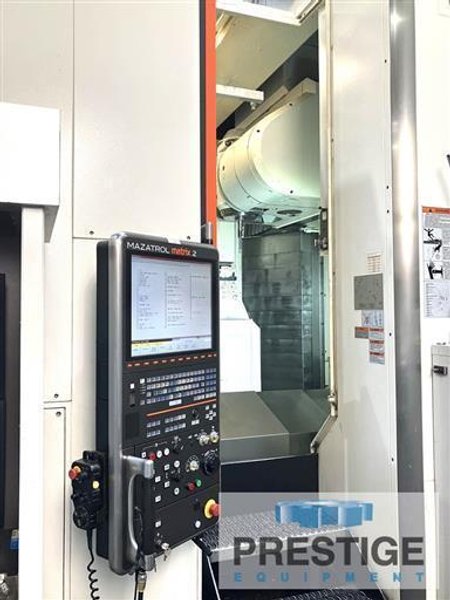

Mazatrol Matrix 2 CNC conversational control w / 15" display

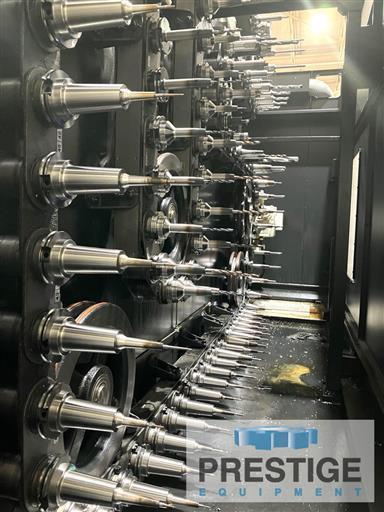

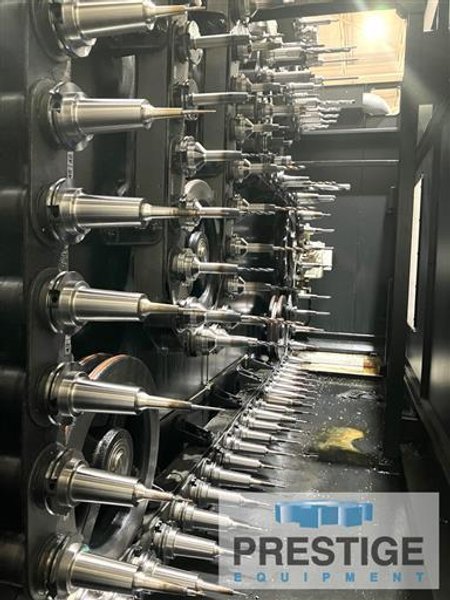

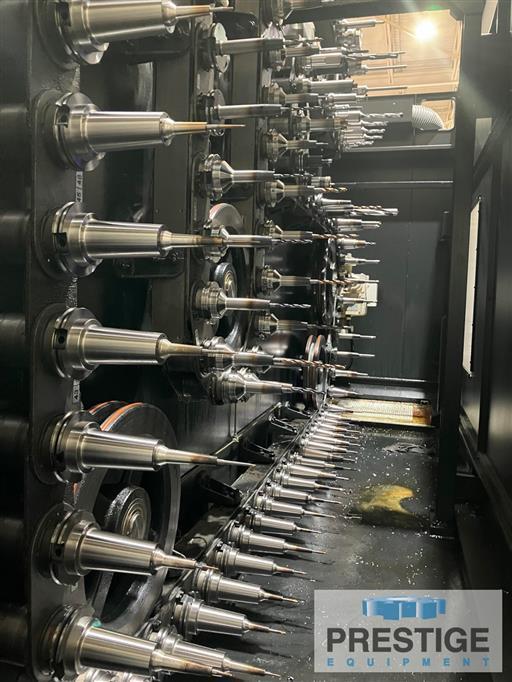

120-Station Automatic Tool Changer
2-Station Automatic Pallet Changer

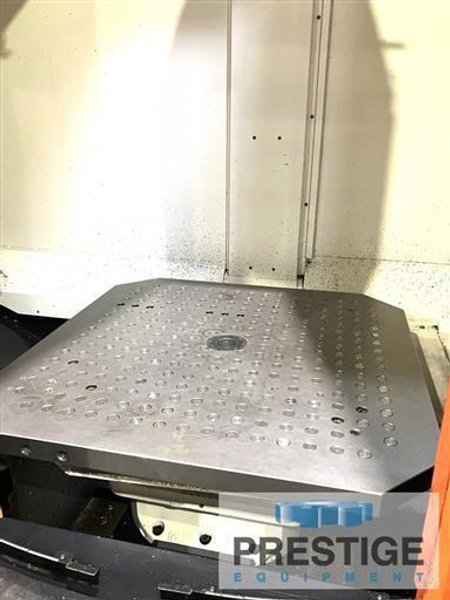

(2) 39" Square Pallets

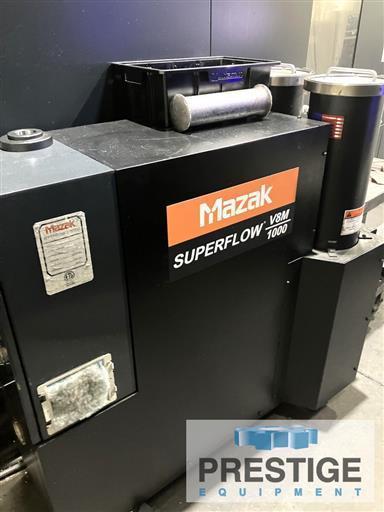

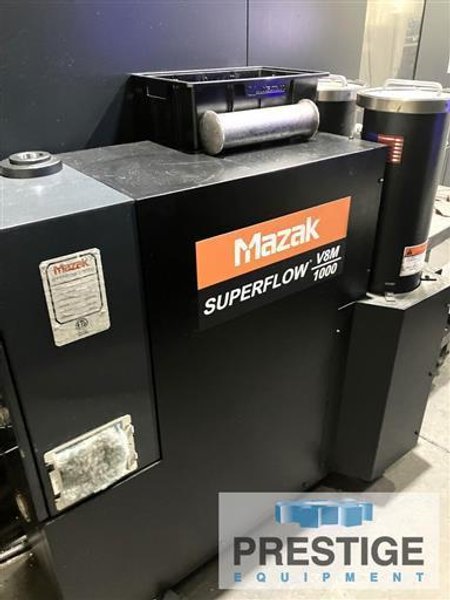

1000 PSI high pressure coolant through spindle w / Mazak Superflow V8M Pump
Manual pulse generator
Automatic Tool eye
Heidenhein linear scales X, Y, Z
Renishaw NC4 laser tool measurement
Renishaw H/V OMP60 probe
ConSep chip conveyor system
Coolant washdown at operator and pallet load stations
