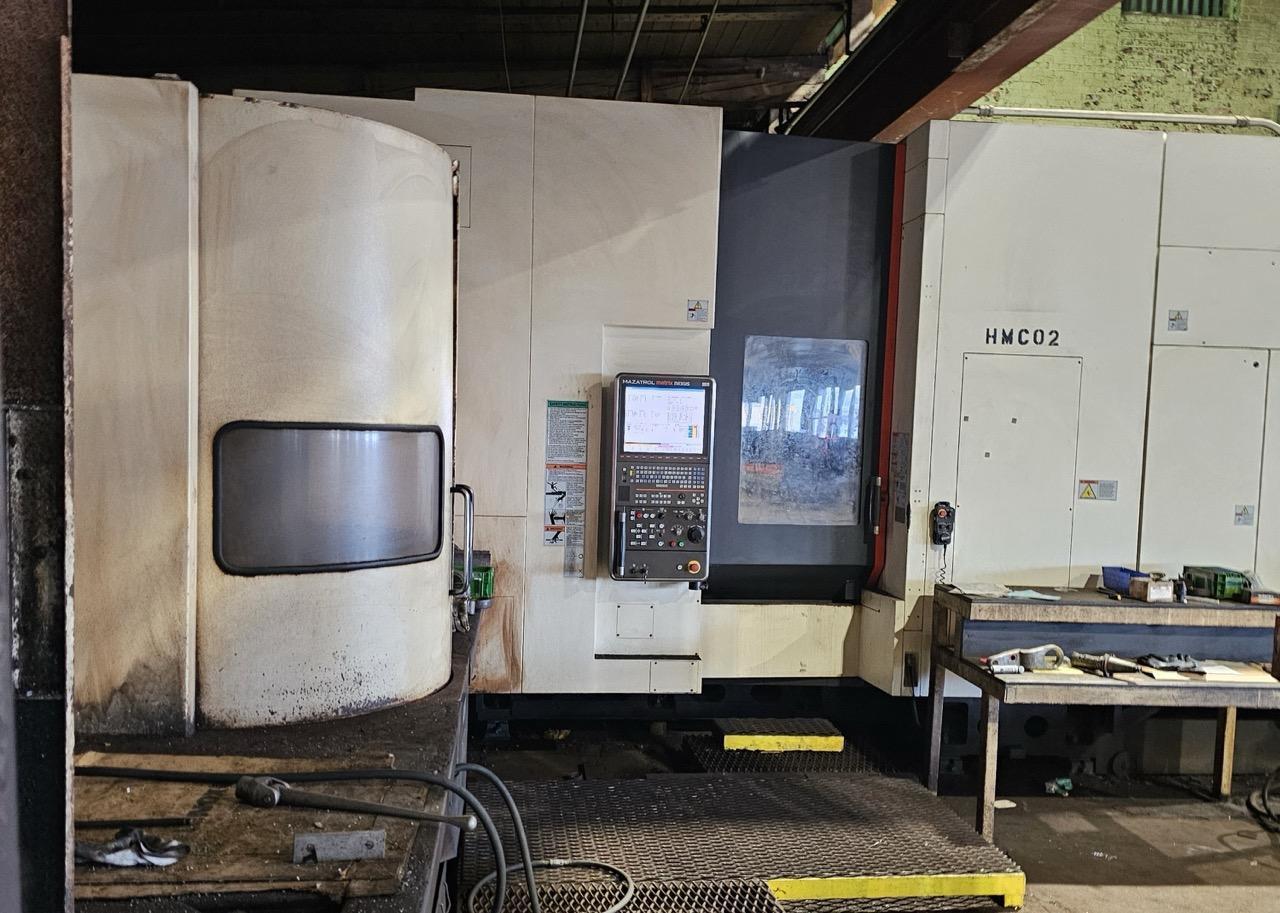

Mazak Nexus 6800-II HMC, 2012 – 8 Pallet System, Probing, TSC

Pallet Size: 24.8″ x 24.8″ X Axis Travel: 41.3″ Y Axis Travel: 35.4″ Z Axis Travel: 38.5″ ATC: 120 Spindle Speed: 8,000 RPM Spindle Motor: 50 HP Spindle Taper: 50 Machine Weight: 47,500 LBS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

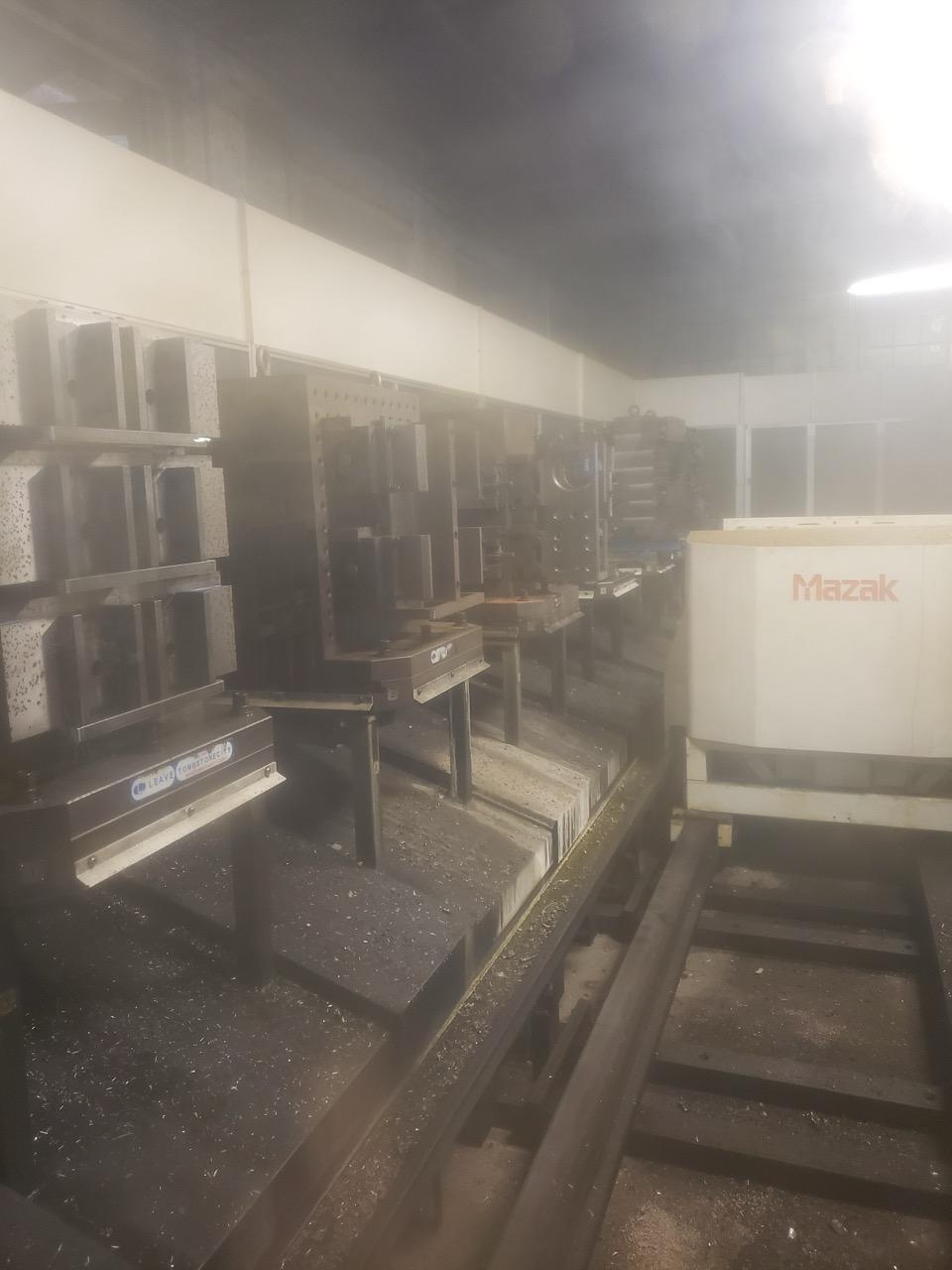

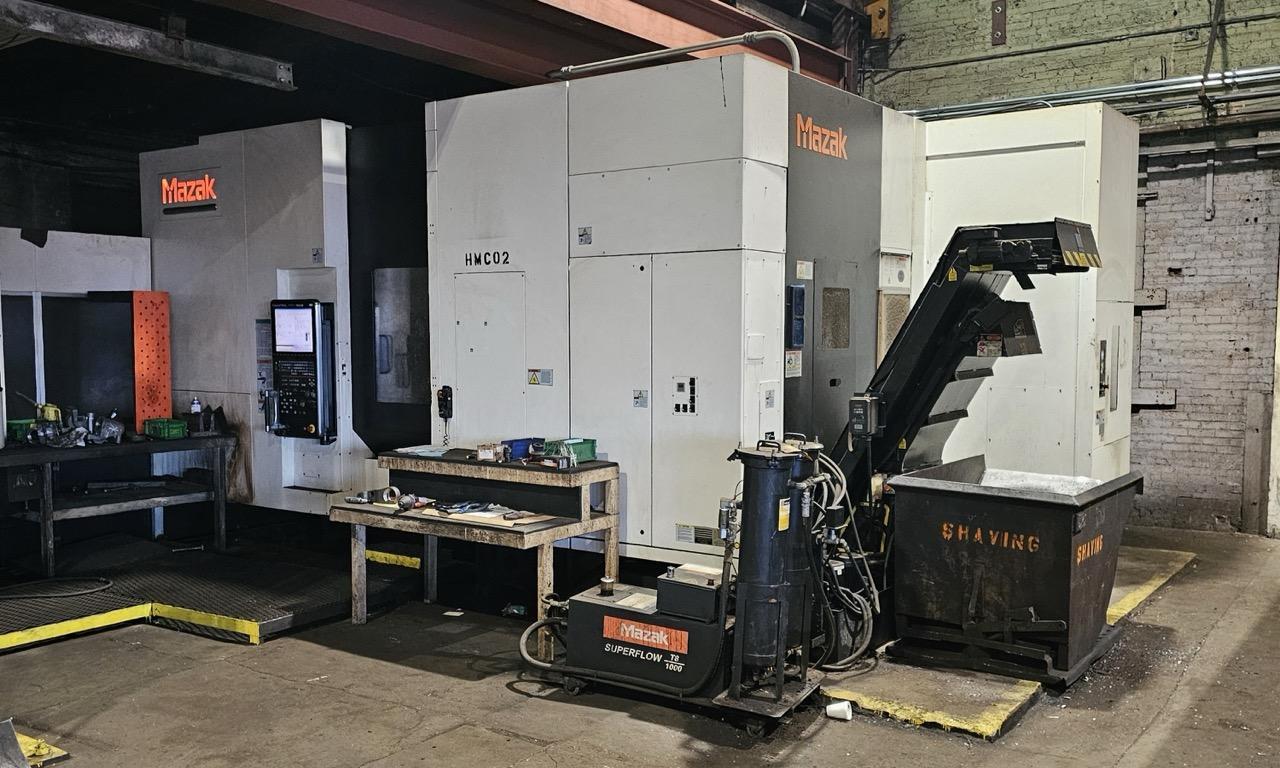

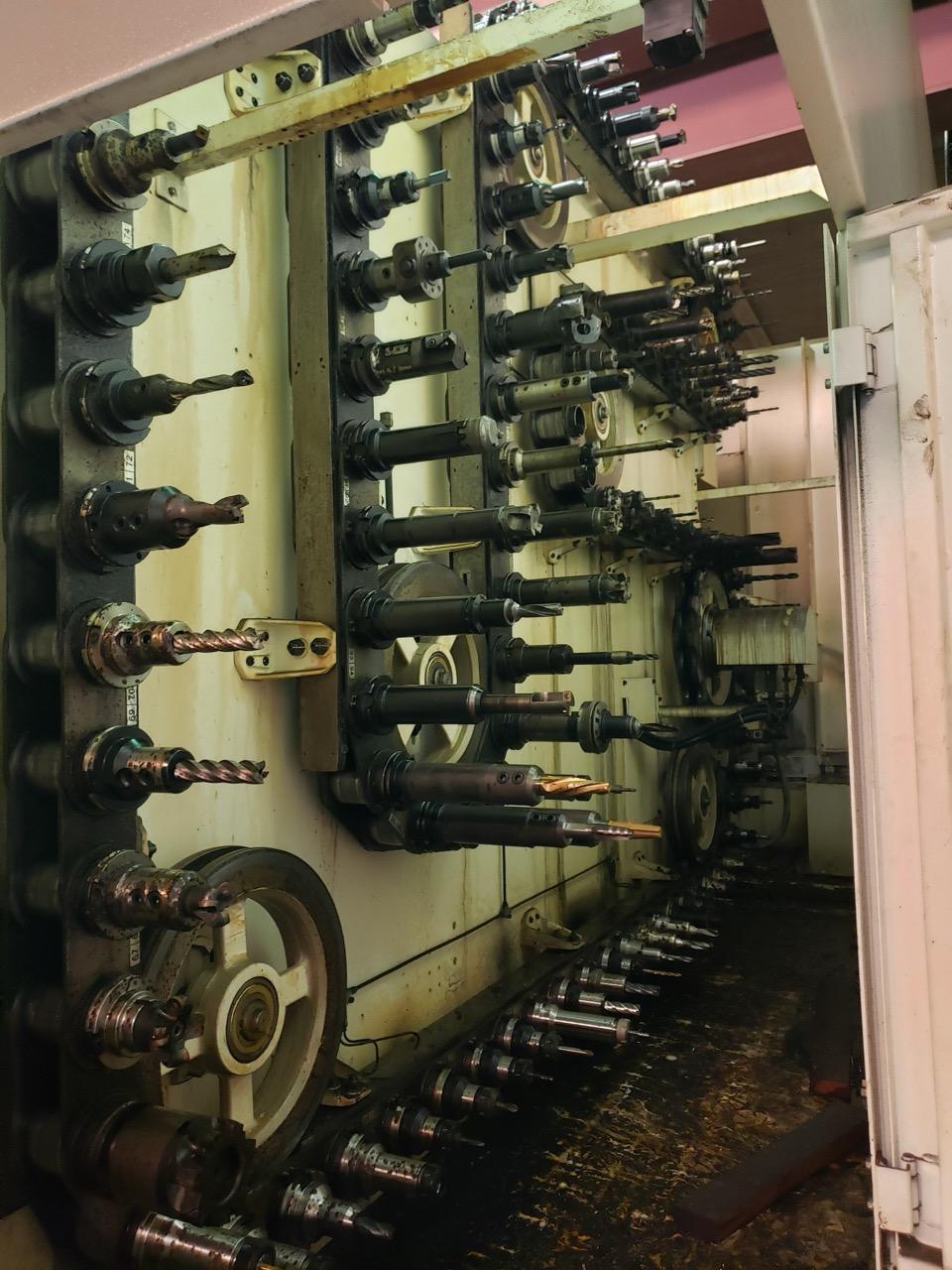

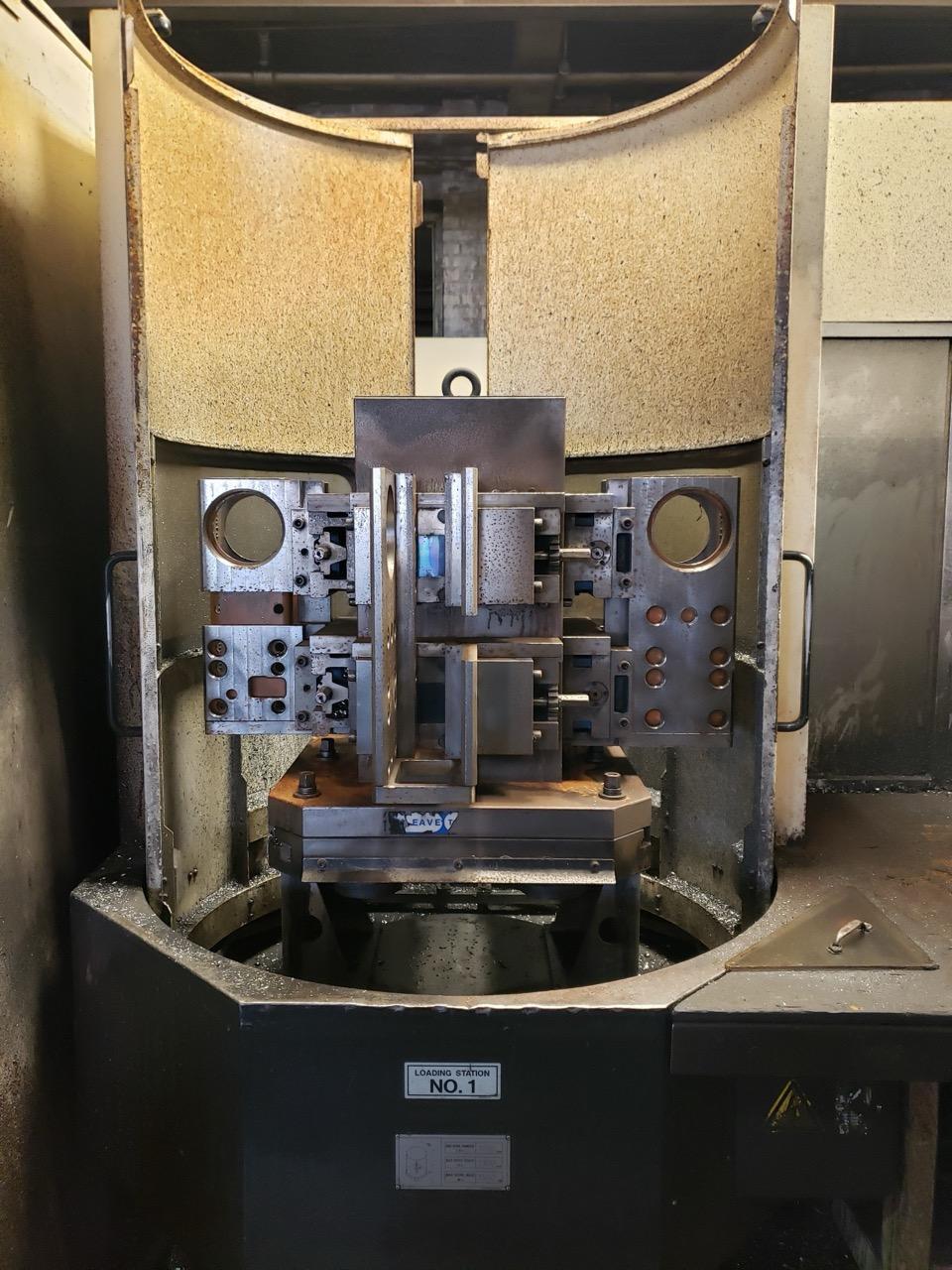

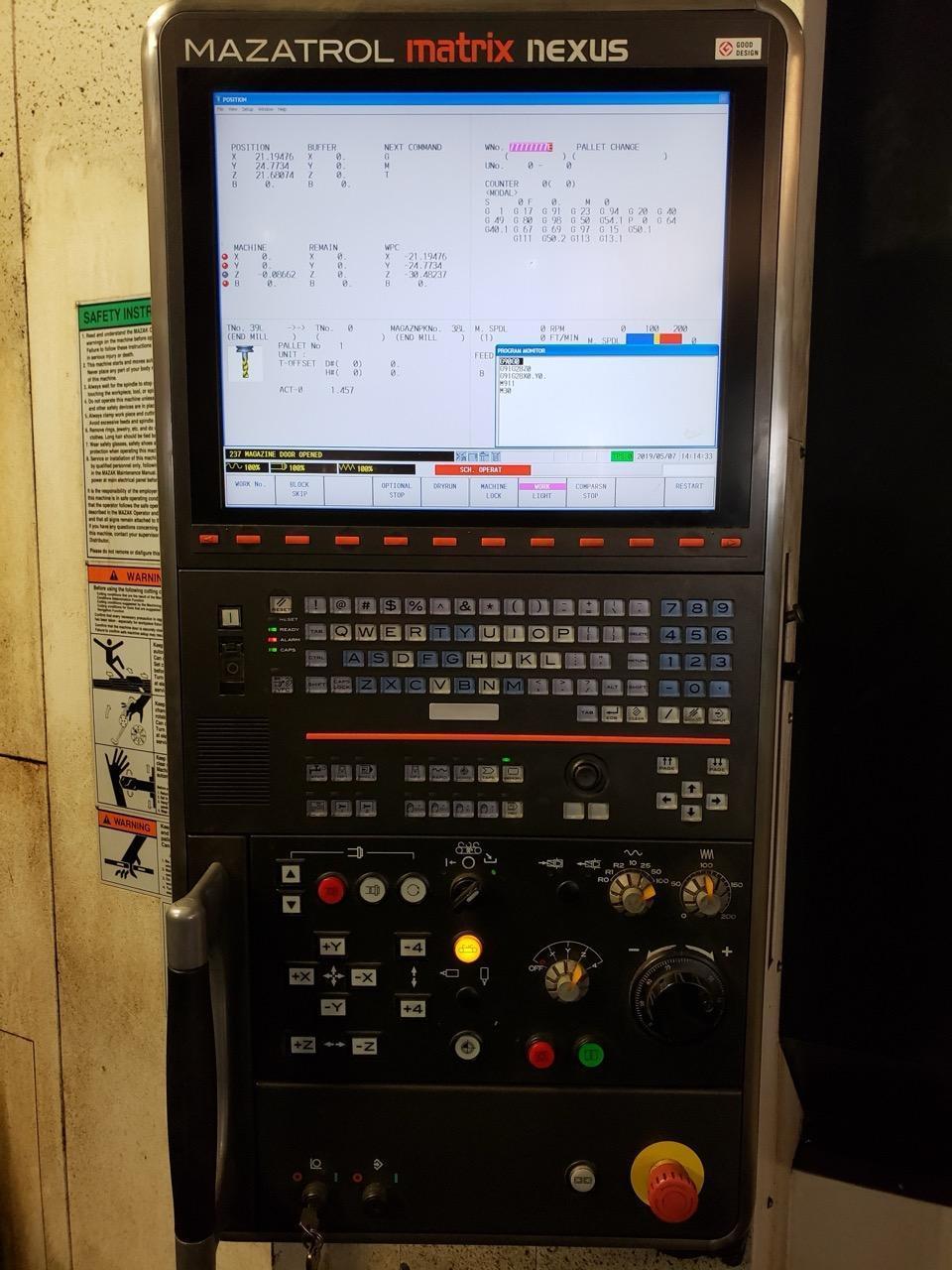

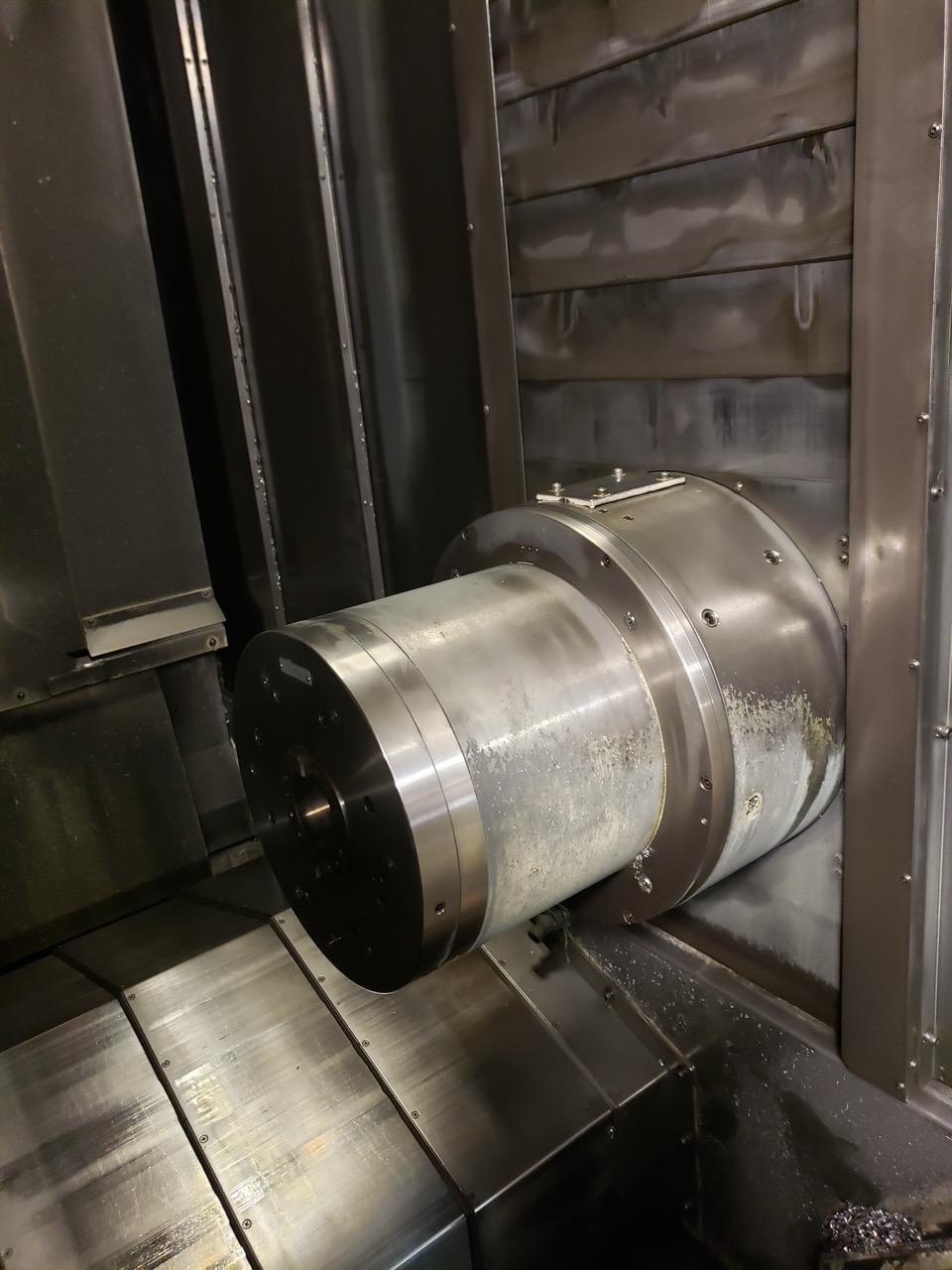

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Mazatrol Matrix Nexus Control Hi torque spindle – 1218NM/8000 RPM AC50HP 120 Tool Chain Magazine Workpiece Air Blast Renishaw (OMP60M) Probe System 360,000 Position NC Rotary Table Auto-peck with load detection Dynamic Compensation 2 Chip Conveyor (CONSEP 2000 Dual Belt Rear Discharge) Mayfran Variable Speed inverter Mazak Super Flow T8 High Pressure Coolant – 1000 PSI/8GPM TSC Pressure switch HCN6800 Palletech Manufacturing Cell/PCN 6800 (8 pallet stations) B: AAD. 2 Operator Load Stations/Scheduling System

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
