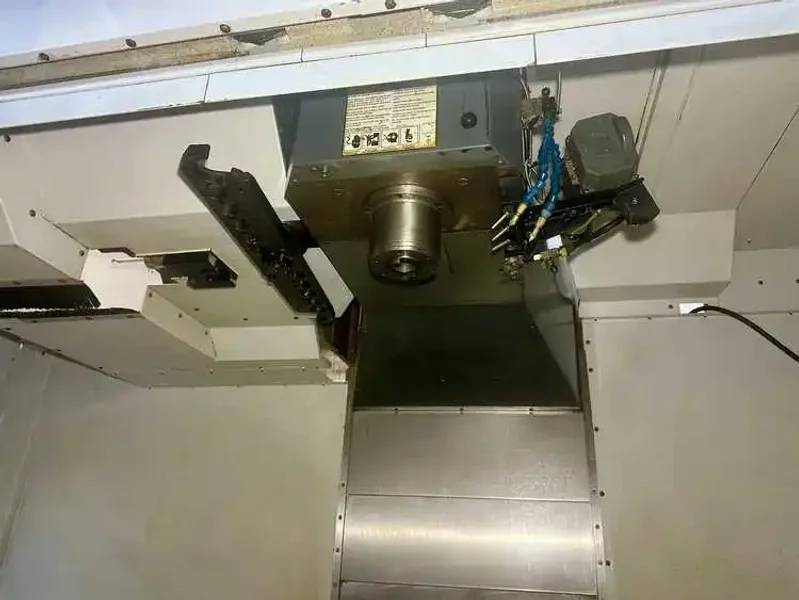

2014 HAAS VF-8/40 | Machining Centers, Vertical

Haas VF-8 CNC Vertical Machining Center
New: 2014

Specifications:
# Axis 3
Table-L 64"
Table-W 36"
Max Table Load Capacity 4,000 lb
X-Axis (Longitudinal Travel) 64"
Y-Axis (Cross Travel) 40"
Z-Axis (Vertical Travel) 30"
Tabletop to Spindle Nose 4" - 34"
Feed Rates (X, Y, & Z Axis) 600 in/min.
Rapid Traverse Rate 600 in/min.
Spindle Power 30 hp
Max Spindle Speed 8,100 RPM
Spindle Taper CAT 40
Torque, Up To 90 FT-LBS @ 2000 RPM
Automatic Tool Changer 24+1 ATC Sidemount
Tool Change Time 2.8 sec.
Electrics 240/3/60
Dimensions 193" x 120" x 130"
Weight 24,800 lbs

Equipped With:
Haas CNC Control
Rigid Tapping
24+1 Tool Changer
Tool Touch Probe
Setup for Part Probe (Probe non functional)
Programmable Coolant Nozzle
Chip Auger
Tool Holders Included
Coolant System
