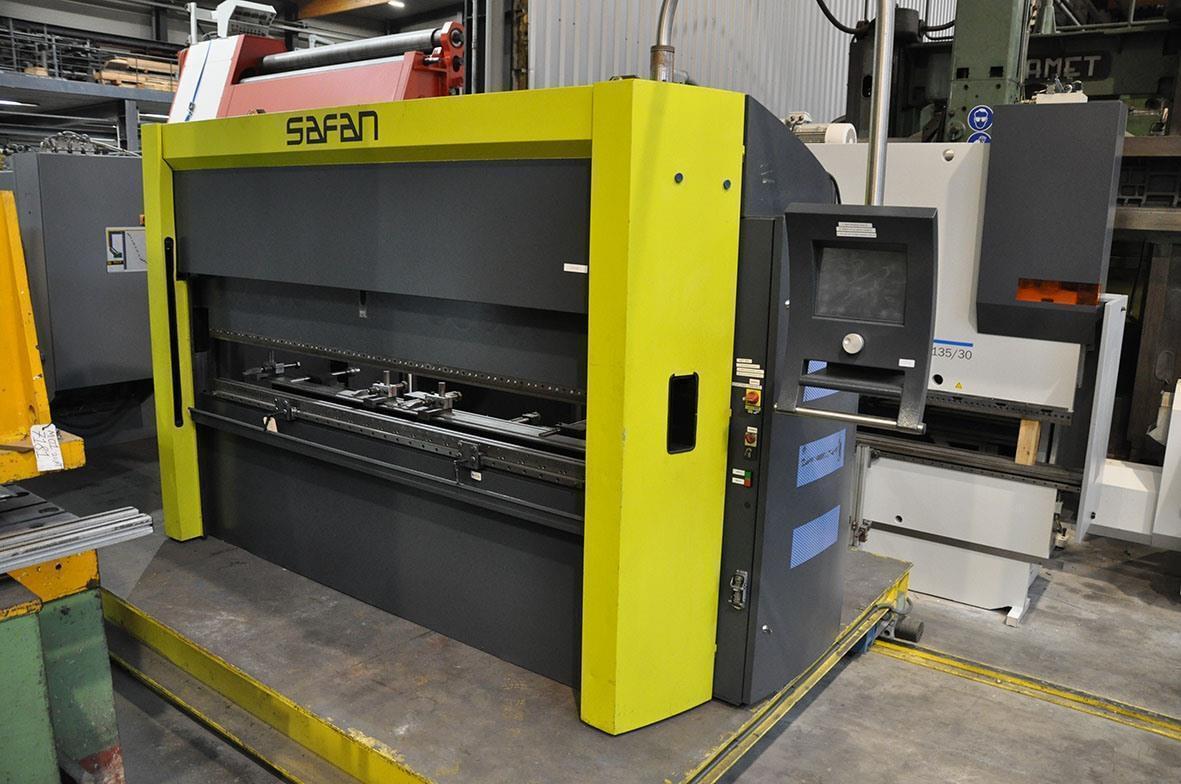

Safan E-brake - 50 ton x 2550 mm CNC

Brand
SAFAN
Category
Bending & Forming Equipment
Type
Hydraulic Press Brakes
Model
50 ton x 2550 mm CNC
Stock #
O.01 16074
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Located in Deinze, Belgium

Technical information

  • Capacity 50 ton x 2550 mm
  • Backgauge CNC

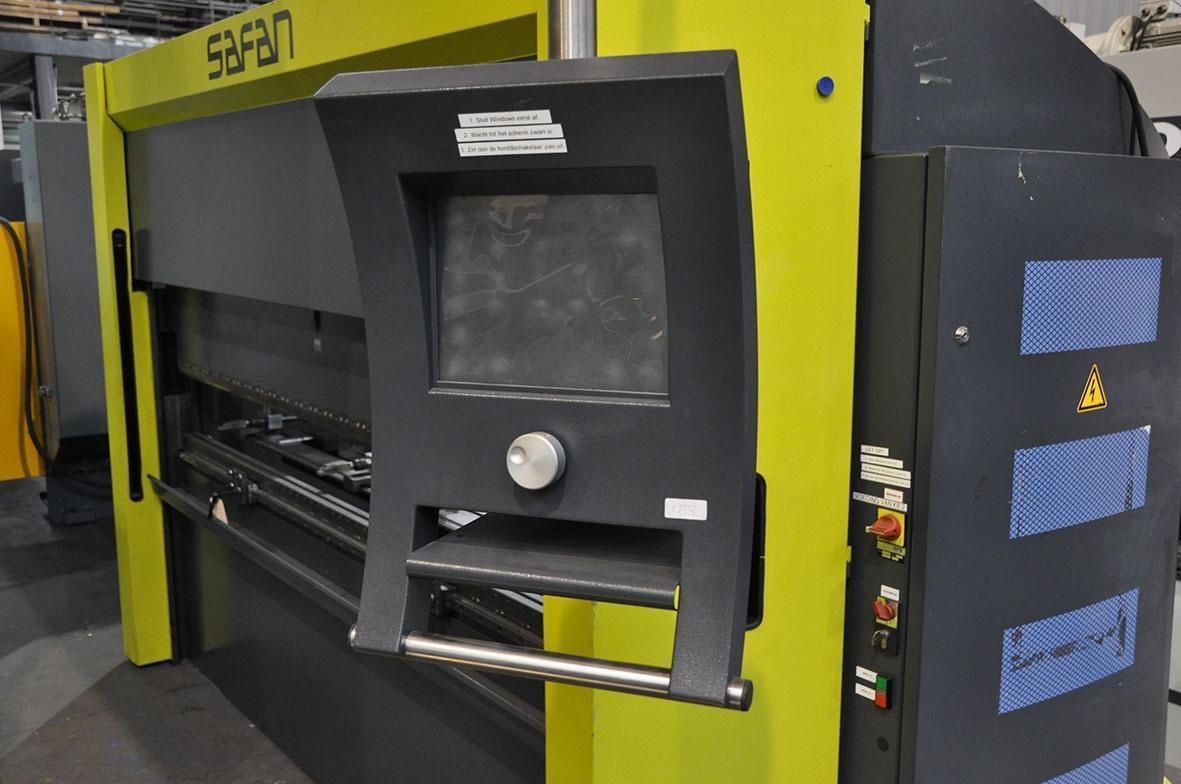

  • Control TS1 Touch
  • Passage between uprights 2550 mm
  • Max stroke 265 mm
  • Max distance between table -- ram415 > 575 mm (variable)
  • Locking speed 90 mm/sec
  • Working speed 20 mm/sec
  • Returning speed 90 mm/sec
  • Electric motor (power) 9 kW
  • Length 3400 mm
  • Depth 1850 mm
  • Height 2260 mm
  • Weight 6 ton

Additional info

  • upper & lower Wila/Modufix tooling
    7 axes: Y1 / Y2 / Y3 / X / X' / R / Z1 / Z2
    Y3 = lower table adjustable in height
    The lower table also acts as flattening die (pneumatic)
    There is also (electric) deflection compensation in the lower table
