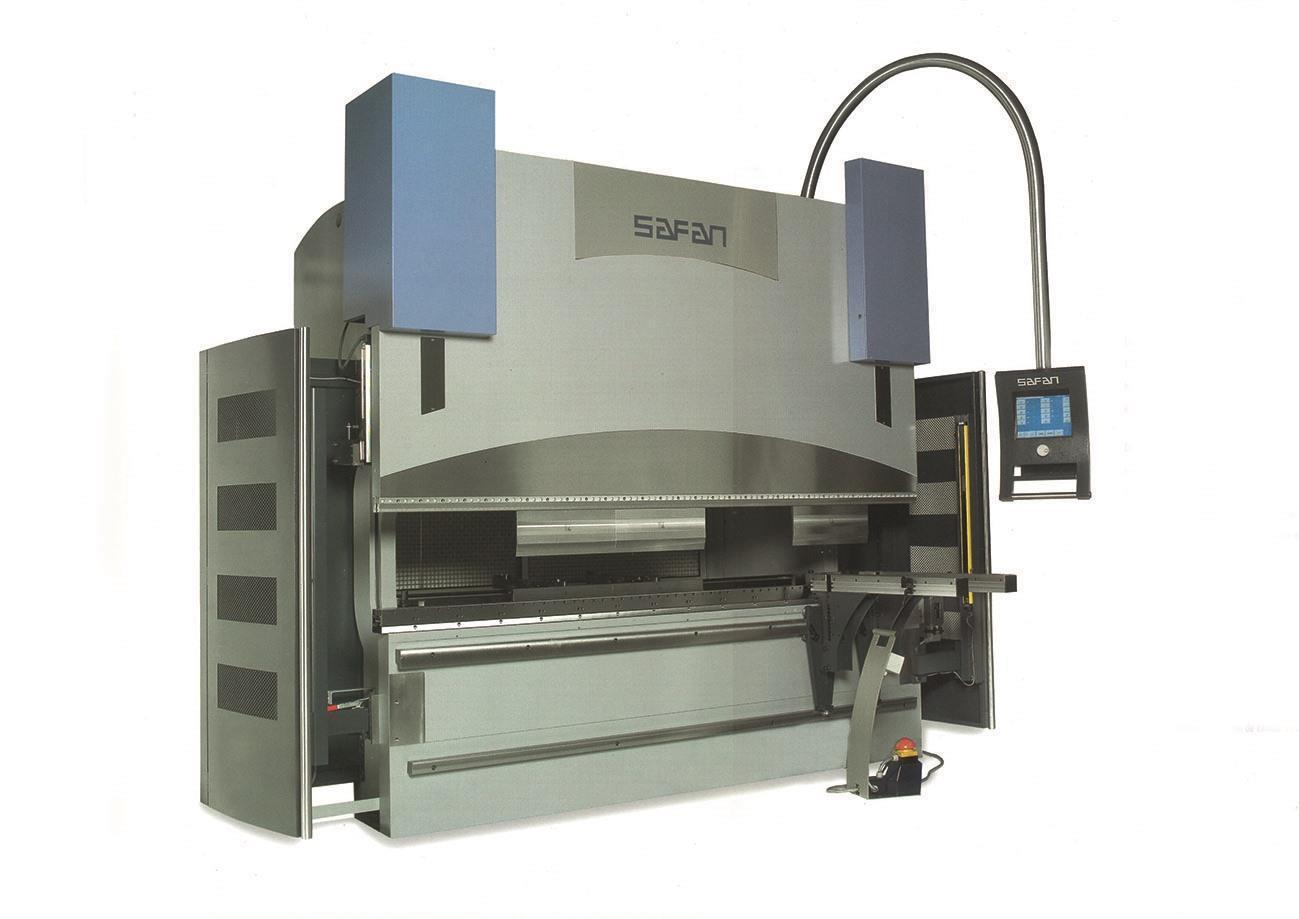

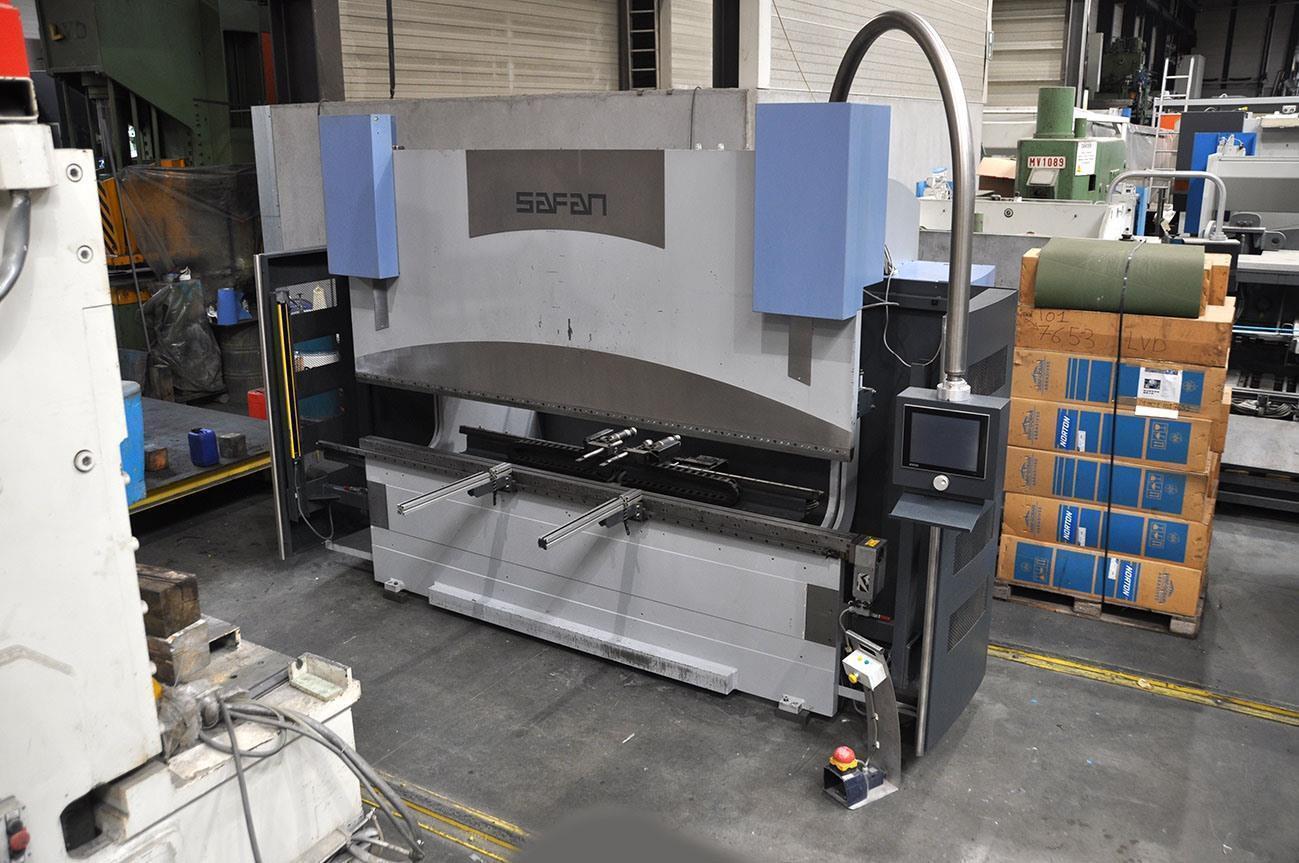

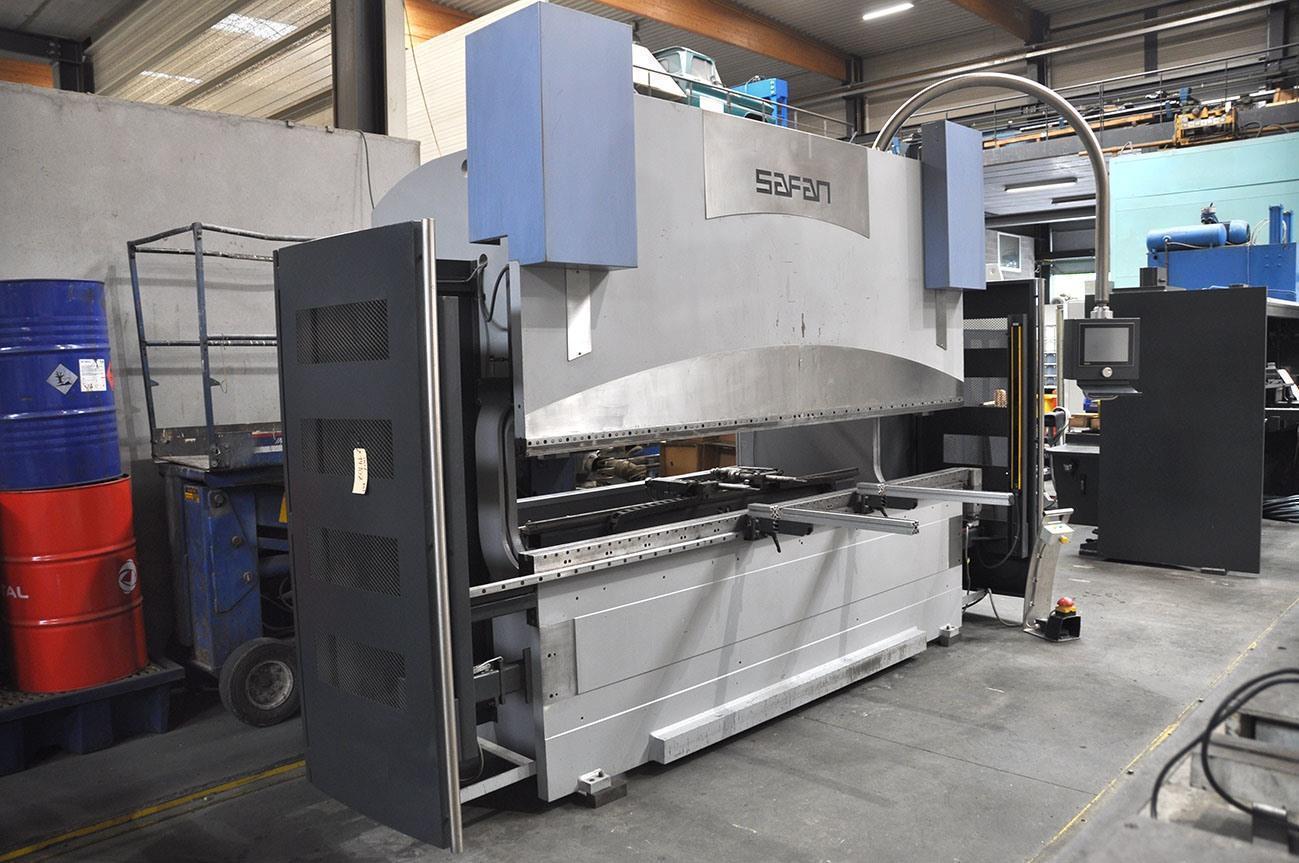

Safan CNCL-K - 80 ton x 3100 mm CNC

Brand
SAFAN
Category
Bending & Forming Equipment
Type
Hydraulic Press Brakes
Model
80 ton x 3100 mm CNC
Stock #
O.01 14107
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Located in Deinze, Belgium

Technical information

  • Capacity 80 ton x 3100 mm

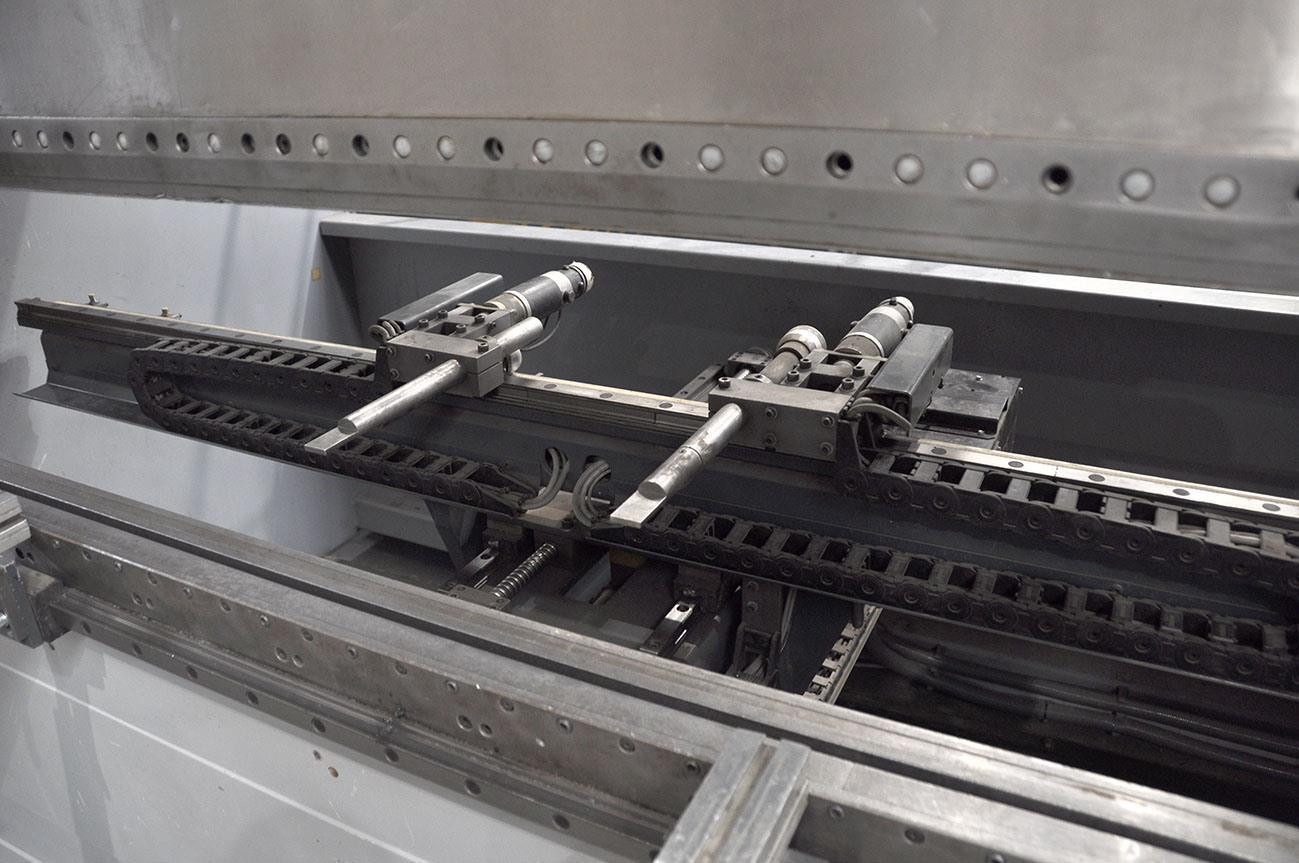

  • Backgauge CNC

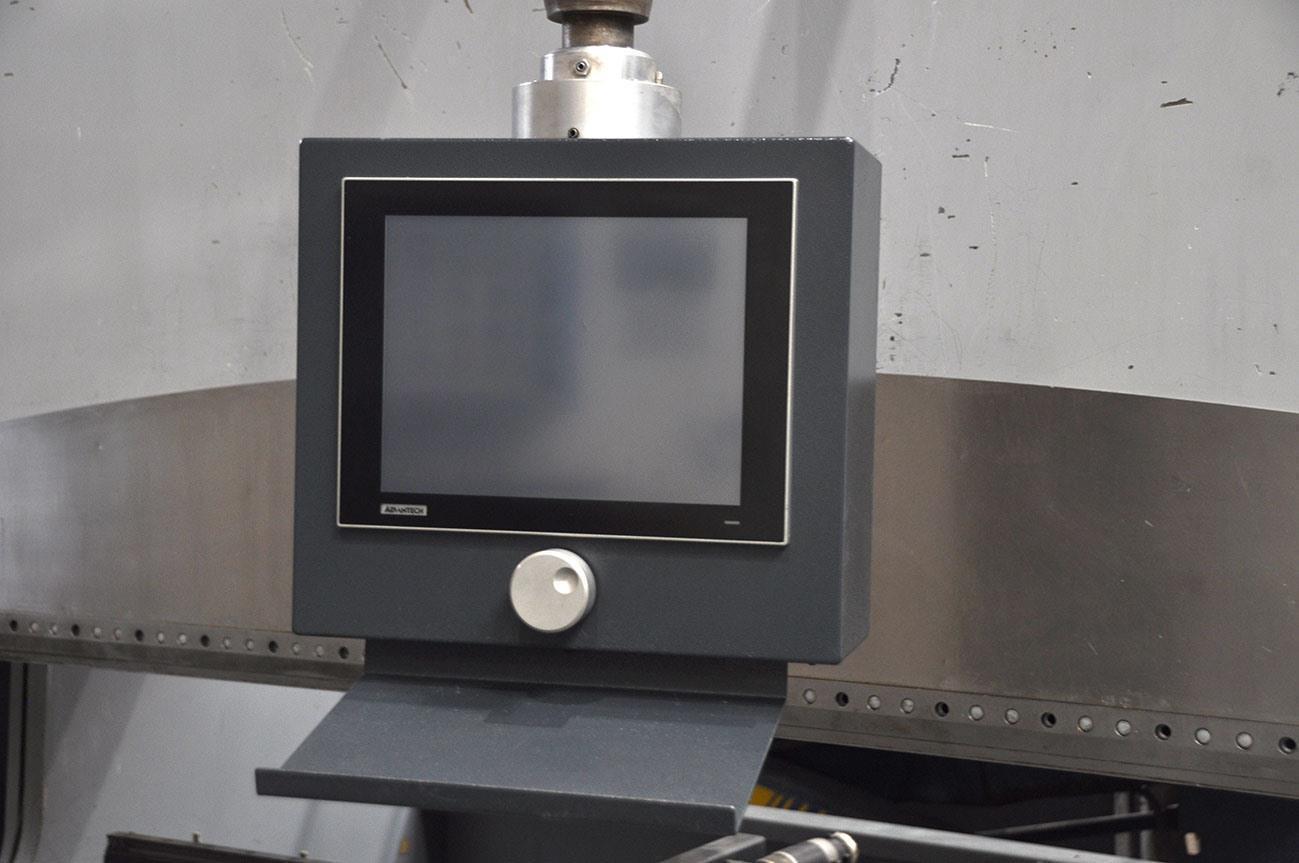

  • Control TS1 touchscreen
  • Passage between uprights 2550 mm
  • Max stroke 240 mm
  • Max distance between table -- ram 420 mm
  • Depth of throat 400 mm
  • Table width 90 mm
  • Locking speed 300 mm/sec
  • Working speed 10 mm/sec
  • Returning speed 120 mm/sec
  • Electric motor (power) 5,5 kW
  • Length 4300 mm
  • Depth 1800 mm
  • Height 3160 mm (with arm)
  • Weight 7,5 ton

Additional info

  • 7 axes: Y1 / Y2 / X /  R / Z1 / Z2 / V
    wila / modufix / standard tooling

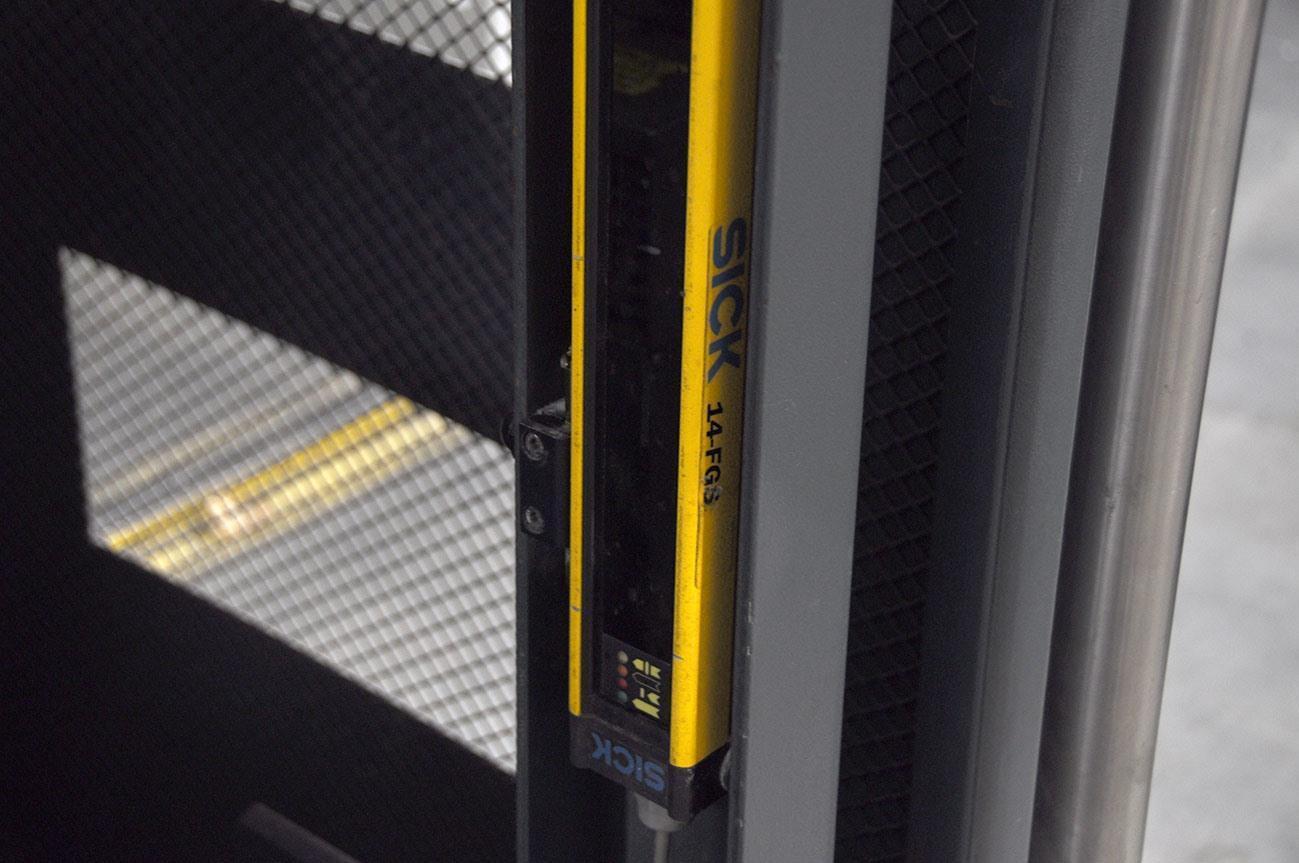

    sick laser security
    enlarged stroke of 240 mm
    enlarged depth of throat of 400 mm
