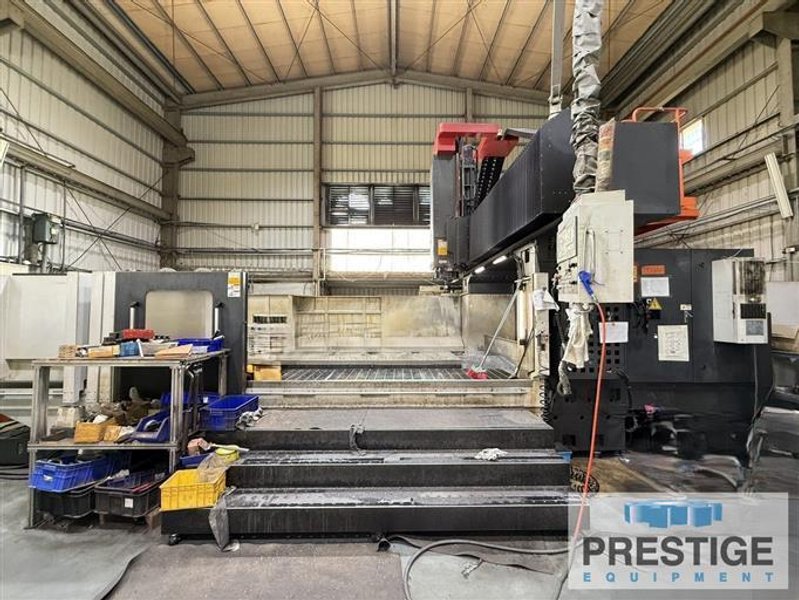

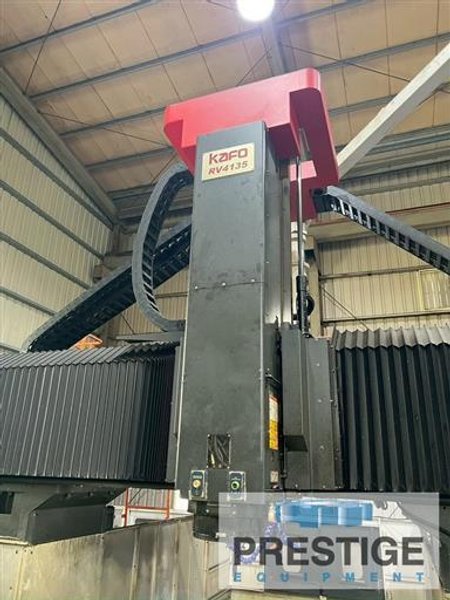

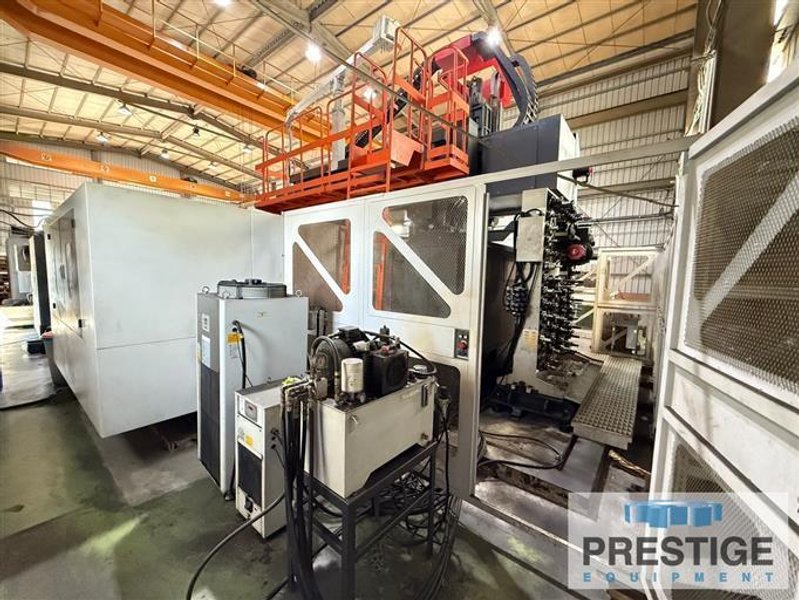

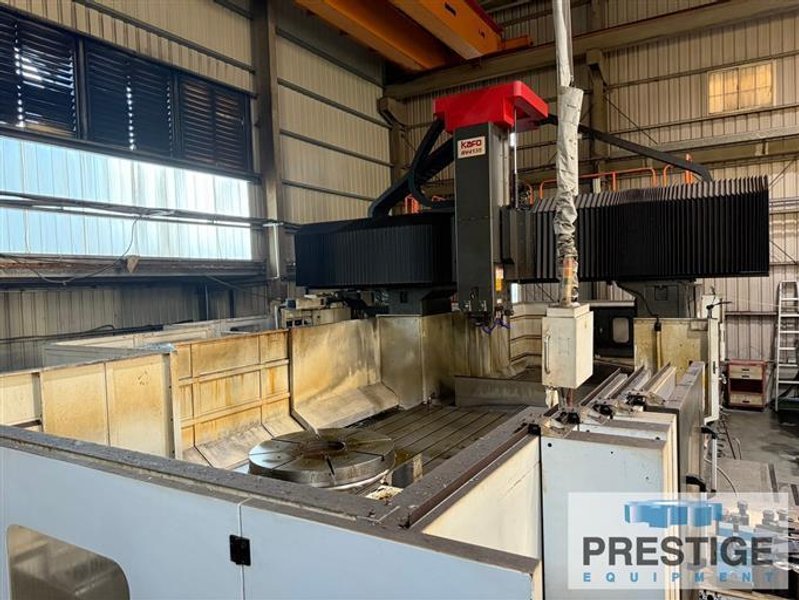

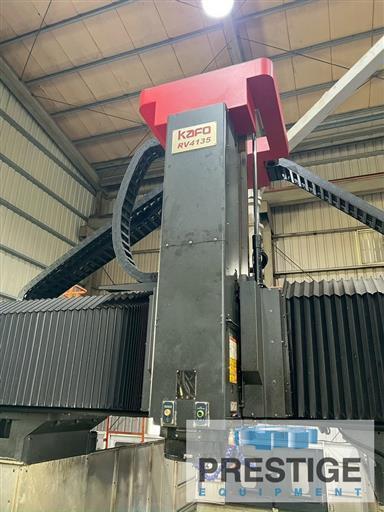

KAFO RV-4135 5-Face Double Column Machining Center

KAFO RV-4135 5-Face Double Column Machining Center

Name: Used KAFO RV-4135 5-Face For Sale 44464
Brand: KAFO
SKU: 44464
Availability: PreOrder

Brand

KAFO

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

CAPACITY:
Table Size 157.48" x 82.67"
Table Capacity 37,400 Lbs.
Distance Between Columns 106.29"
X-Axis Travel (Table Longitudinal) 161.41"
Y-Axis Travel (Head) 137.79"
Z-Axis Travel (Spindle) 43.30"
Distance From Spindle Nose to Table 7.87"-51.18"
Spindle Speeds 10,000 RPM
Spindle Taper BT-50
Spindle Drive Motor 60 HP/49 HP
Approximate Dimensions 425" x 307" x 226"
Machine Weight 104,500 Lbs.

Equipped With:
Fanuc Oi-MF CNC Control with 10.4" LCD
60-Station Automatic Tool Changer

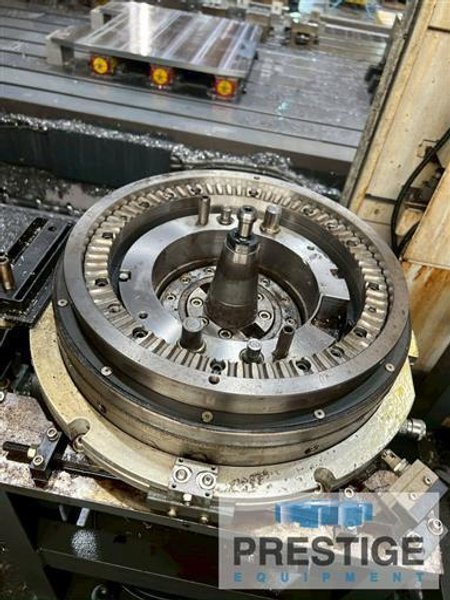

Auto Head Storage with 90 Degree Head
Universal Head (3,500 RPM w/ 5 Deg. Indexing)

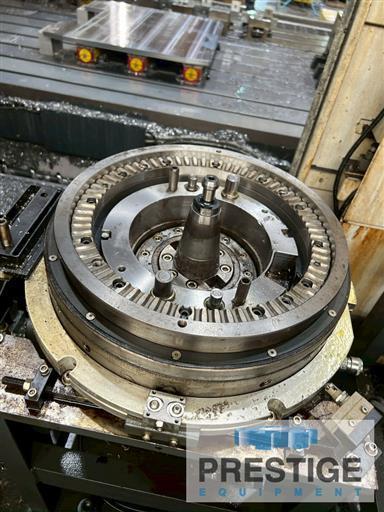

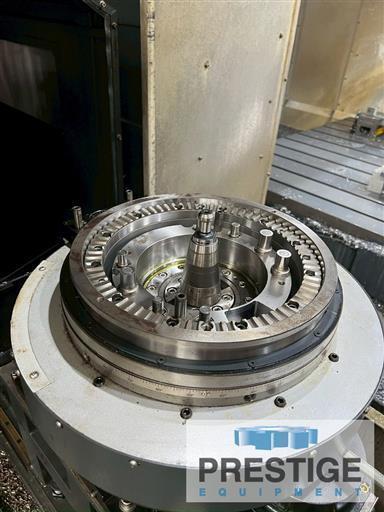

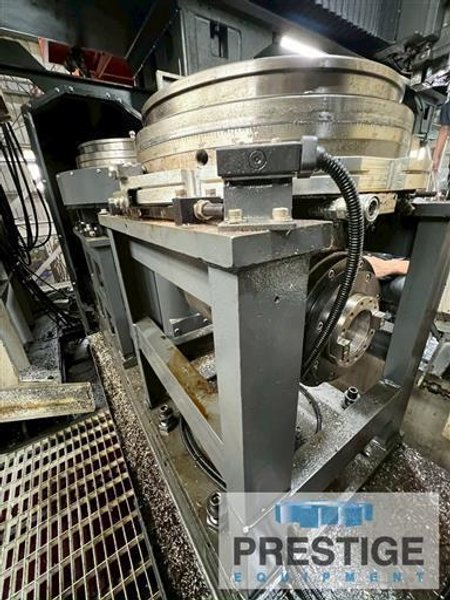

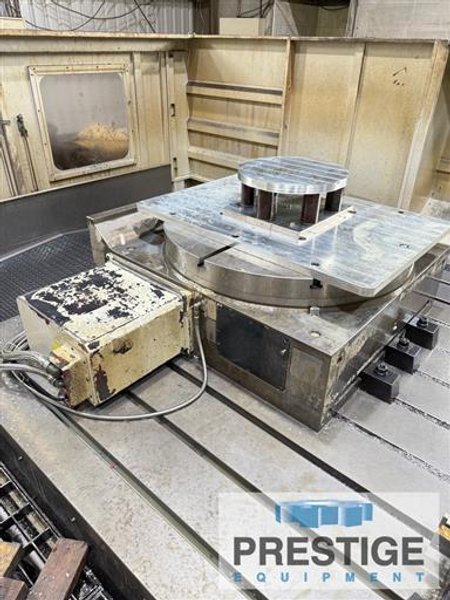

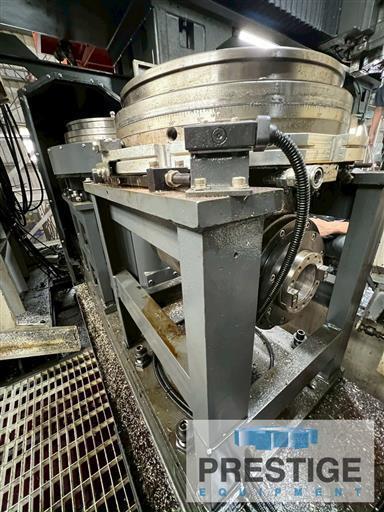

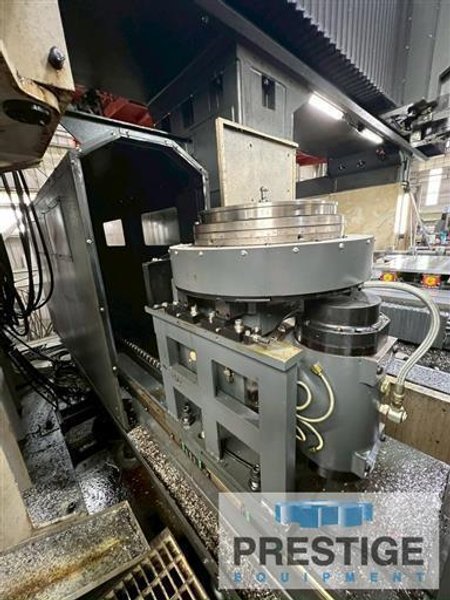

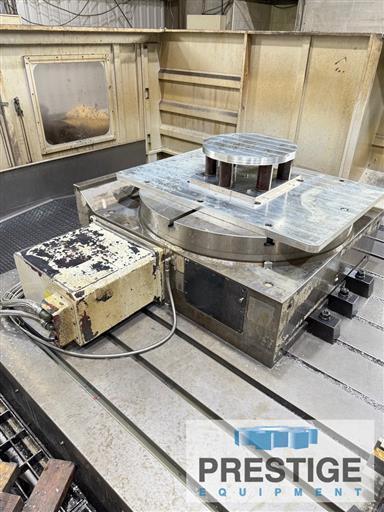

4th Axis Rotary Table (NCT-B-1000R)
X/Y/Z Linear Scales
Air Thru Spindle
Chip Conveyor

NOTE: Inspect In Plant Under Power
