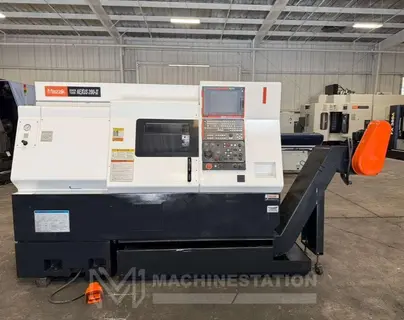

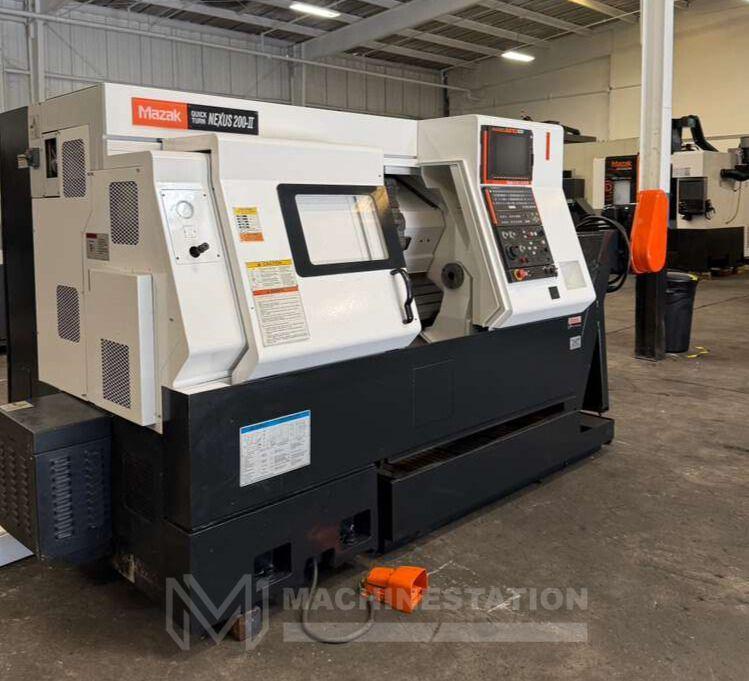

Mazak QTN 200-II CNC Turning Center – 8″ Chuck Tool Presetter Tailstock Lathe

Mazak QTN 200-II CNC Turning Center – 8″ Chuck Tool Presetter Tailstock Lathe

Name: Used MAZAK Mazak QTN 200-II For Sale 112842
Brand: MAZAK
SKU: 112842
Availability: PreOrder

Brand

MAZAK

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Mazak
Model:	QTN 200-II
Year:	2008
Condition:	Used – Good

Equipped With:

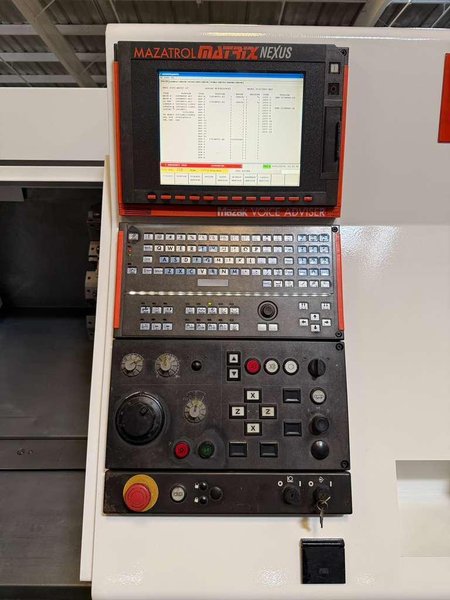

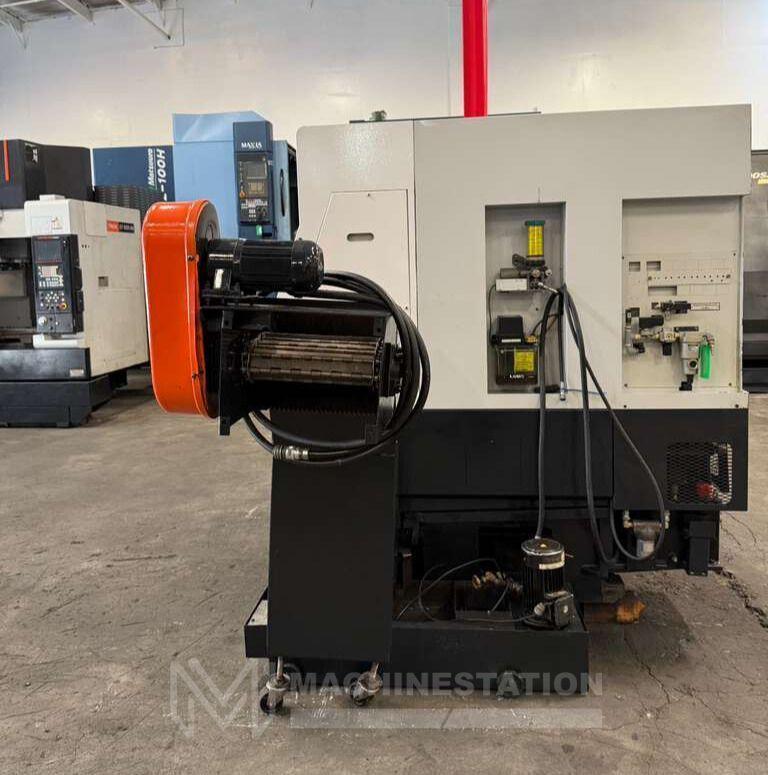

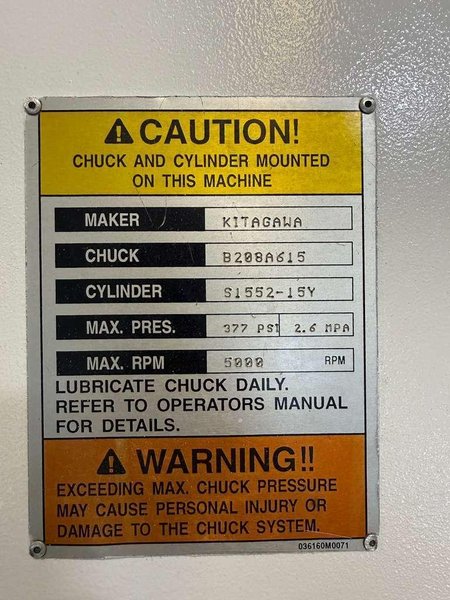

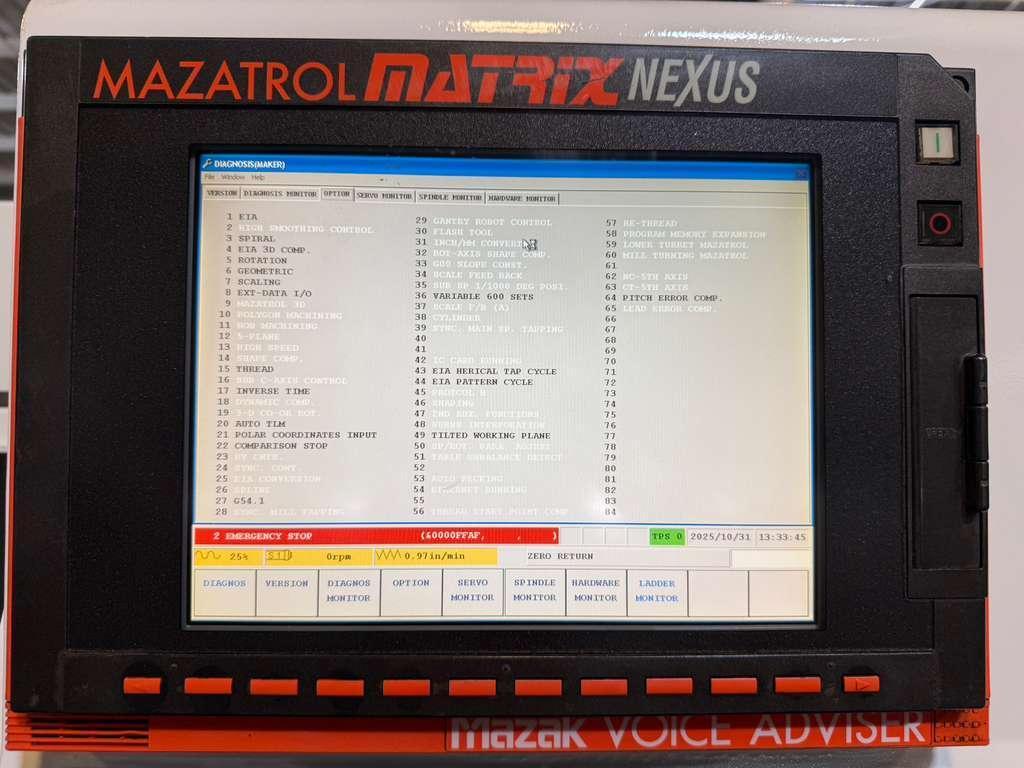

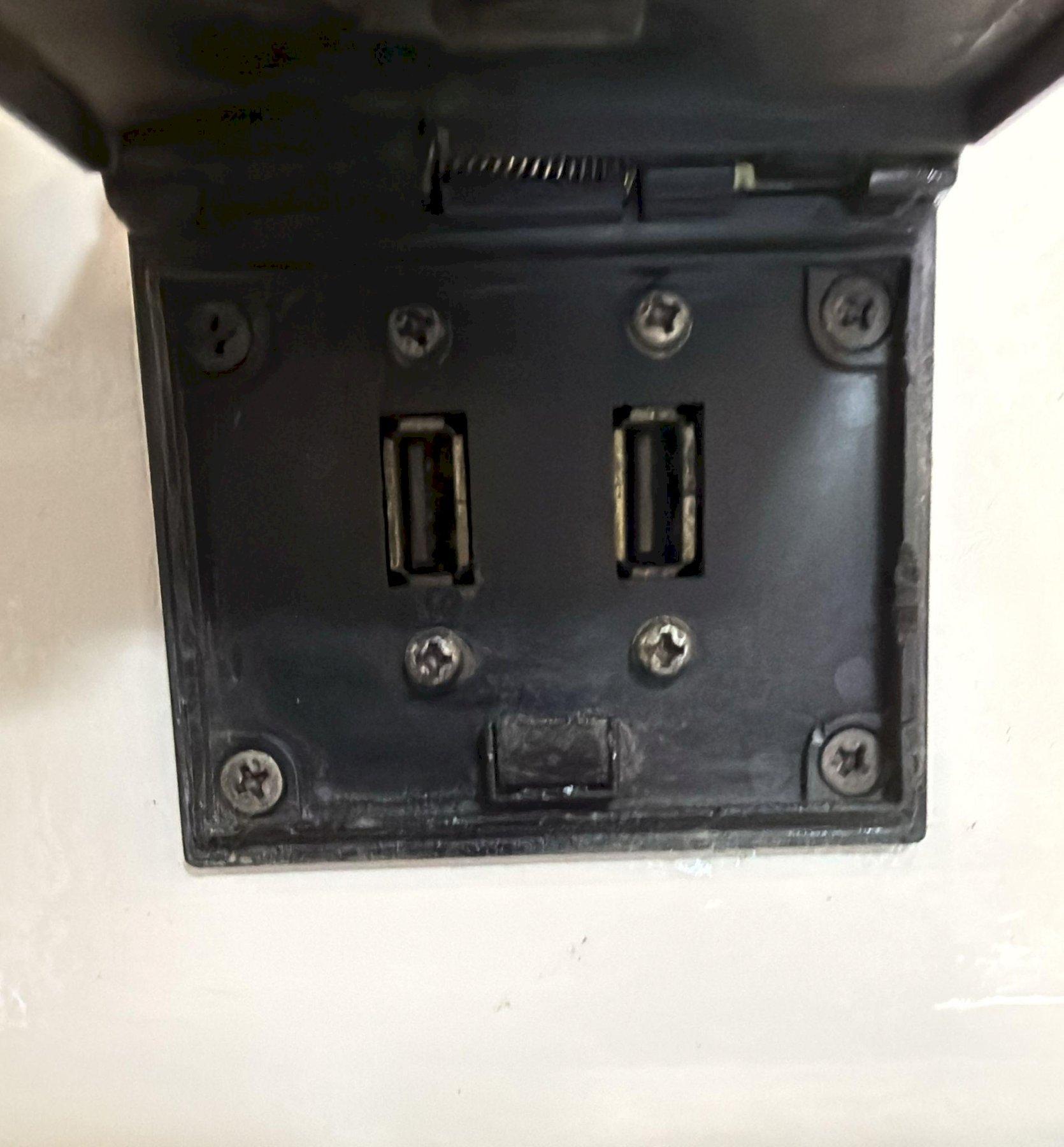

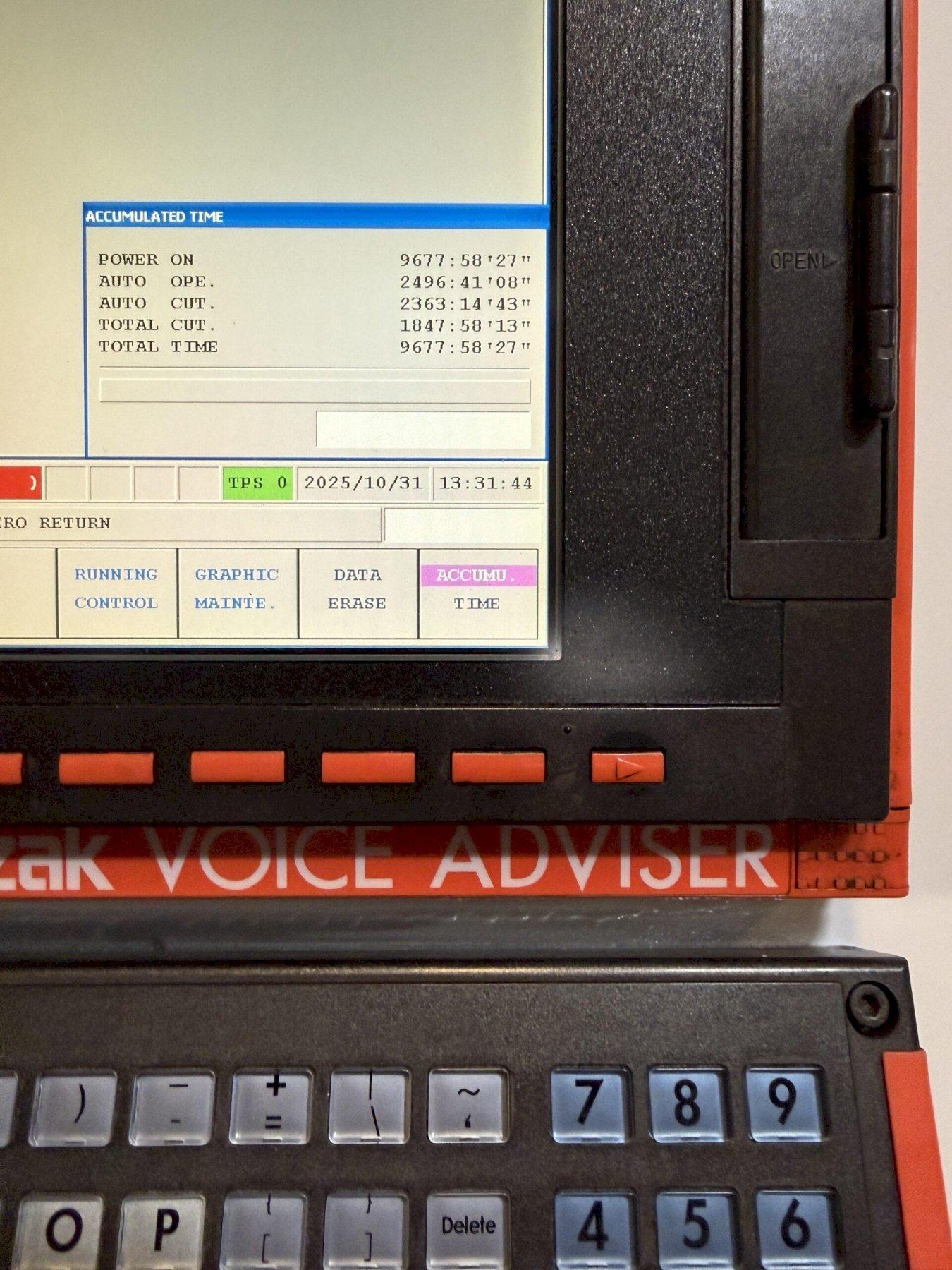

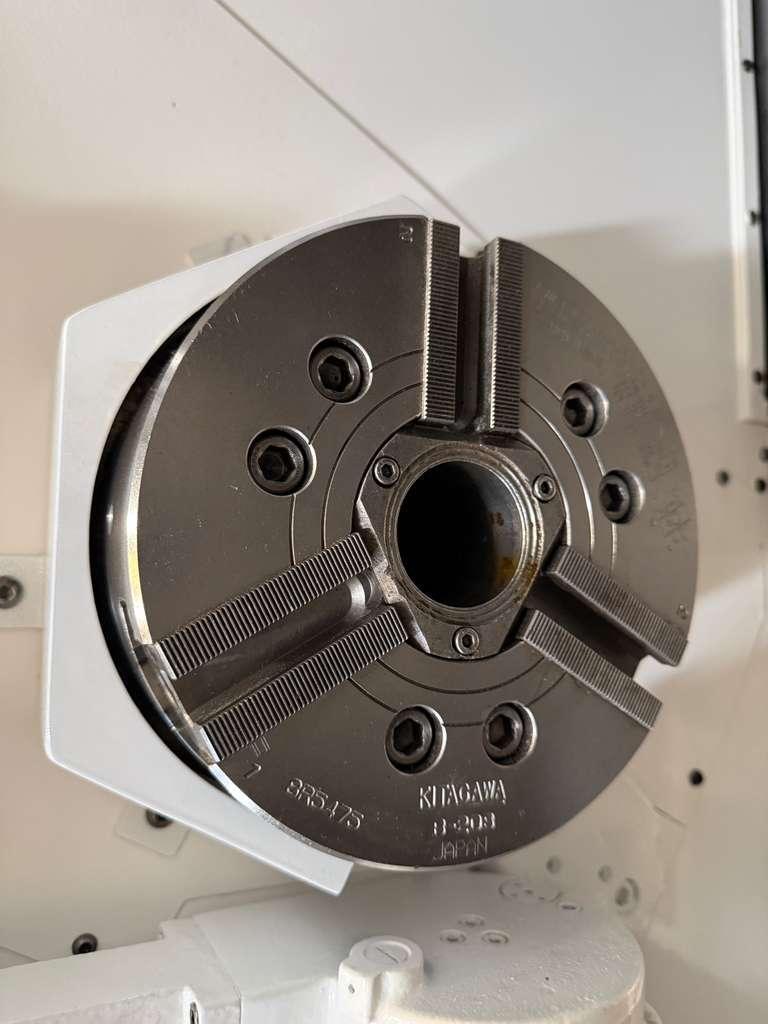

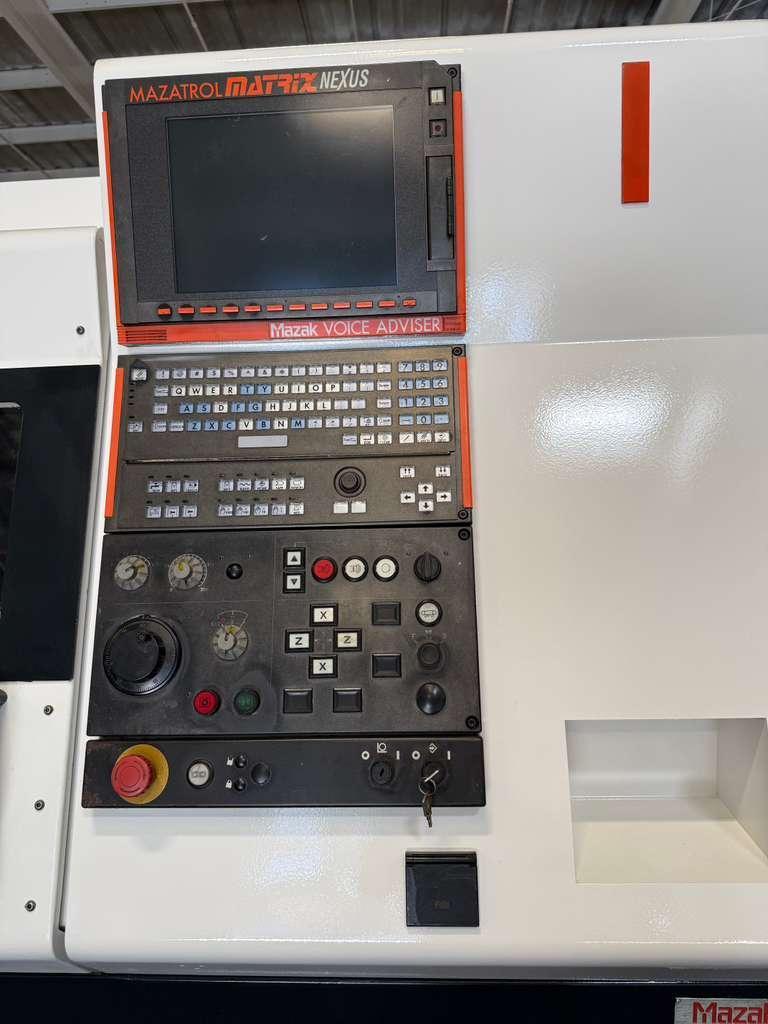

Mazatrol Matrix Nexus CNC Control 8″ 3- Jaw Kitagawa B208 Chuck 12 Stations Automatic Turret Automatic Tool Presetter Tailstock Rigid Tapping USB Ports Automatic Lubrication System Foot Operated Control for Chuck Coolant System Jorgensen Chip Conveyor Books & Manuals (3) Boring Tool Holders (Mounted on Turret as Shown in the images)

Capacity:
Max Turning Diameter : 13.78″ Max Turning Length : 20.16″ Max Swing Over Bed: 24.02″ Max Bar Capacity : 2.60″

Travels:
X Axis Travel : 7.50″ Z Axis Travel : 21.13″

Feedrate:
Rapid Traverse X Axis: 1181 IPM Rapid Traverse Z Axis: 1299 IPM

Spindle:
Spindle Bore: 3.0″ Spindle Nose: A2-6 Spindle Speed: 5,000 RPM Spindle Power: 35 HP

Turret:

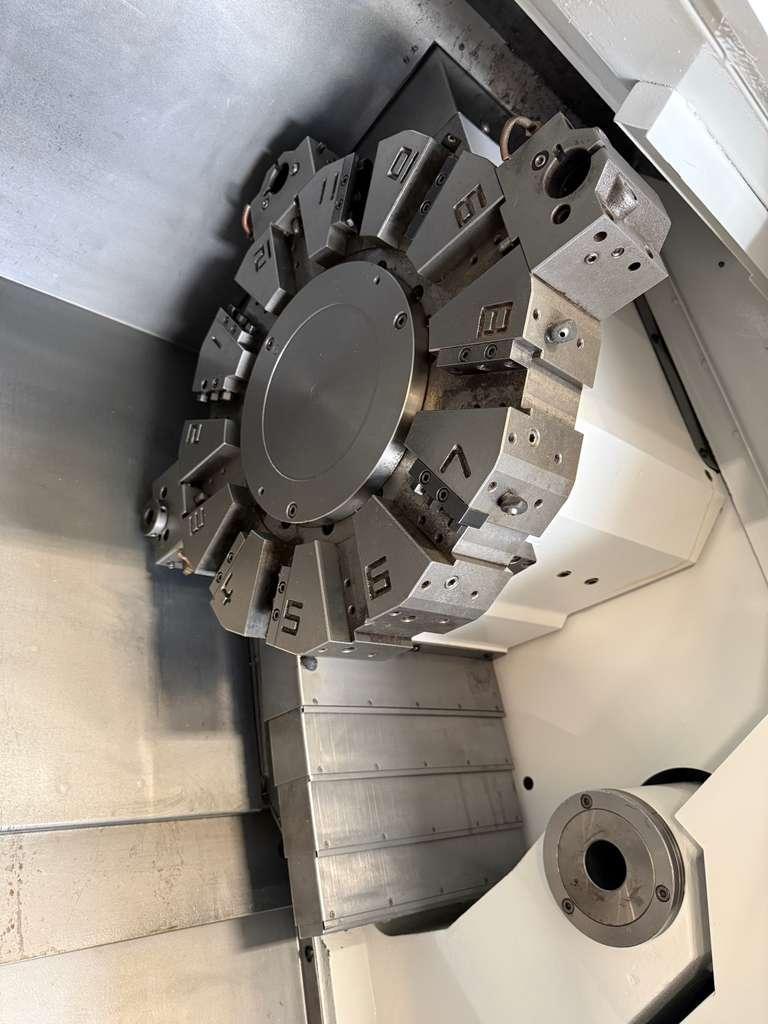

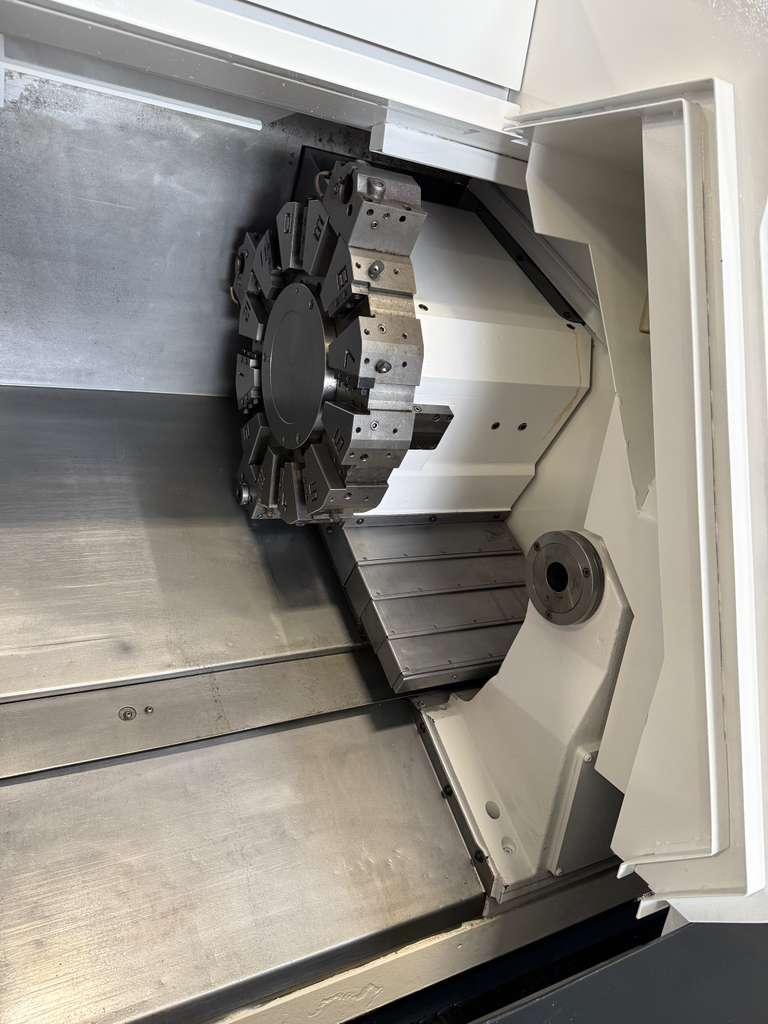

Turret Capacity: 12 Stations Turret Index Time: 0.2 Seconds

General:
Power Source: 40 kva / 208v / 50/60 Hz / 3-Phase Overall Dimensions: 137″ X 80″ X 80″ High Approx. Weight: 11,000 lbs. Approx.

No files or videos to display
