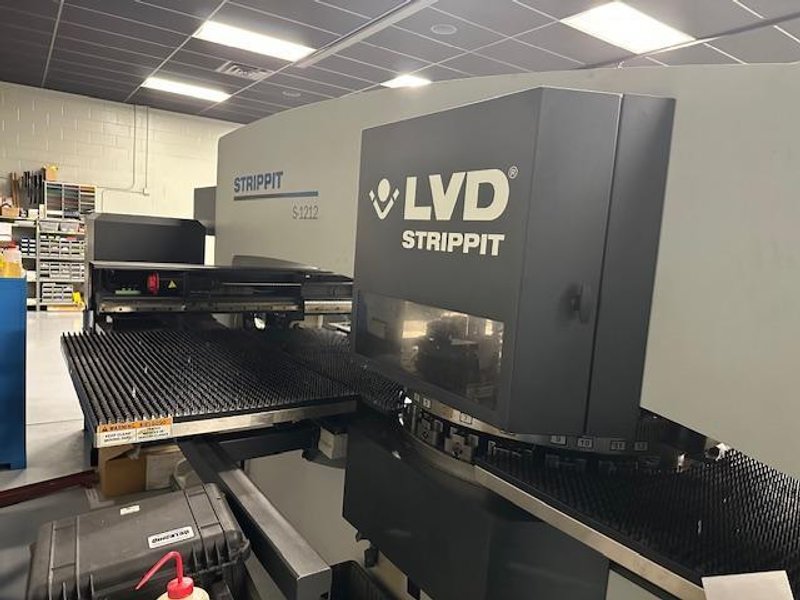

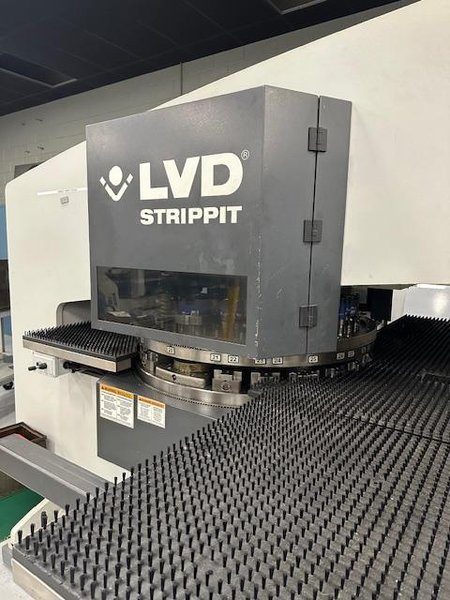

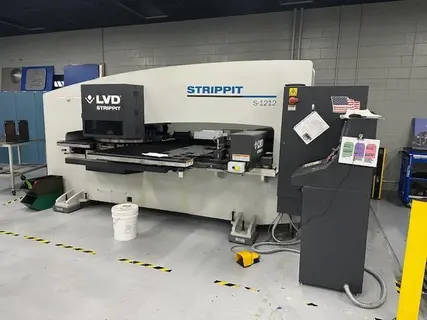

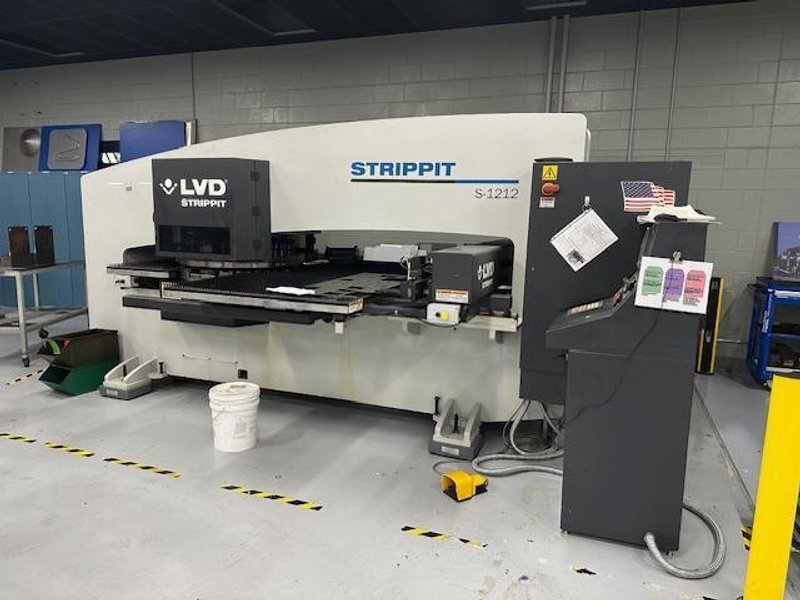

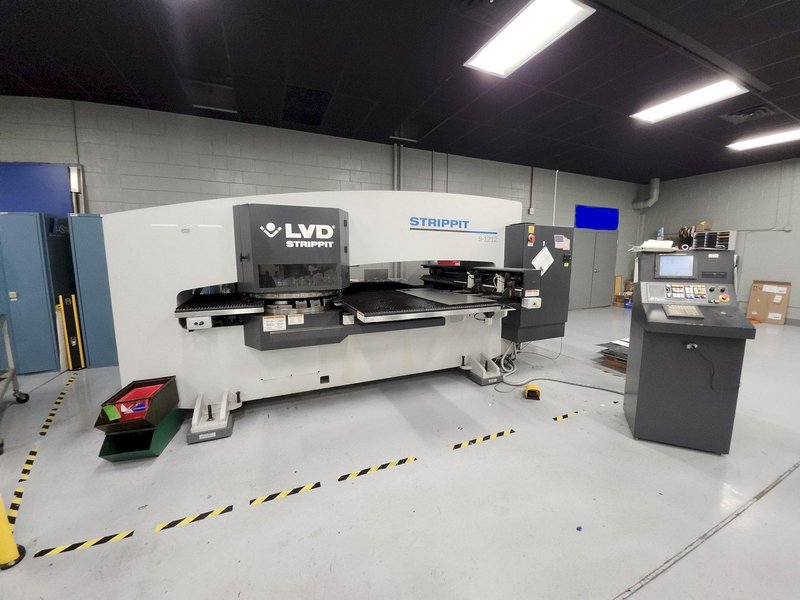

LVD Strippit S-1212 CNC Turret Punch, 20 Tons, 31 Station Turret - Thick, Auto Indexing, Brush Table, Fanuc 180i-P, (Test Lab), New 2007

Name: Used LVD STRIPPIT S-1212 For Sale 56736
Brand: LVD STRIPPIT
SKU: 56736
Availability: PreOrder

Brand

LVD STRIPPIT

Minnesota

Tonnage	20 tons
# Turret Stations	31
Turret Type	Thick
CNC Control	yes

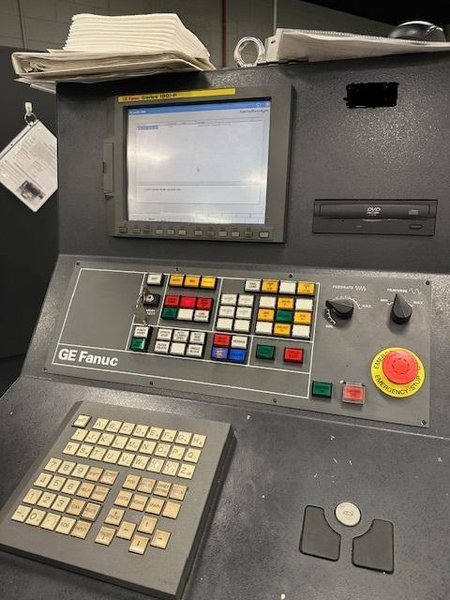

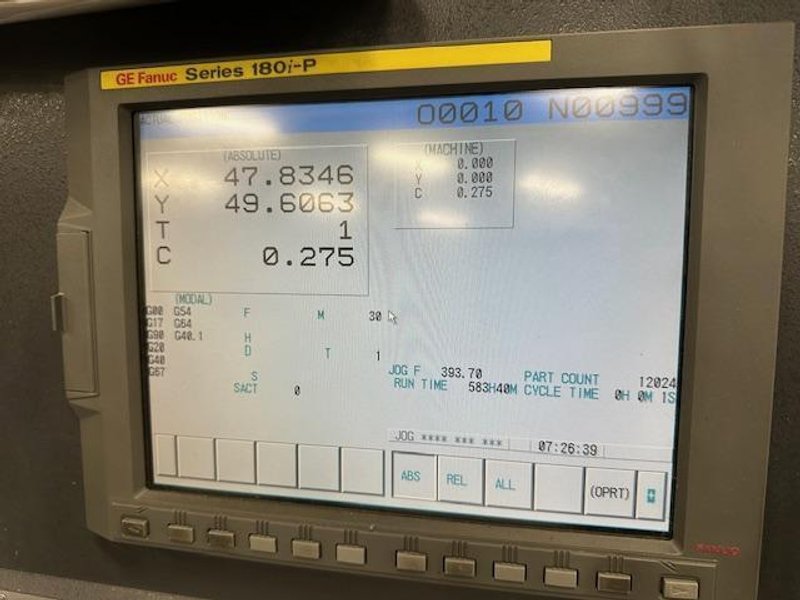

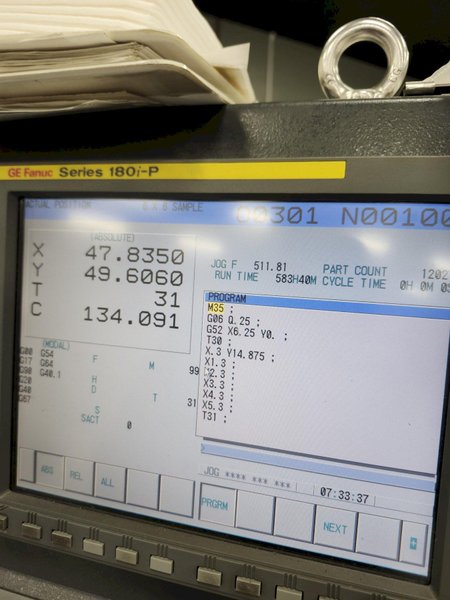

Type Of CNC Control	GE Fanuc 180i-P
Hours - Punching	583 Hours - for a lab
Max. Material Thickness	0.250" (6,35 mm)1
Punching Accuracy	± 0.004" (± 0,1 mm)
Nominal Workpiece Size2 (Y,X)	49.21" x 49.21" (1250 x 1250 mm)

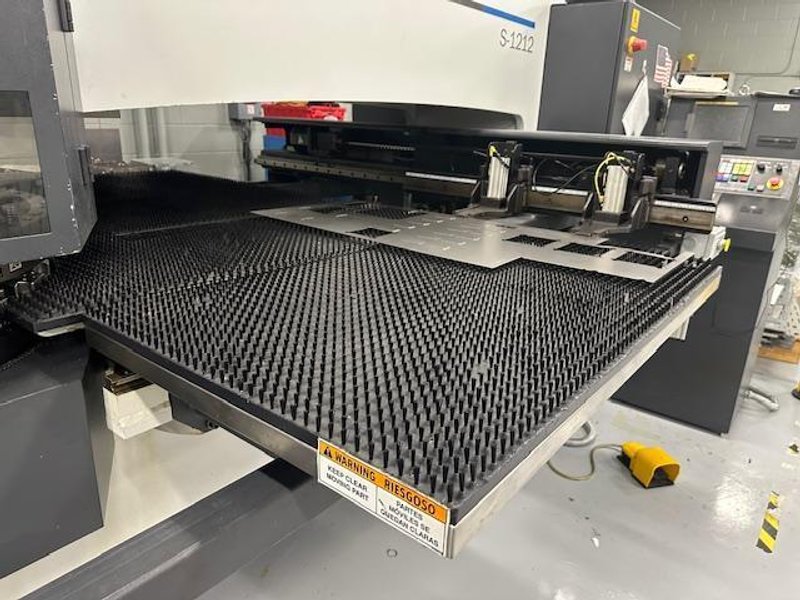

Table Type Capacities	Brush table - Up to 242 lbs. (110 kg)3

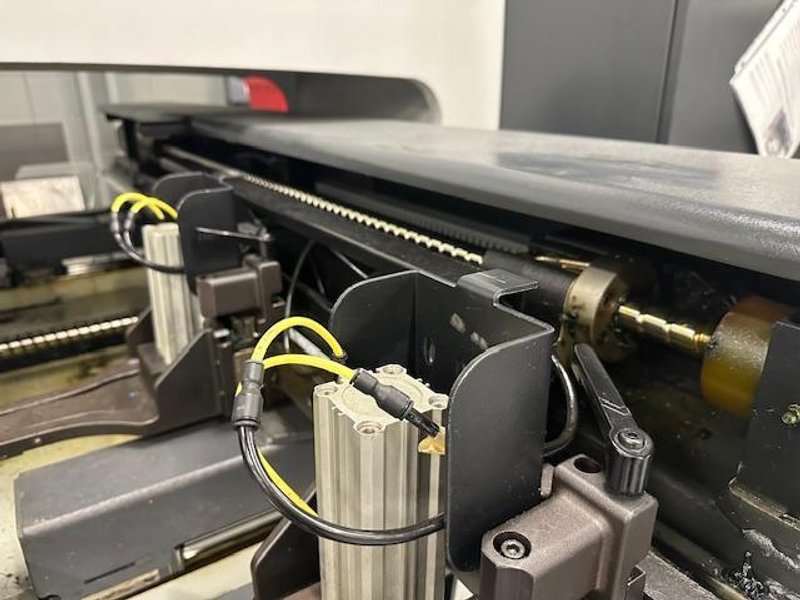

Floating Clamps	2 manual lock
Maximum Clamp Spread	39.37" (1000 mm)
Feed Clearance	.984" (25 mm)

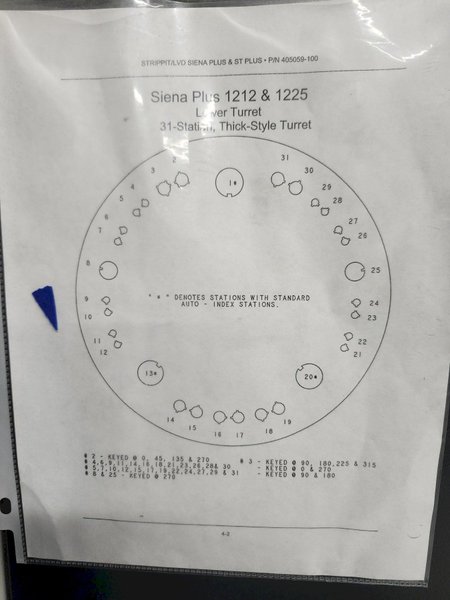

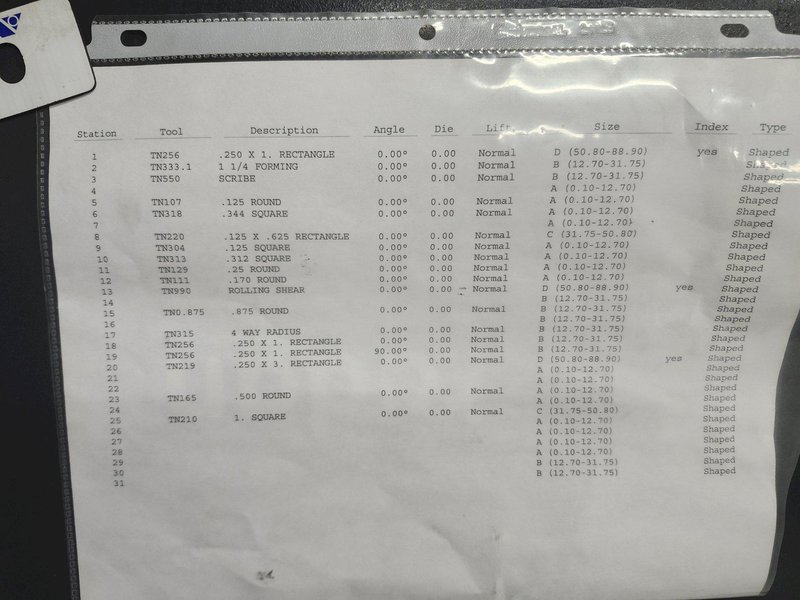

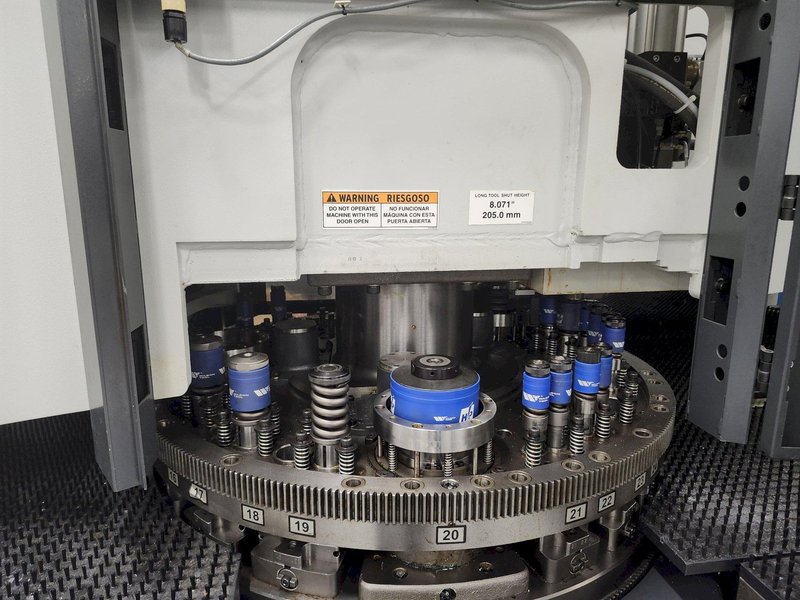

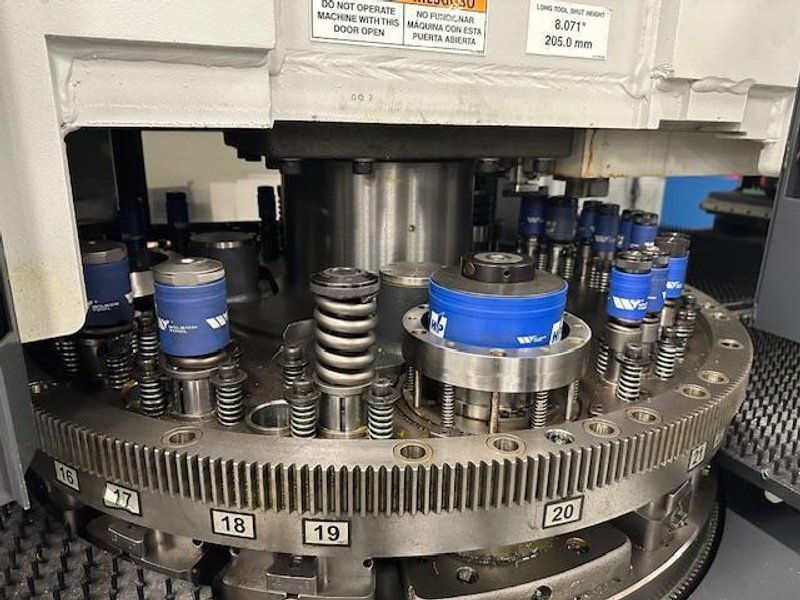

Turret Configuration	31 stations
Turret Layout - A	16 'A' - 0.5" (12,7 mm)
Turret Layout - B	10 'B' - 1.25" (31,7 mm)
Turret Layout - C	2 'C' - 2" (50,8 mm)
Turret Layout -D	3 'D' - 3.5" (88,9 mm)*
Auto-Index Stations	3 'D' - 3.5" (88,9 mm)
Angular Positioning Accuracy	± 0.05 degree
Axis Traverse Speed	Up to 4094 IPM (104 m/min) combined
Maximum Hit Rate At 2 Mm Working Stroke4	.04" (1 mm) Feedrate Up to 900 HPM
Maximum Hit Rate At 2 Mm Working Stroke4	1" (25 mm) Feedrate Up to 360 HPM
Maximum Hit Rate At 2 Mm Working Stroke4	Marking Stroke (standard) Up to 1700 HPM
Dimensions	187" x 105" x 82"
Weight	20200 pounds
GE Fanuc 180i-P CNC Control Hours on machine: 583 Brush Table Auto Repositioning Clamping 31 Station Turret Thick Turret Auto Indexing 3-Stations

Watch https://www.youtube.com/watch?v=i2Z6ztnocnQ
