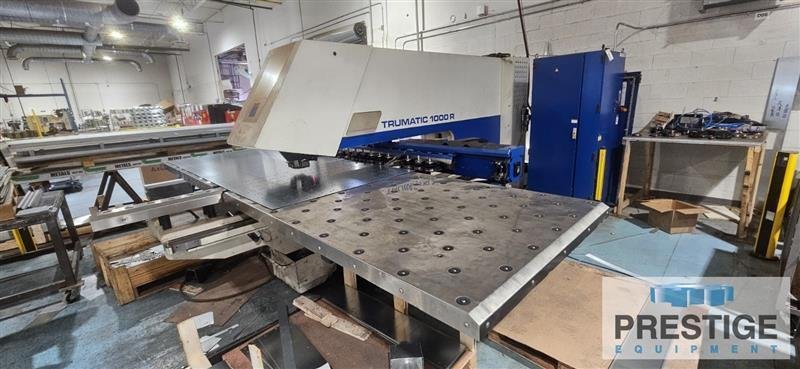

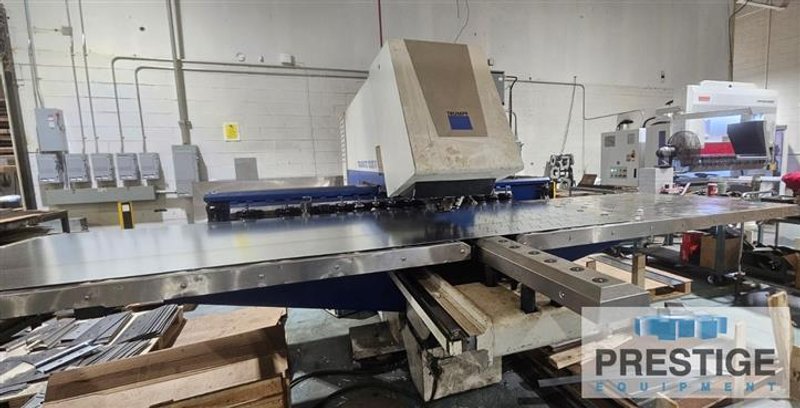

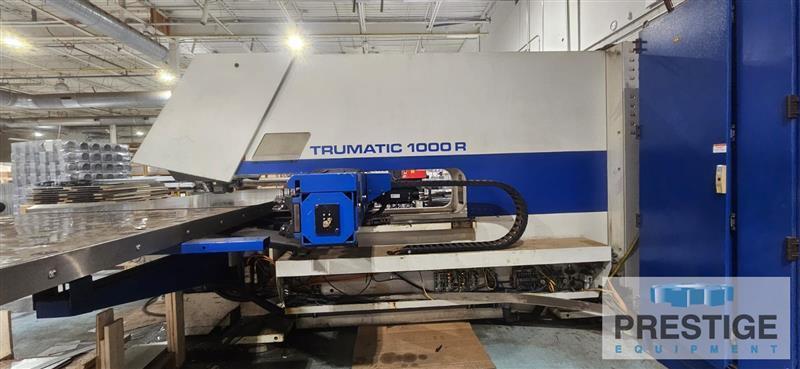

TRUMPF Trumatic 1000 R 18 Ton CNC Punch & Contouring Machine

Brand
TRUMPF
Category
Punching Equipment
Type
Punches, Turret
Model
Trumatic 1000R
Stock #
44232
Year
2006
Condition
Not specified

Location

New York
REQUEST FINANCING
SPECIFICATIONS:
Maximum Tonnage Capacity 18 Ton
X-Axis Working Range 81.49"
Y-Axis Working Range 50.93"
Working Range With Repositioning 98.42" x 50.93"
Maximum Sheet Thickness 1/4"
Maximum Work Piece Weight 330 Lbs
Maximum Punch Diameter 3"
Axis Speed, Simultaneous (X & Y) 3818 IPM
Maximum Stroke Rate Punching 600 RPM
Maximum Stroke Rate Marking 1300 RPM
C-Axis Rotation Speed 180 RPM
Rotation Of All Tools 360 degrees
Approximate Floor Space Required 236" L x 229" W
Approximate Height 84.84"



Equipped With:
Bosch PNC-P CNC Control
15 Tool Linear Magazine With (2) Work Clamps
Programmable Tool Rotation
Multi-Tool Option
Ball Table Design
Approx. (9) Cartridges
