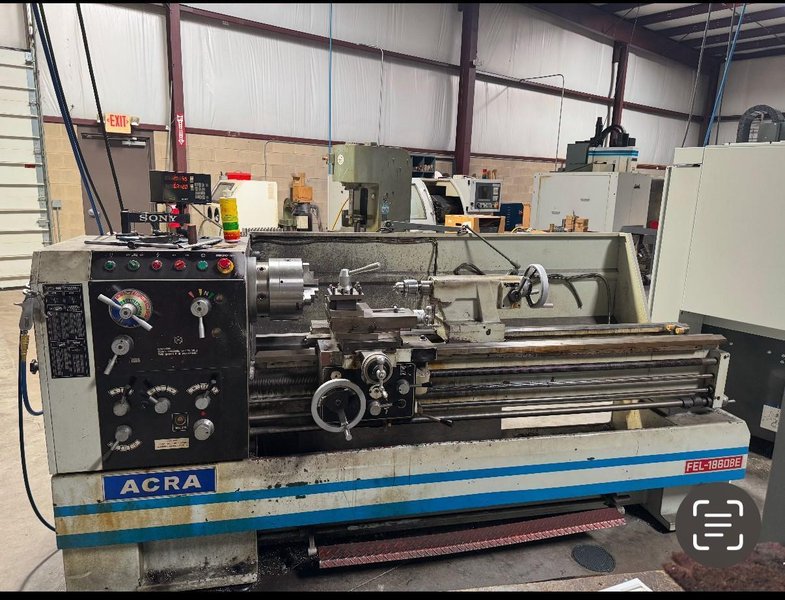

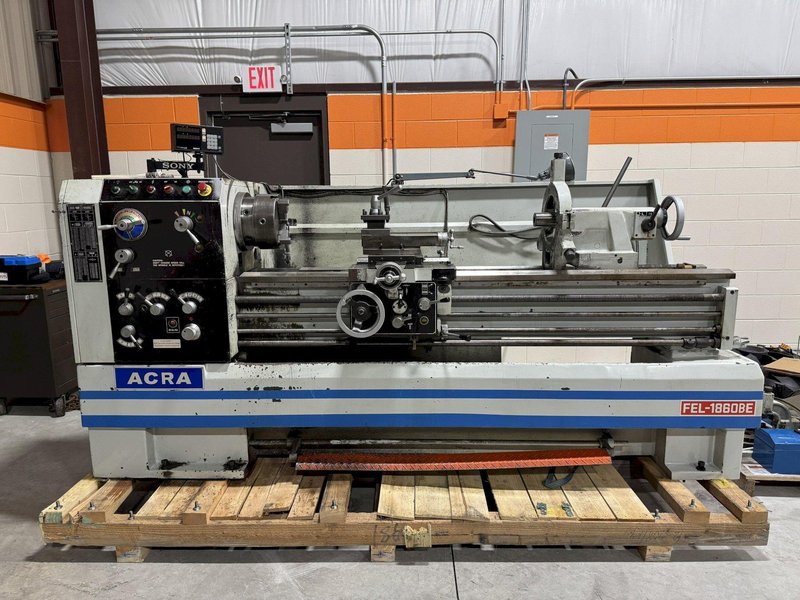

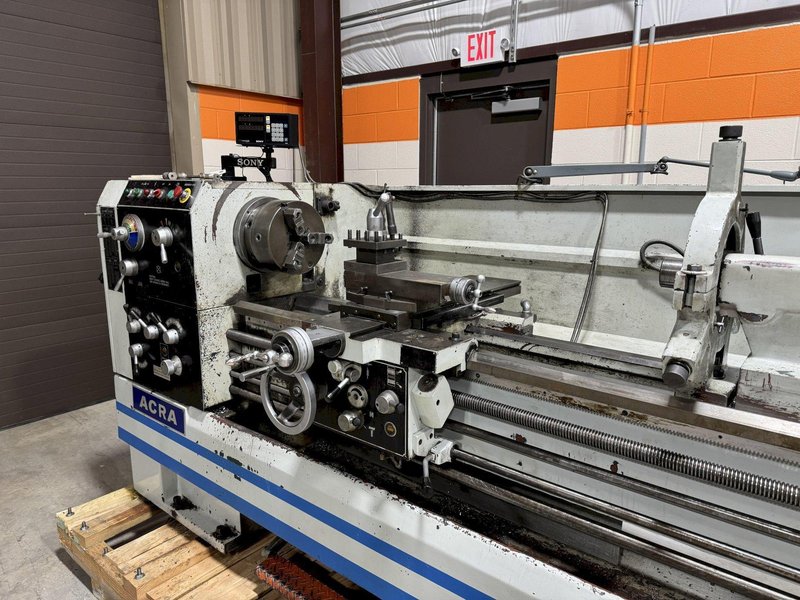

18" x 60" ACRA Model FEL-1860BE Geared Head Engine Lathe
Brand
Category
Type
Model
FEL-1860BE
Stock #
34915C
Year
2003
Condition
Used
Location
Ohio
|
Factory Specifications:

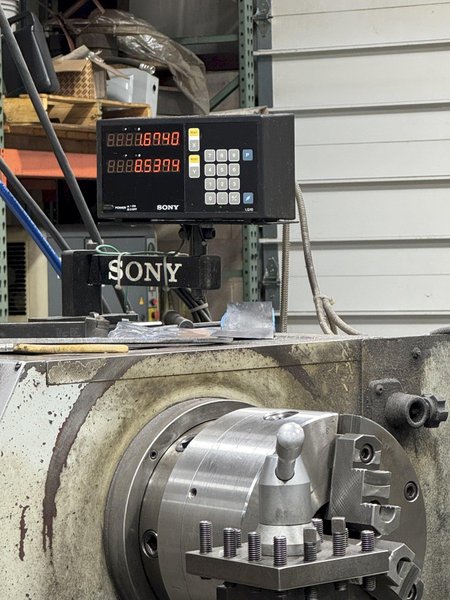

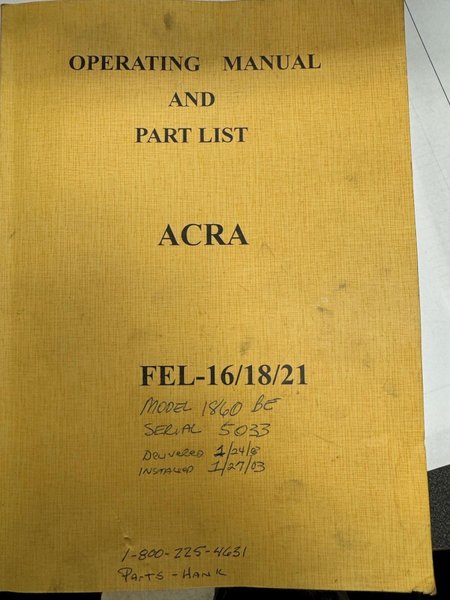

Swing over bed - 18" Swing over cross slide - 11-7/16" Swing in gap - 26" Distance between centers - 60" Spindle bore - 3.22" Spindle speeds (12) - 25 to 1500 rpm Spindle nose - D1-8 Feed changes - 36 Longitudinal feeds - 0.0015" to 0.004" Thread range (45) - 2 to 72 tpi Tailstock spindle travel - 6" Tailstock spindle diameter - 2.55" Tailstock spindle taper - No. 4 MT Spindle motor - 7.5 HP Machine dimensions, approx - 91" x 34" x 51" H Machine weight, approx - 4100 lbs. Equipped with: Sony 2-Axis DRO 3-Jaw Chuck 4-Jaw Chuck Collet Closer Foot Treadle Brake Back Splash Guard Operators Manual with Parts List Machine is located in very nice northern Ohio facility. Can be inspected under power. Specification subject to independent verification by the buyer. Price includes prepping and loading on buyers truck. Call Mark Allen at 330-690-1153 for additional info. |
