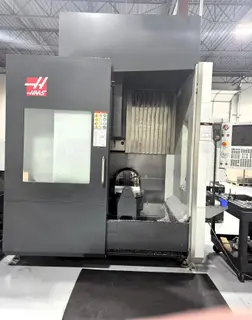

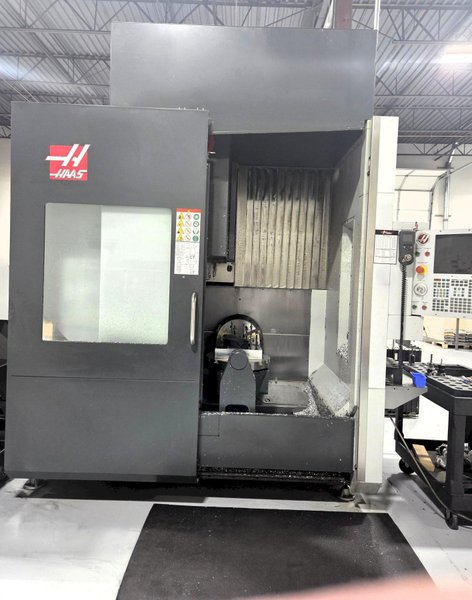

Haas UMC-750 5-Axis 2018 with: 5th Axis, 10k RPM Spindle, Through Spindle Coolant, 30-SMTC, HSM, Probing, Chip Conveyor, and Coolant Tank.
Brand
Category
Model
UMC-750
Stock #
7038
Year
2018
Condition
Not specified
Location
Not specified
| CNC Control | yes |
| Type Of CNC Control | HAAS |
| Platter Diameter | 19.7 inches |
| Max. Weight On Platter | 660 lbs. |
| # Of Axis | 5 |
| X | 30 inches |
| Y | 20 inches |
| Z | 20 inches |
| B-Axis Travels | 120 Deg. To 35- Deg. |
| B-Axis Speed | 50 Deg. / Sec. |
| C-Axis Travels | 360 Deg. |
| C-Axis Speed | 50 Deg. / Sec. |
| Min.-Max. Spindle Nose-Platter | 4" - 24" |
| RPM | 10000 |
| Power | 30 horsepower |
| Max. Cutting | 650 IPM |
| Rapid Feedrates (X,Y,Z) | 900 IPM |
| Max. Tool Diameter | 2.5 inches |
| Max. Tool Length | 12 inches |
| Max. Tool Weight | 12 pounds |
| Tool Time - Tool Time | 2.8 sec. |
| Chip To Chip | 3.6 sec. |
| Dimensions | 168" x 93" x 110" |
| Weight | 14250 pounds |
|
Haas CNC Control, 5th Axis,10k RPM Spindle, 30-SMTC, Through Spindle Coolant, High Speed Machining, Probing, Chip Conveyor, and Coolant Tank.
Short Terms and Conditions of Sale (Please contact us for complete Terms and Conditions): Unless otherwise posted, all items are sold AS-IS, WHERE-IS With All Faults. All specifications and locations are subject to change without notice. All items are subject to availability and prior sale. ACT Machinery 2424 Cypress Way Fullerton, Ca 92831 Financing Available / Se Habla Español
Before buying, let us know if you need shipping quotes. _714.441.1992. |
|
