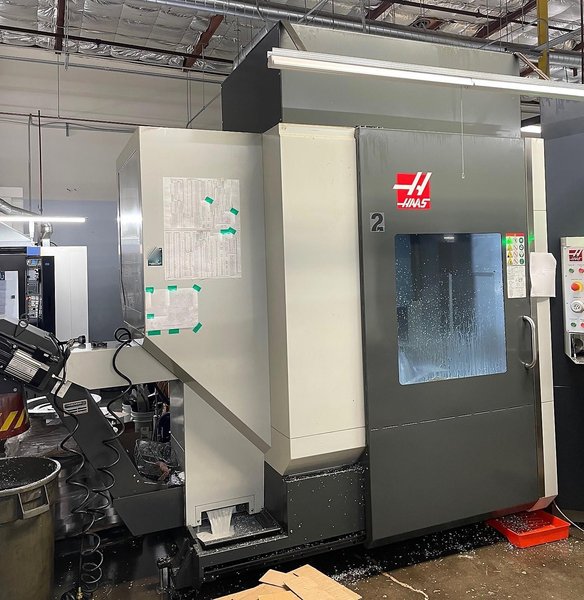

Haas UMC-750 5-Axis Trinity AX-55 Pallet APS 2019 with: Fanuc Robot, High Speed Machining, 40-ATC, 1000 PSI Through Spindle Coolant, Programmable Coolant, and Chip Conveyor.
Brand
Category
Model
UMC-750
Stock #
6454
Year
2019
Condition
Not specified
Location
California
| CNC Control | yes |
| Type Of CNC Control | HAAS |
| Pallet Storage Stations | 55 |
| Platter Diameter | 19.7 inches |
| Max. Weight On Platter | 660 lbs. |
| # Of Axis | 5 |
| X | 30 inches |
| Y | 20 inches |
| Z | 20 inches |
| B-Axis Travels | 120 Deg. To 35- Deg. |
| B-Axis Speed | 50 Deg. / Sec. |
| C-Axis Travels | 360 Deg. |
| C-Axis Speed | 50 Deg. / Sec. |
| Min.-Max. Spindle Nose-Platter | 4" - 24" |
| RPM | 10000 |
| Power | 30 horsepower |
| Max. Cutting | 650 IPM |
| Rapid Feedrates (X,Y,Z) | 900 IPM |
| # ATC | 40 |
| Max. Tool Diameter | 2.5 inches |
| Max. Tool Length | 12 inches |
| Max. Tool Weight | 12 pounds |
| Tool Time - Tool Time | 2.8 sec. |
| Chip To Chip | 3.6 sec. |
| Dimensions | 168" x 93" x 110" |
| Weight | 14250 pounds |
|

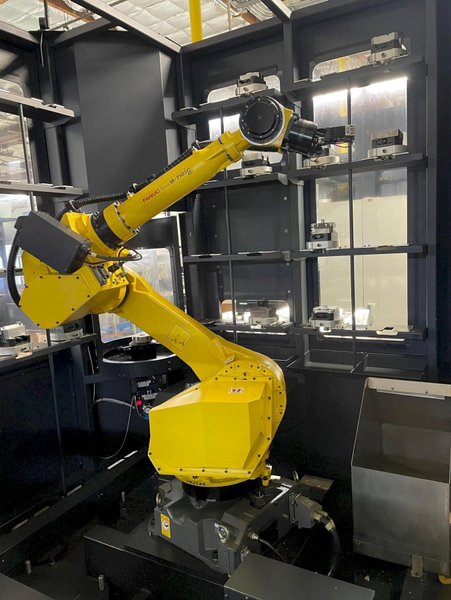

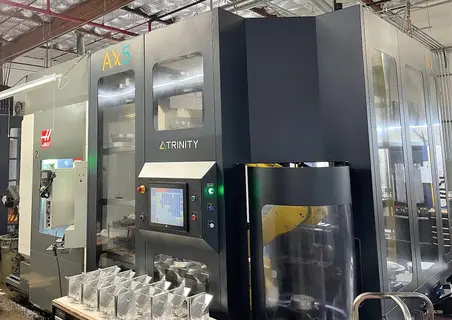

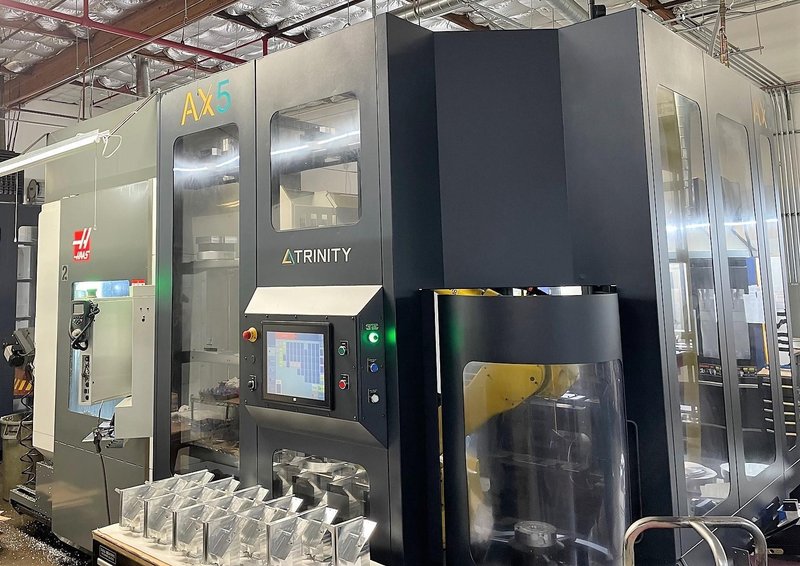

Haas CNC Control, Trinity AX5-55 Pallets Automated Pallet System, Fanuc Robot, High Speed Machining, 40-ATC, 1,000 PSI Through Spindle Coolant, Programmable Coolant, Chip Conveyor, and Coolant Tank.
|
|
