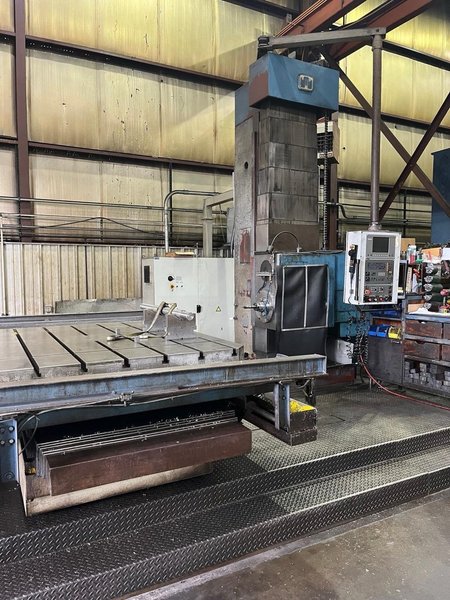

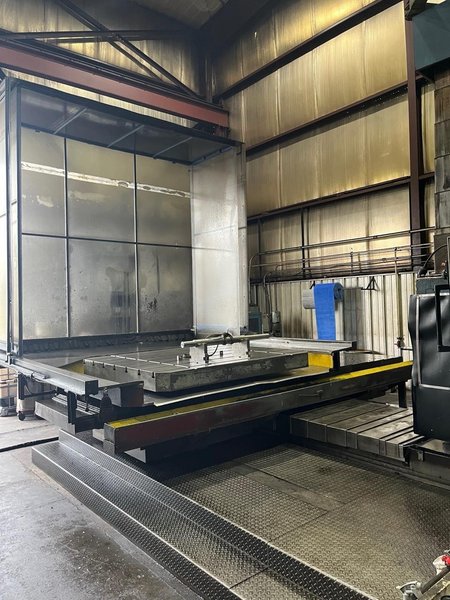

WMW BMT Series 125 CNC Boring Mill, 2000
Brand
Category
Model
Series 125
Stock #
885821
Year
2000
Condition
Not specified
Location
Not specified
|

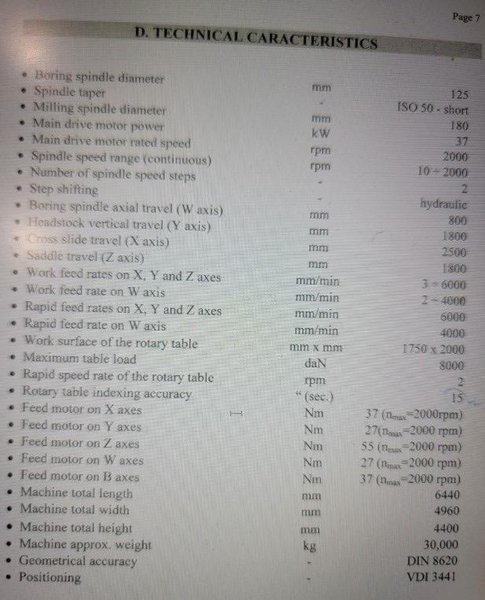

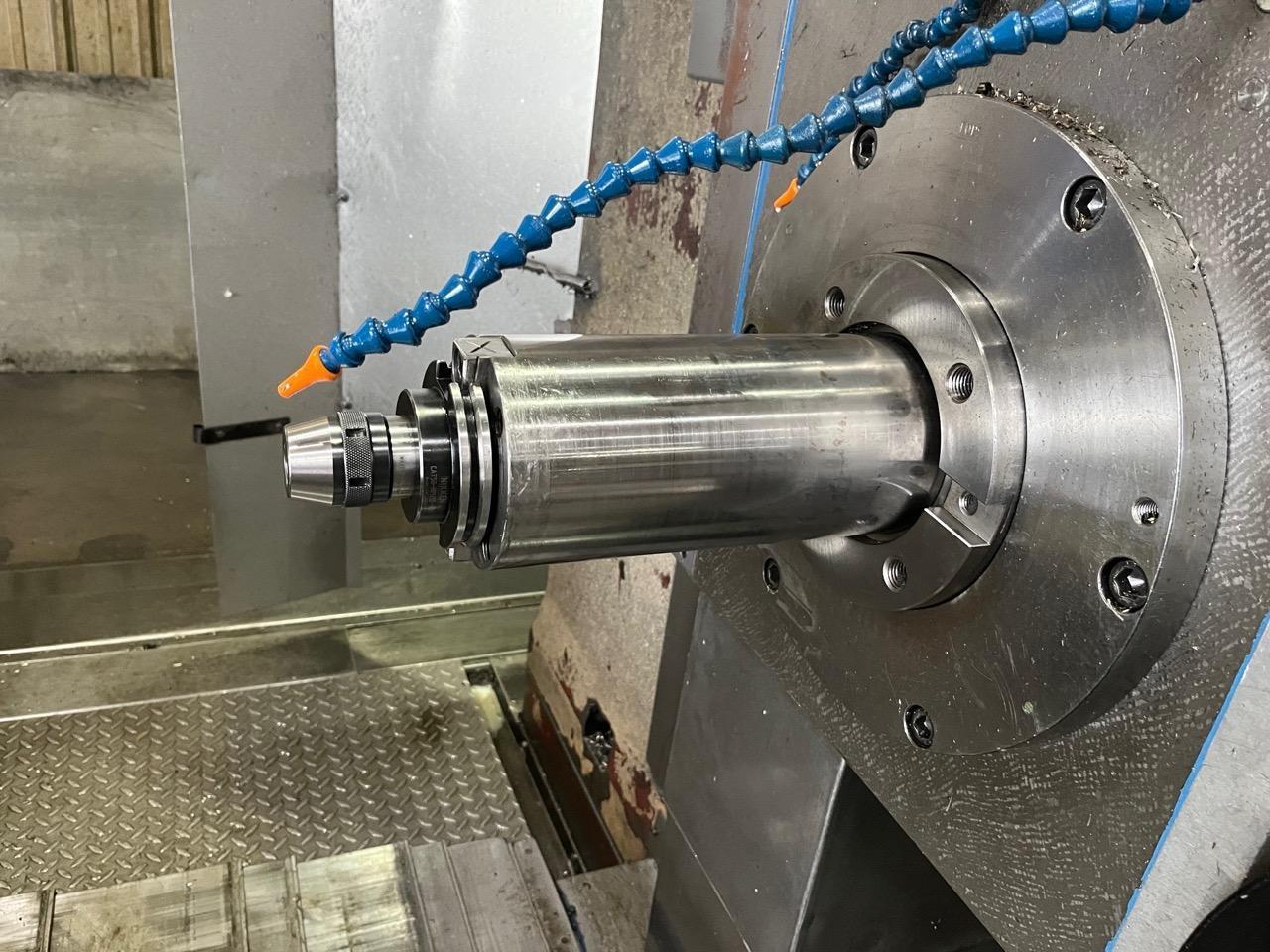

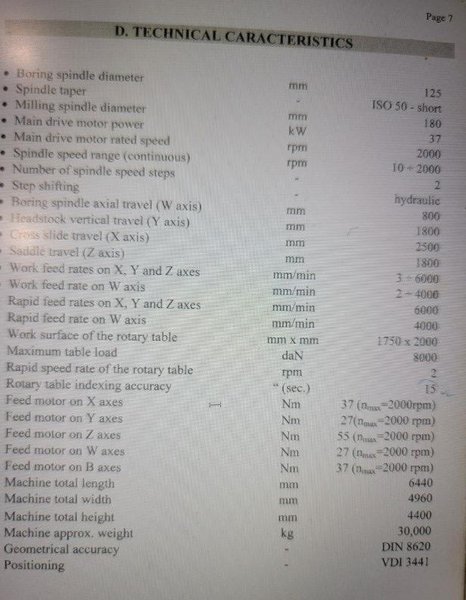

Boring Spindle Diameter: 4.92 in
Spindle Taper: ISO 50 – short
Milling Spindle Diameter: 7.09 in
Main Drive Motor Power: 49.6 HP
Main Drive Motor Rated Speed: 2000 RPM
Spindle Speed: 2000 RPM
Number of Spindle Speed Steps: 2
Step Shifting: Hydraulic

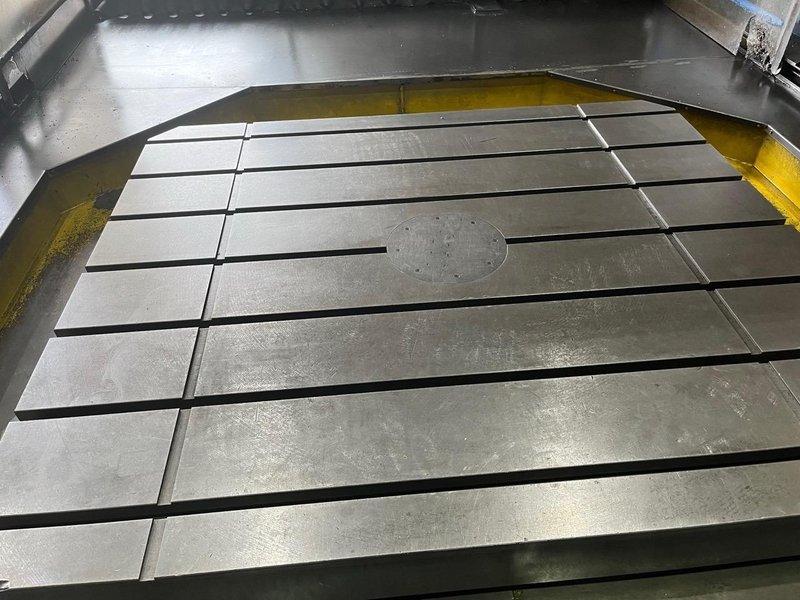

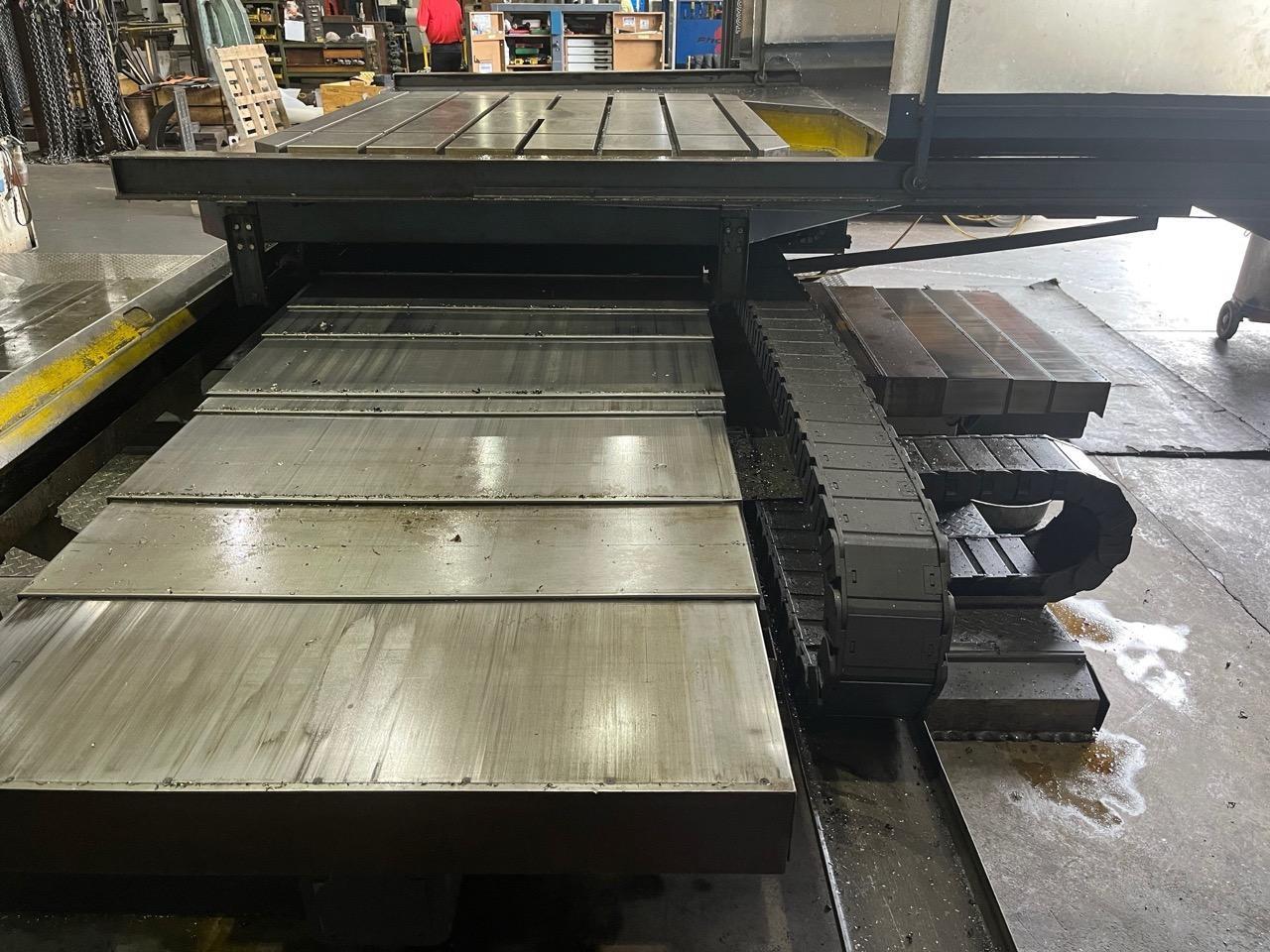

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,W-Axis Travels: 31.5" X-Axis Travels: 98.43" Y-Axis Travels: 70.87" Z-Axis Travels: 70.87" All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Work Surface of Rotary Table: 68.9" x 78.74" Max Table Load: 17,985lbs Rapid Speed Rate of Rotary Table: 2RPM Rotary Table Indexing Accuracy: 15 arc-seconds Geometrical Accuracy: DIN 8620 Positioning: VDI 3441 All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Dimensions: 253.5" x 195.2" x 173.2" Machine Weight: 66,139lbs All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
