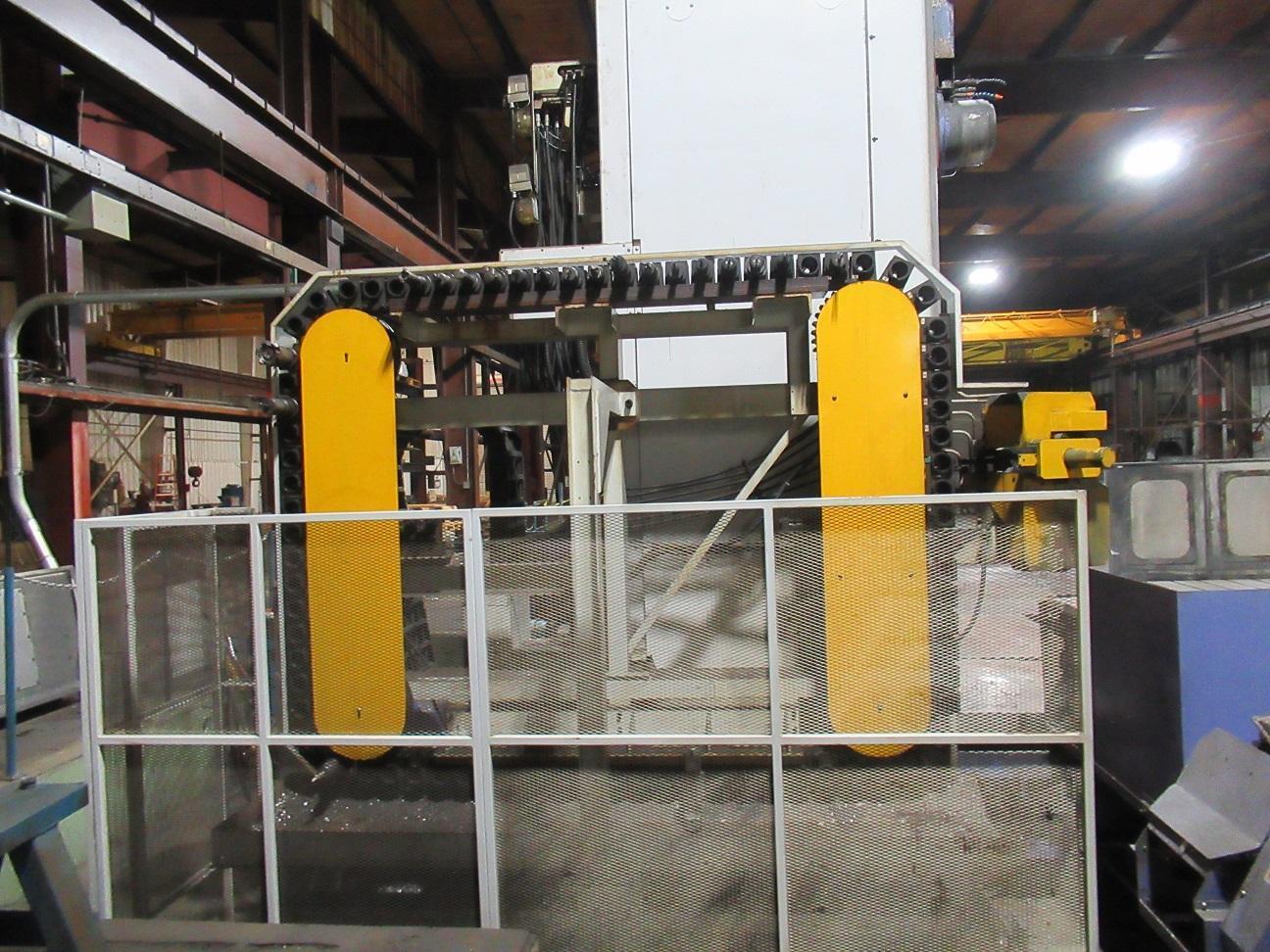

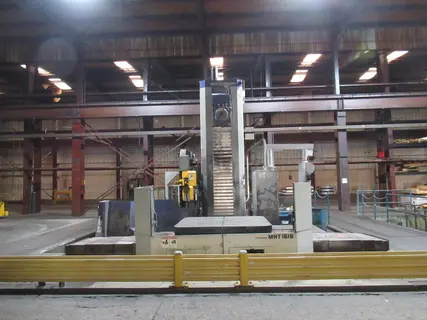

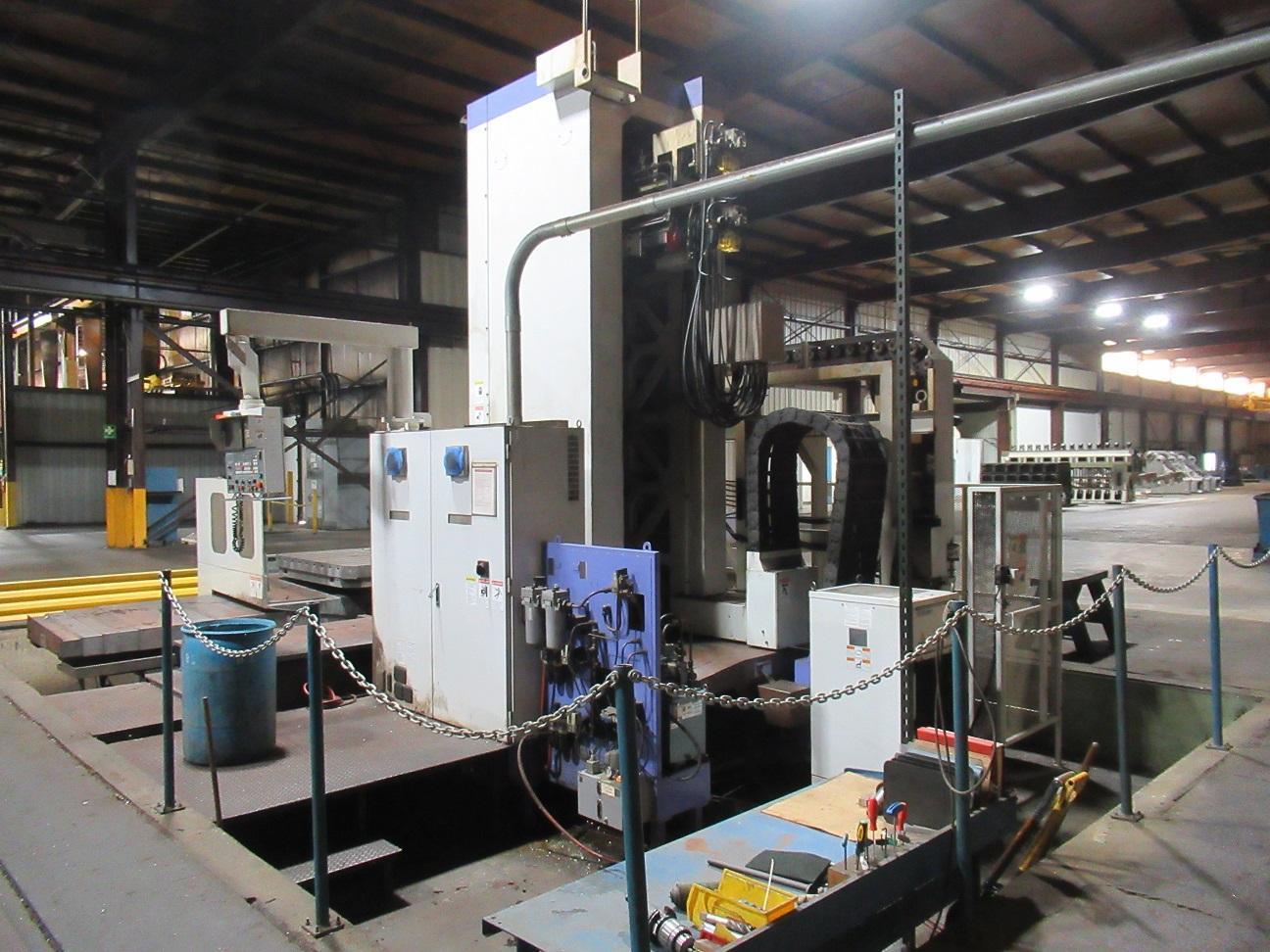

Mitsubishi M-HT 13/1618 CNC Horizontal Boring Mill, 2008 – TSC, Probe, 5.1″ Spindle Diameter
Brand
Category
Model
MHT 13/1618
Stock #
197397
Year
2008
Condition
Not specified
Location
Not specified
|
Table Size: 63″ x 71″
Table Rotation: Indexing at every 0.001°
Loading Capacity: 17,600 lbs
X Axis Travel: 118″
Y Axis Travel: 98″
W Axis (Spindle) Travel: 20″
Z Axis (Column) Travel: 51″
Spindle Speed: 4,000 RPM
Spindle Diameter: 5.12″
Spindle Taper: 50
Number of Tools: 80
Horsepower: 40 HP

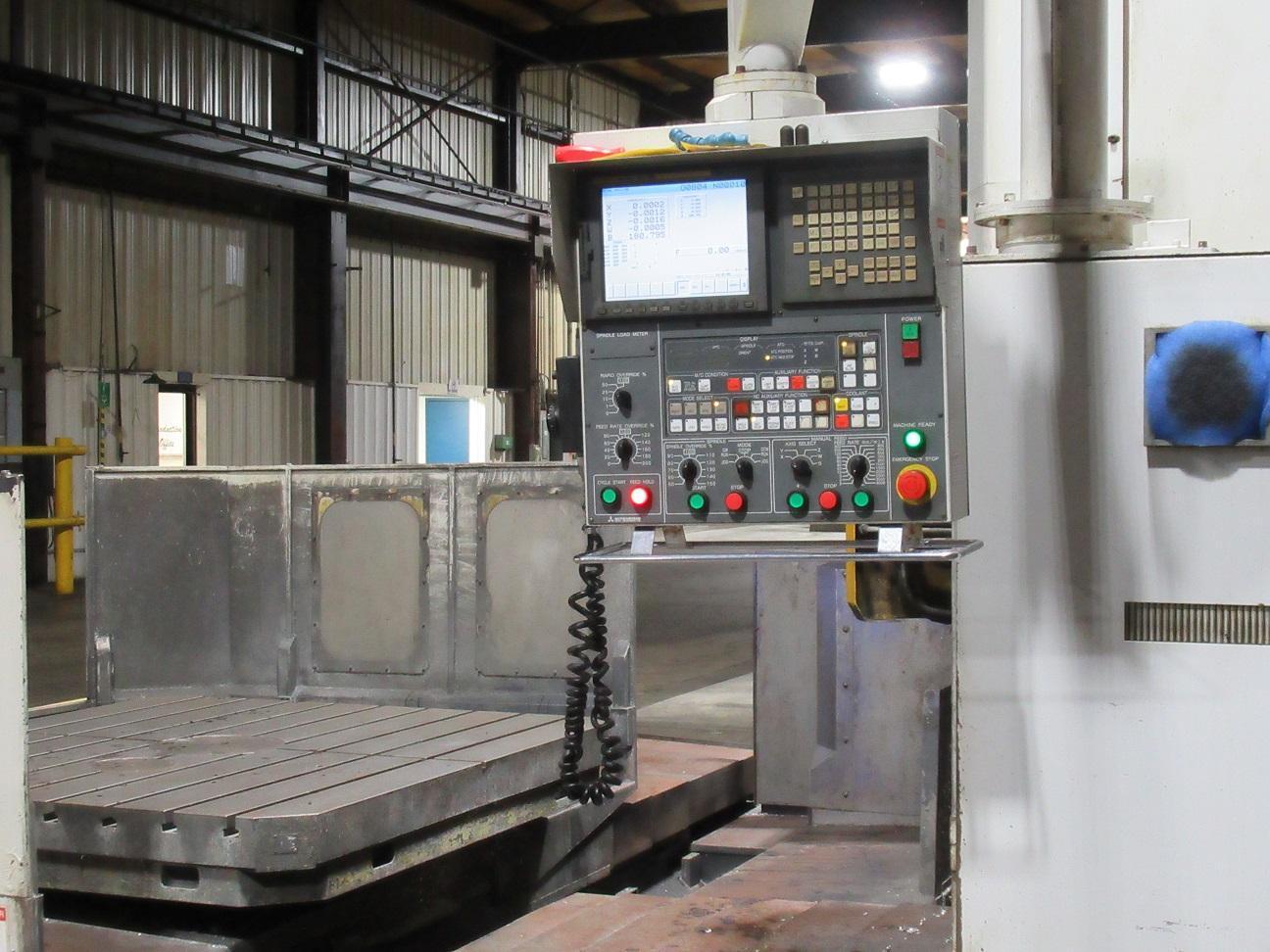

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fanuc Series 18i-MB Control Tool Probe Through Spindle Coolant Synchronous Tapping Chip Conveyor Easy Centering Function All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
