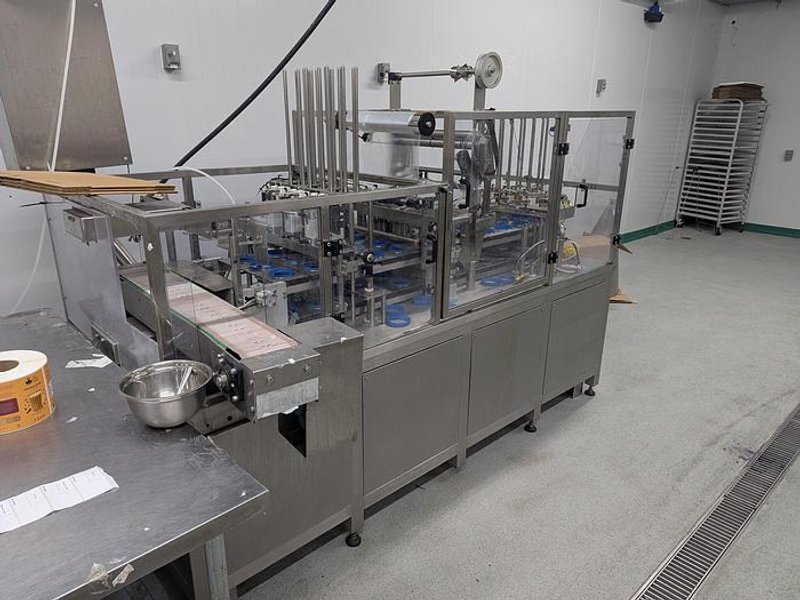

Pack Line PX6-3 Rotary Cup Filling and Sealing Machine

Equipment Overview

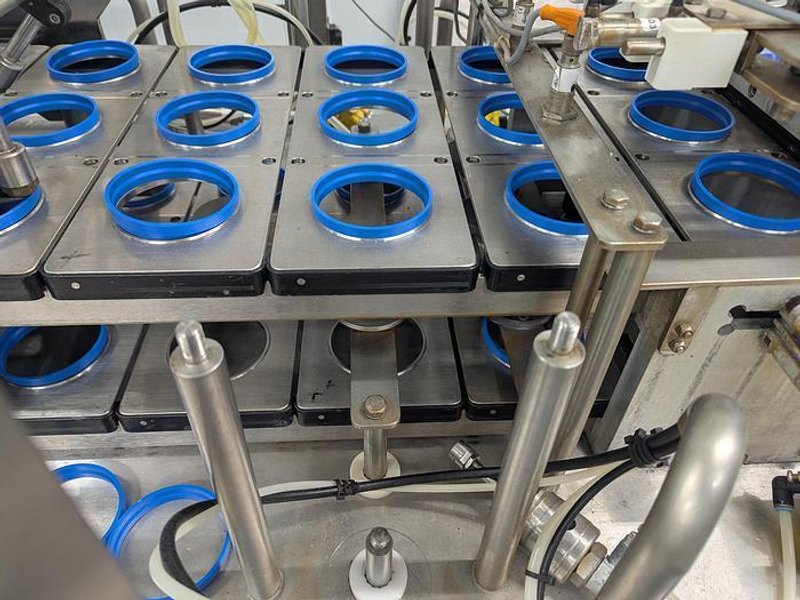

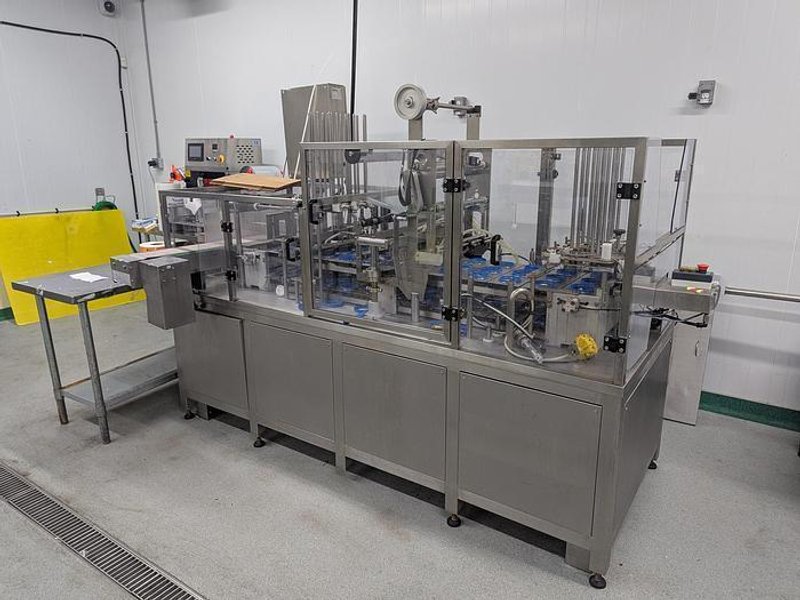

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,This Pack Line PX6-3 is a stainless steel inline rotary cup filling and sealing machine, designed for medium-speed packaging applications. Built in 2007, the unit includes a 6-up configuration for high throughput, Allen-Bradley PLC interface, heat-seal film system, and precise dosing functionality. Ideal for dairy, sauces, or other semi-liquids in round plastic cups.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications

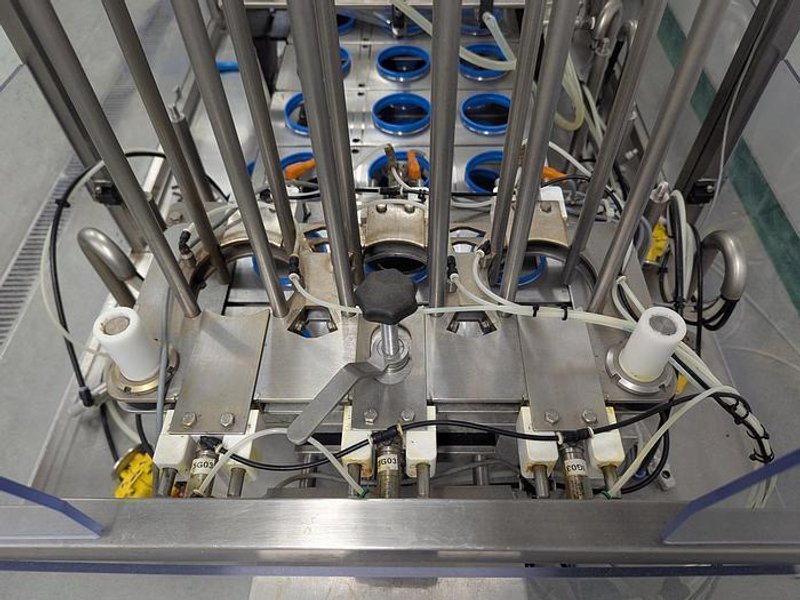

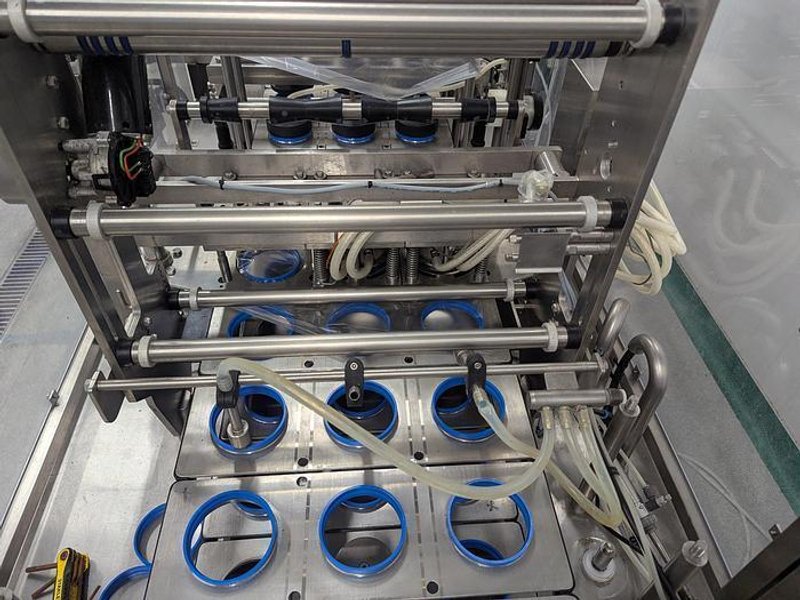

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fill Type: Inline piston or gravity (hoses visible suggest semi-liquid dosing)

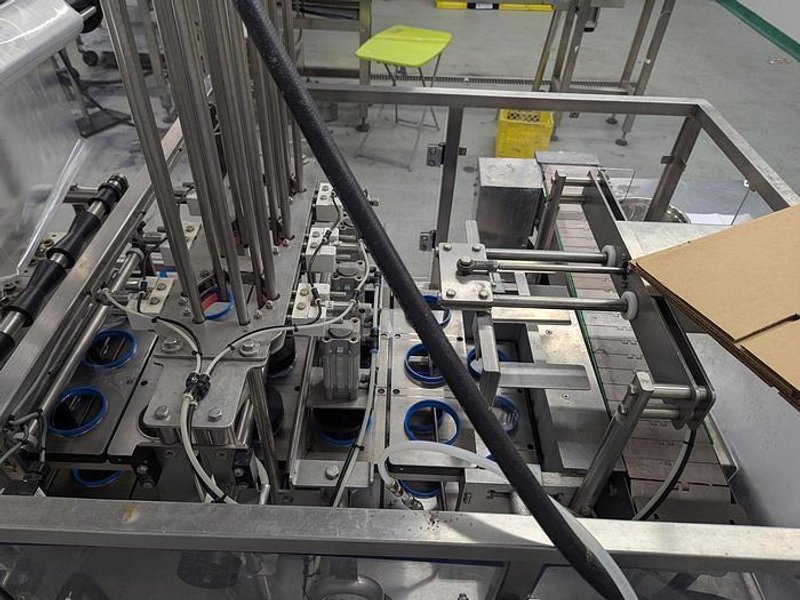

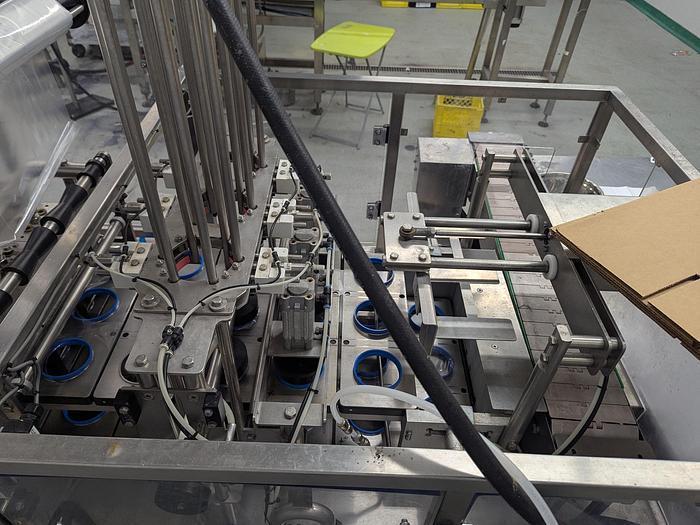

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Stations: Denesting, Filling, Film Placement, Sealing, Discharge

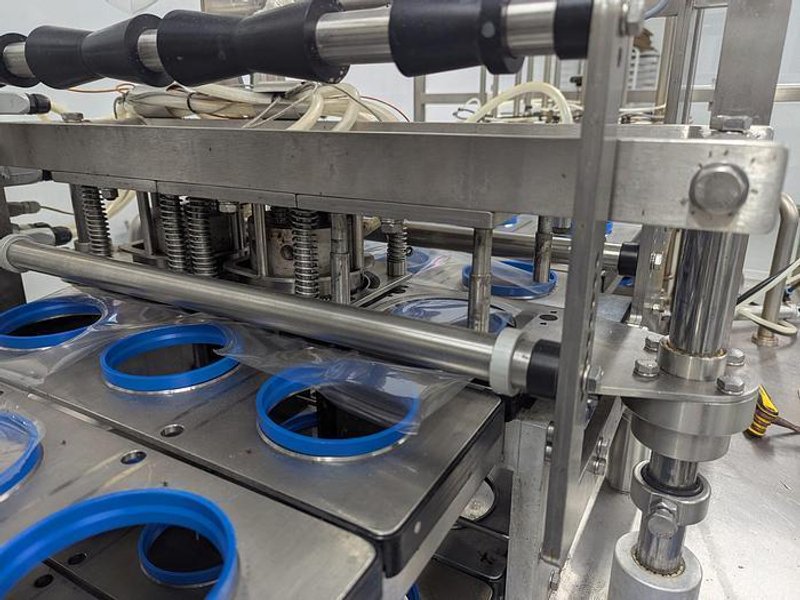

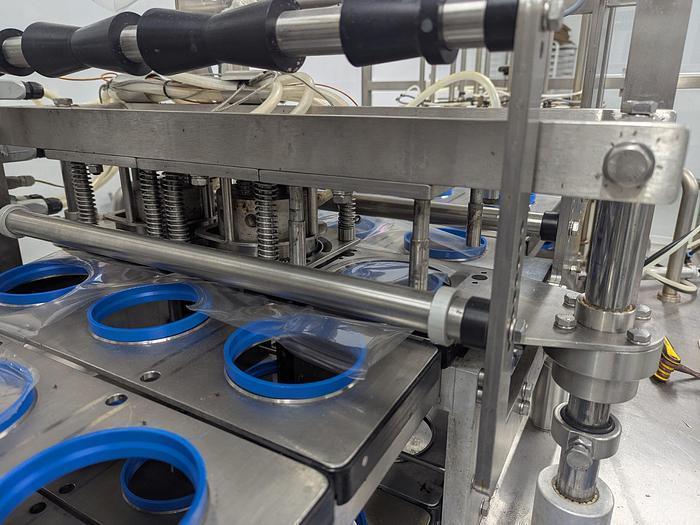

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Seal Method: Film roll-fed heat sealing

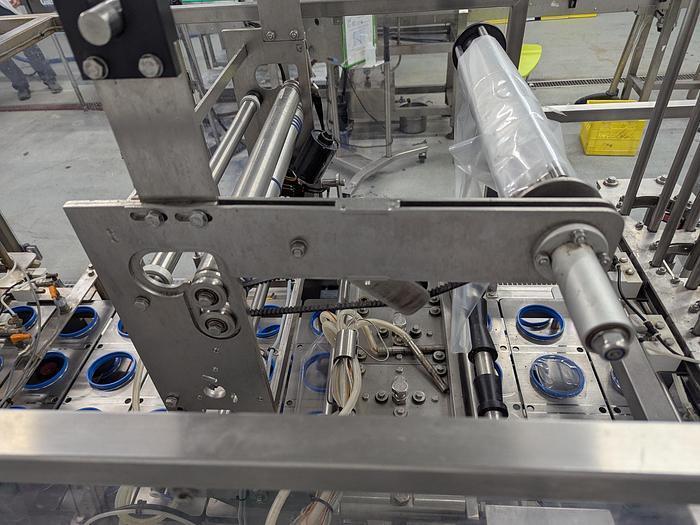

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Film Handling: Reel mount with roller tension system

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Capacity: 6-cup per cycle throughput

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Construction: Full stainless frame and guarding

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Safety: Emergency stop & safety interlocks

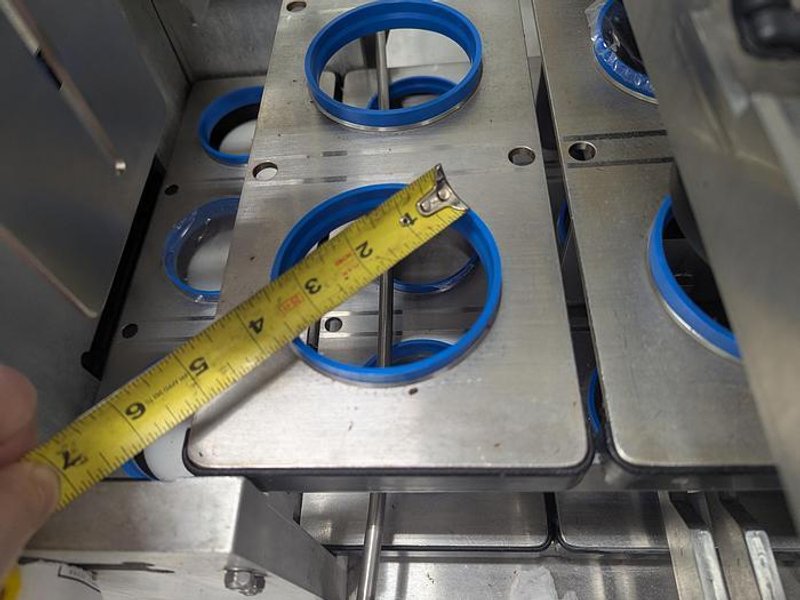

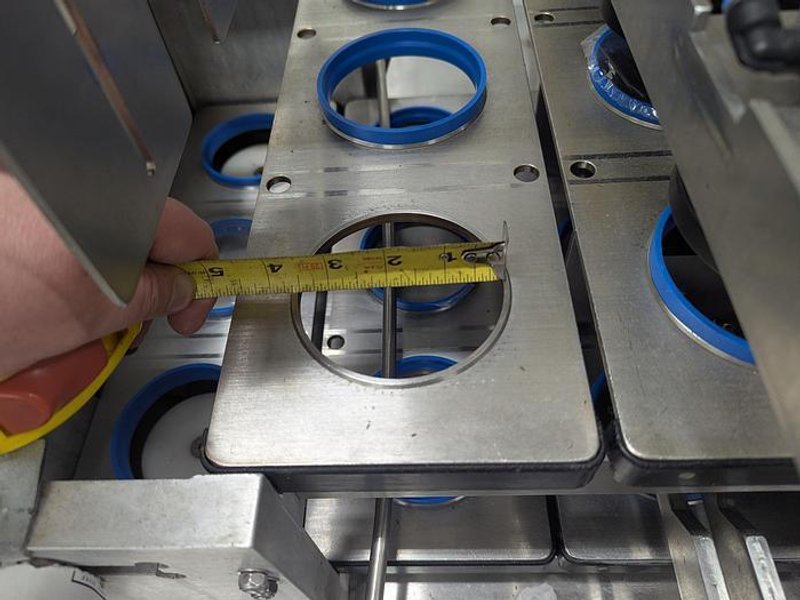

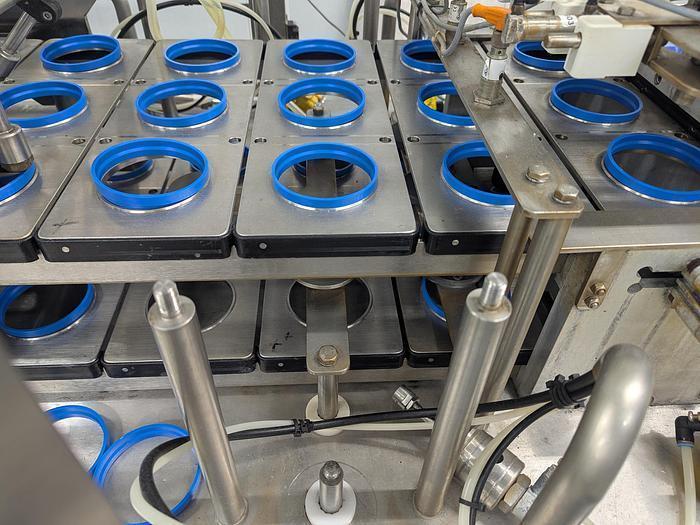

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cup Diameter: Approx. 3.75″ – 4.0″ (tape measured in tray)

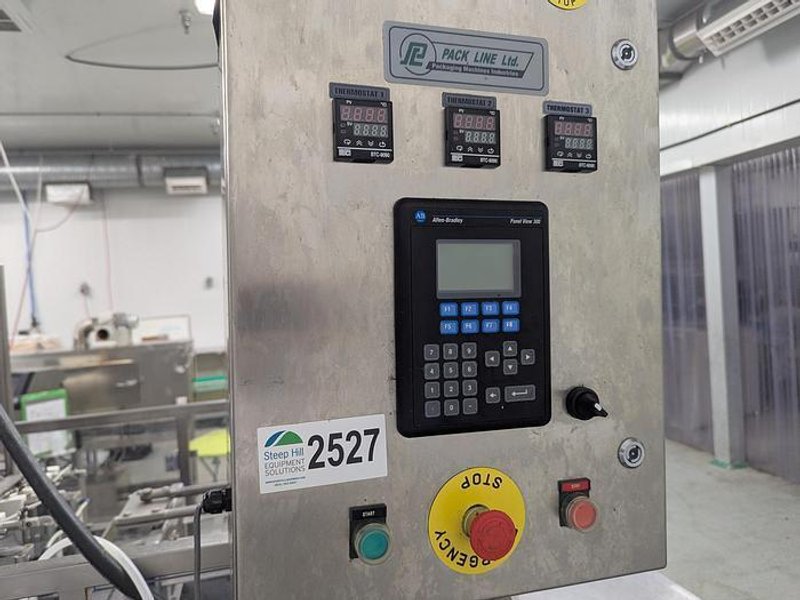

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Operator Interface: Allen-Bradley PanelView 300 Micro

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Temperature Control: 4x Omron E5CN digital thermostats

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Utilities: 3-phase 220V, 2.5kW, 50Hz
