Accutek Complete Liquid Filling, Capping, Labeling & Sleeving Line, 2018

Line Overview Unscrambling Turntable: Accutek 60″ Dia. Variable Speed, Food Grade SS, UHMW Guide Rails Bottle Rinser: Accutek 50-BR1-L02 Extended Length Liquid Rinser, 12 Nozzle Capacity, Dual 12-Port Manifold, Air Ball Valve, 3-Stage Filter, Ion Cannon Static Eliminator Piston Filler: Accutek AVF Series Automatic Volumetric Piston Filler – 10 Head, 32 oz (Expanded From AVF8-32 In 2024) Spindle Capper: Accutek ASC-6 Automatic Spindle Capper– 3 Station, 6 Spindle, Cap Elevator, Orientor Wrap Labeler: Labelette APS-106 Automatic Single Head 6″ Labeler w/ Thermal Transfer Overprinter Shrink Sleeve Labeler: Accutek SL1-100 Automatic Sleeve Label Applicator w/ Vertical Perforation Shrink Tunnels: (2) Accutek G9A-45A Recirculating Heat Shrink Tunnels Inspection/Rejection: Accutek 48-VIS-A01 Touch Screen Inspection Station w/ Cap, Label/Barcode Camera & Liquid Level Sensors Product Tanks: (2) 200 Gallon 316 SS Jacketed Electric Heated Mixing Tanks Conveyors: (5) Accutek 4-1/2″ Sanitary SS Conveyors- (2) 15′, (2) 10′, (1) 20′ w/ High Temp Upgrade Accumulation/Transfer: 60″ Accumulation Turntable, (2) Conveyor-Mount & (3) Stand-Alone 90° Transfer Tables

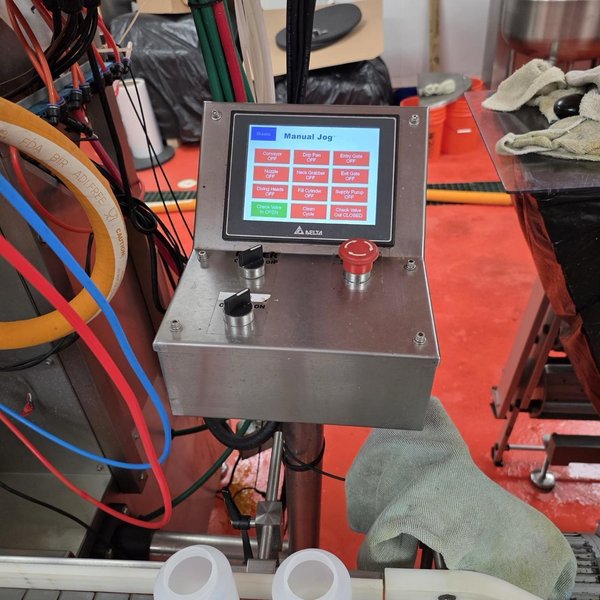

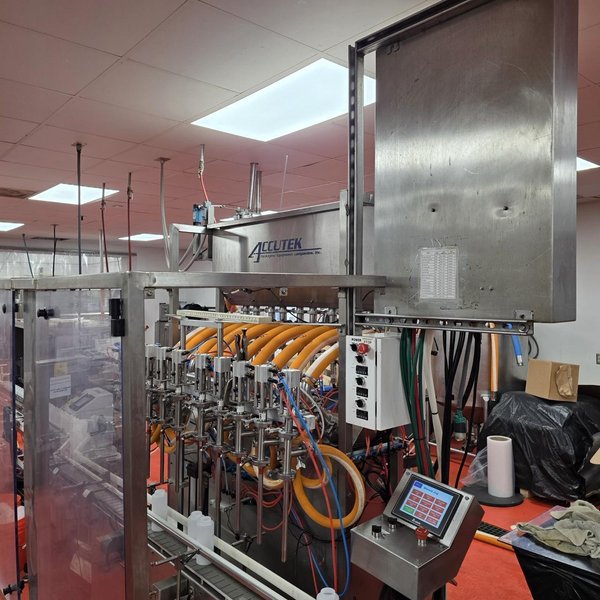

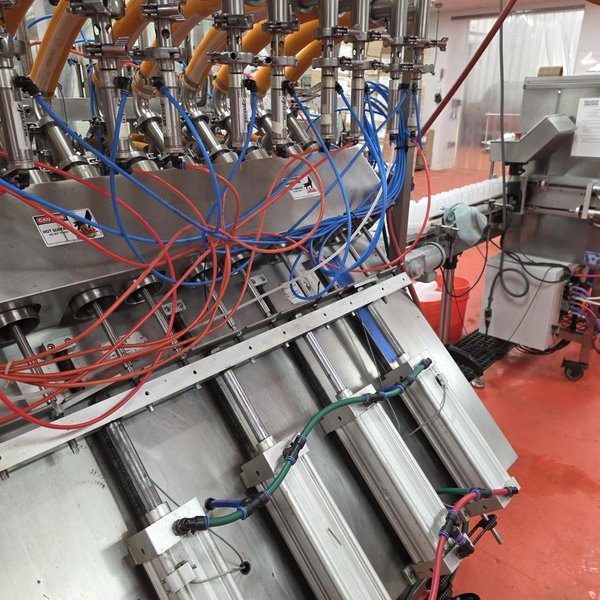

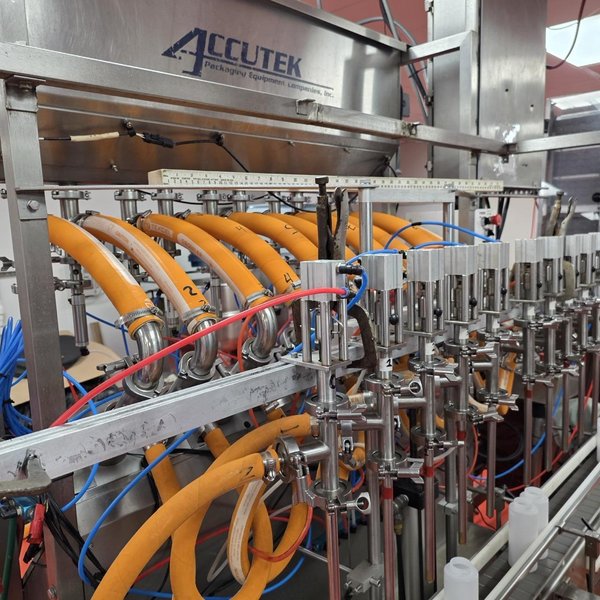

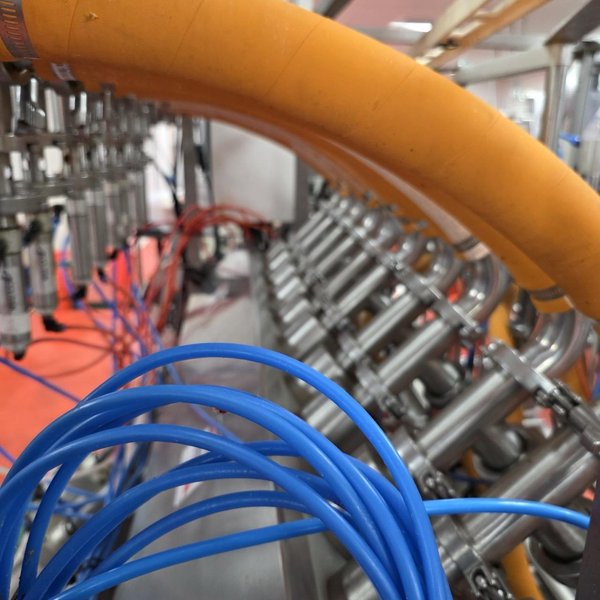

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Accutek AVF Piston Filler Heads: 10 (32 oz SS Product Cylinders & Pistons) Fill Range: Up To 32 oz Per Head; 8 oz Change Kit Included (10 Cylinders + Bridge Adapters) Controls: Color Touch Screen PLC, Recipe Memory, Production/ Management Screens, Manual Jog Indexing: Dual Pin Escapement + Star Wheel Indexer Assembly Diving Nozzles: 10 Head Diving Nozzle Kit, Bottom-Up Fill, Air-Over-Oil Lift, PAR Guard Enclosure Nozzles: (10) 1″ Positive Shut-Off Nozzles; Additional 3/8″, 1/2″ & 5/8″ Positive-Off Nozzle Sets Valves: (10) Fast Acting Chunky Product Valves, 1-1/2″ Sanitary Tee, Dual Port Hot Fill: Digital Heat Package (Cylinders, Nozzles & Hopper); Hot Product Silicone O-Ring/ Tubing Package Hopper: 30 Gallon “U” SS Hopper w/ Lid, Paddle Mixer, Agitator (Variable Speed), Pneumatic Float Level Kit Other: 36″ Drip Tray, 15′ x 4-1/2″ Delrin Conveyor, Heavy Duty SS Frame

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Accutek ASC-6 Spindle Capper Configuration: 3 Station, 6 Spindle, 110V, Heavy Duty SS Frame, Power Lift Cap Feed: Cap Elevator, Orientor w/ Fiber Optic Control, Cap Loader Cassette, 45° Transition Elbow, 32 Cleats Cap Chute: Small Cap Chute, 14mm – 102mm Closures, Left-To-Right Gripper Belts: Single Gripper Belt Assembly + Extra Single Set + Double Stacked Gripper Belt Assembly (2024) Options: Reverse Spindle Switch, Universal Hold-Down Shoe, Bottle Spacer Wheel

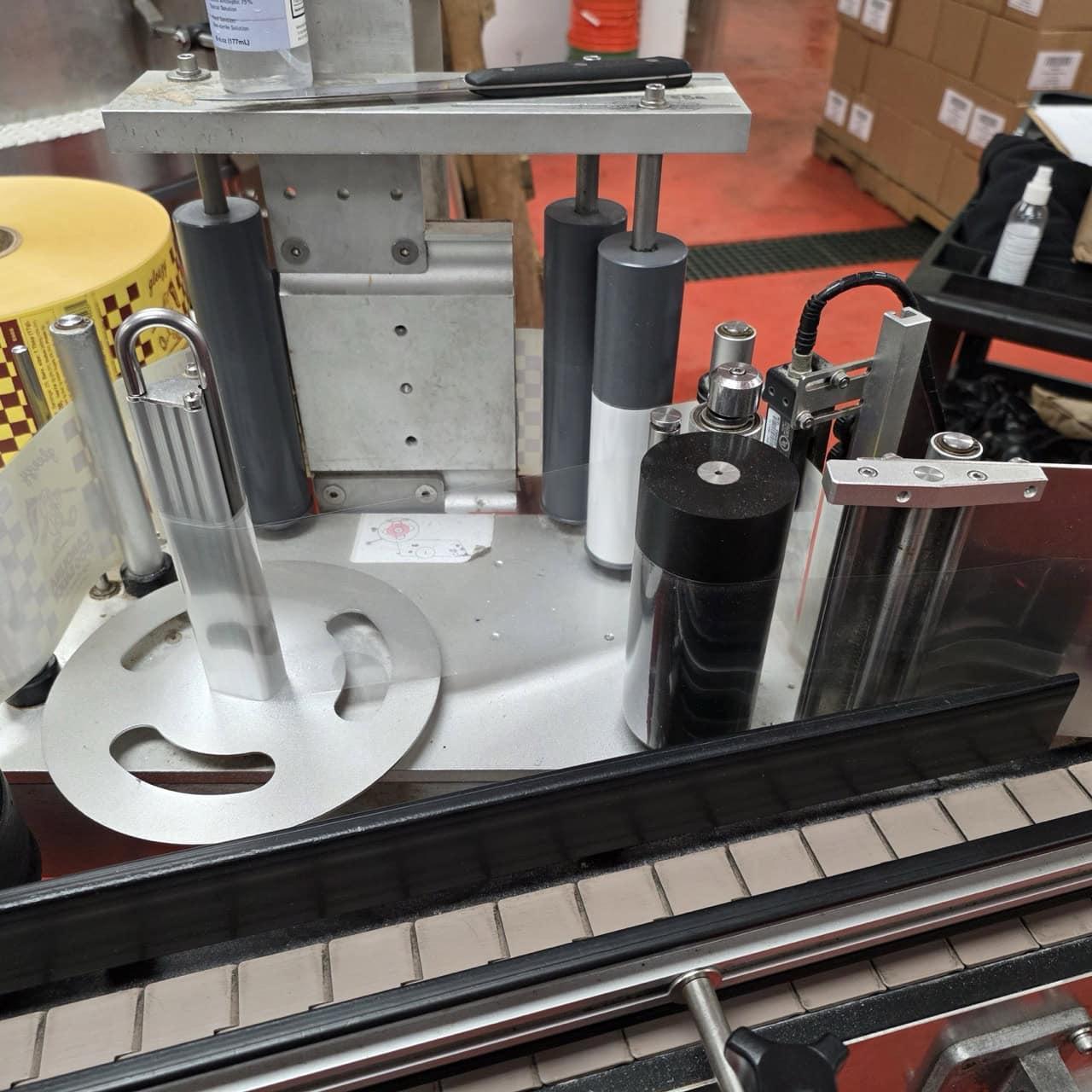

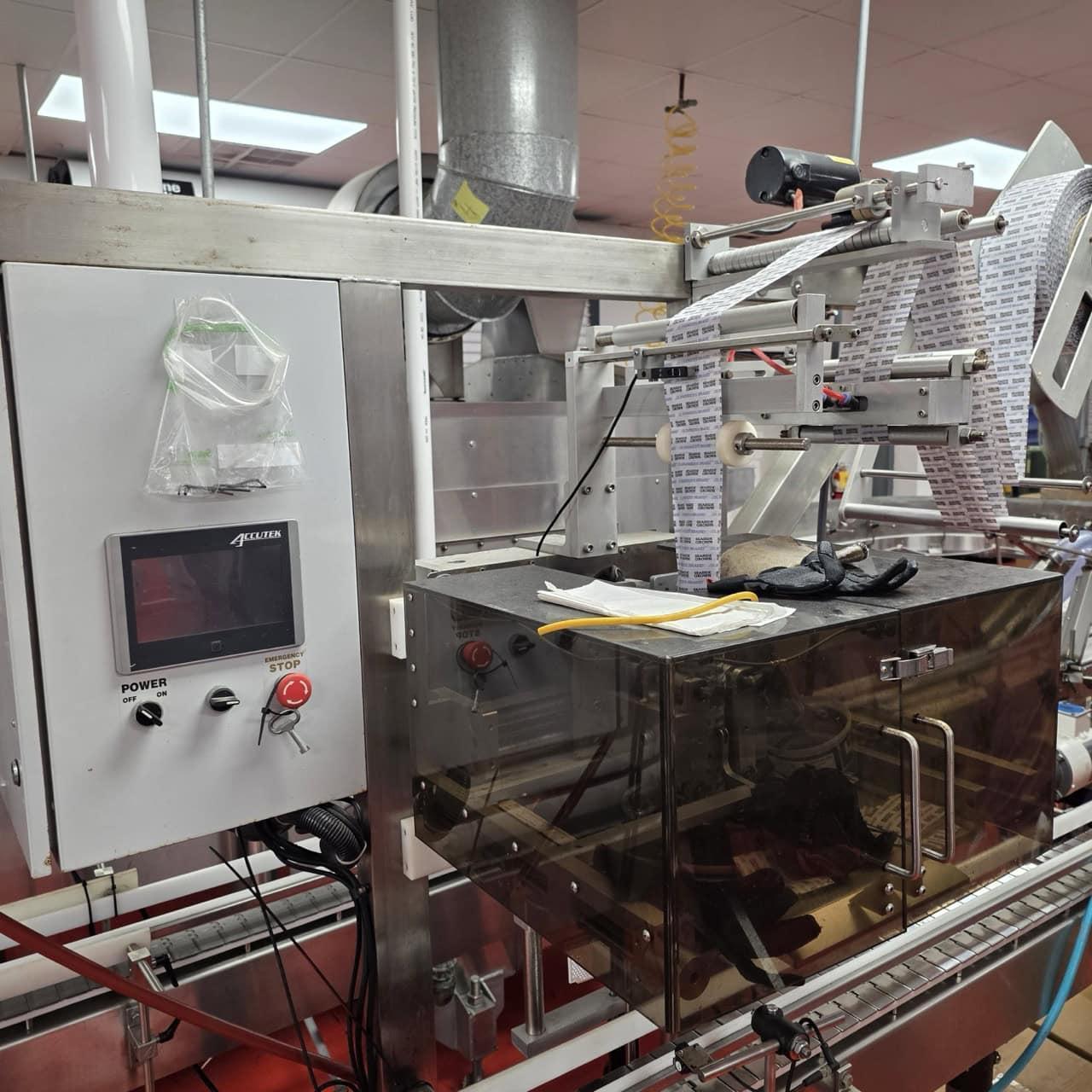

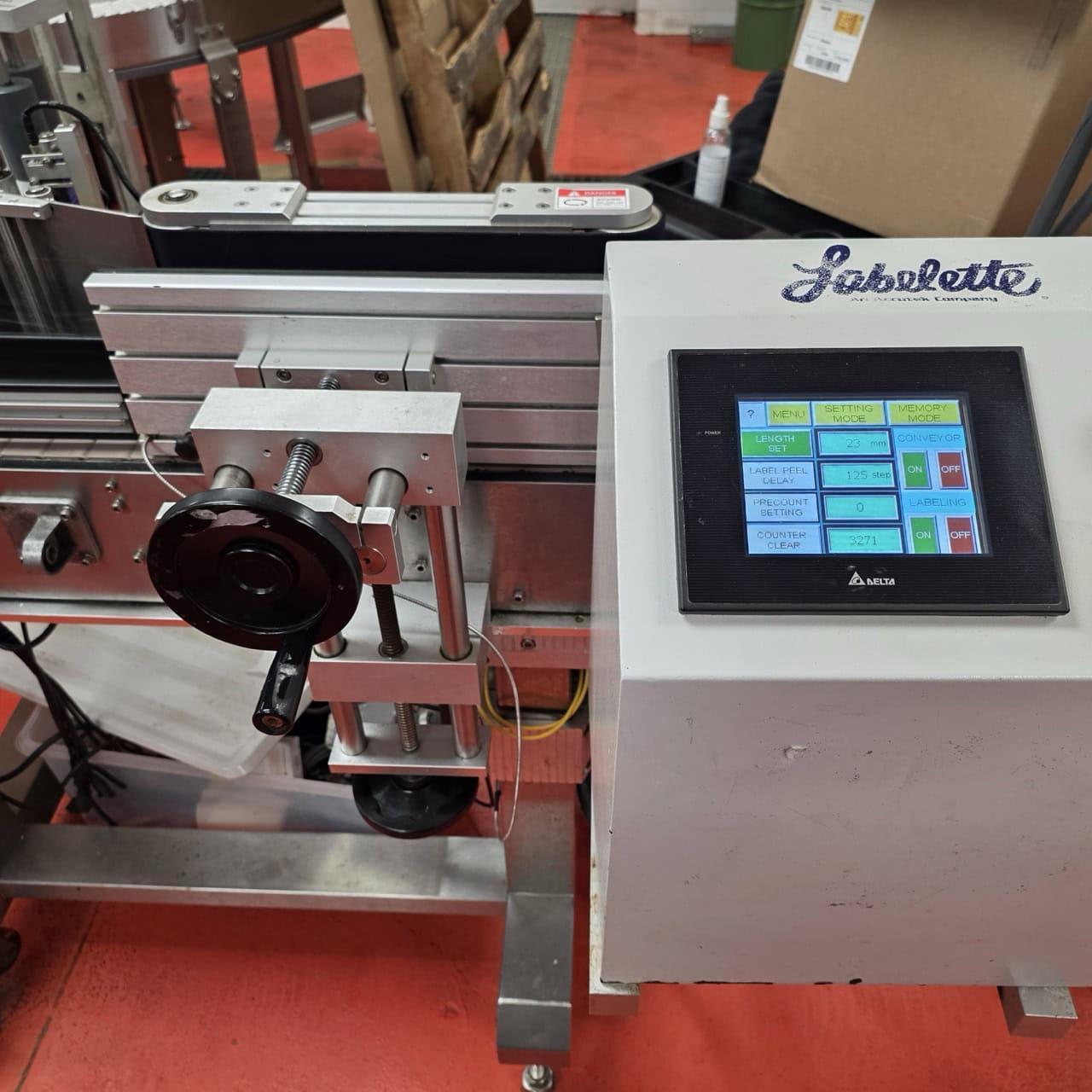

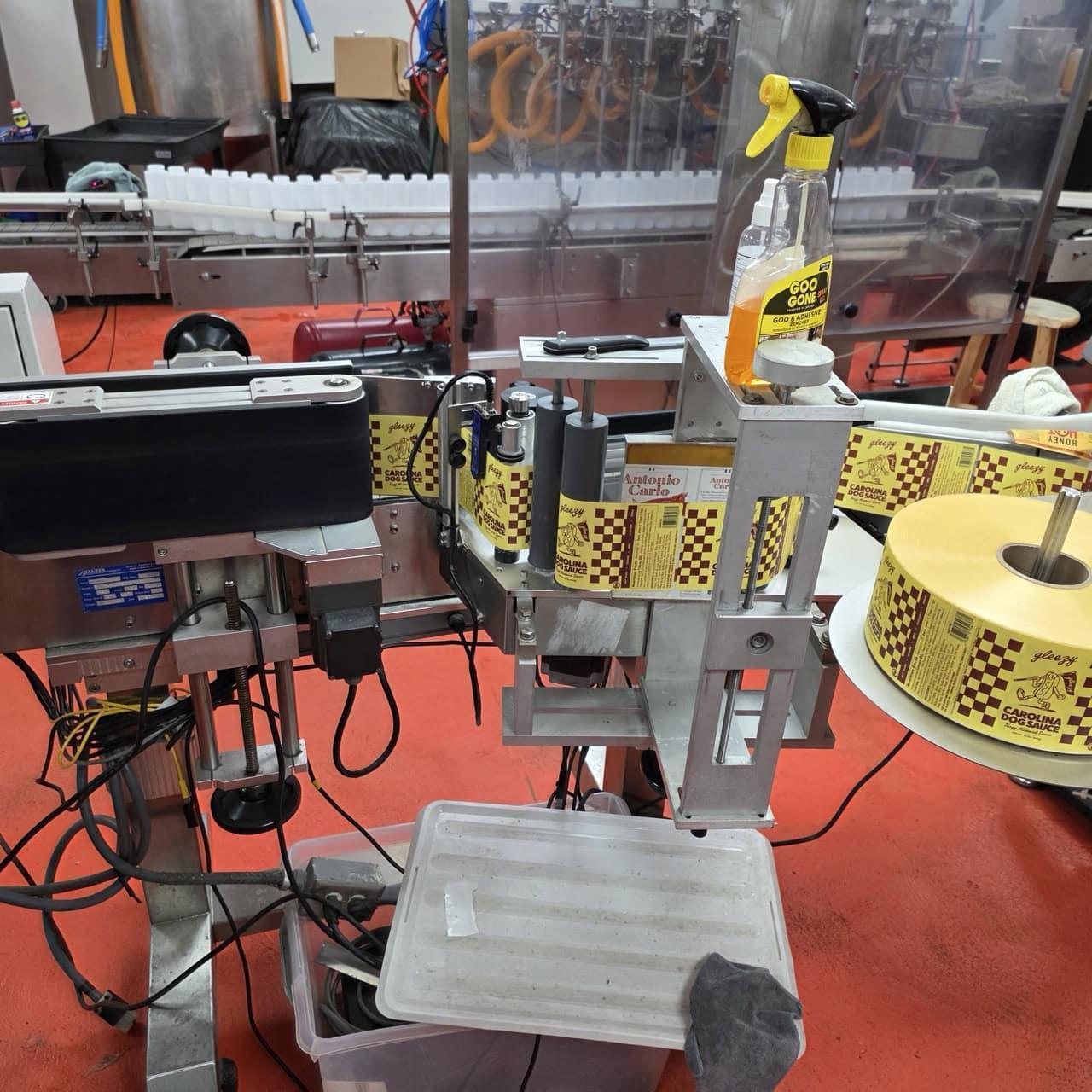

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Labeling, Coding & Sleeving APS-106 Labeler: Single 6″ Head, Touch Screen (30 Recipes), Auto Speed Adjust, Missing Label Detection, Stepper Drive, 6′ Variable Speed Conveyor, Bottle Spacer TTO Printer: 32mm Thermal Transfer Overprinter, 300 dpi, Intermittent, Continuous, Up To 400 mm/s, Dates, Lot, Barcodes, 2D SL1-100 Sleever: Max Lay Flat 100mm, Max Cut Length 150mm, Servo Feed, Rotary Cutter, Touch Screen PLC, Powered Height Adjust Sleever Options: Motorized Film Feed, Dual Wheel Sleeve Apply Unit, 85mm LF x 81mm CL Bullet Tooling, Vertical Perforation (Up To 300 CPM) G9A-45A Tunnels (2): Opening 4″ H x 4-1/2″ W, 36″ Long, 12 kW, 220V, 3 Ph, Dual Blower, Digital Multi-Zone Temp Control

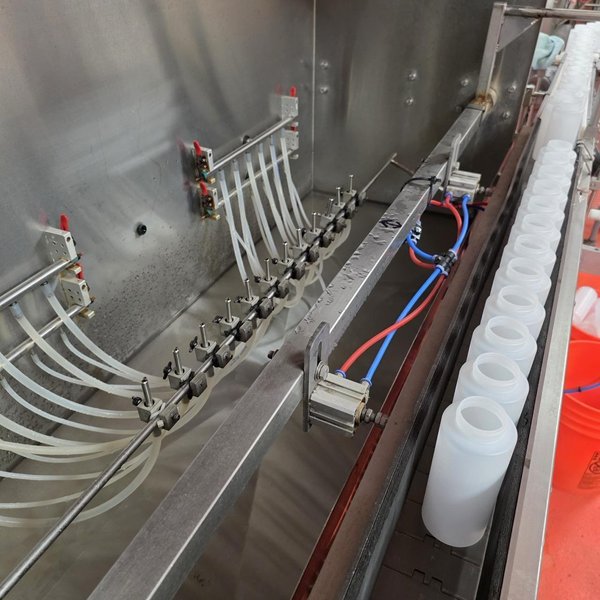

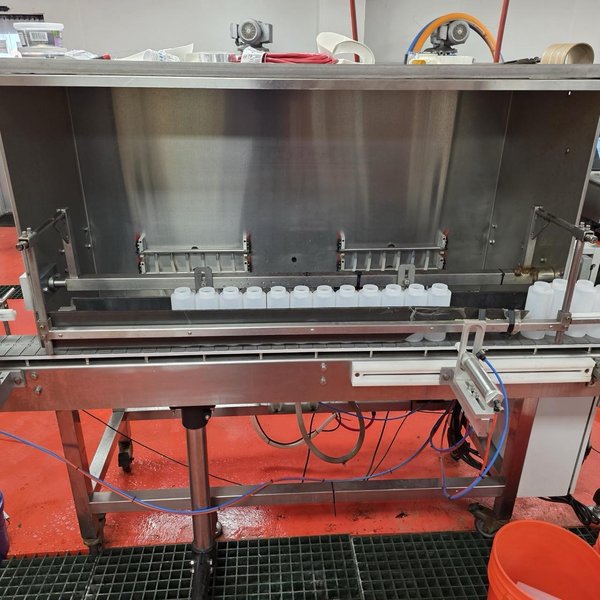

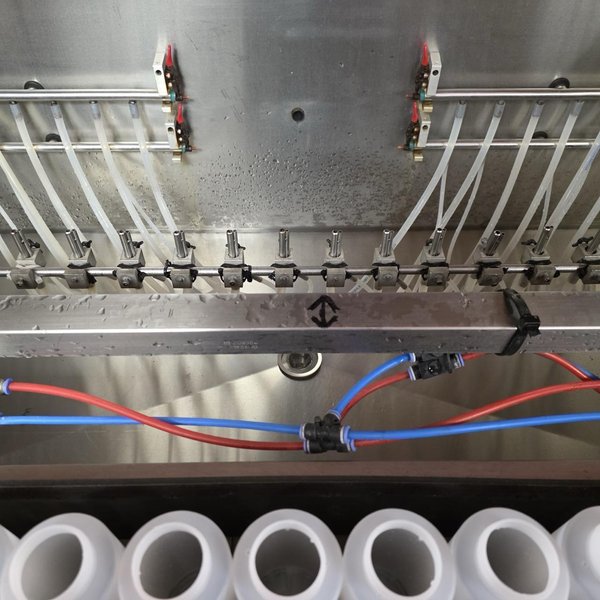

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rinser, Inspection & Process Bottle Rinser: Extended Length Model, Universal Control Box, Additional Cycle Upgrade, Pin Indexing, 60″ Gripper Arm, Photo Eye Sensor Kit Inspection Station: SS & Aluminum Construction, Touch Screen Software, Push-Arm Rejection Inspection Sensors: Cap Detection (Missing, Cocked, High), Camera Label & Barcode Verification, Liquid Level Detection 200 Gal Tanks (2): 316 SS, Mirror Finish, Jacketed + Insulated, CIP Spray Ball, Sight Glass, Digital Thermometer, 6 x 7 kW Elements (36 kW), 220V, 3 Ph

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Includes a variety of change parts.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
