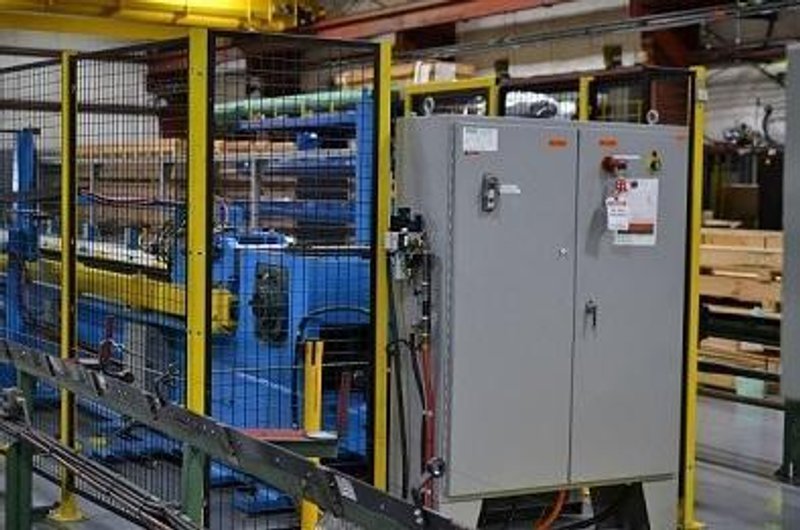

30,000 LBS. BWM INDUSTRIAL AUTOMATION DRAW BENCH Stock # 14558

30,000 LBS. BWM INDUSTRIAL AUTOMATION DRAW BENCH
Stock #14558

***PRELIMINARY SPECIFICATIONS***

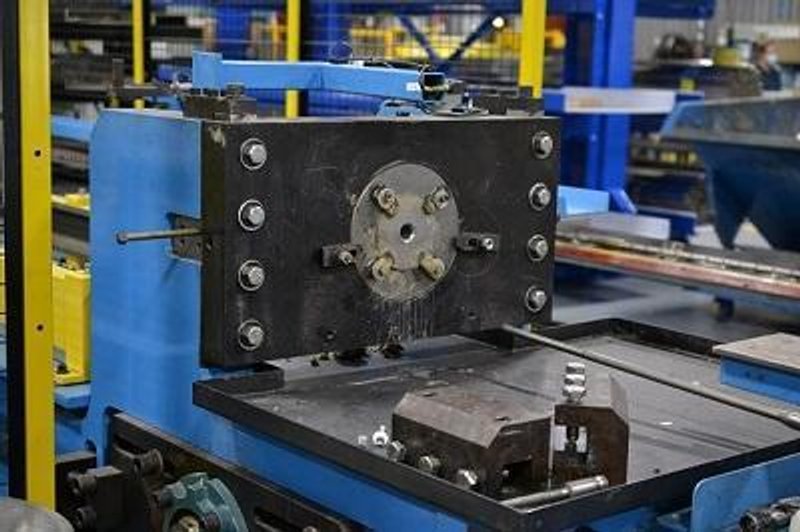

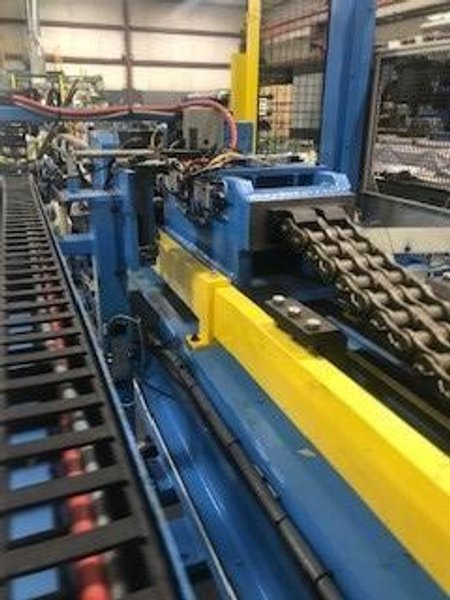

SINGLE CHAIN, SINGLE DIE, SINGLE PULL DRAW BENCH

LIKE NEW CONDITION

CAPACITY, DESIGNED FOR HIGH ALLOY TUBE
DRAWN LENGTH: 7.6 M (25 FT.)
30,000 LB. OVERALL LOAD CAPACITY

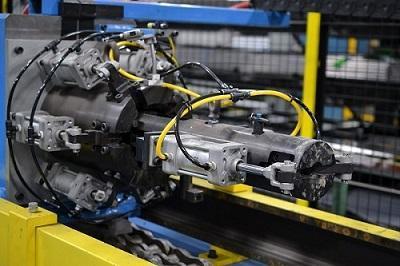

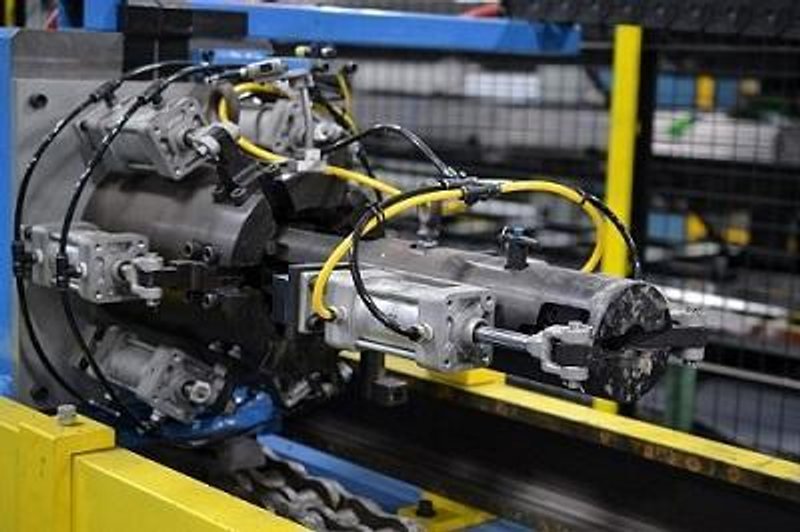

CARRIAGE JAW, 6 SEGMENTS, HYDRAULIC OPERATED GRIP FOR UP TO 5" DIAMETER TUBE
LONG SEGMENT JAWS, DESIGNED FOR LIGHT WALL TUBE

CARRIAGE JAW EXTENSION, HYDRAULIC ACTUATED FOR UP TO 1" DIAMETER
LONG LENGTH DESIGN FOR LIGHT WALL TUBE

NOMINAL TUBE WALL THICKNESS, 0.040" TO 1.10"
SPEED RANGE, DRAW: 0 - 120 INCHES/MIN.
RETURN SPEED: 120 INCHES/MIN. MINIMUM
MAIN MOTOR DRIVE, ___ HP, AC 600 VOLT MOTOR
OPERATOR FLAT SCREEN CONTROL
ALLEN BRADELY PLC

ENTRY TUBE PUSH ASSEMBLY
TUBE DISCHARGE RACK
HYDRAULIC POWER SUPPLY UNIT

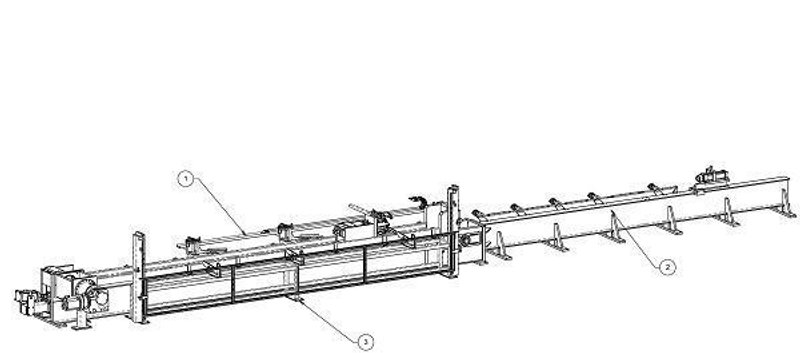

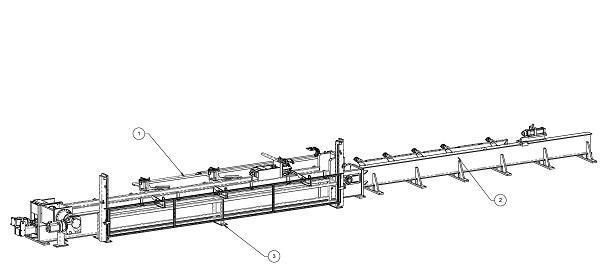

TECHNICAL DRAWINGS AVAILABLE

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION*
