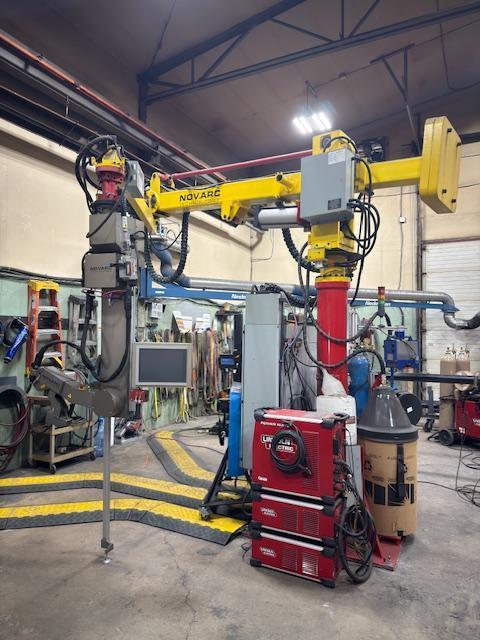

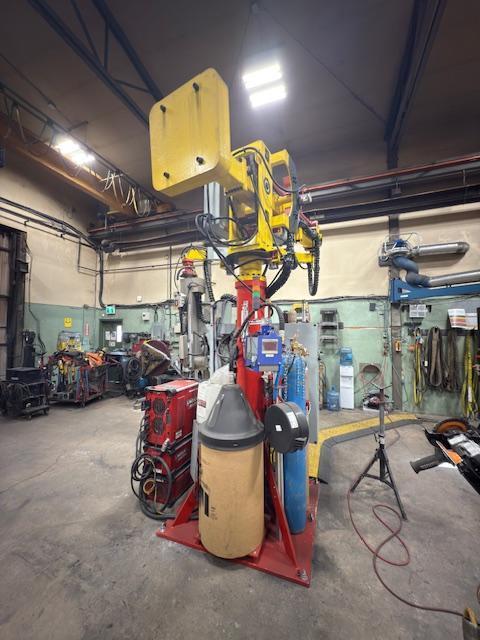

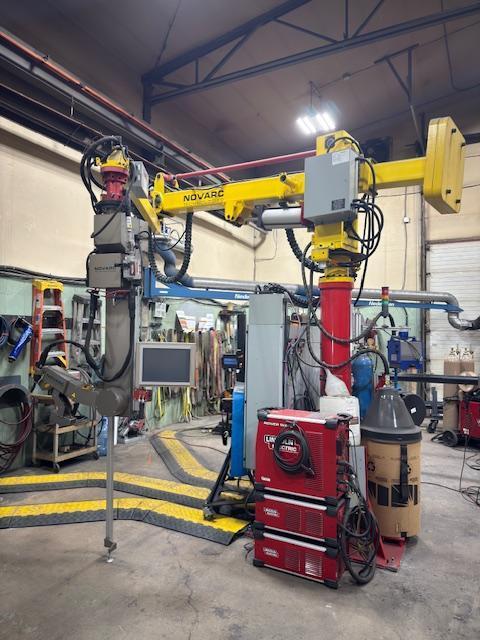

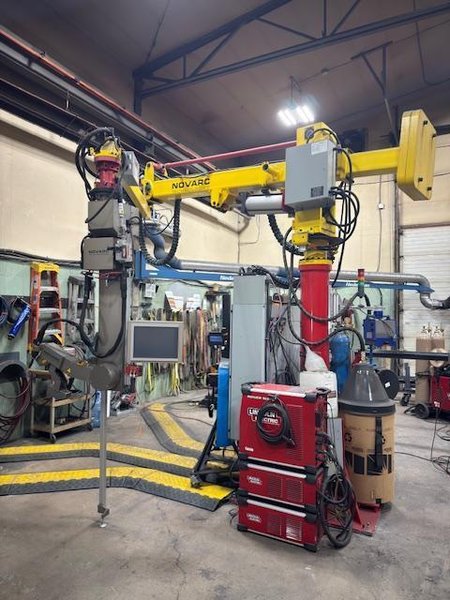

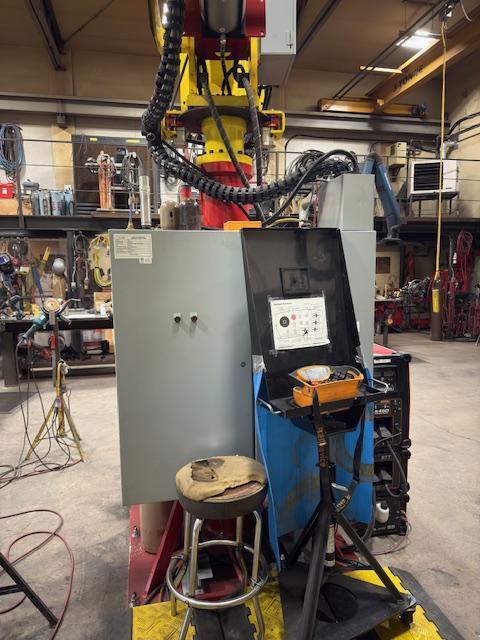

Novarc SWR Spool Welding Robot, 2023 – Automated Pipe Welding System

Pipe / Spool Size Range: 2″ – 60″ (50 mm – 1,520 mm) pipe diameter capability Manipulator / Reach: 15′ (4.5 m) reach radius Wire Size (Diameter): 0.035″ – 0.062″ (0.9 mm – 1.66 mm) Material Compatibility: Carbon steel, stainless steel, nickel alloys, and low alloy steels Pipe Wall Thickness / Capability: Handles thick wall pipes; capable of welding carbon steel up to approximately 50 mm wall thickness and stainless steel Power Requirements: 3-phase, 208Y/120V, 60 Hz, 30A Approximate Footprint: 4′ × 4′ (1.2 m × 1.2 m) Weight: Approximately 3,500 lb (1,588 kg)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Welding Processes Supported: GMAW, FCAW, MCAW, HyperFill®, and STT (modified short-circuit) for root pass applications

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,SWR-F (Flange / Fillet Capability): Adds a rotation axis to optimize torch orientation for fillet welds (±50° relative to horizontal) for flange welding

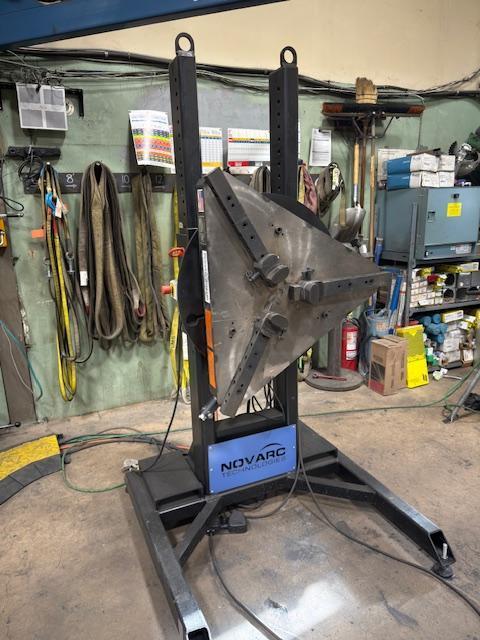

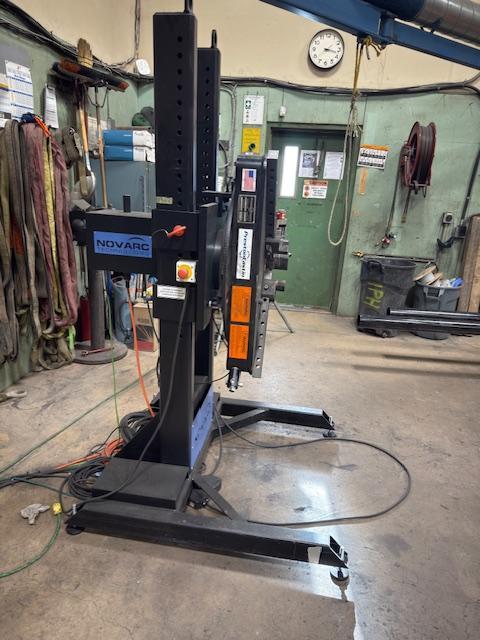

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Positioner Integration: Supports up to 5 positioners (up to 4 simultaneously for the SWR-F variant)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Welding Vision / Torch Control: Equipped with NovEye™ vision and laser system for seam tracking, automatic torch height/distance control, groove monitoring, and video recording for each weld

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Seam Tracking / Distance Control Accuracy: ±0.1 mm vertical distance control; horizontal seam tracking precision also approximately ±0.1 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weave Motion: Weave stroke up to 0.59″ with adjustable frequency (0–5 Hz) and dwell up to 0.4 seconds

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Processes for Flange (SWR-F): In flange (fillet) mode, includes manual rotation control; some NovEye Autonomy and Assist features are disabled during this mode
