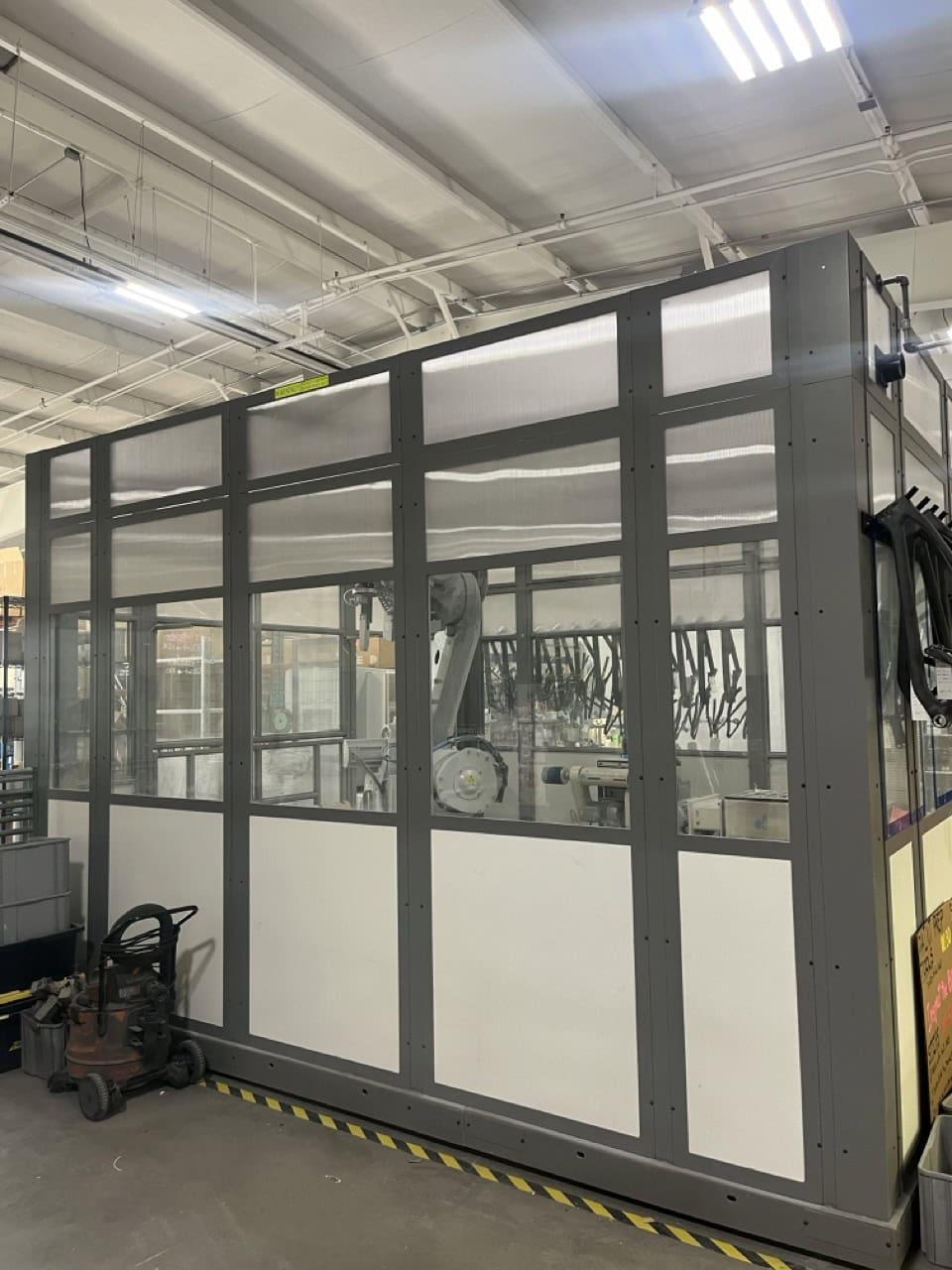

Dan Technology Robotic Cell for Grinding and Polishing, 2022

ROBOT: ABB IRB6700-155/2.85 IRC5

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,MANUFACTURER:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,DAN di DE ANTONI srl. 25030 COCCAGLIO (BS) Italy

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,DATE OF CONSTRUCTION: 05/2022 ELECTRIC POWER SUPPLY: 480V Three-Phase + PE Freq. 60 Hz POWER REQUIRED: 16 kW COMPRESSED AIR SUPPLY: Operating pressure 6 bar HYDRAULIC SUPPLY: – DUST EXHAUSTER: N. 4 SUCTION POINT  150mm:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The minimum recommended flow rate is 1.400 m 3 /h for each suction point, for a maximum of

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,2.800 m 3 /h

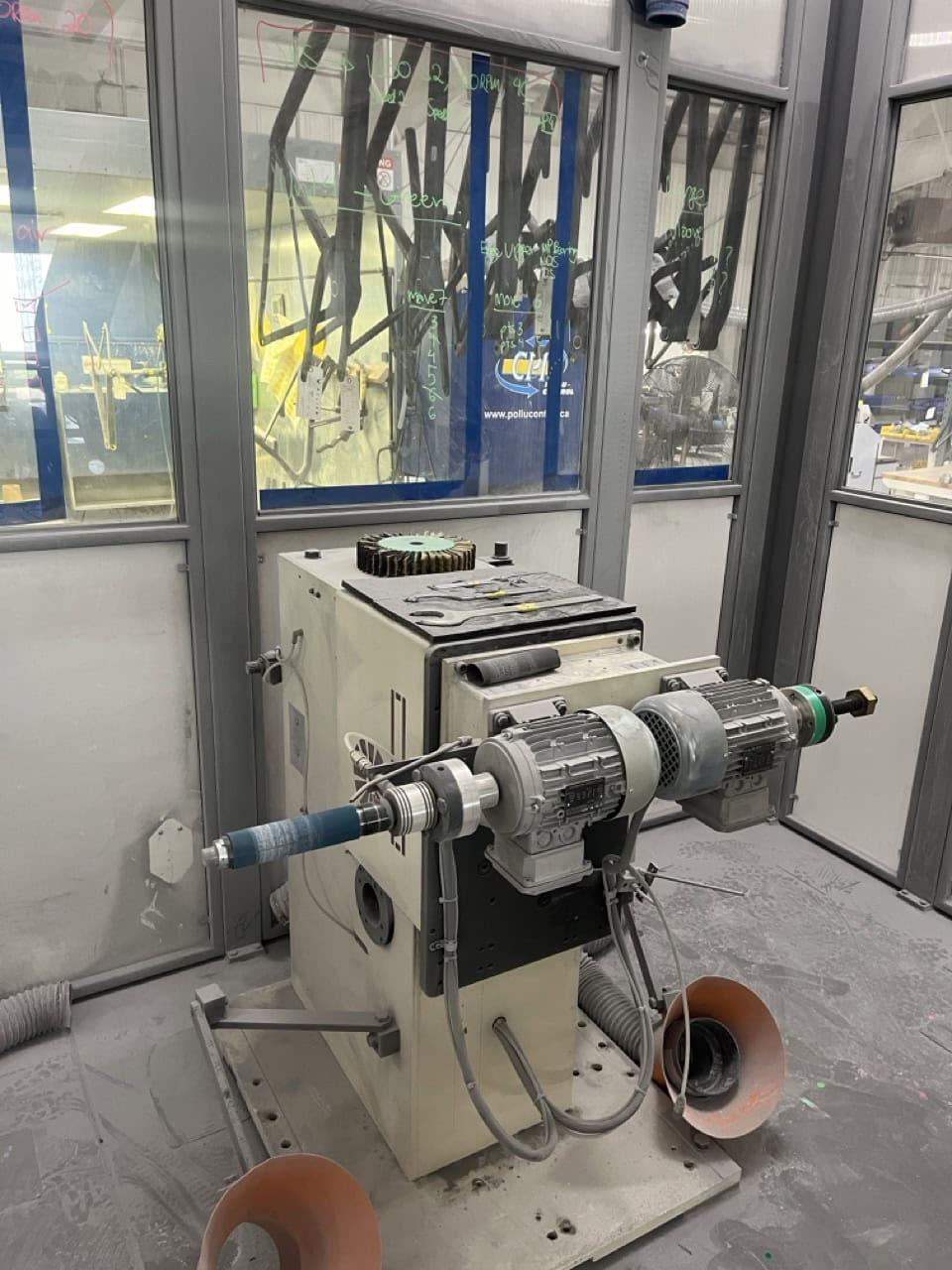

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,JOLLI-5.2/L/AD [U1-U2] Motor (n°1×3 kW) 1,5 kW 2p Slide Motor 0,55 kW 4p Maximum power 2,05 kW Weight 700 Kg Size Height: 1150mm Width: 1115mm Depth: 1430mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,No. of suction point: 800 m3/h 1000 m3/h 1400 m3/h

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,/ Ø 100 mm / Ø 120 mm 2 Ø 150 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rubber sleeve diameter: U1 130mm, U2 60mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rubber sleeve width: U1 180mm, U2 180mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum brush speed: 2000 rpm Compound Double: yes Sensibility Front: yes Lateral: yes

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Type of Inverter: N°1 Toshiba VF-S15 4015 PL-W1 (1,5 Kw) Pressure control: PLC

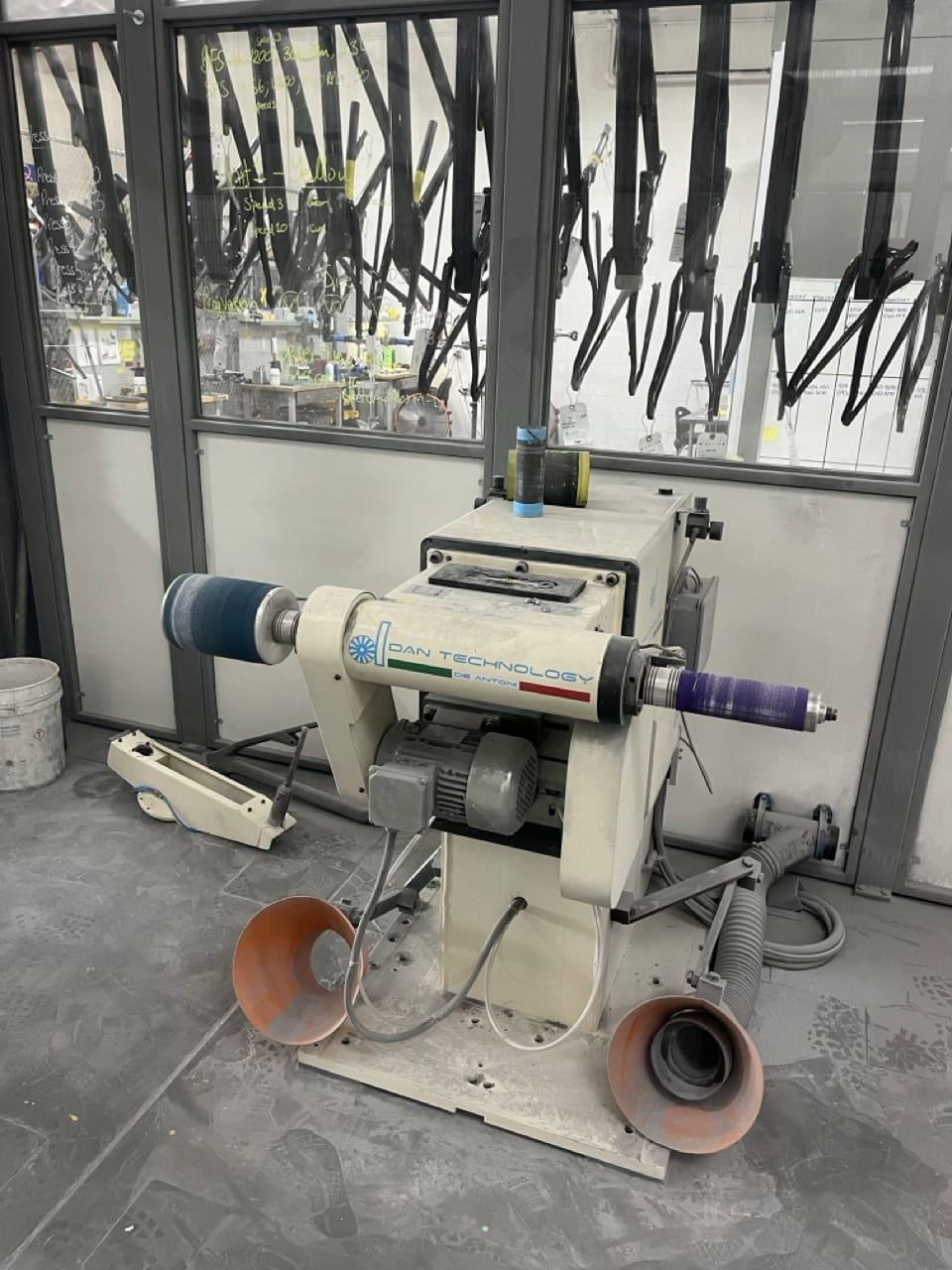

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,JOLLI-5.2/SARCA/MD [U3-U4] 1,10:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motor: (n°2×0,55 kW) 1,1 kW 2p Slide Motor: 0,55 kW 4p Maximum power: 1,65 kW Weight: 700 Kg Size Height: 1150mm Width:1115mm Depth: 1430mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,No. of suction point: 800 m3/h 1000 m3/h 1400 m3/h

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,/ Ø 100 mm / Ø 120 mm 2 Ø 150 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rubber sleeve diameter :U3250mm, U4 30mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rubber sleeve width: U3 50mm U4 150mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum brush speed: 2000 rpm Compound Double: yes Sensibility Front: yes Lateral: yes

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Type of Inverter N°2 Toshiba VF-S15 4007 PL-W1 (0,75 Kw) Pressure control PLC

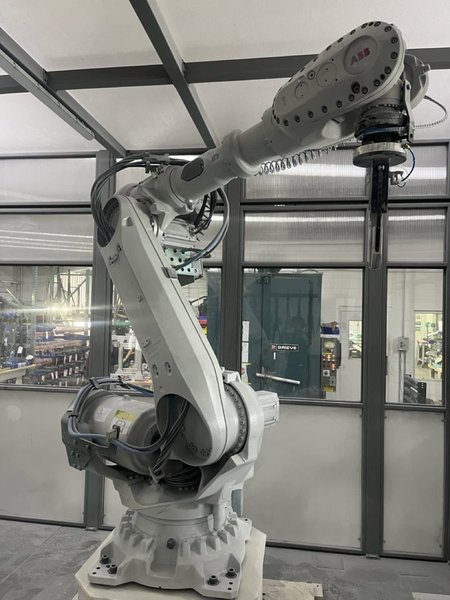

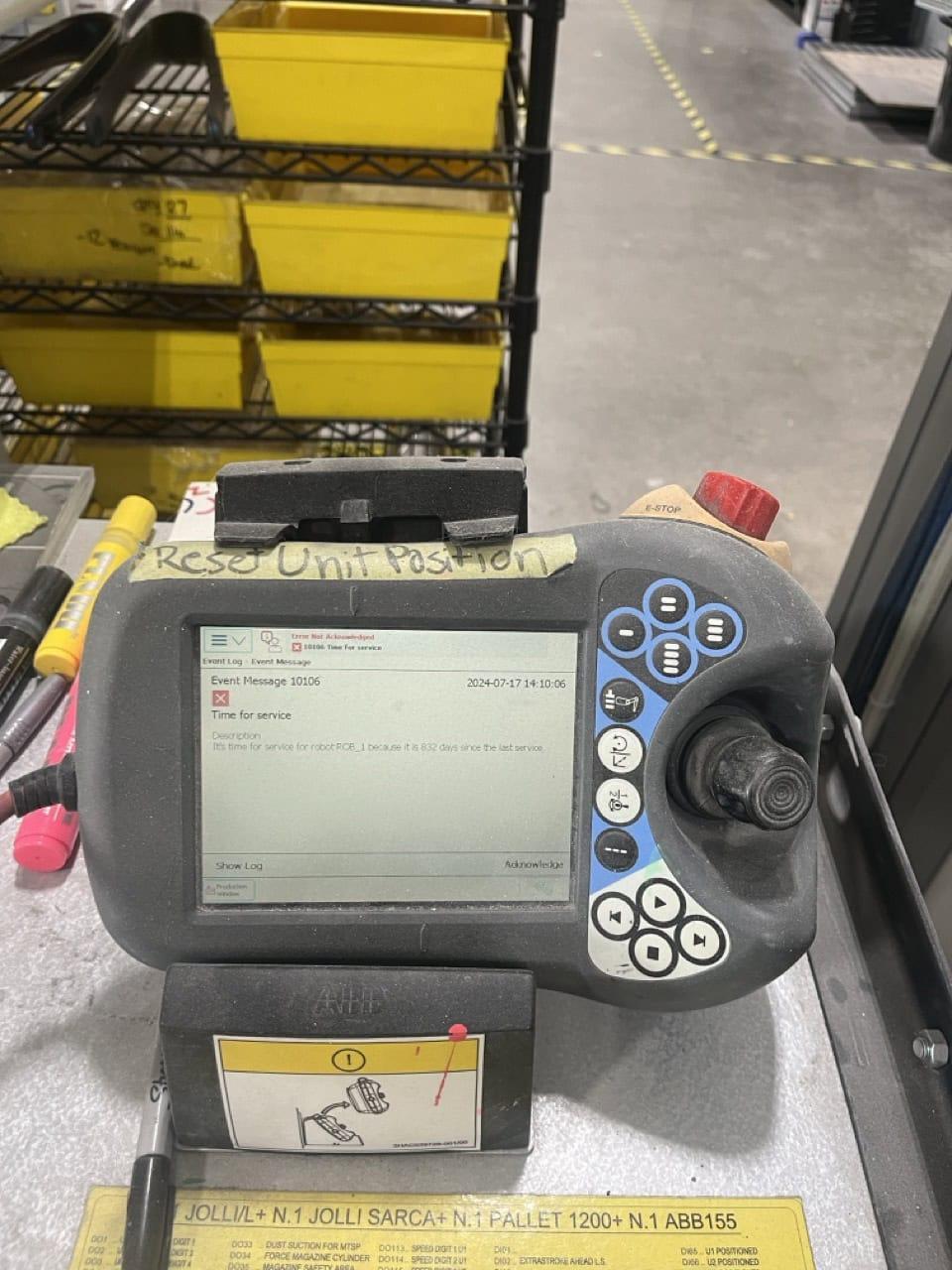

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,ROBOT ABB IRB6700-155/2.85 Brand ABB Model IRB 6700-155/2.85 Type Robot Arm Axes 6 Payload 155 kg Reach 2850 mm Repeatability 0.05 mm

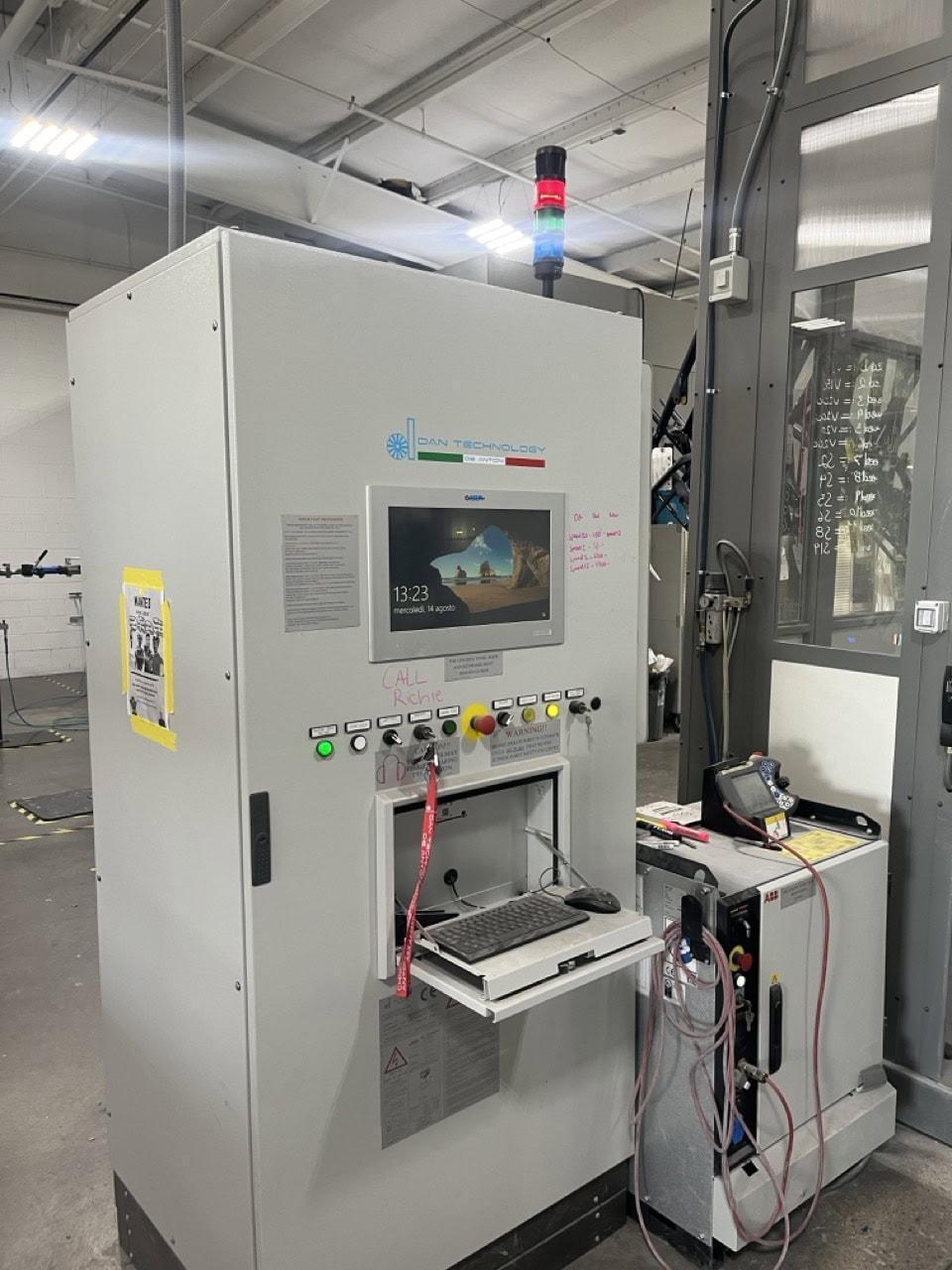

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,ROBOT ABB IRB6700-155/2.85: – 1500×1500 1220 CONTROLLER ROBOT ABB IRC5 10: 725×710 200 JOLLI-5.2/L/AD [U1-U2] 1,5: 800×1000 700 JOLLI-5.2/SARCA/MD [U3-U4] 1,10: 800×1000 700 REVOLVING MAGAZINE 1200 0.37: 900×1100 300 ELECTRICAL PANEL 2.65: 1000×800 300 GENERAL BASE: 4800×5100
