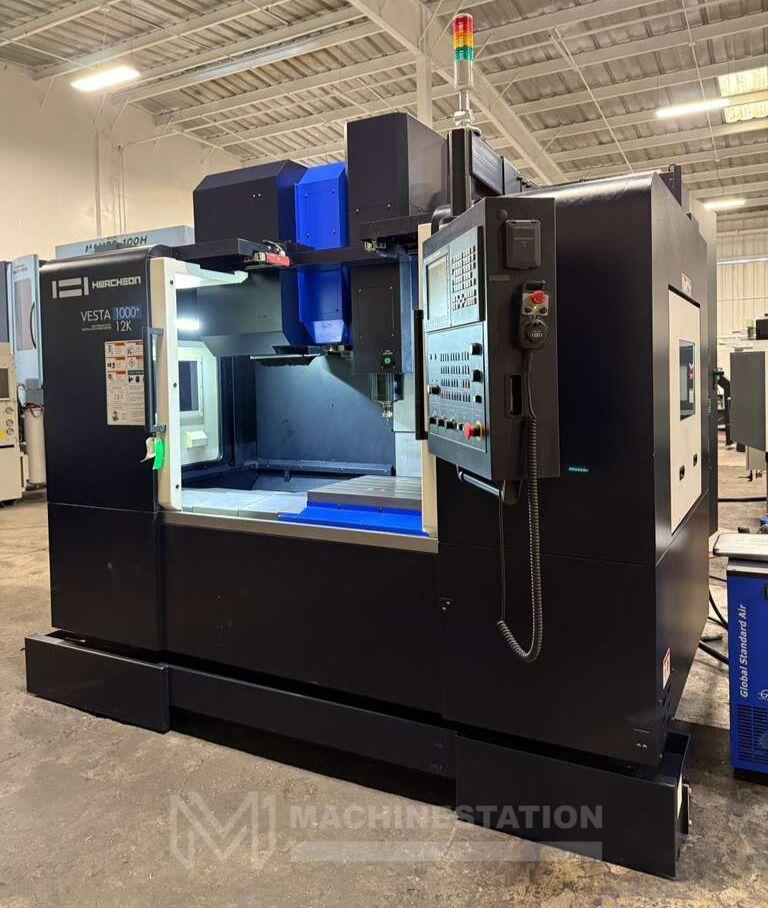

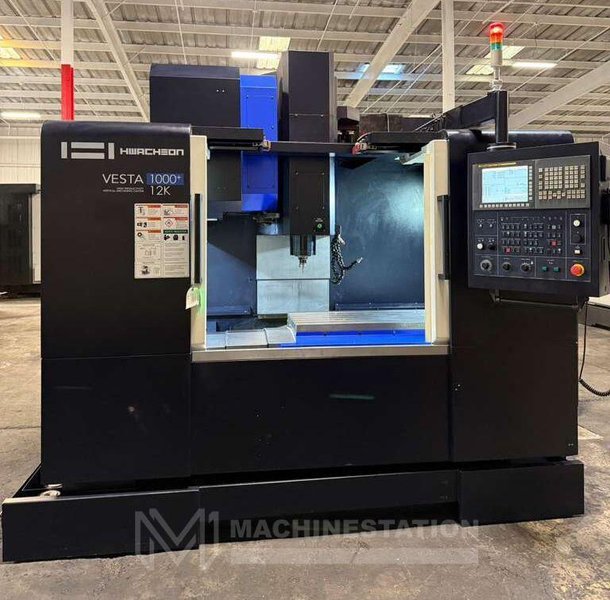

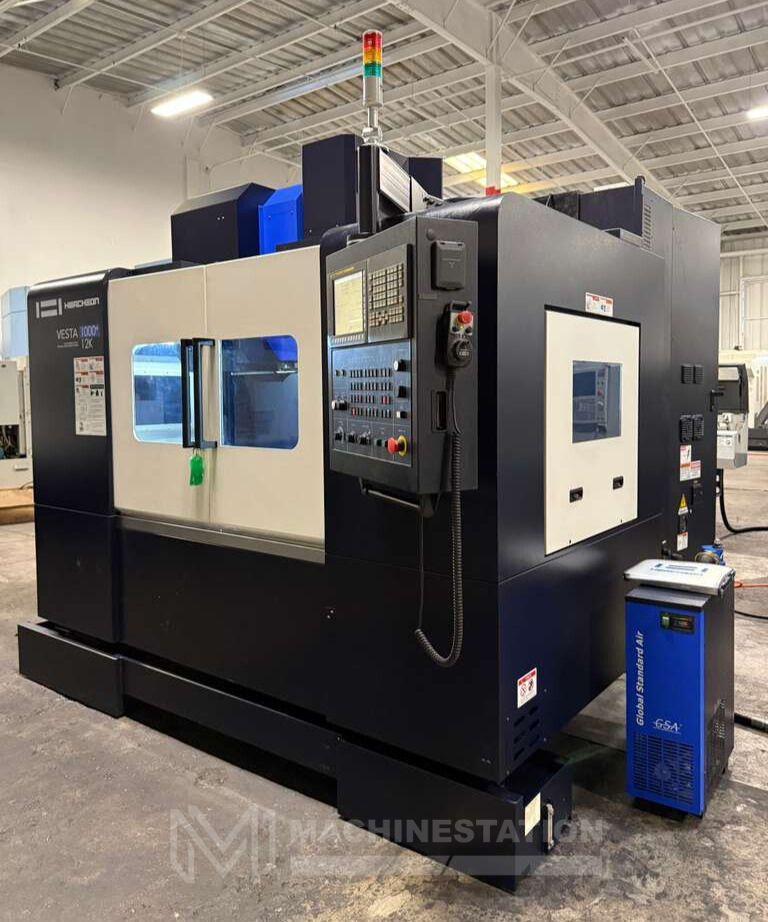

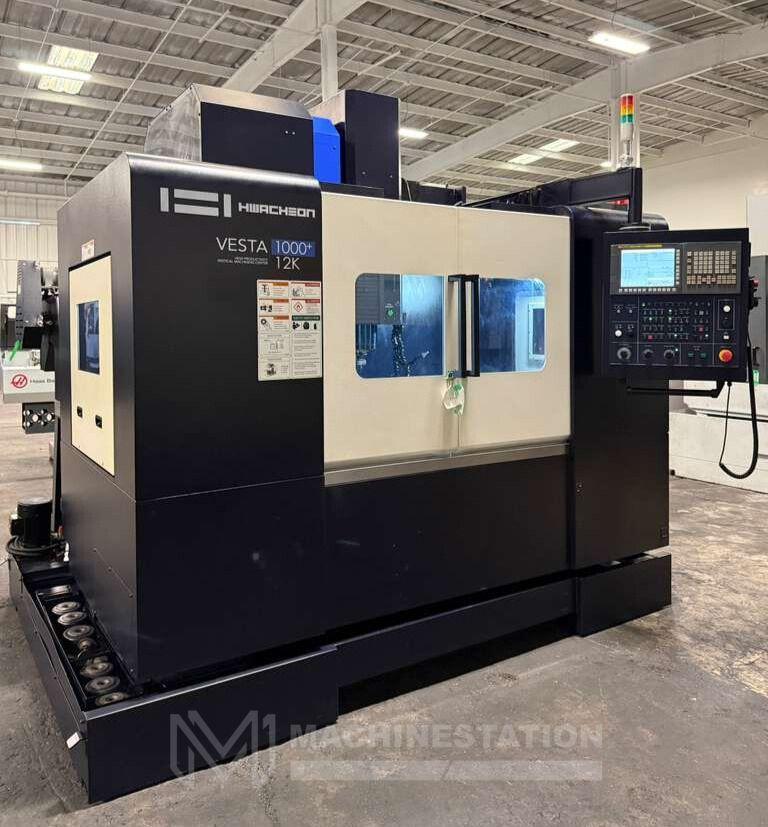

Hwacheon Vesta 1000+ CNC Vertical Machining Center -12,000 RPM 2019 Mill

Brand
HWACHEON
Category
Machining Centers
Type
Vertical Machining Centers
Model
Hwacheon Vesta 1000+
Stock #
112893
Year
2019
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU: 112893
Make: Hwacheon
Model No.: Vesta 1000+
Year of Manufacture: 2019
Condition Used –  Excellent
Equipped With:

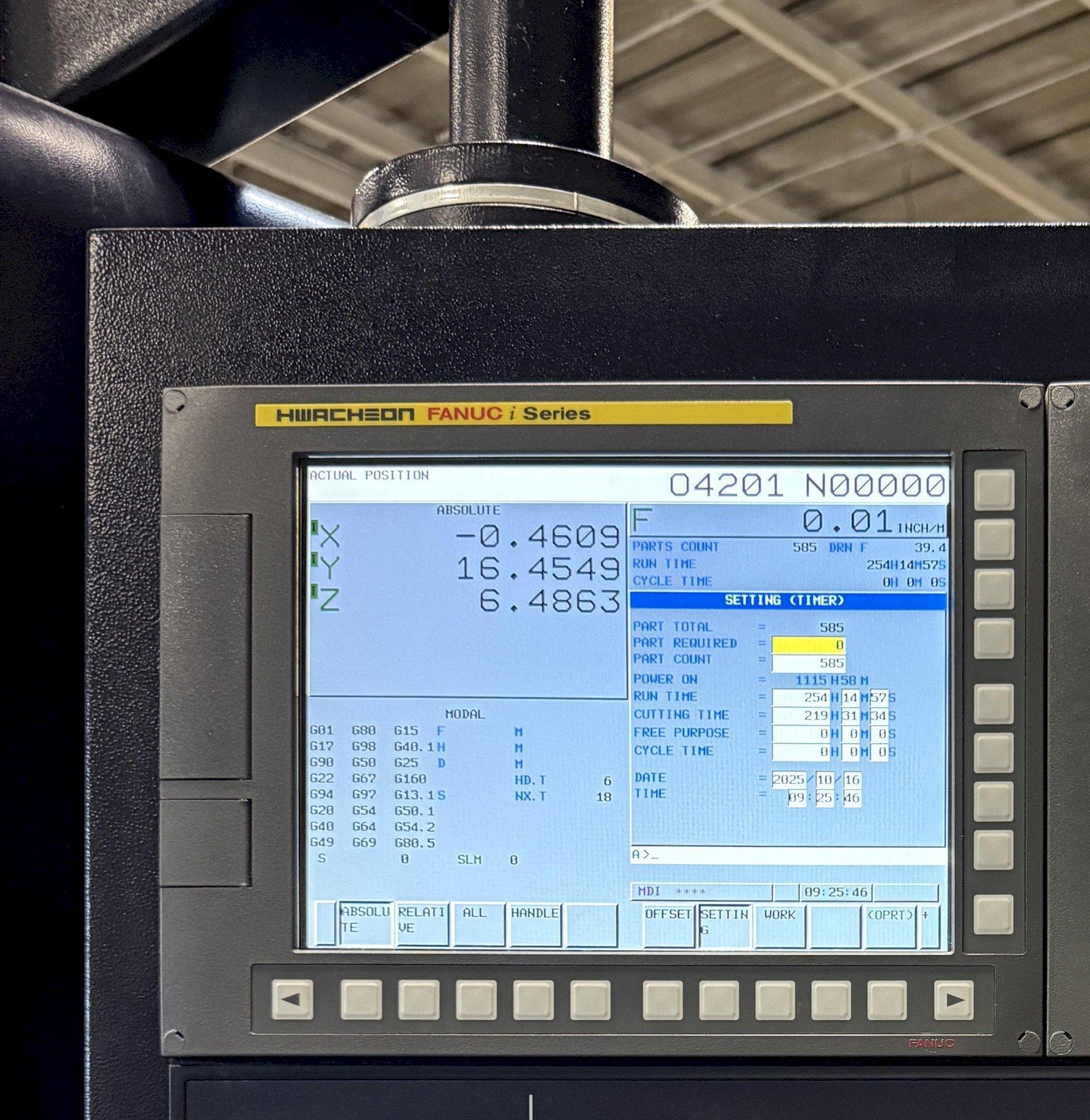

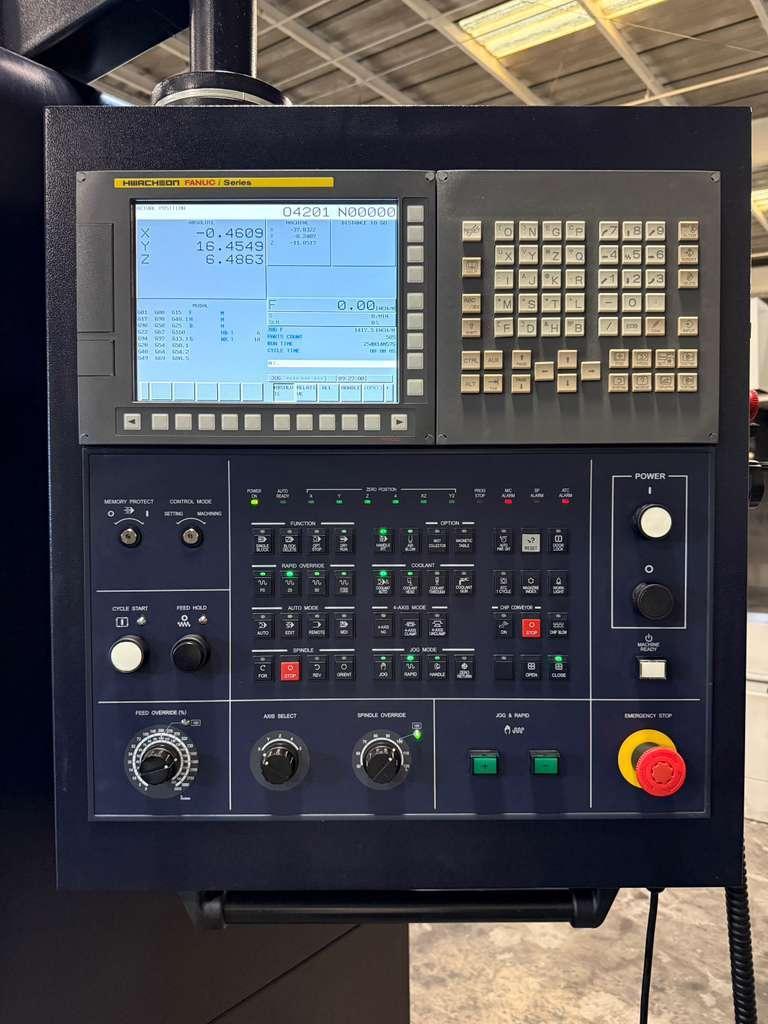

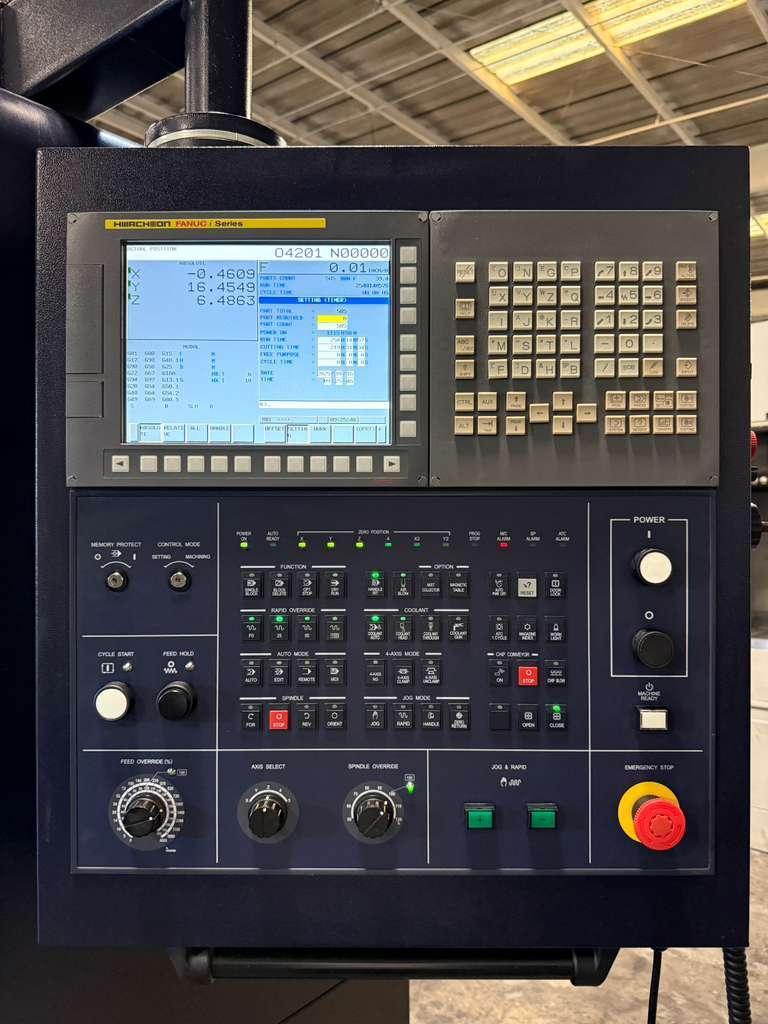

Hwacheon Fanuc i-Series CNC Control
Linear Way Construction
12,000 RPM High Speed Spindle
Through Spindle Coolant

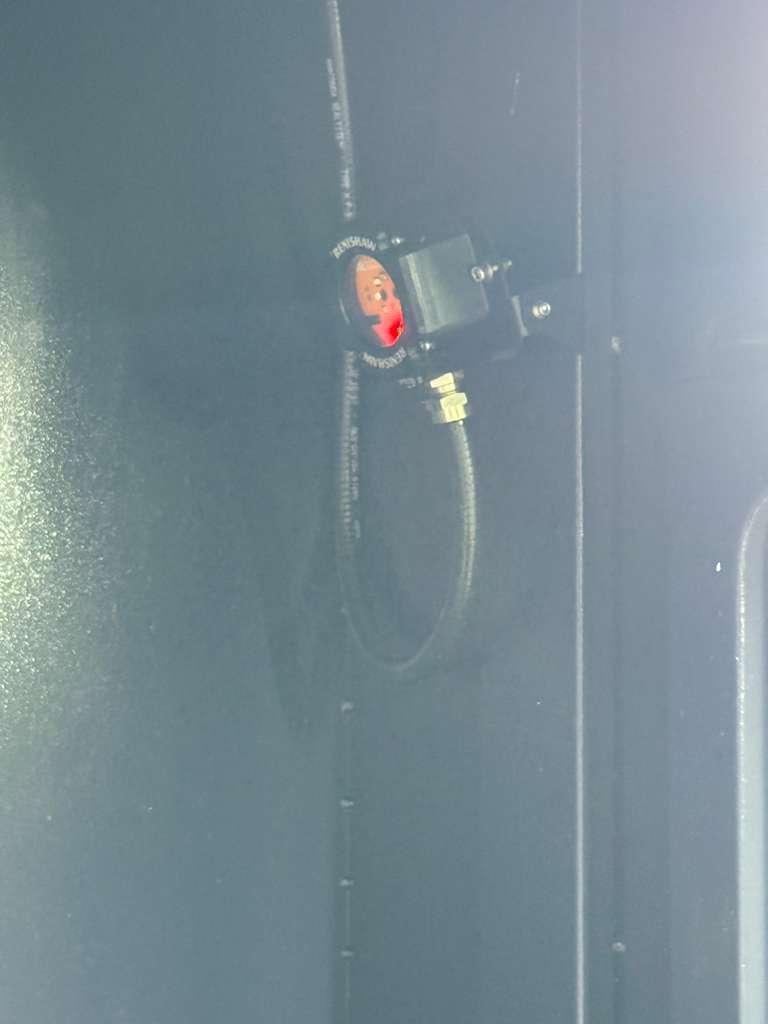

Renishaw Probing System (Probe Included)
CAT-40 Taper Spindle

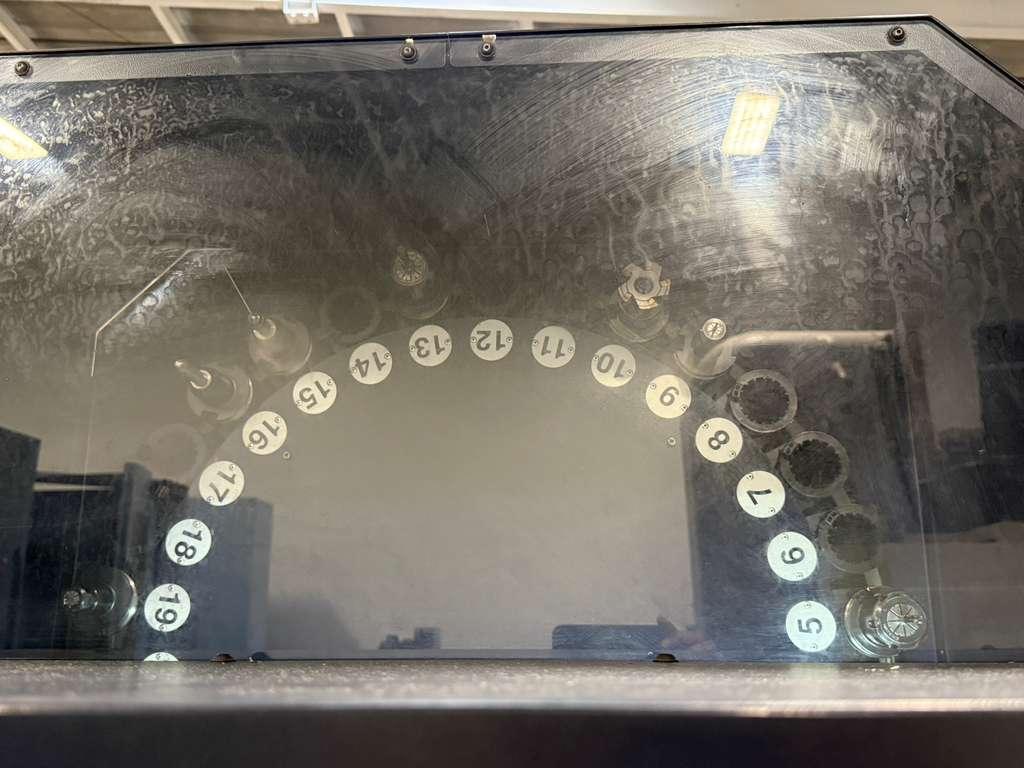

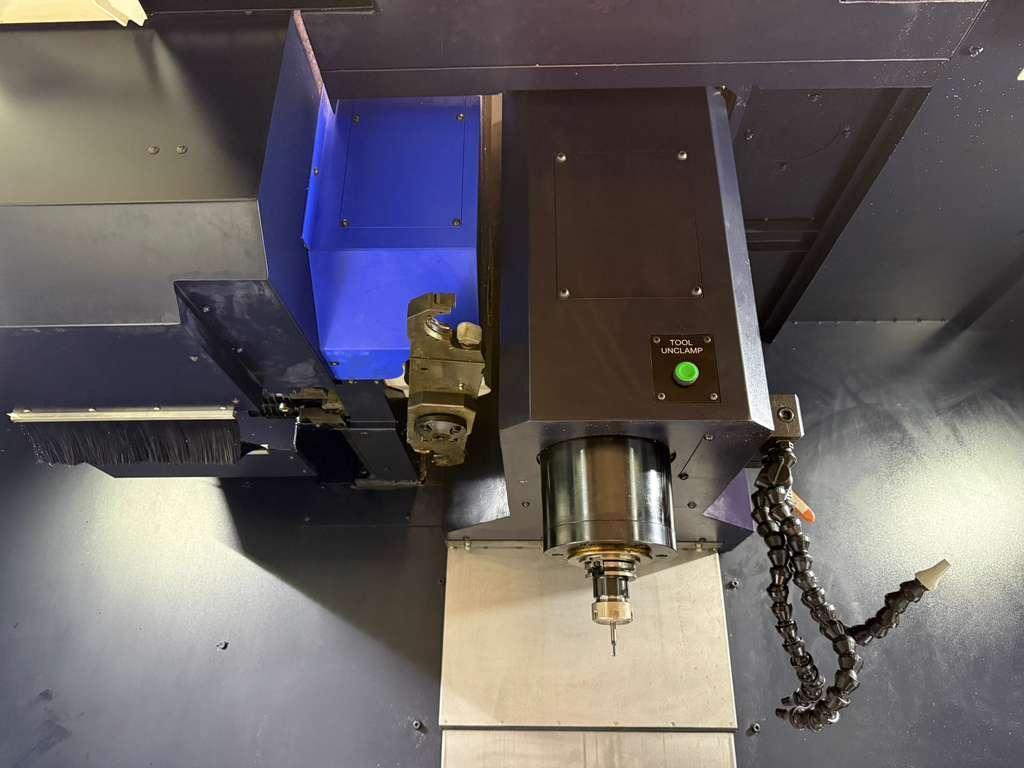

30 Station Side Mounted Tool Changer
PCMCIA Card Slot, Ethernet, RS-232C Port
MPG Handwheel Control
Rigid Tapping

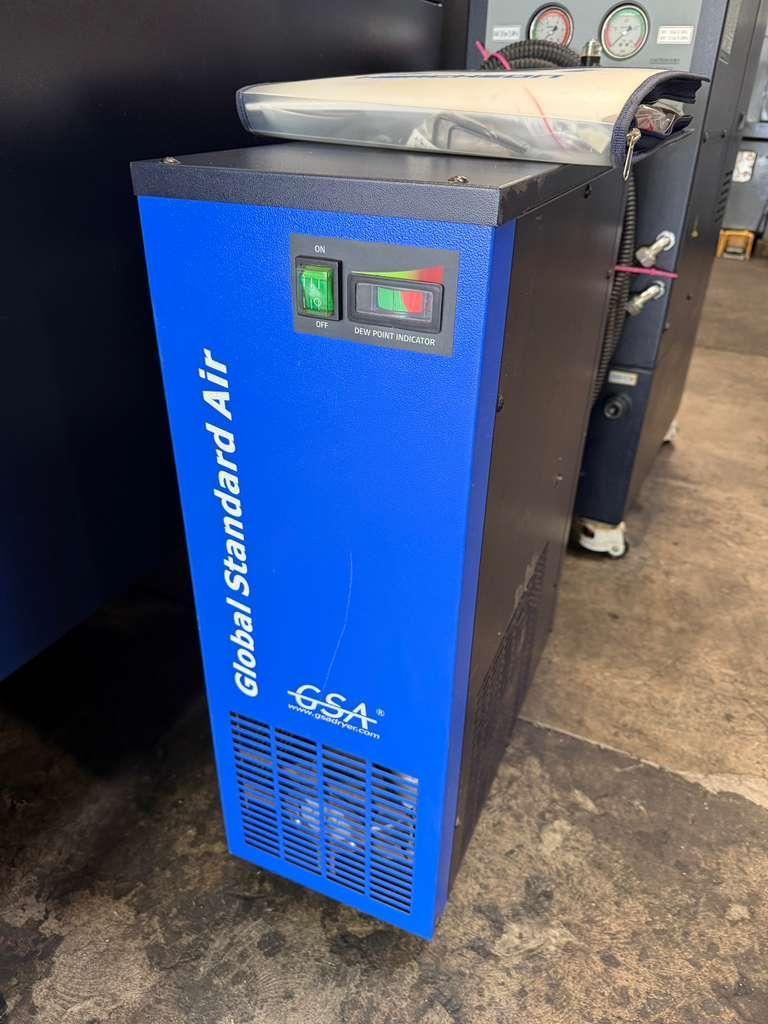

GSA Air Dryer
Daiken Oil Cooling Unit
High Pressure Coolant Filter system
Side or Rear Mounted Chip Conveyor
Books & Manuals
Levelling Pads
Travels:
X-Axis: 39.37″
Y-Axis: 21.65″
Z-Axis: 19.69″
Rapid Traverse Rates X & Y Axis: 1417 Inch Per Minute
Rapid Traverse Rates Z Axis: 1181 Inch Per Minute
Cutting Feed Rates: 945 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.12″ – 24.8″

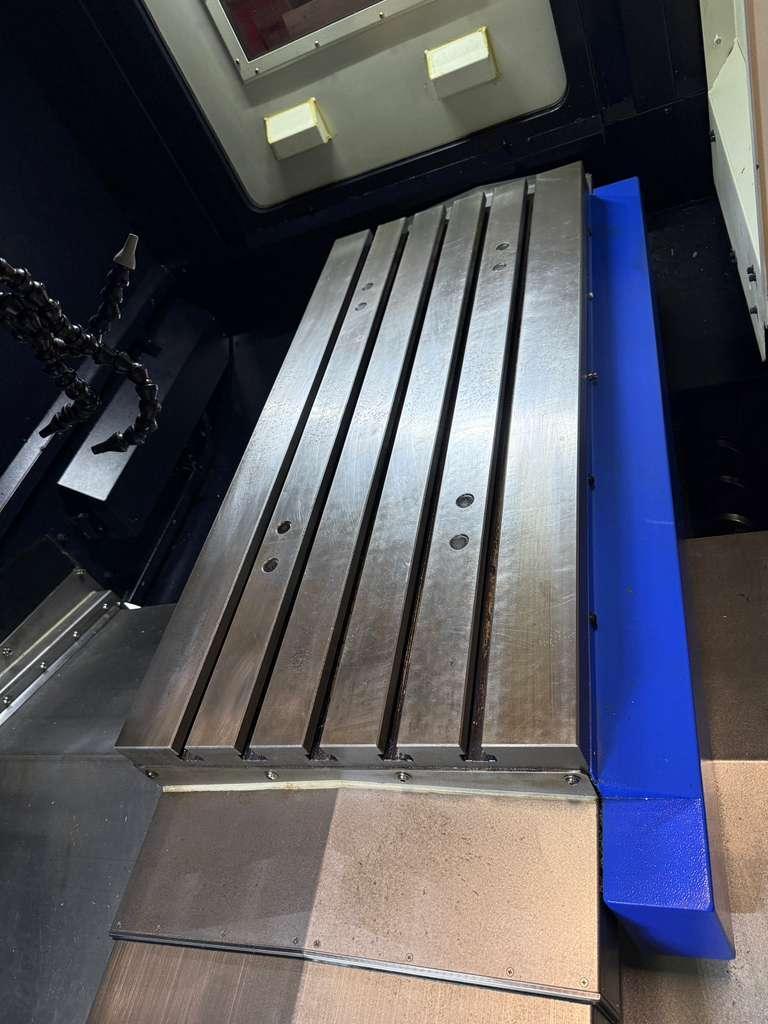

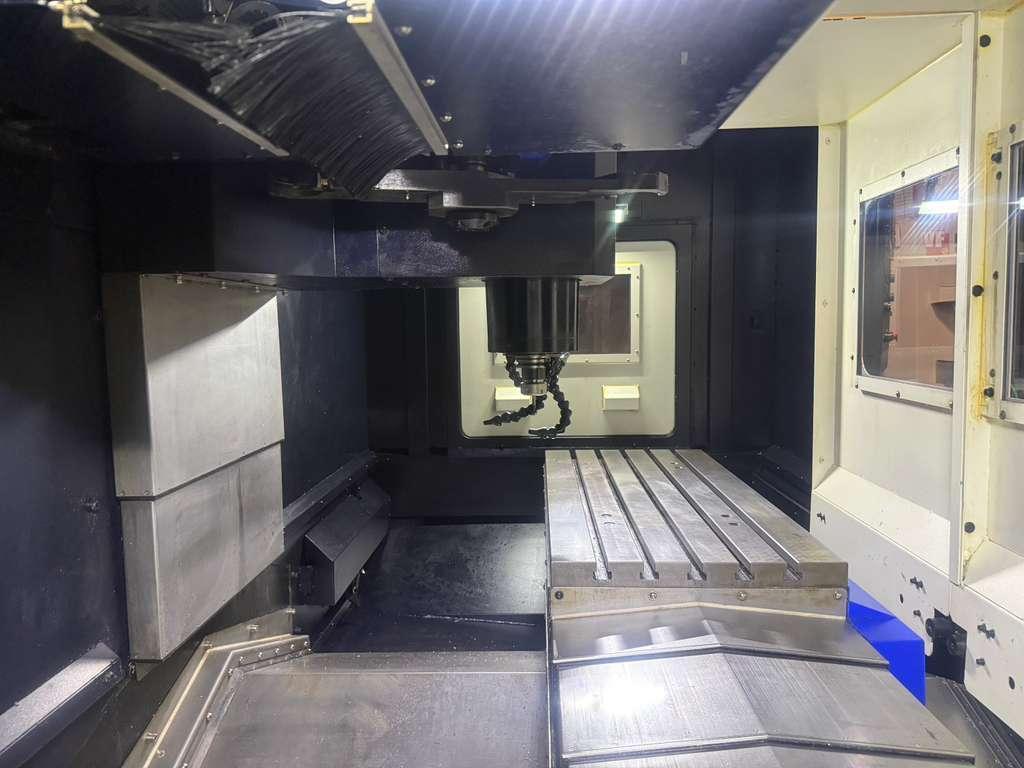

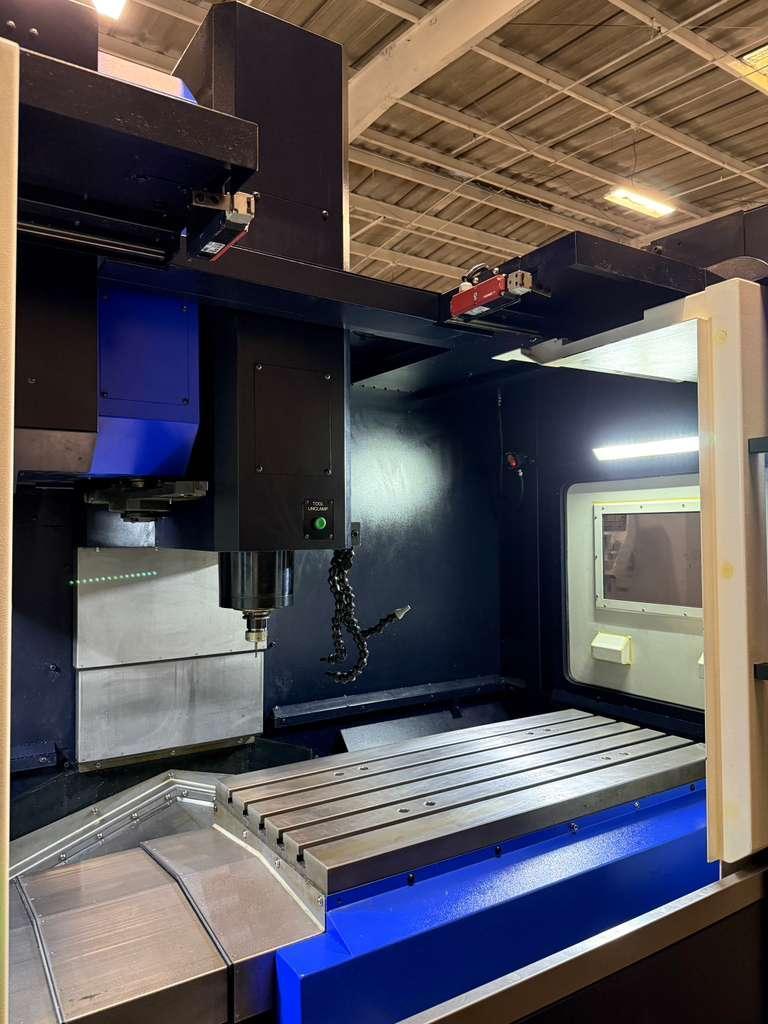

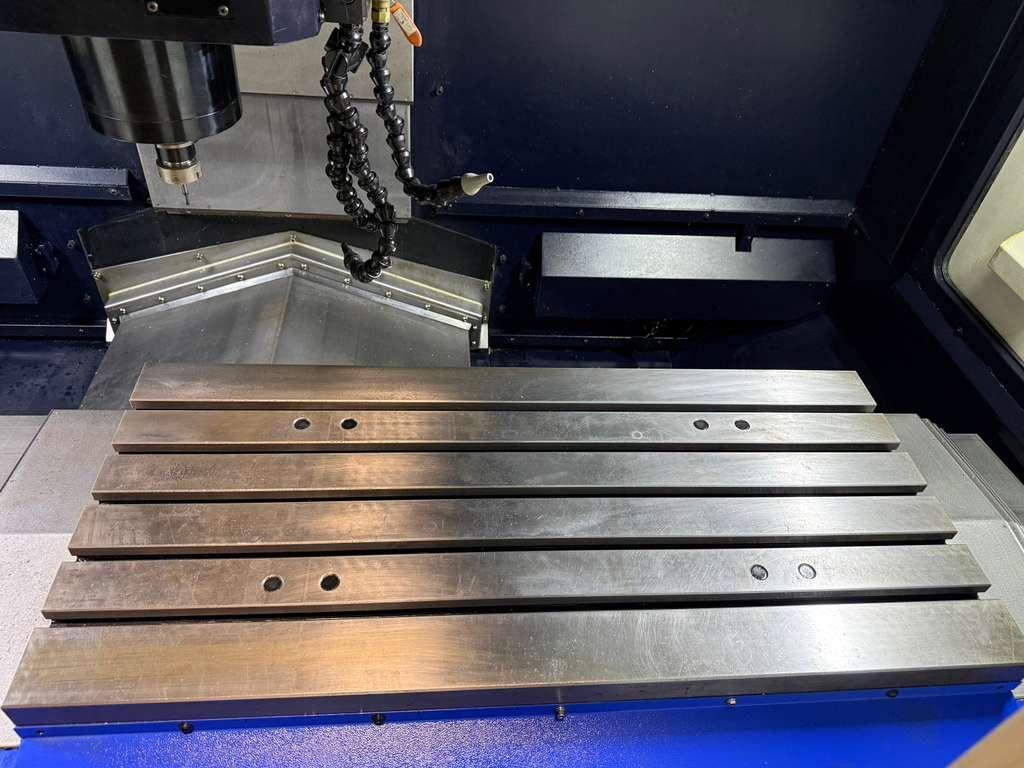

Table:
Length: 44.49″
Width: 19.76″
Number of Std T-Slots: 5
T-Slot Width: 0.71″ x 3.15″
Max Weight on Table: 1543 lbs
Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 25 HP
Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Tool Weight: 17.64 lbs
Max Tool Dia: 2.95″ – 5.91″
Max Tool Length: 11.81″
General:
Air Required: 80 psi 4 scfm
Power: 220v / 40 kva / 3-Phase
Overall Dimensions: 112″ x 95″ x 104″ High Approx.
Weight: 11,111 lbs Approx.
