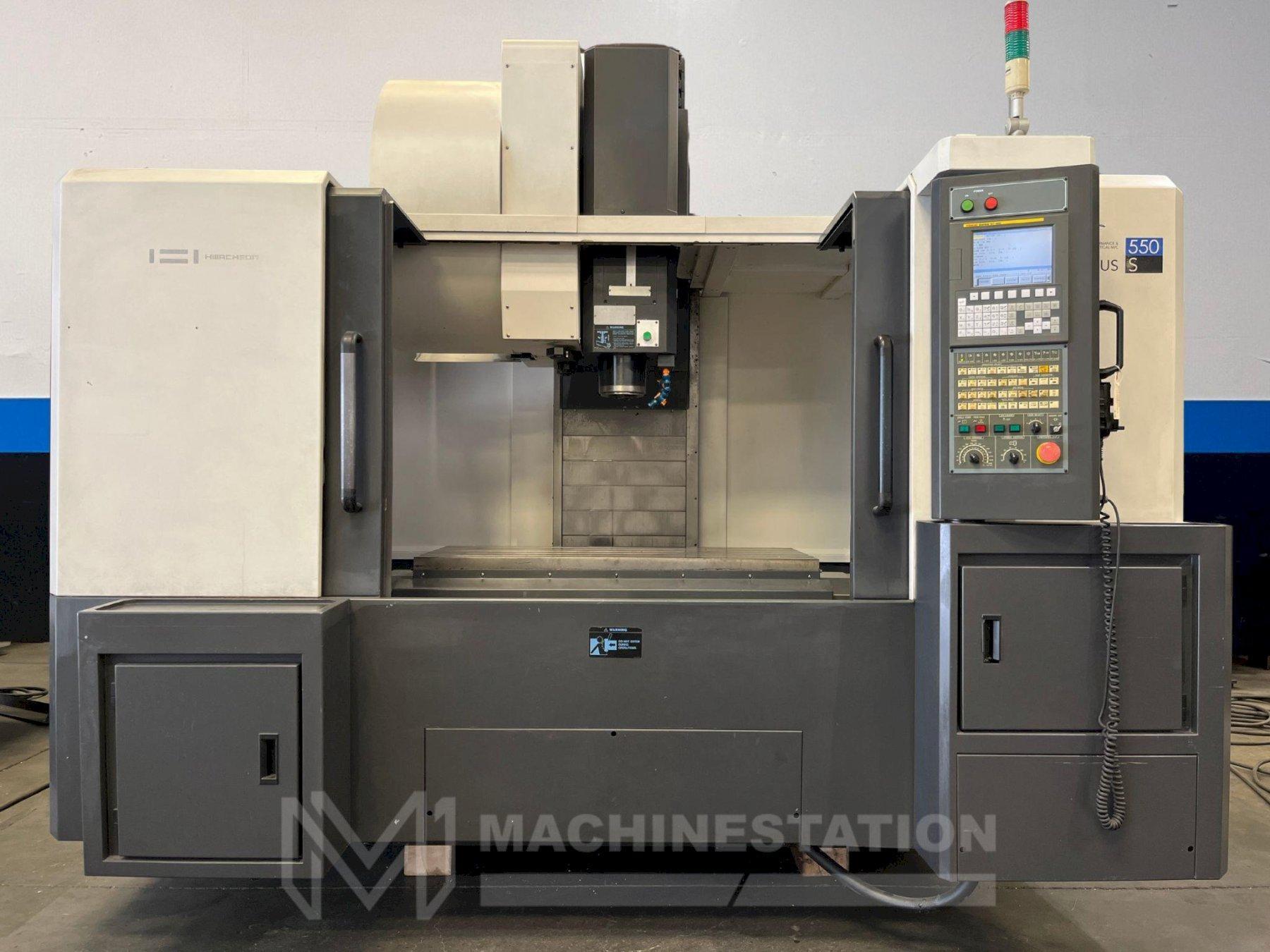

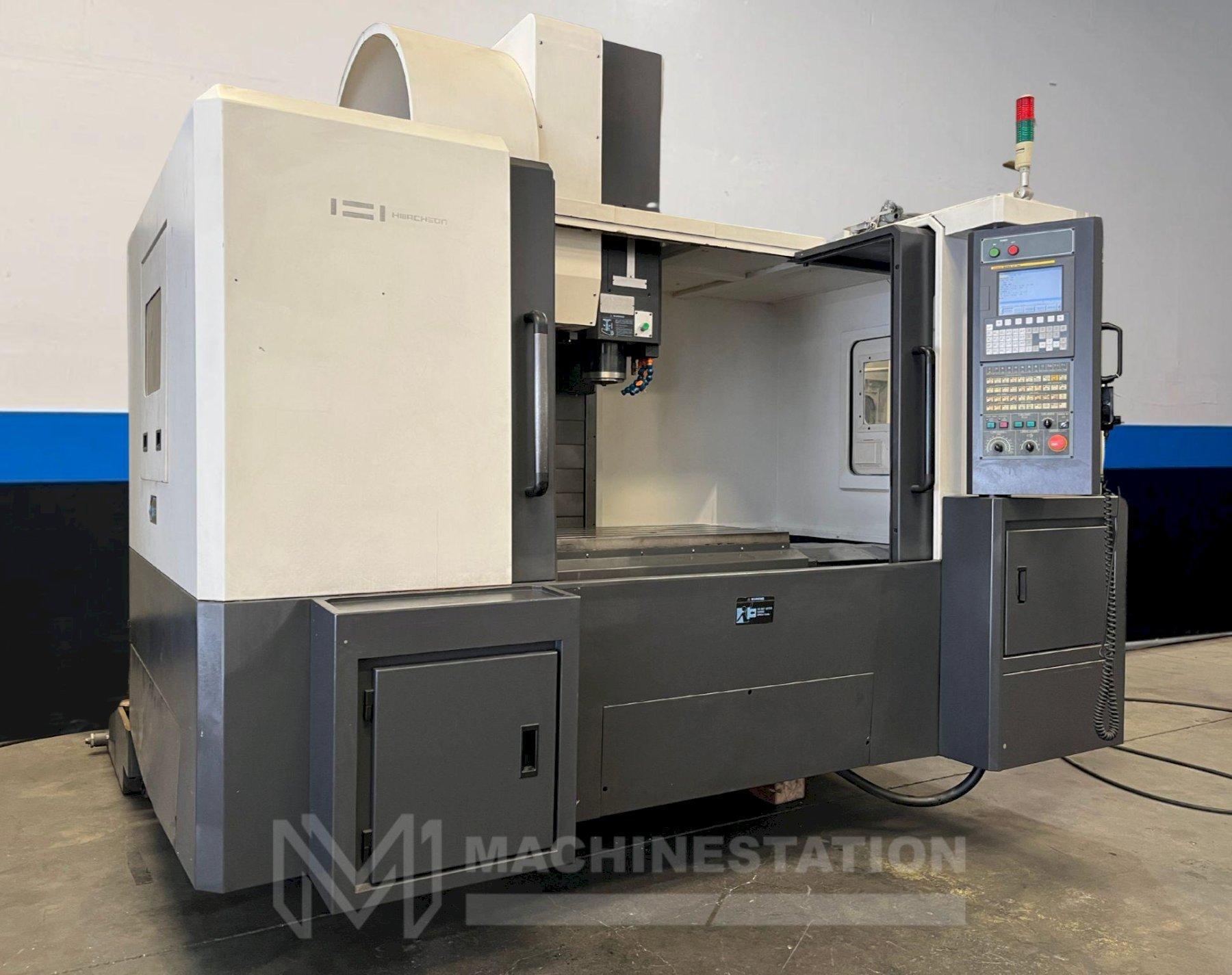

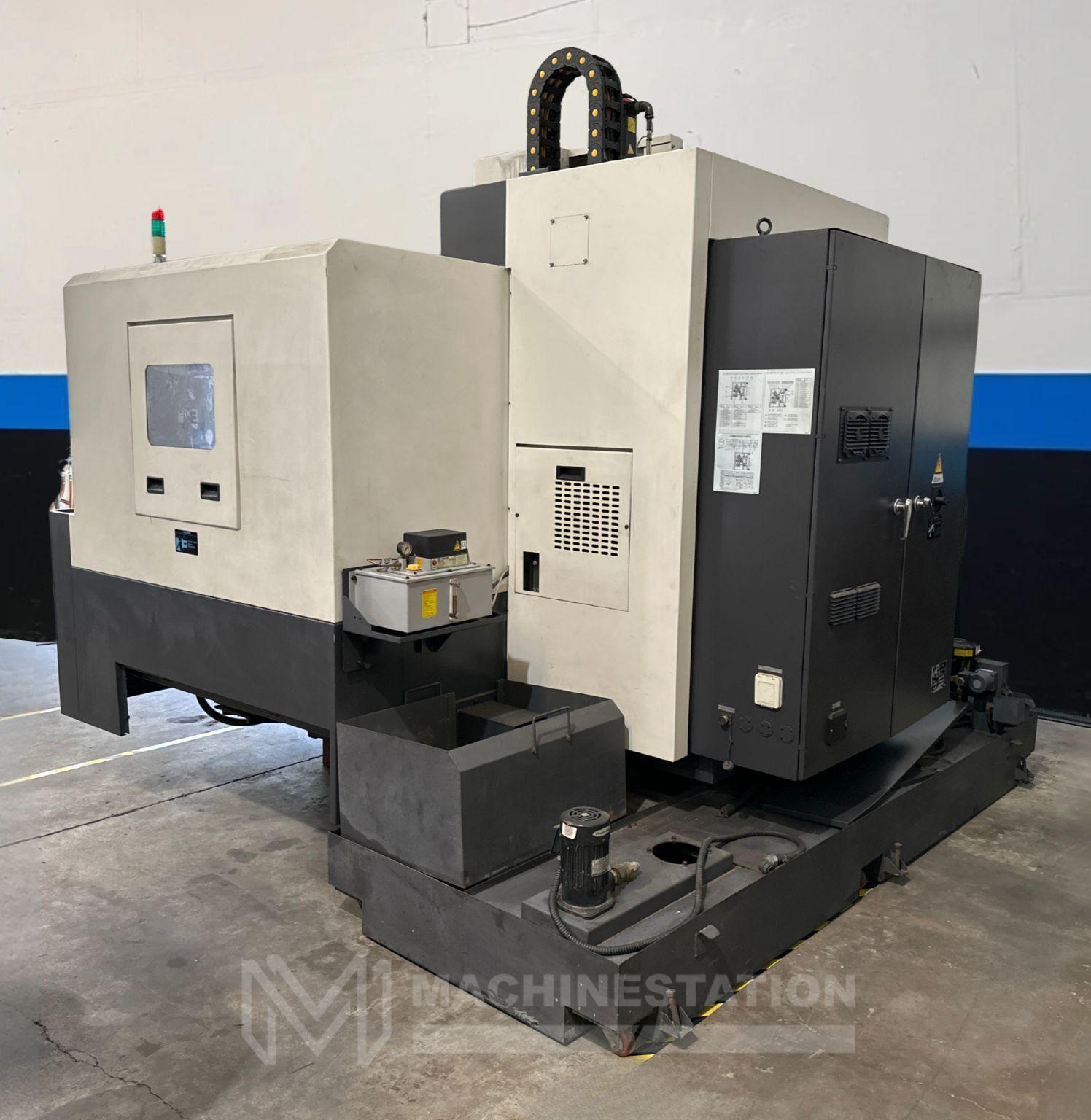

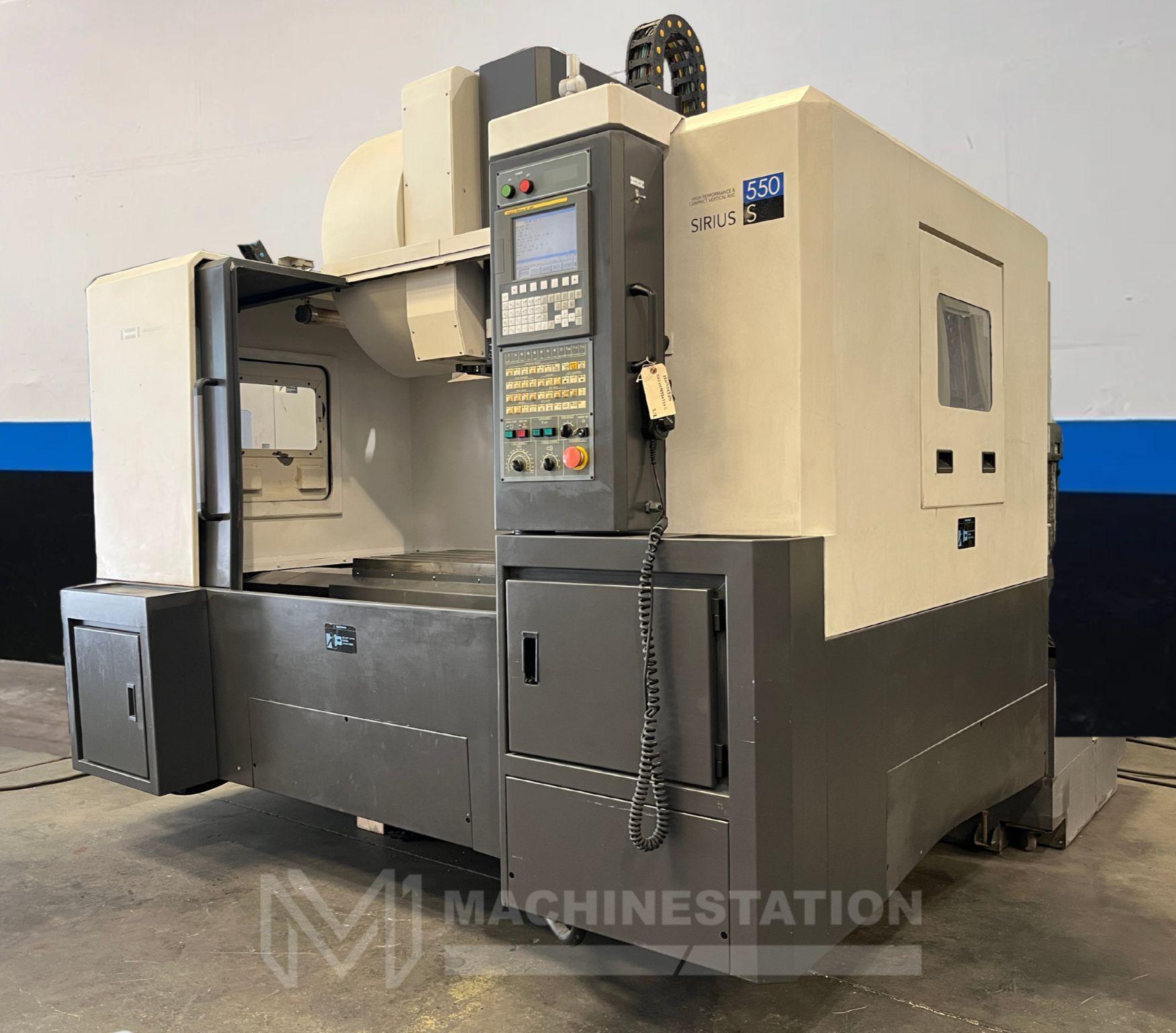

Hwacheon Sirius 550 CNC Vertical Machining Center – 10,000 RPM Mill

Brand
HWACHEON
Category
Machining Centers
Type
Vertical Machining Centers
Model
HWACHEON SIRIUS 550
Stock #
113006
Year
2008
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: HWACHEON
Model: SIRIUS 550
Year: 2008
Condition: Used – Good
Equipped With:

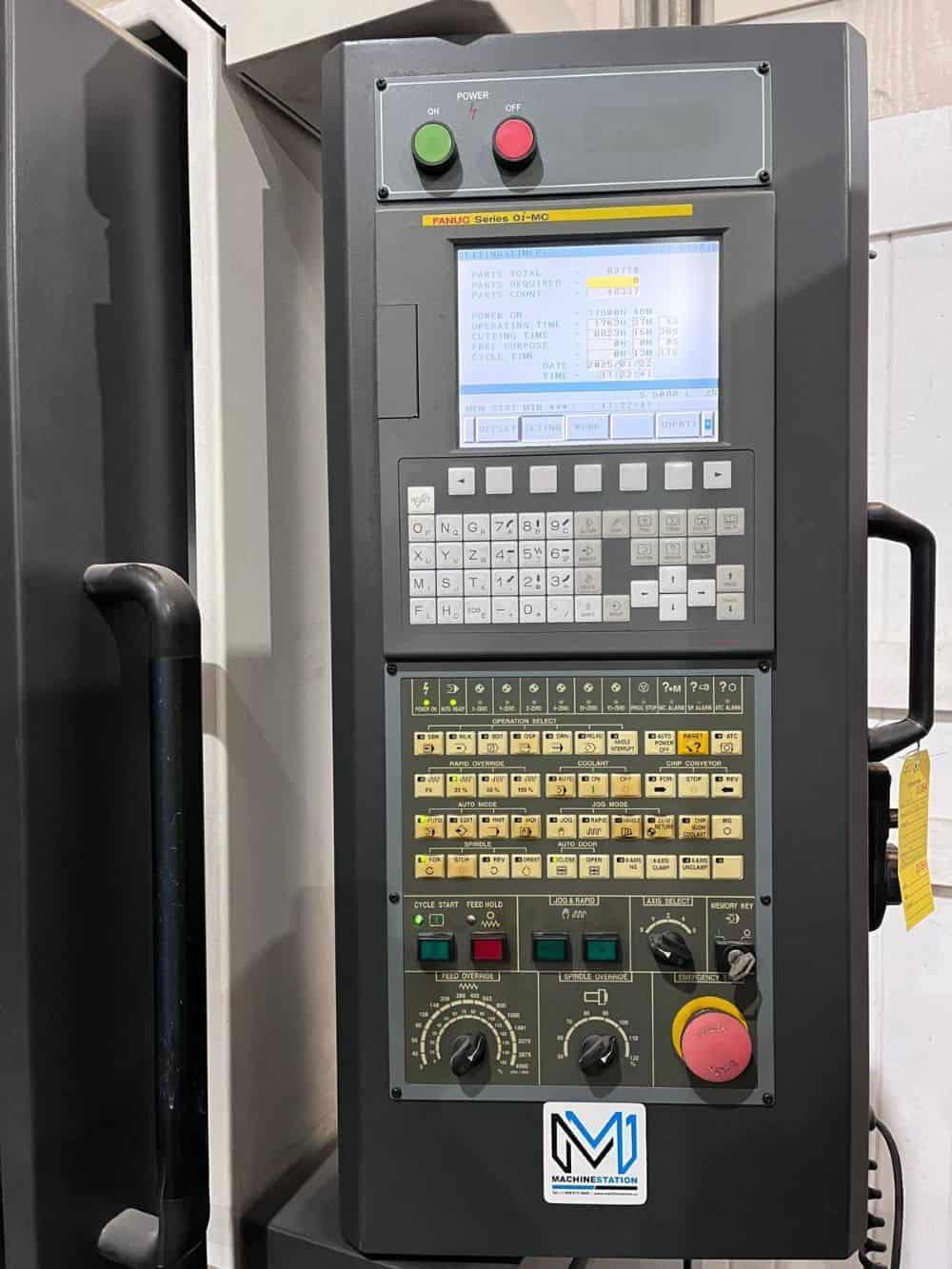

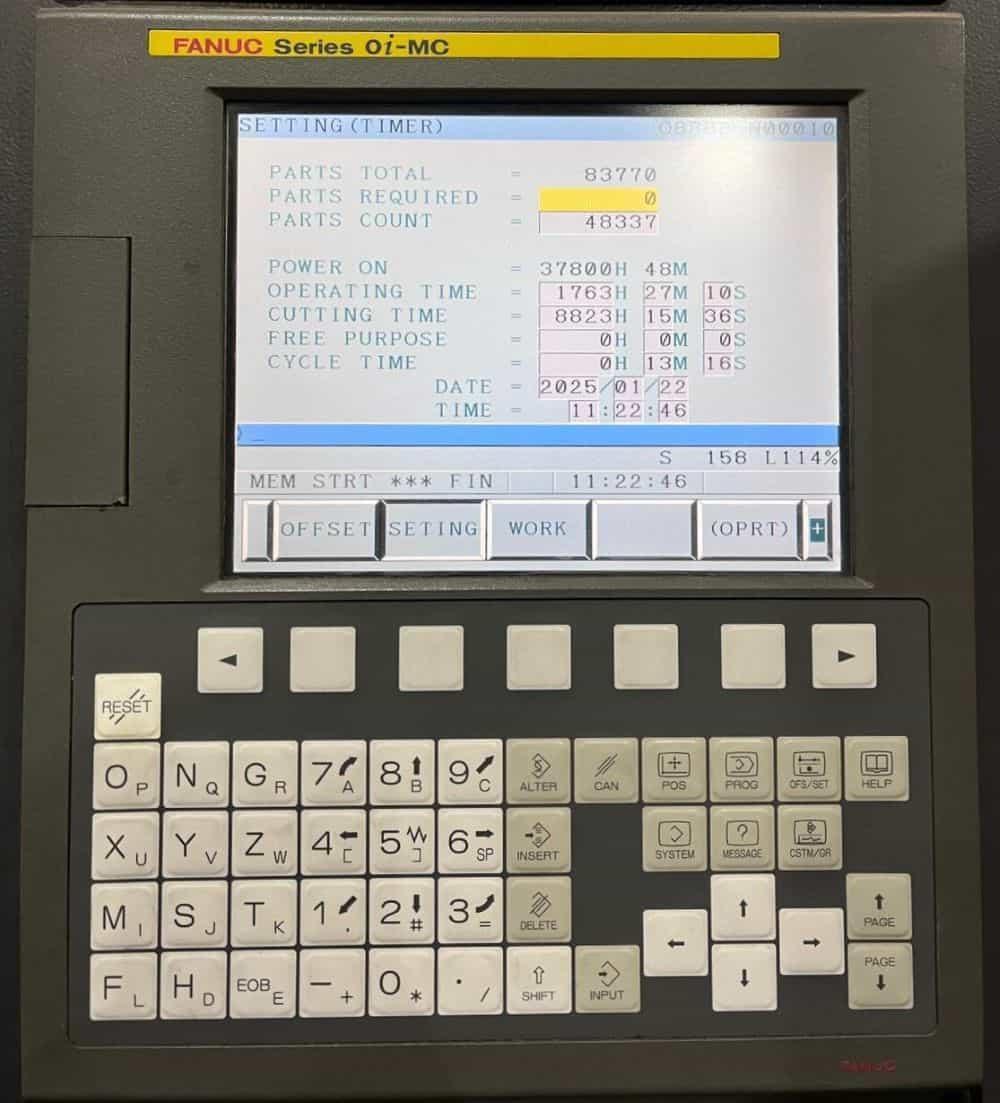

Fanuc Oi-MC Series CNC Control
10000 RPM High Precision Spindle
30 Automatic High Speed Tool Changer
Roller Bearings on X & Y Axis
PCMCIA Card Slot
MPG Control
Rigid Tapping
Telescopic Way Covers
Flood Coolant System
Oil Chiller
Coolant system
Books & Manuals
Travels:
X-Axis: 45.3″
Y-Axis: 21.7″
Z-Axis: 21.7″
Rapid Traverse Rates: 1180 Inch Per Minute
Cutting Feed Rates: 945 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.9″ – 27.6″

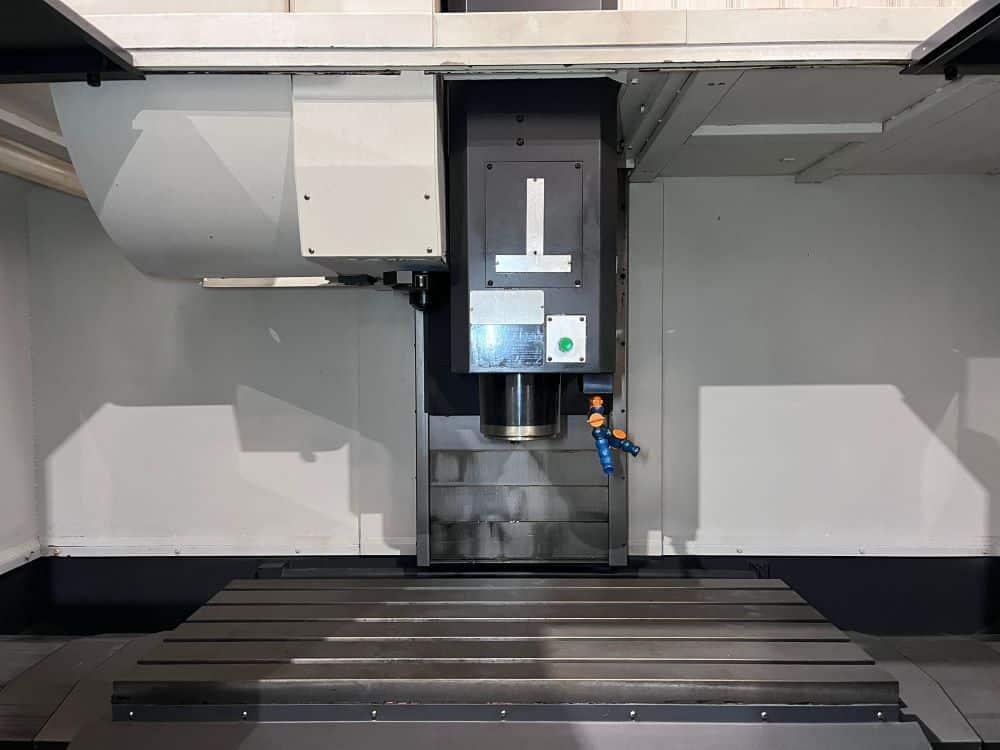

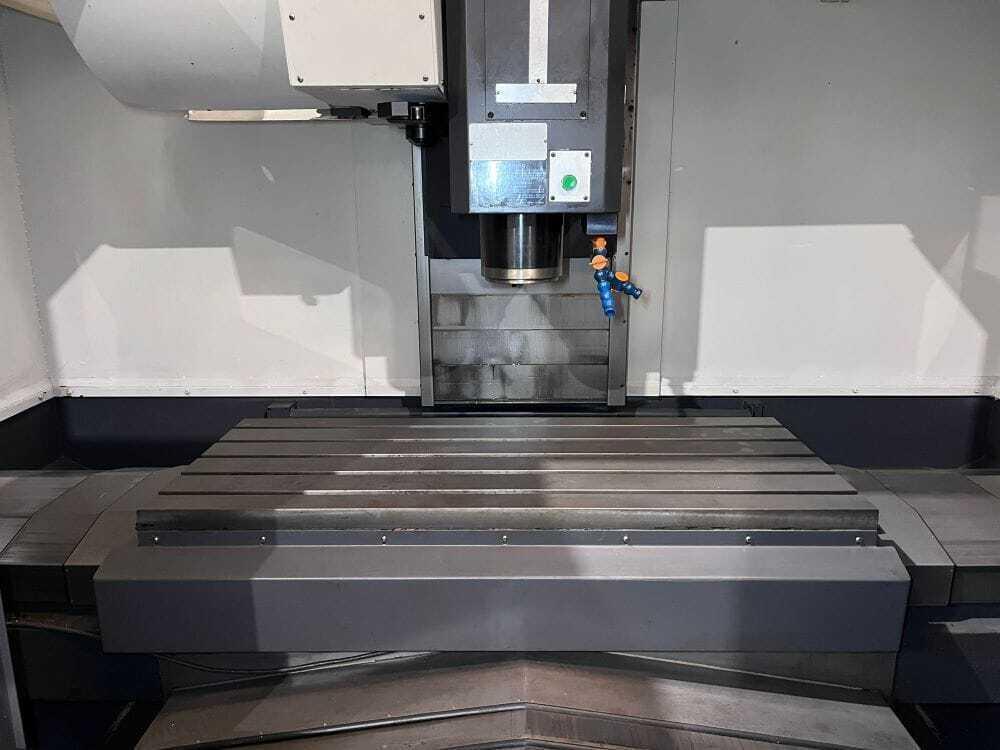

Table:
Length: 51.2″
Width: 21.7″
Number of Std T-Slots:
T-Slot Width:
Max Weight on Table: 1764 lbs
Spindle:
Taper Size: BT-40
Speed Range: 10000 RPM
Spindle Power: 15 HP

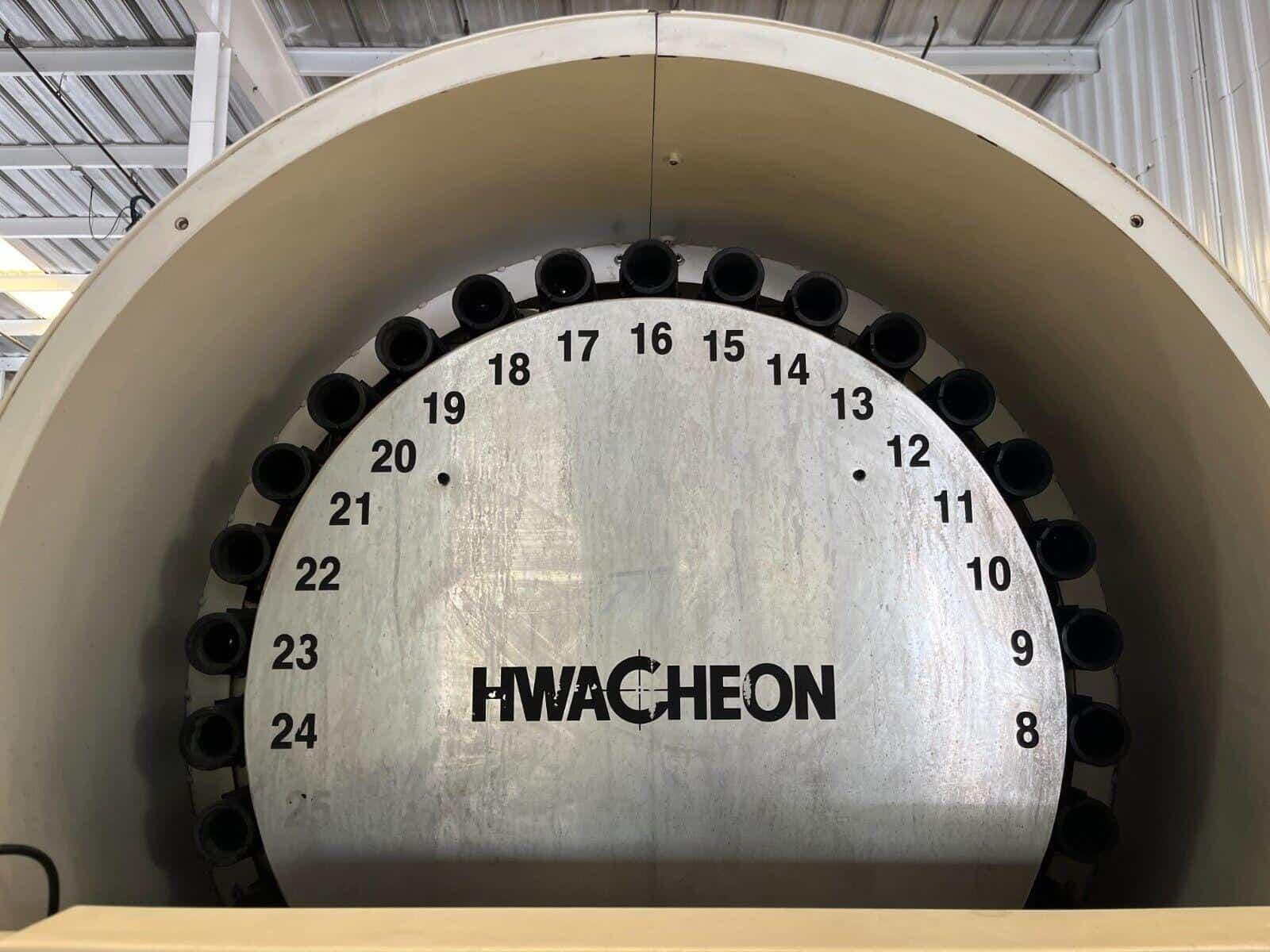

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Tool Weight: 13.2 lbs
Max Tool Dia: 3.54″
Max Tool Length: 9.8″
Tool Changing Time: 1.5 Seconds
General:
Air Required: 80 psi 4 scfm
Power: 220v / 25 kva / 3-Phase
Overall Dimensions: 118″ x 118″ x 118″ High
Weight: 15433 lbs
