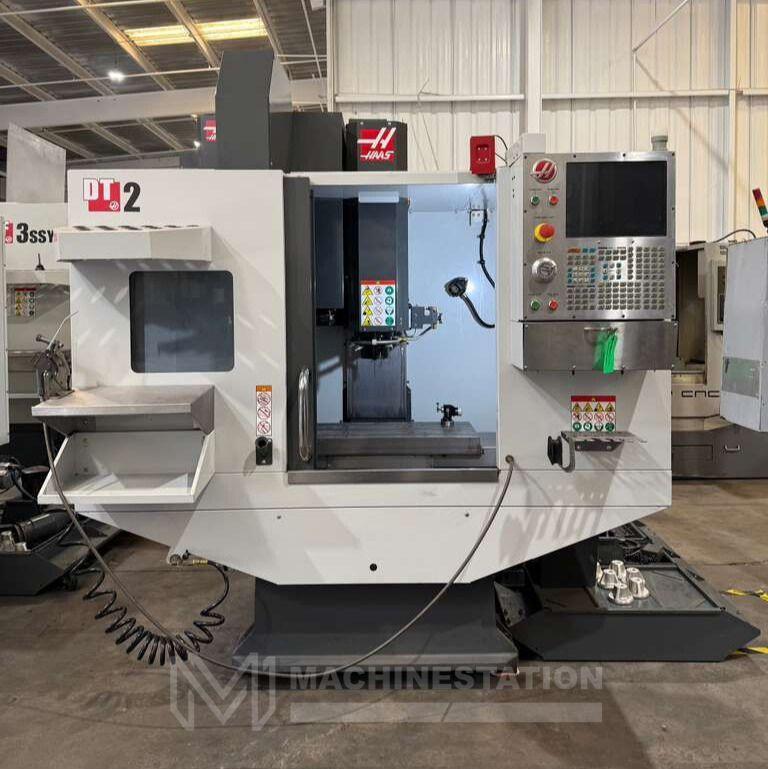

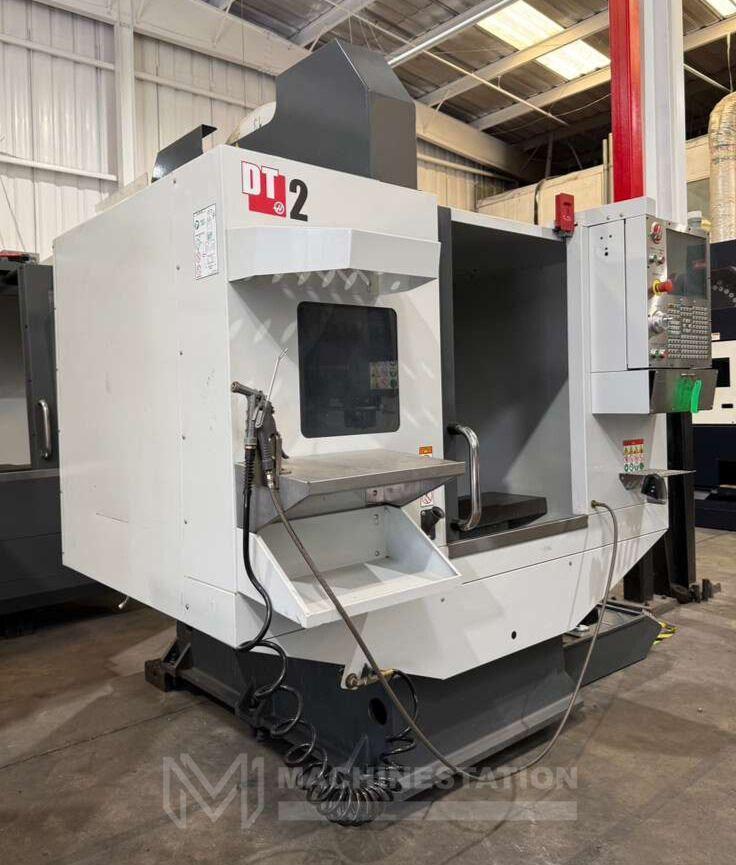

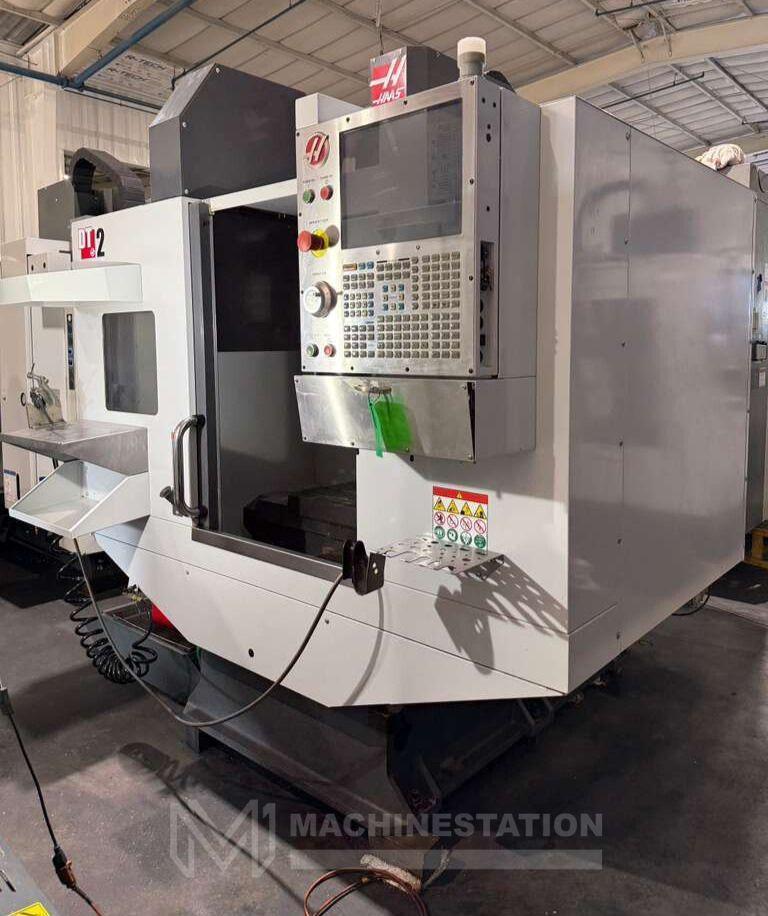

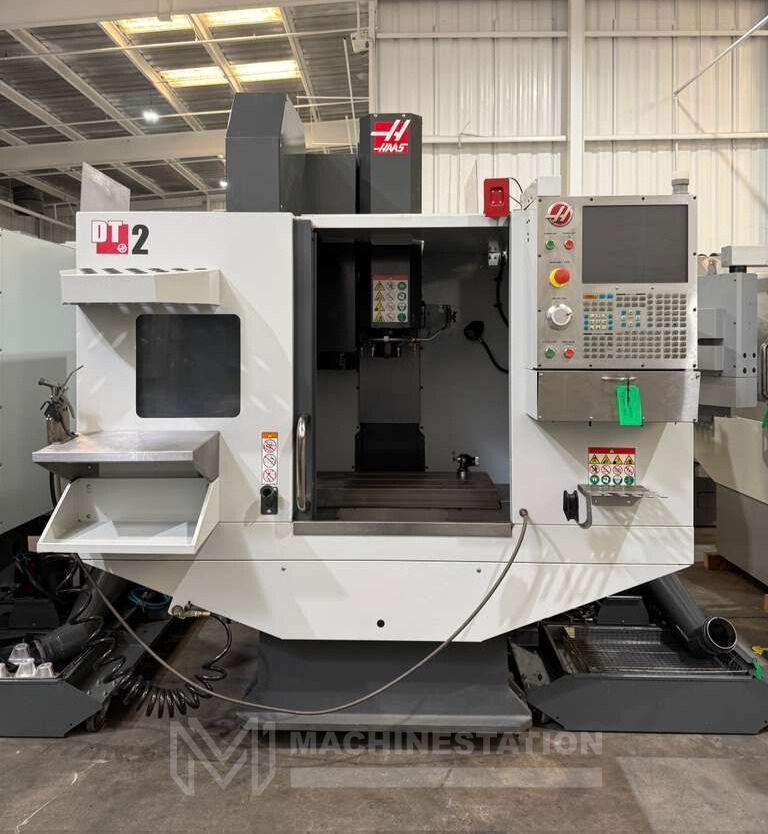

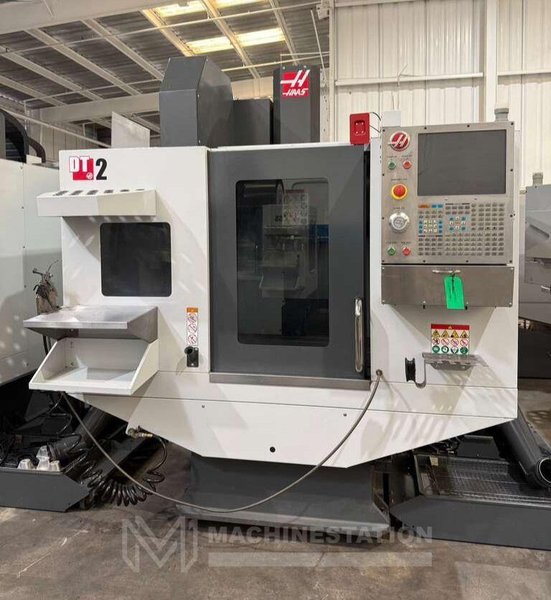

Haas DT-2 CNC Drill Tap Center – 2017 4th Axis Ready, 15,000 RPM, WIPS, HSM Mill

Brand
HAAS
Category
Machining Centers
Type
Machining Centers, Vertical
Model
Haas DT-2
Stock #
112897
Year
2017
Condition
Not specified

Location

California
REQUEST FINANCING

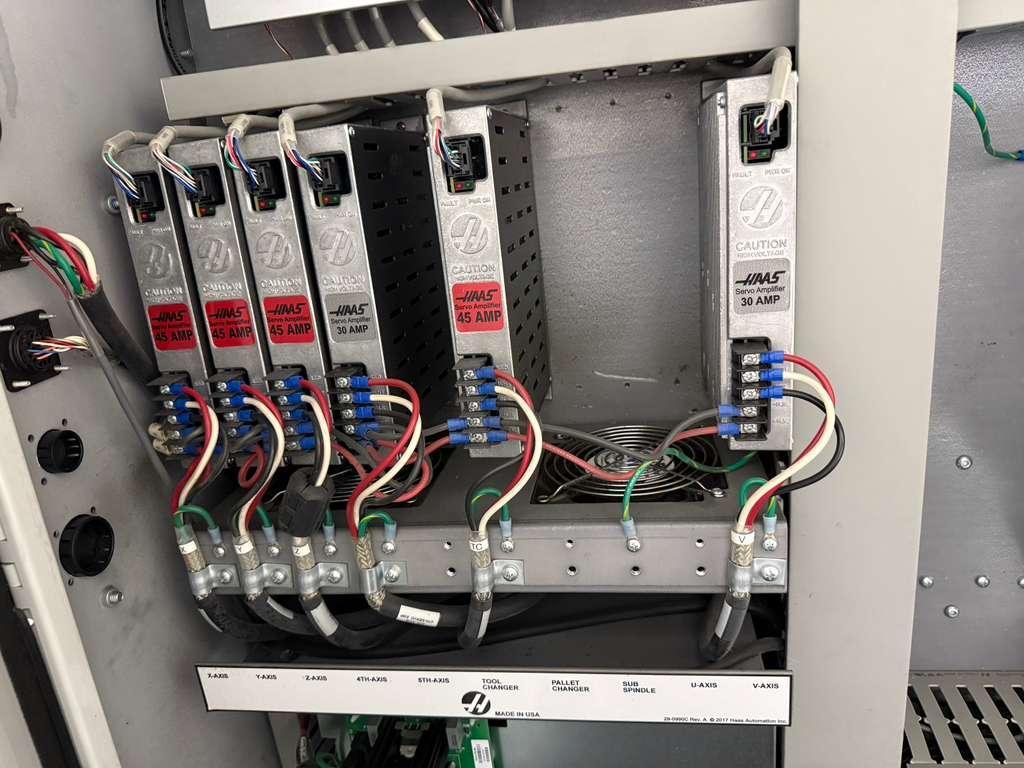

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:HAAS
Model:DT-2
Year:2017 (Installed in 2018)
Condition:Used – Excellent

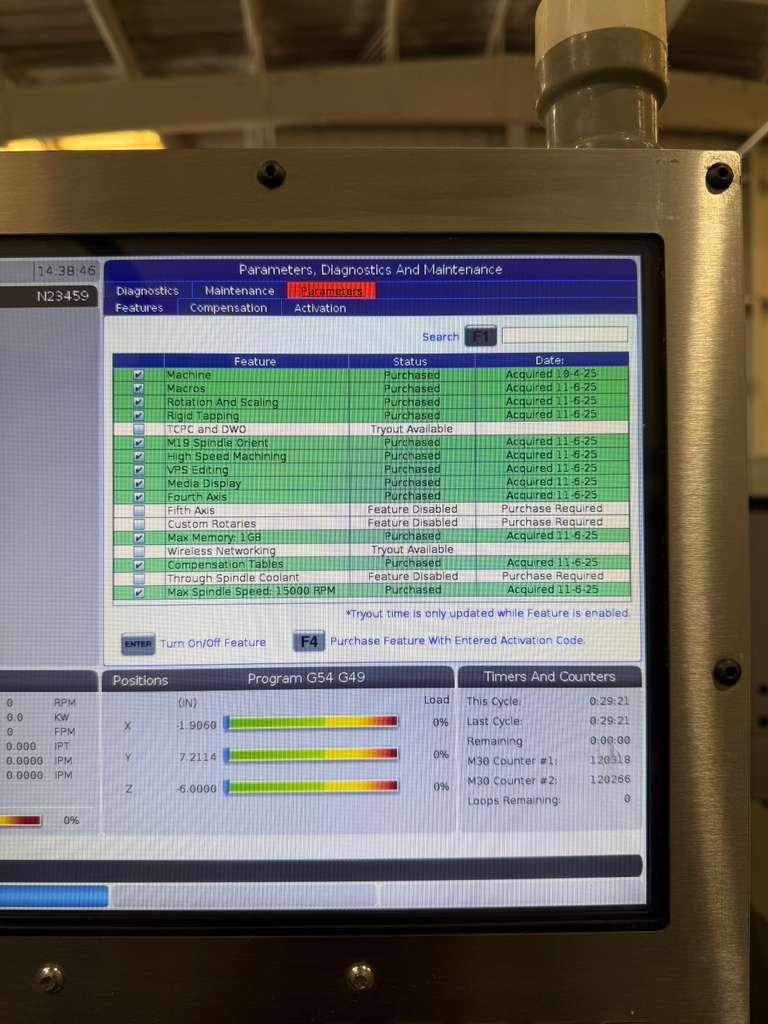

Features:

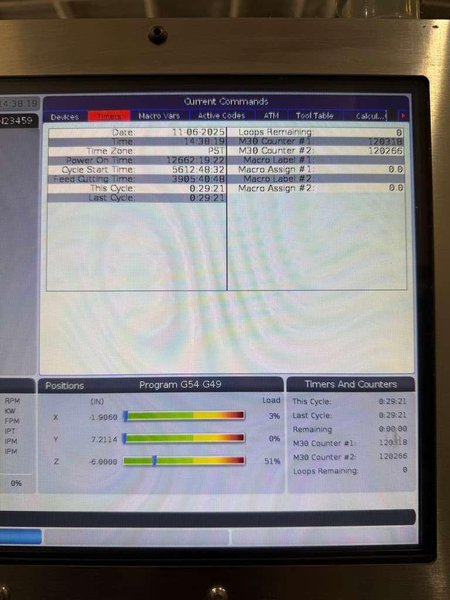

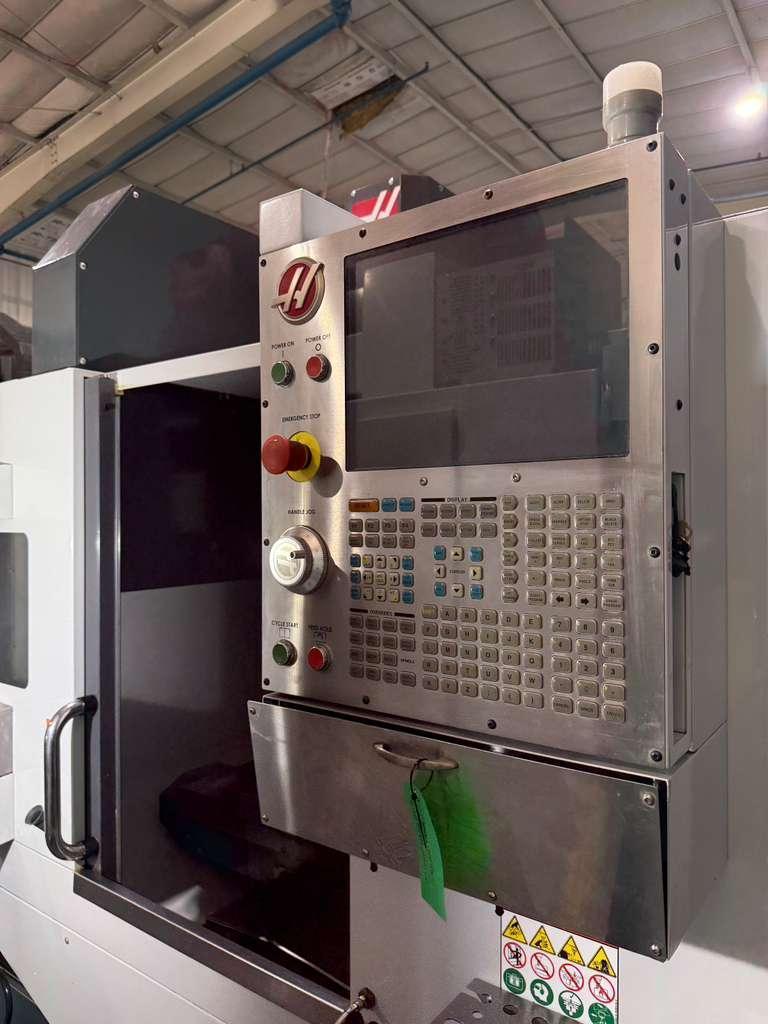

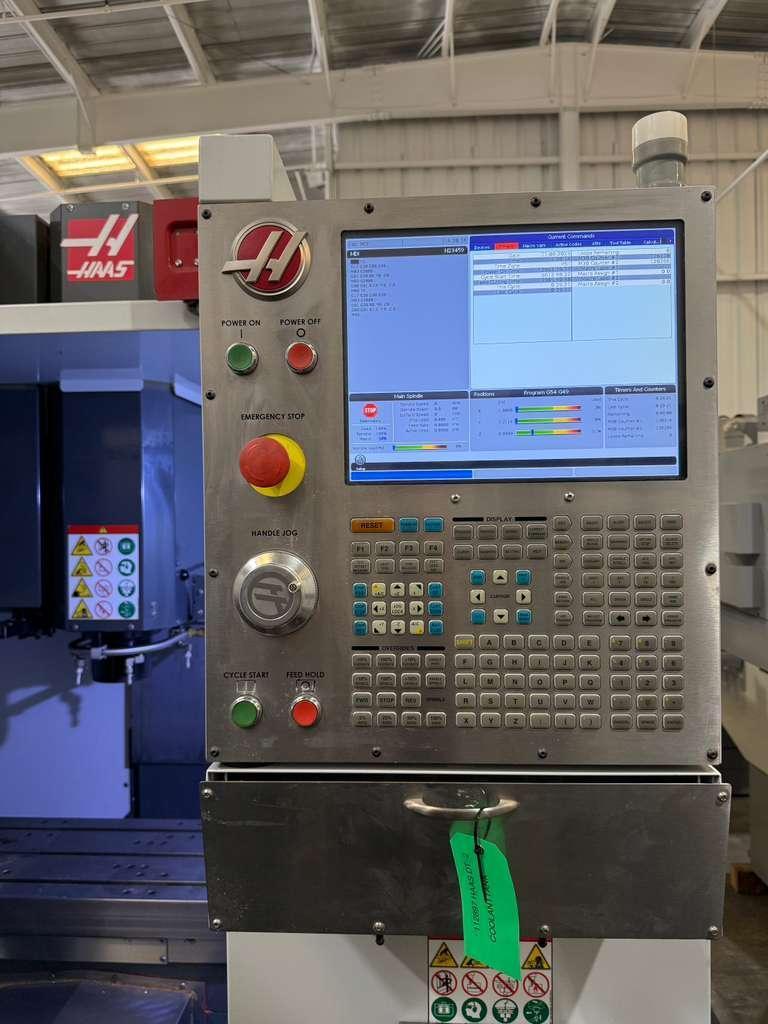

Haas CNC Control
Linear Ways Construction
4th-Axis Drive and Wiring (Upgraded $3,595 value Included)
15,000 RPM Spindle (Upgraded $13,995 value Included)
BT-30 Spindle Taper

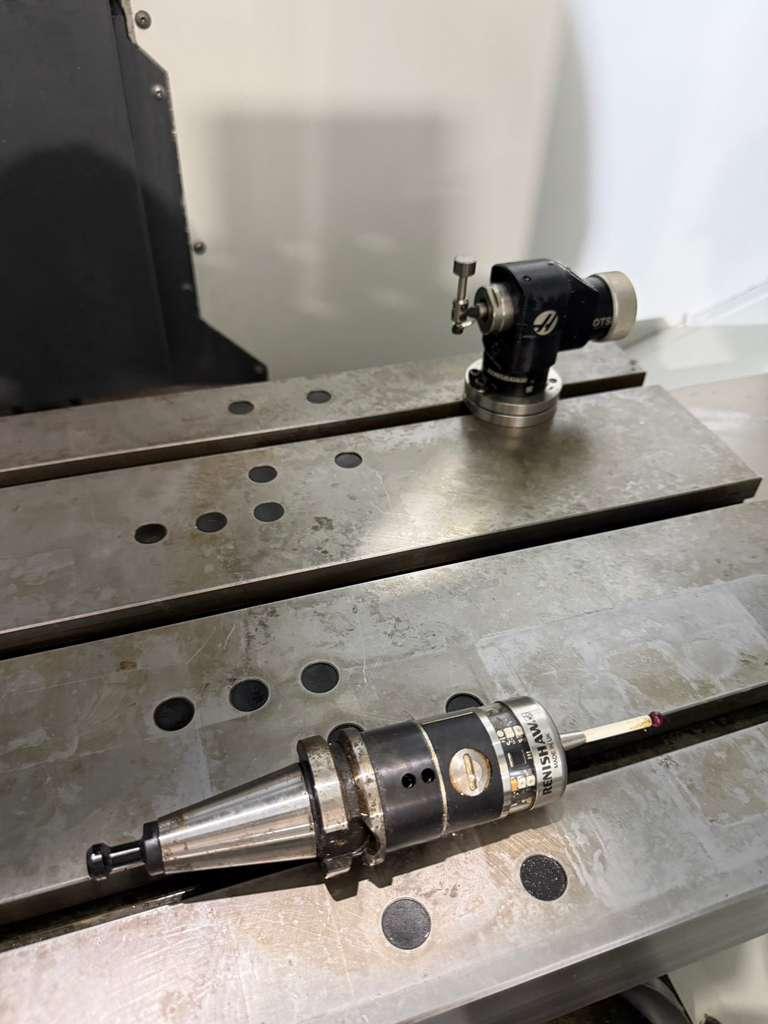

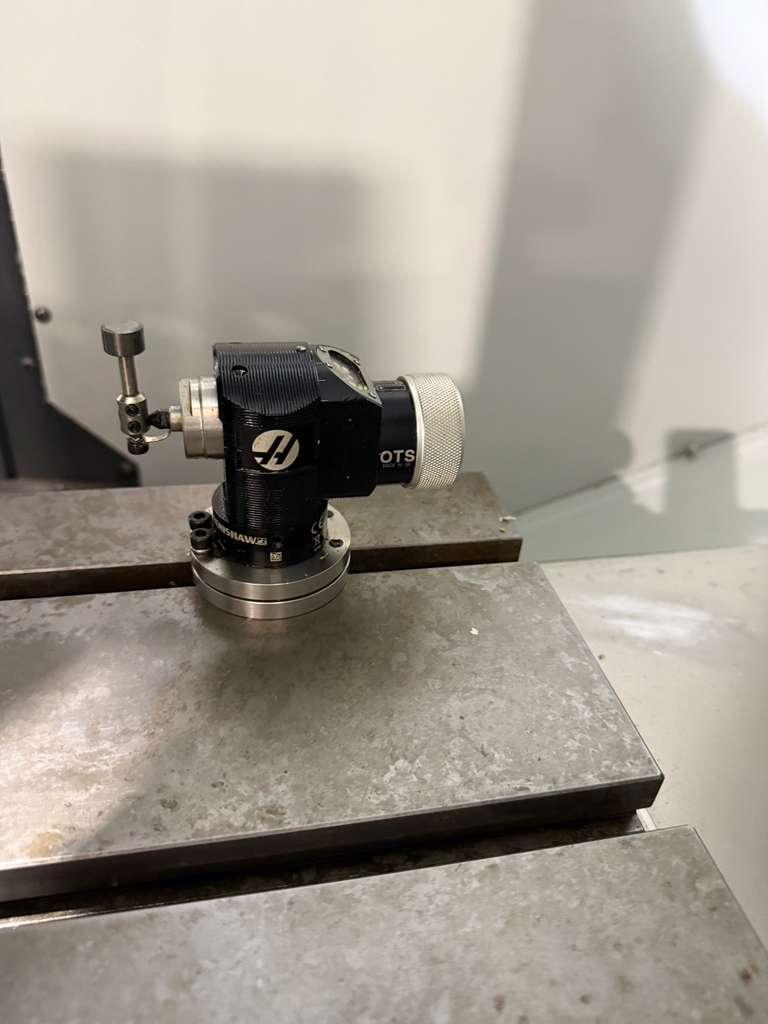

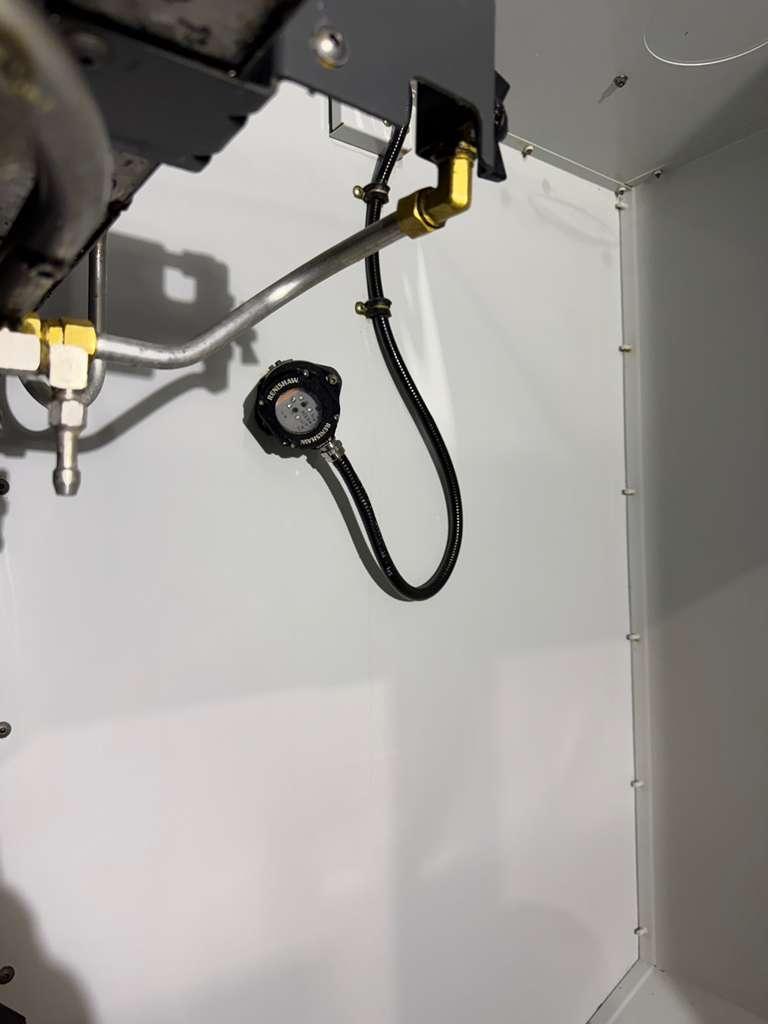

Wireless Intuitive Probing System (Probe Included)  (Upgraded $6,395 value Included)
High Speed Machining  (Upgraded $3,895 value Included)
20 Station Automatic Tool Changer
Advance Tool Management
Rigid Tapping
Spindle Orientation
1GB Memory
Visual Part Programming System
User-Definable Macros
Coordinate Rotation and Scaling
Coolant System

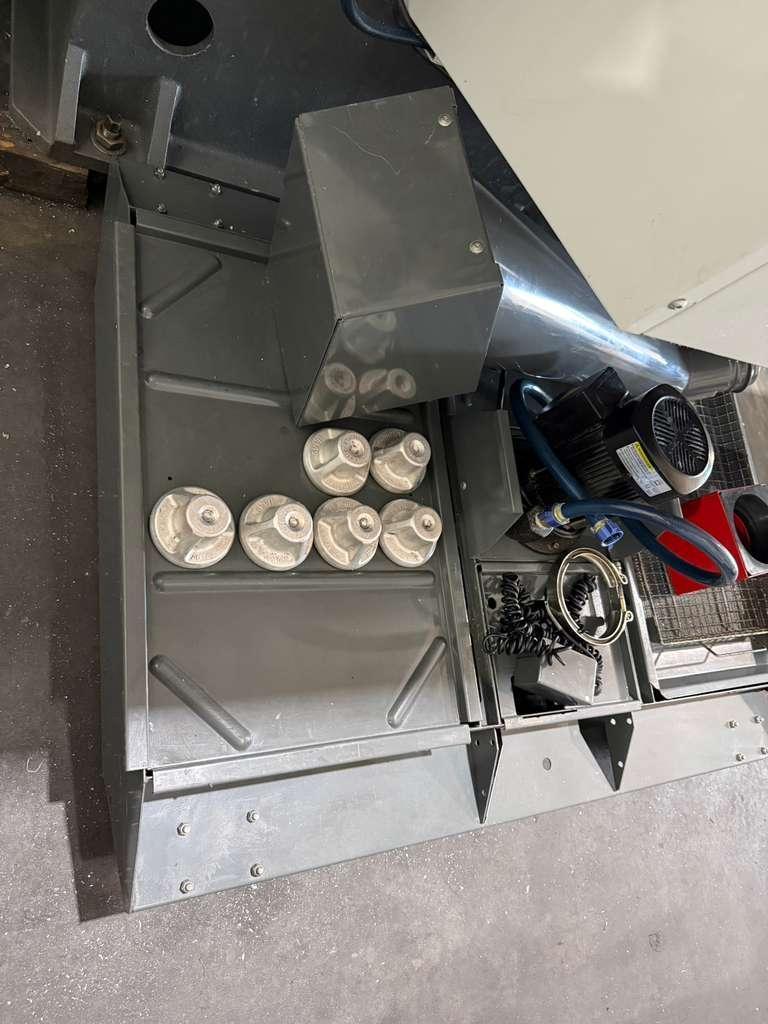

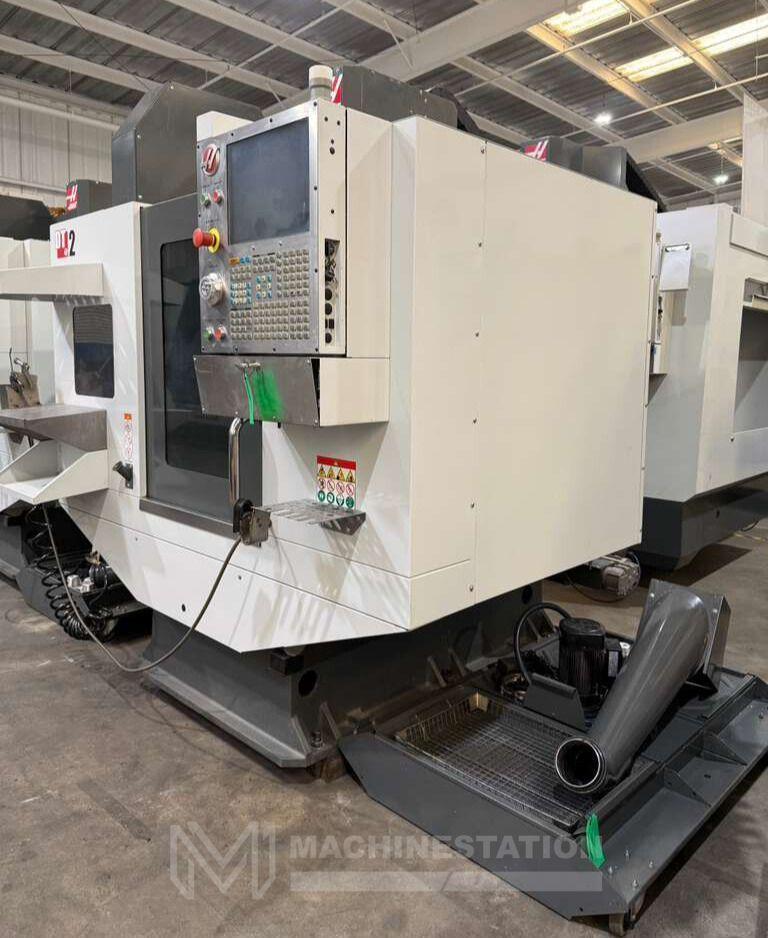

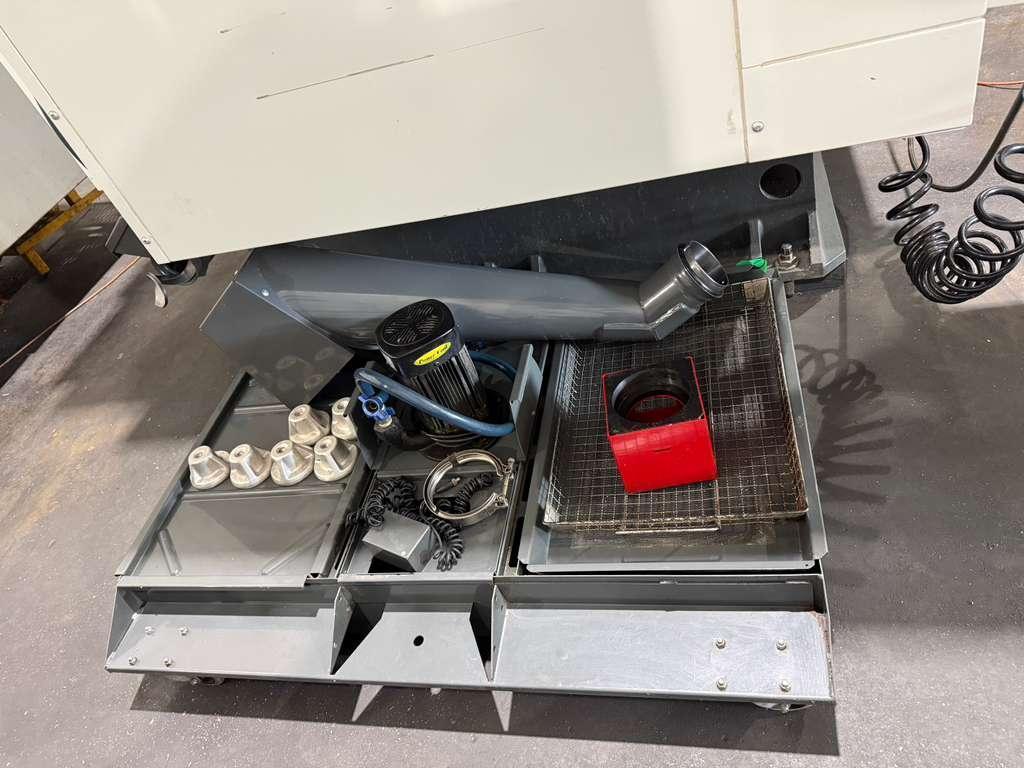

Dual Chip Auger  (Upgraded $4,095 value Included)
Levelling Pads
Travels:
X-Axis: 28.0″
Y-Axis: 16.0″
Z-Axis: 15.5″
Rapid Traverse Rates: 2400 Inch Per Minute
Cutting Feed Rates: 1200 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 6″ – 21.5″

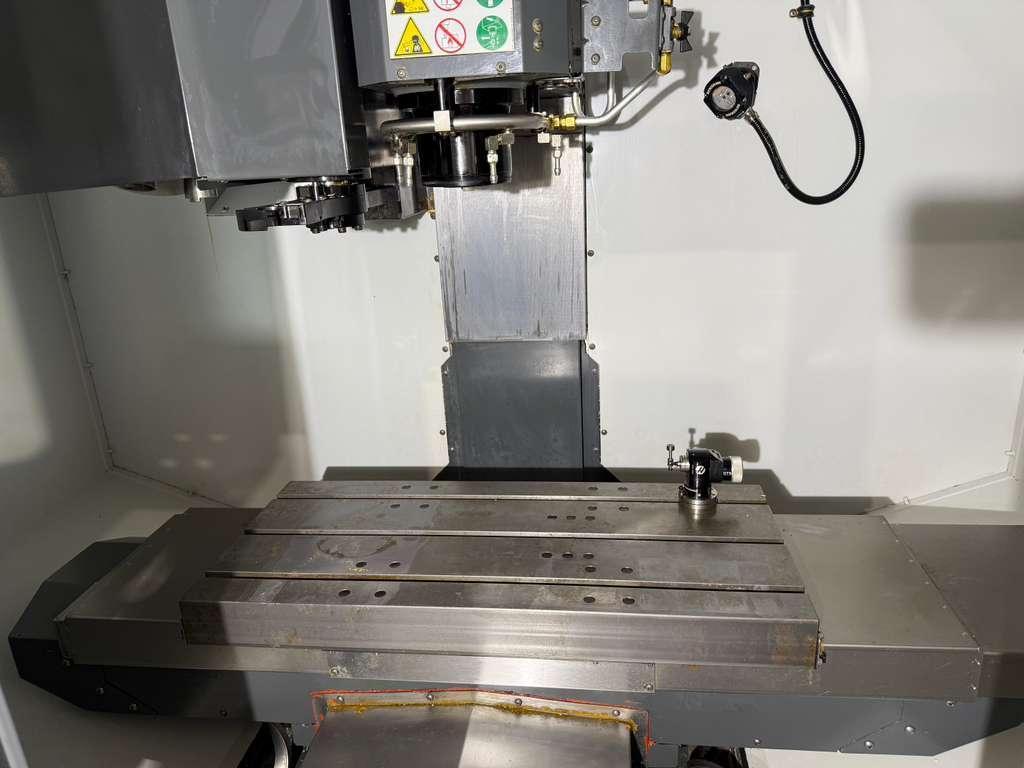

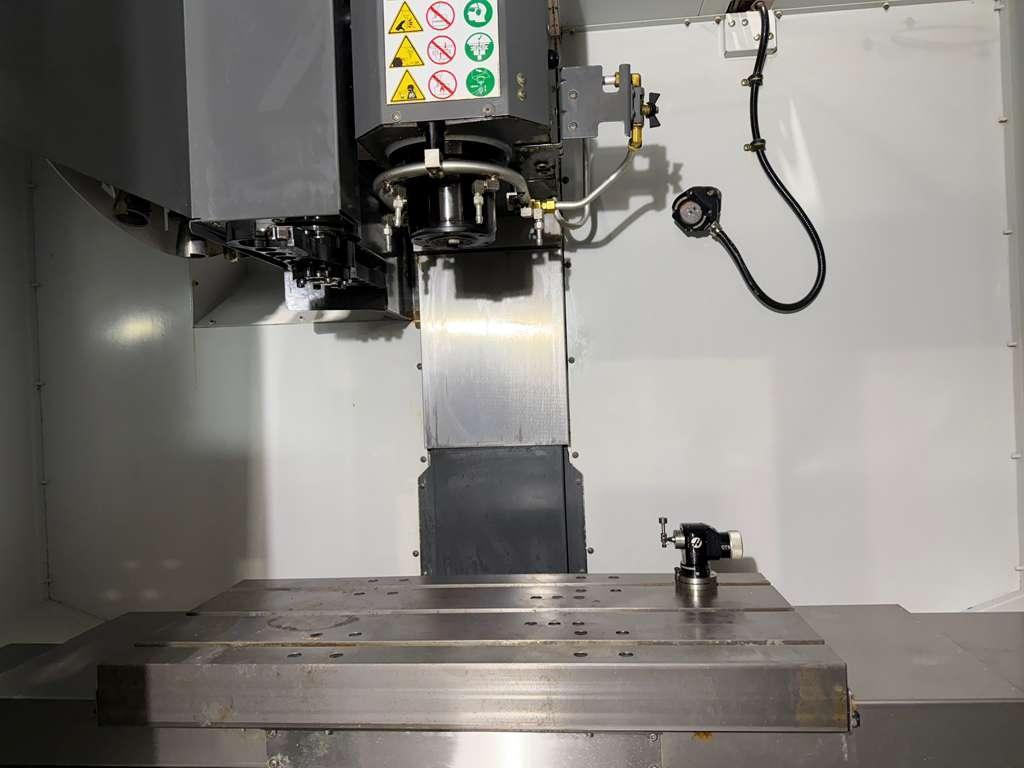

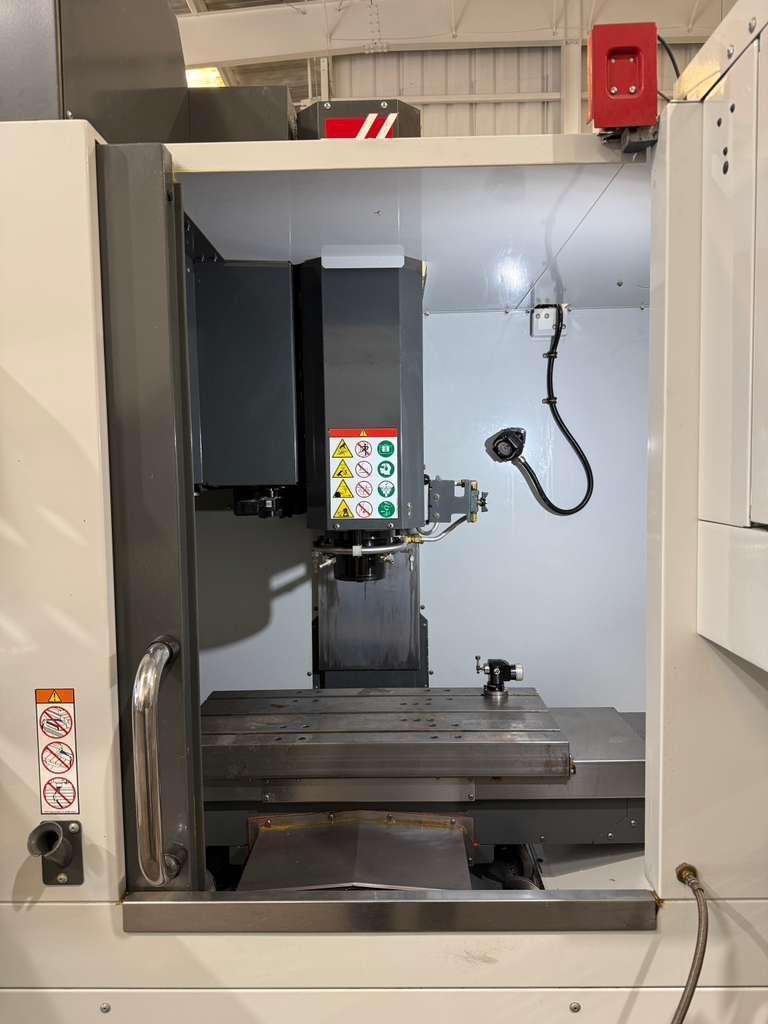

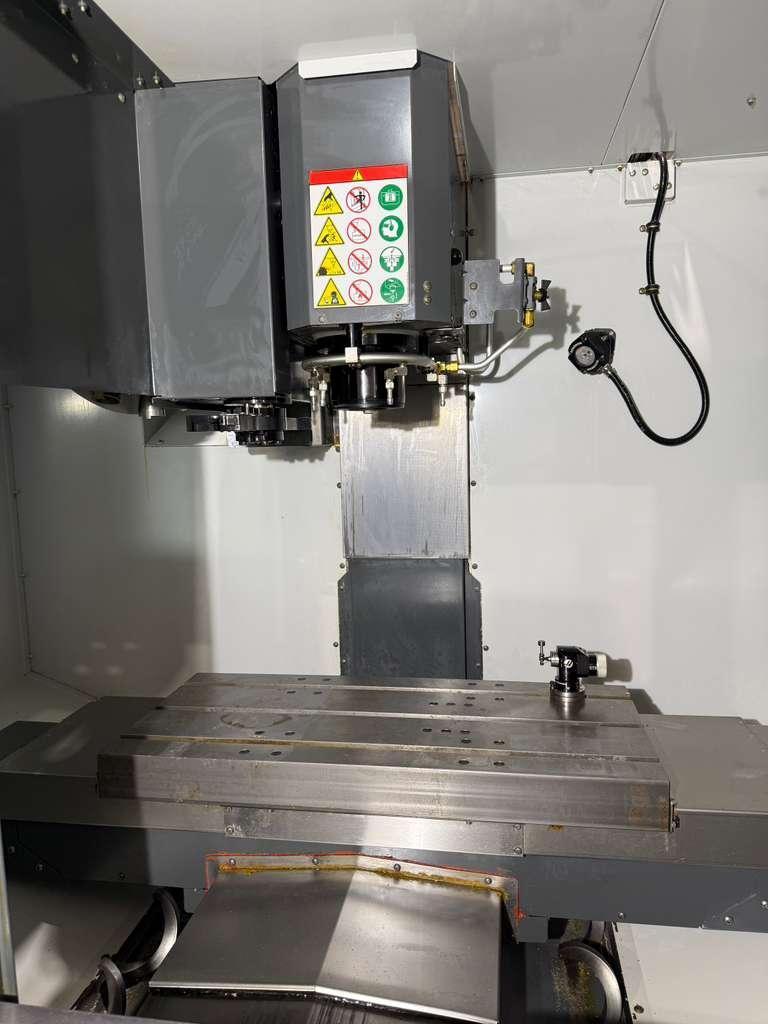

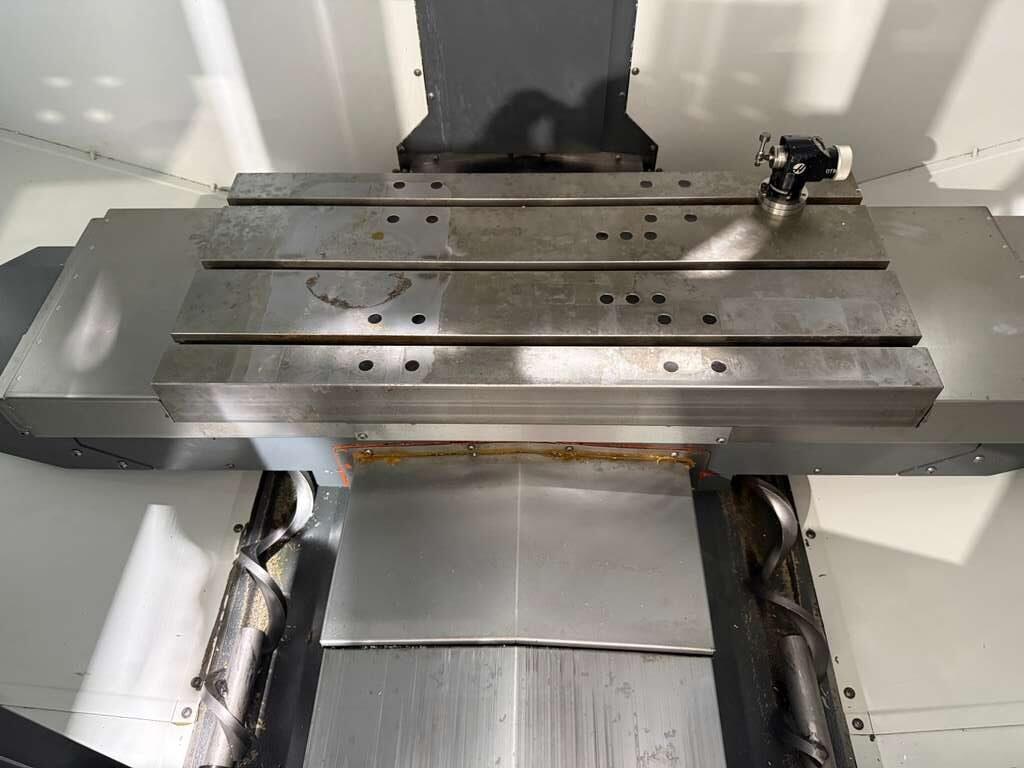

Table:
Length: 34.0″
Width: 15.0″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 500 lbs
Spindle:

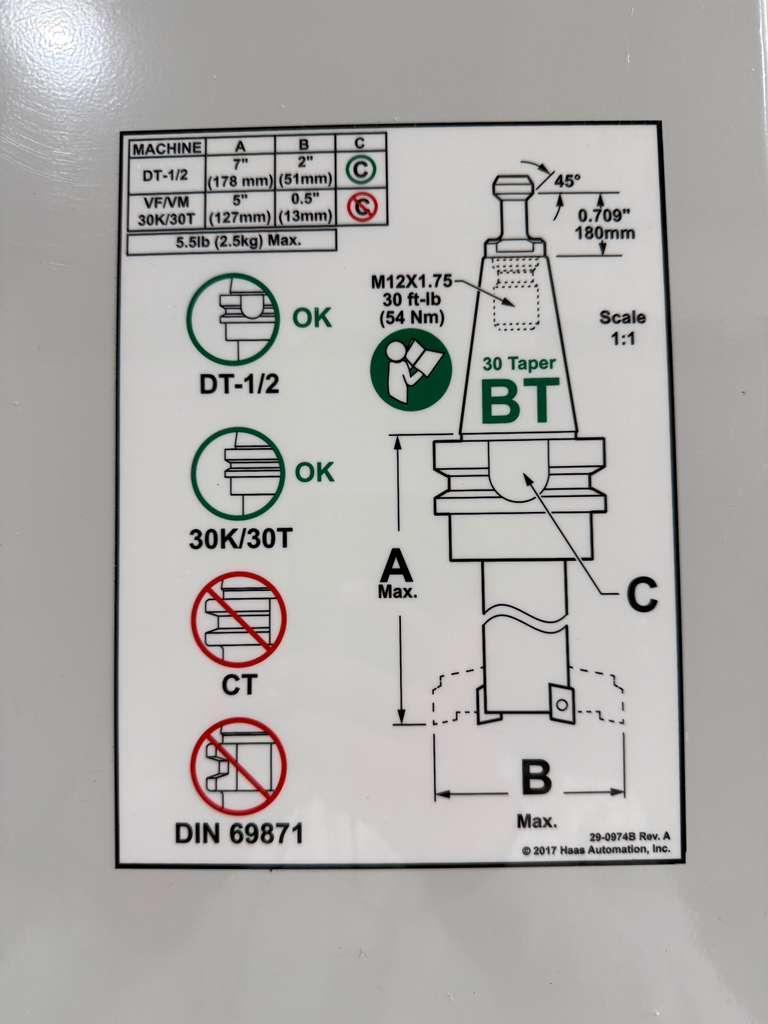

Taper Size: BT-30
Max Speed: 15,000 RPM
Max Tapping Speed: 5,000 RPM
Spindle Power: 15 HP
Automatic Tool Changer:
Capacity: 20 Tools
Max Tool Weight: 5.5 lbs
Max Tool Dia: 2.0″
Max Tool Length: 7″
Tool Changing Time: 2 Seconds
General:
Air Required: 100 psi 4 scfm

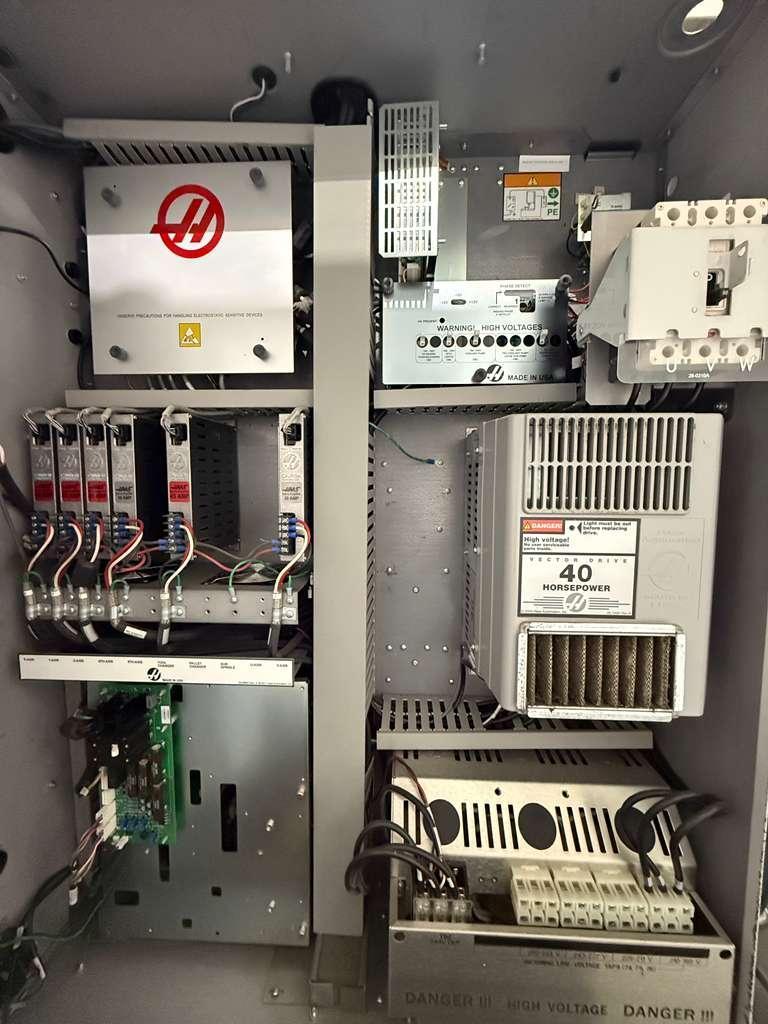

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 100″ x 91″ x 99″ High
Weight: 5,350 lbs
