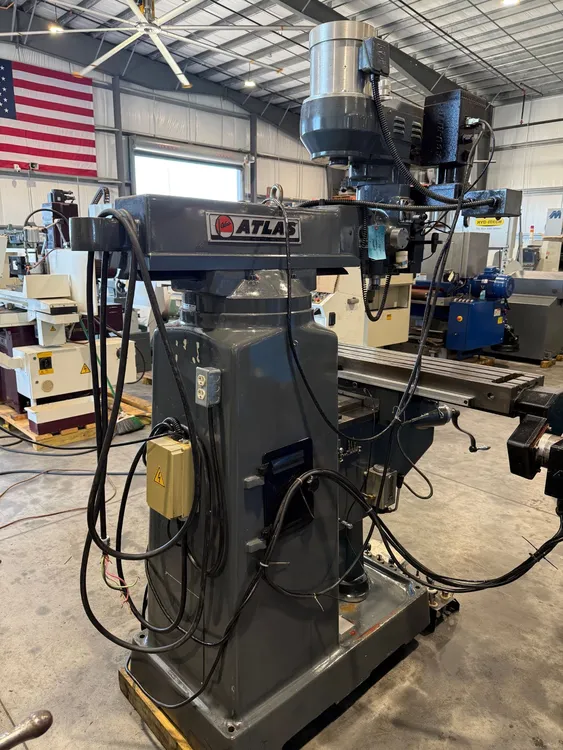

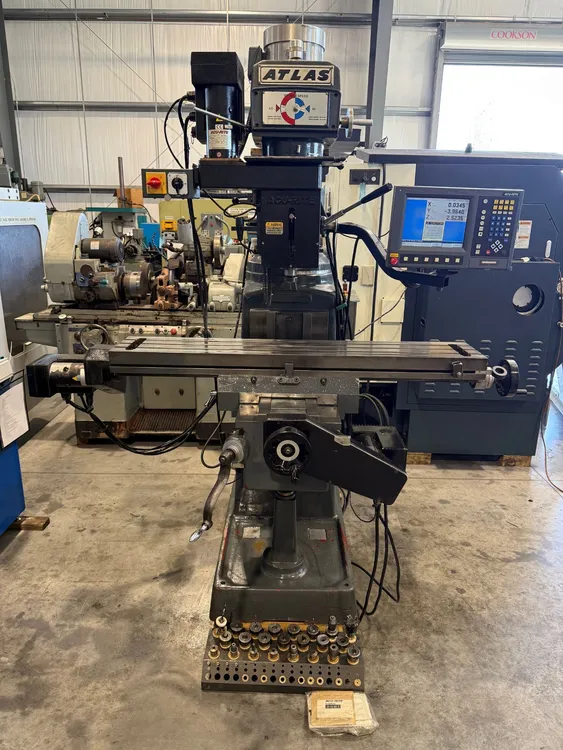

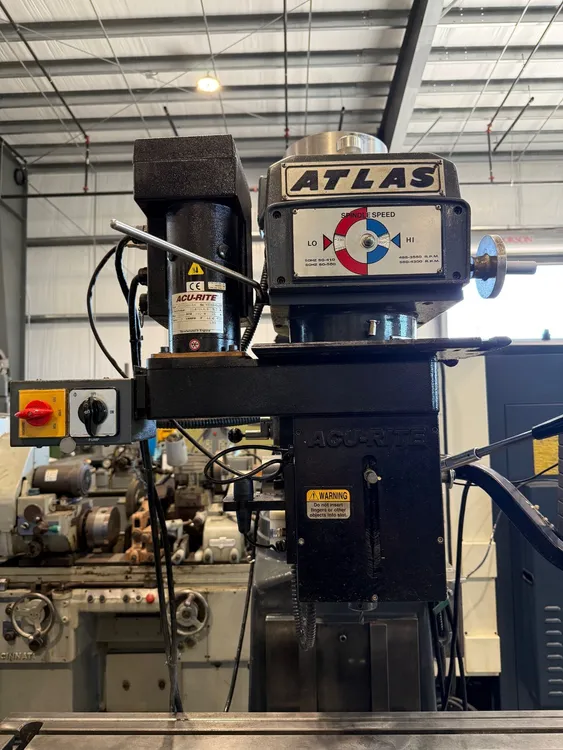

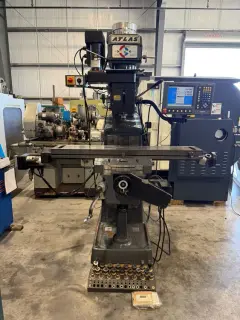

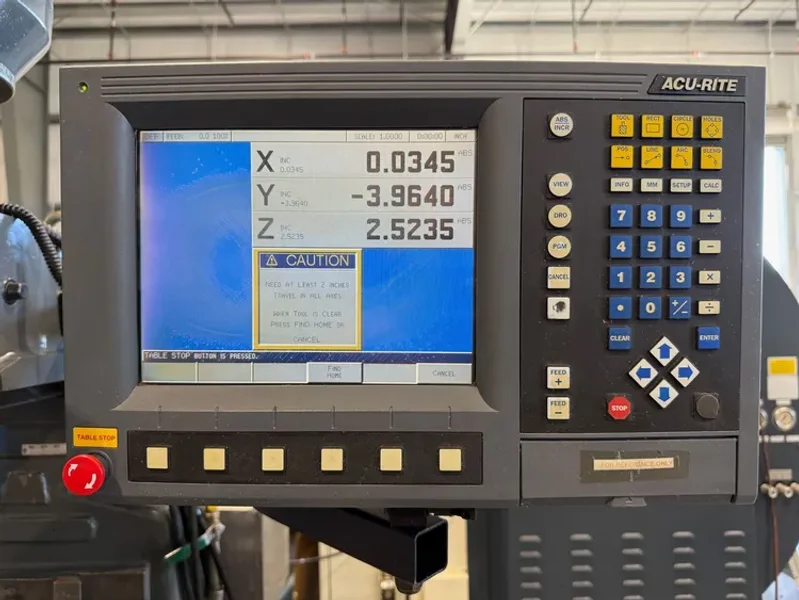

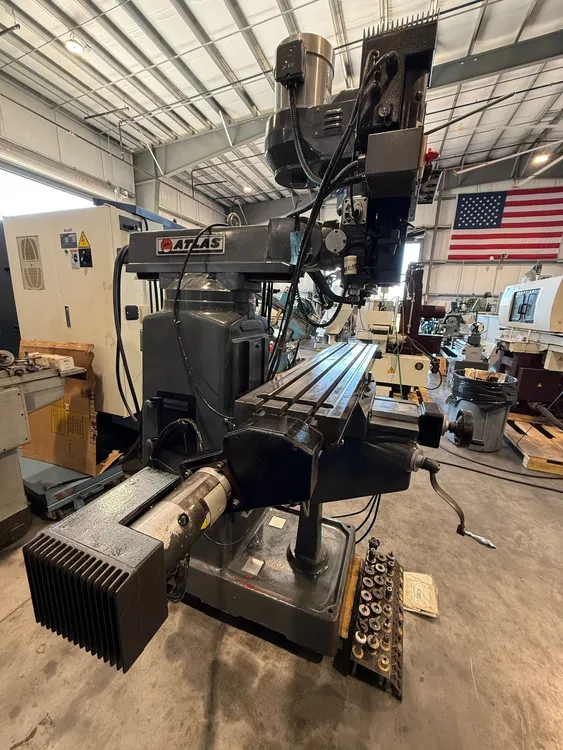

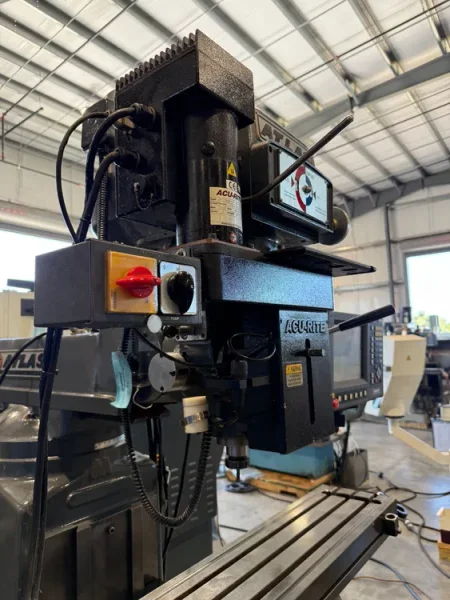

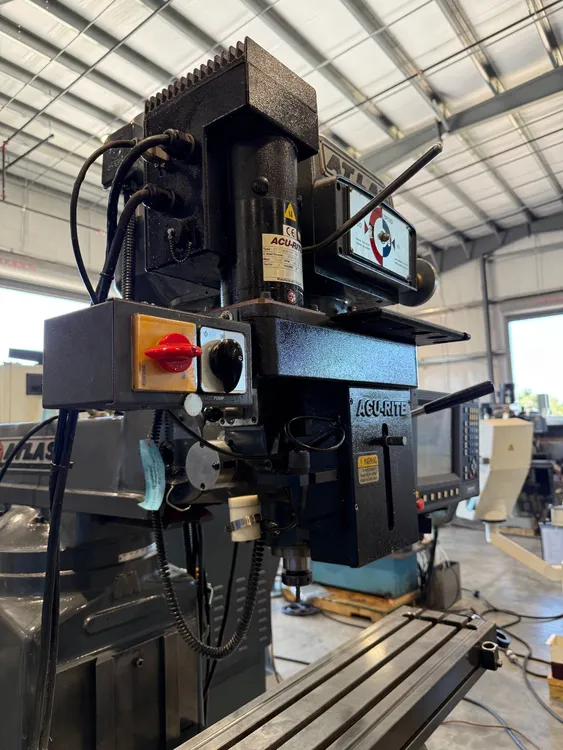

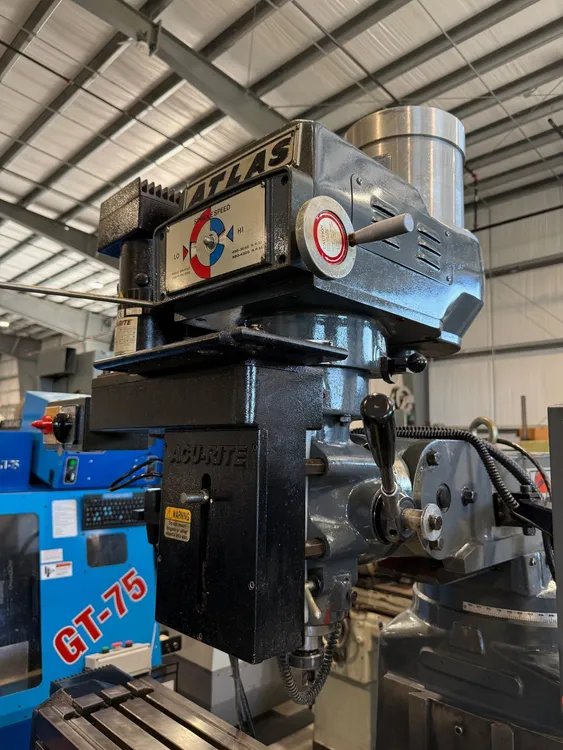

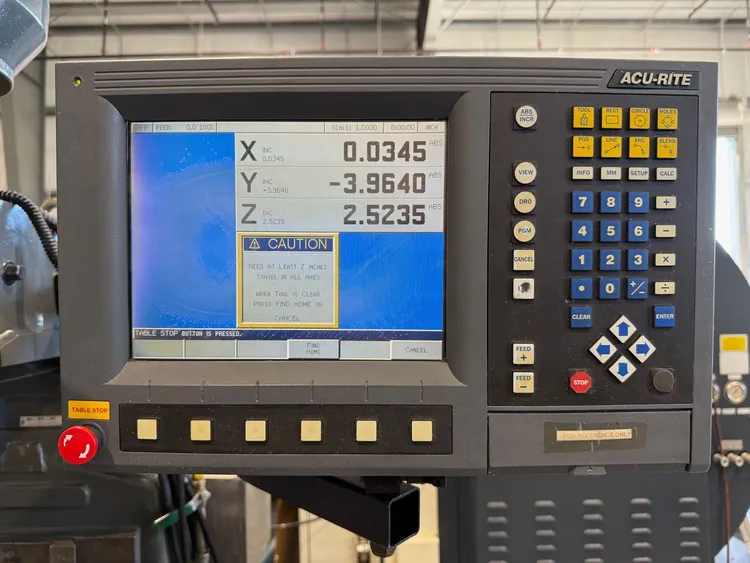

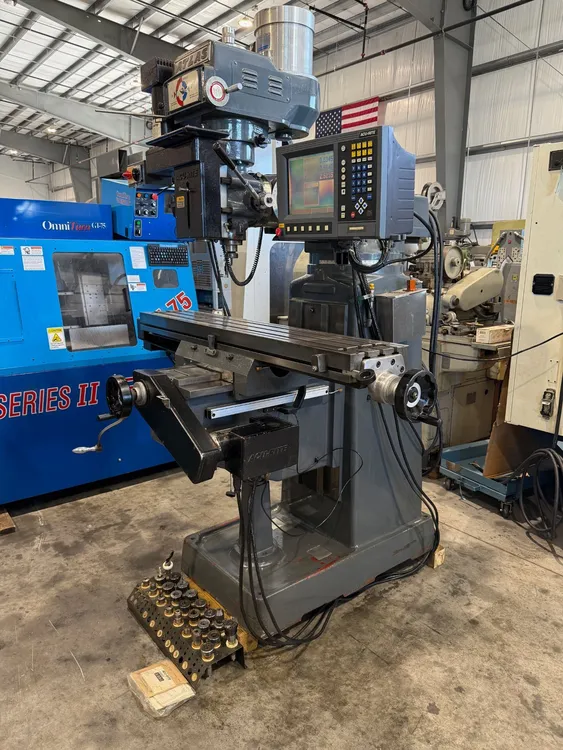

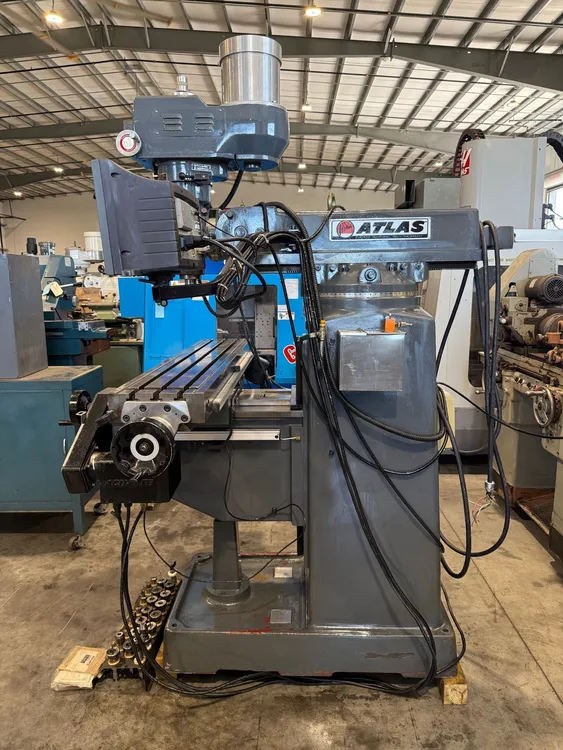

ATLAS CLAUSING 3VS08 CNC 3 axis Vertical Milling Machine MILLPWR #7849
Brand
Not specified
Category
Model
3VS08
Stock #
7849
Year
Not specified
Condition
Not specified
Location
Not specified
|
ATLAS CLAUSING 3VS08 CNC 3 axis Vertical Milling Machine MILLPWR #7849

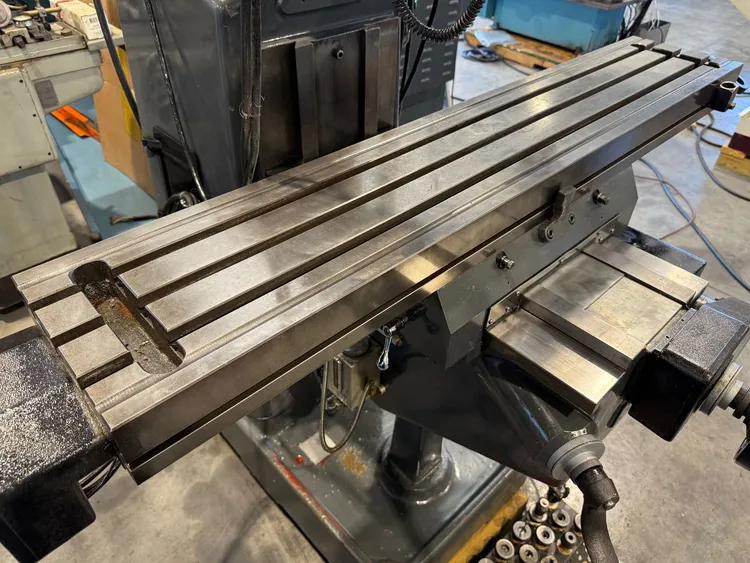

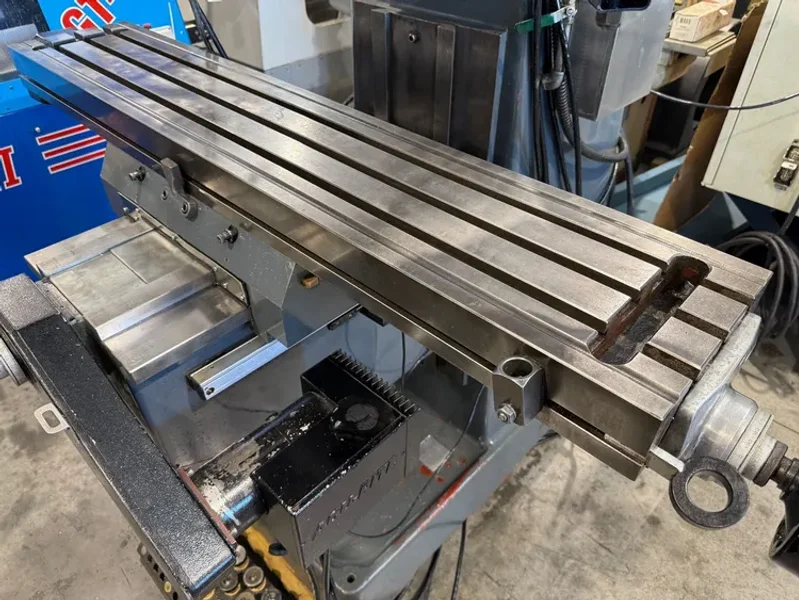

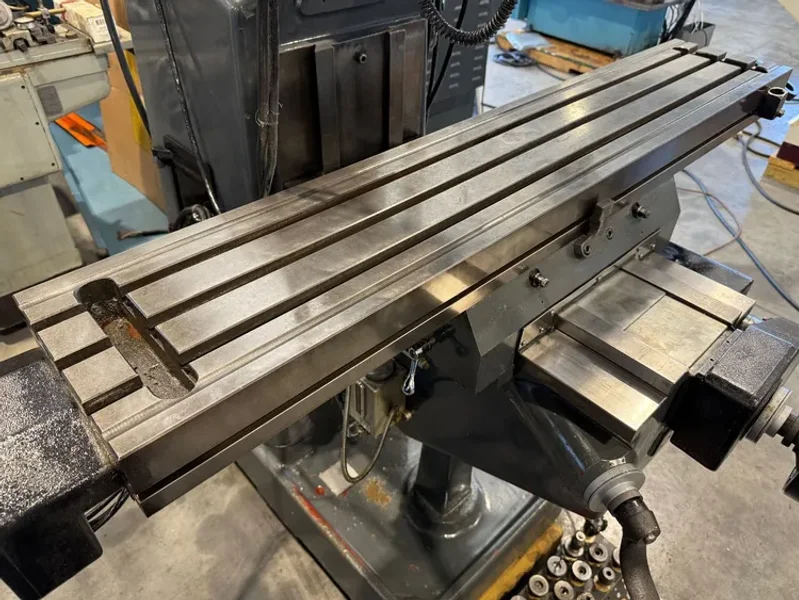

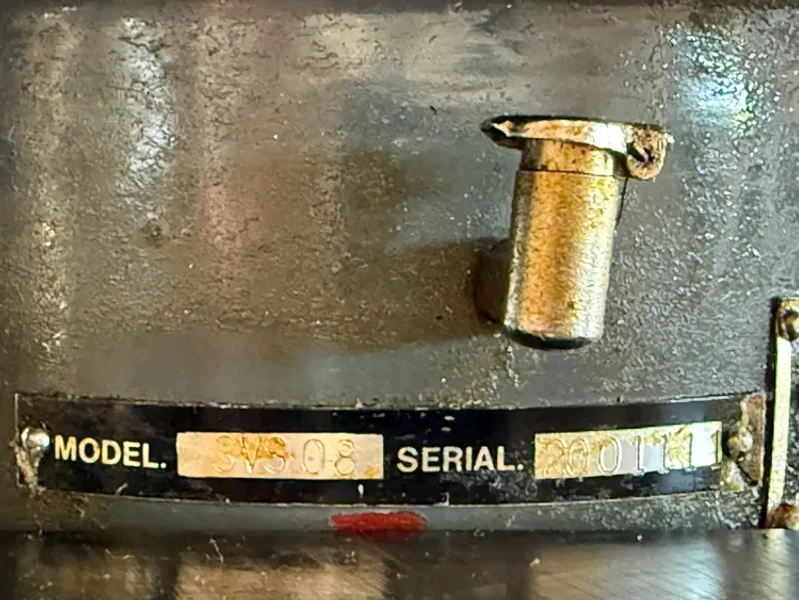

Reference #7849 Model # 3VS08 Serial # 2001111 Year of manufacture- 2000’ Table size- 10” x 54” Number of T-slots- 3 T-slot width- 5/8” Travels- X axis- 39.6” Y axis- 15.6” Knee- 15” Ram- 22” Spindle travel- 5” Spindle speeds- Low range 60 – 500 R.P.M. / High range 550-4300 R.P.M. Spindle taper- R-8 Quill feeds- (3) .0015 / .0031 / .006 Quill diameter- 3.38” Max table load- 665 Lbs. Column diameter- 14.96” Knee width-11.81” Column bearing length- 16.83” Saddle / table bearing length- 19.88” Ram / turret bearing length- 17.51” Ram length- 32.75” |
