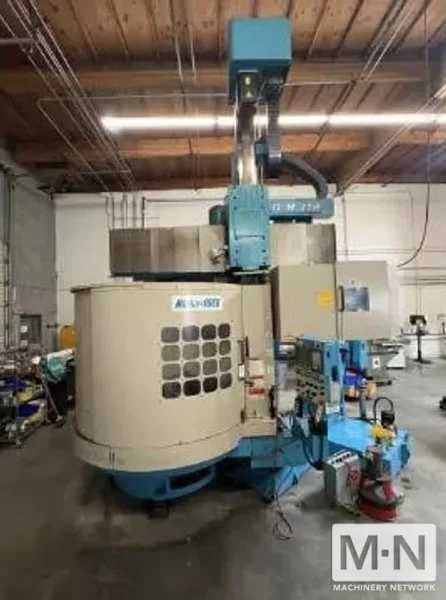

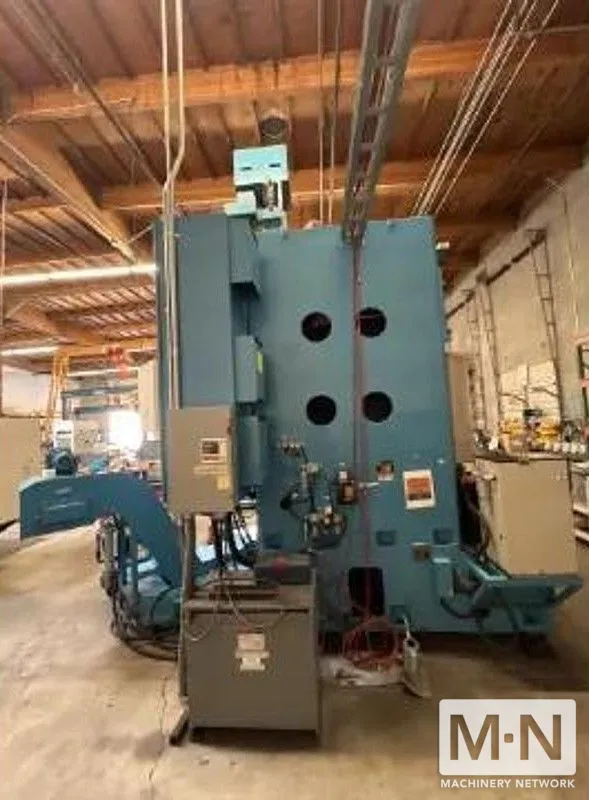

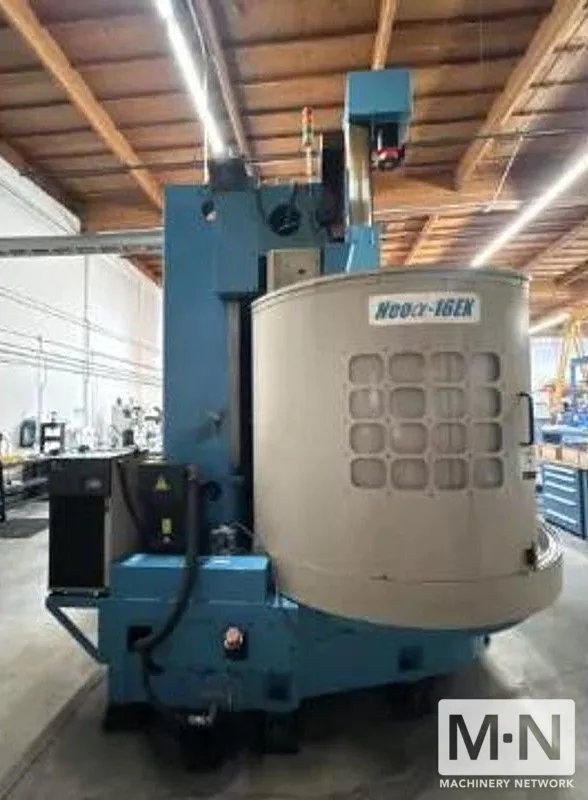

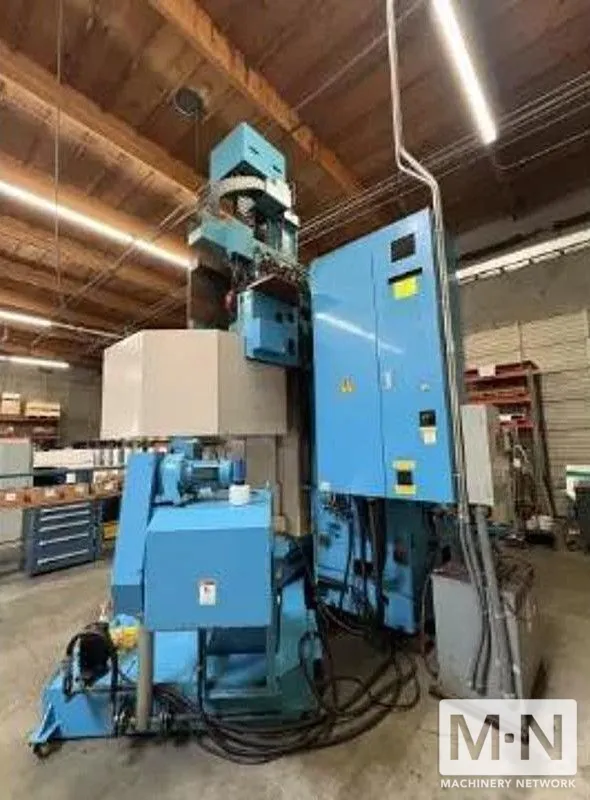

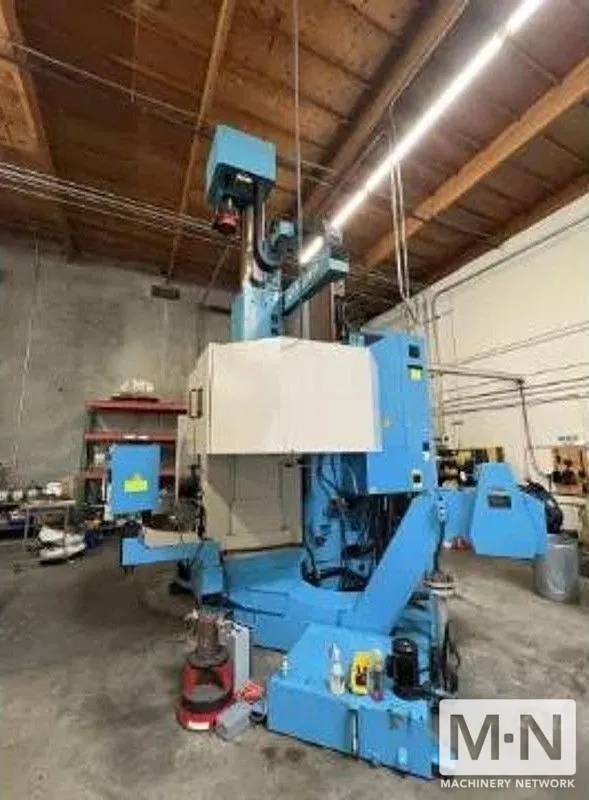

O-M NEOa-16EX Vertical Boring Mill, 2013

Max. swing 78.74"

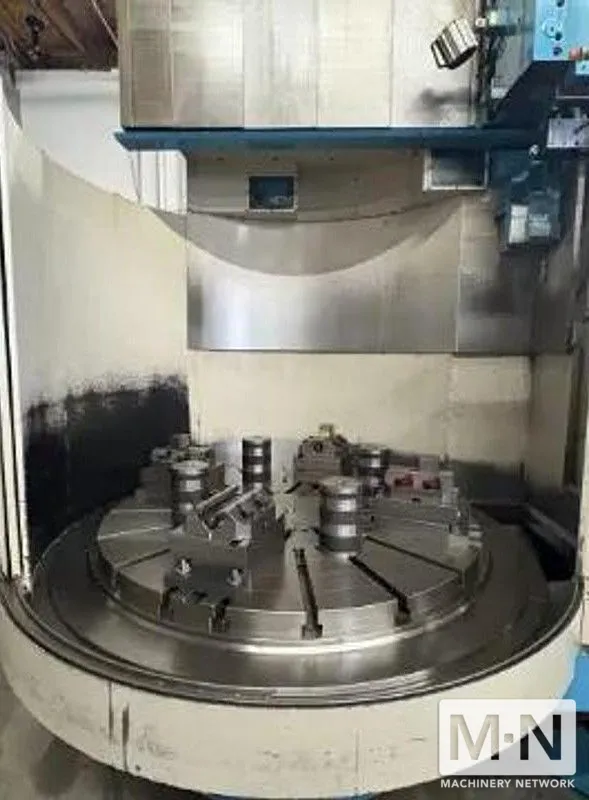

Table dia. 62.99"
Max. turning height 59"
Main spindle motor 50/40 HP
Main table speed 250 RPM
Table ranges 2
Live spindle motor 15/10 kw
Live spindle speeds 2000 RPM
Spindle taper Big plus #50 dual contact

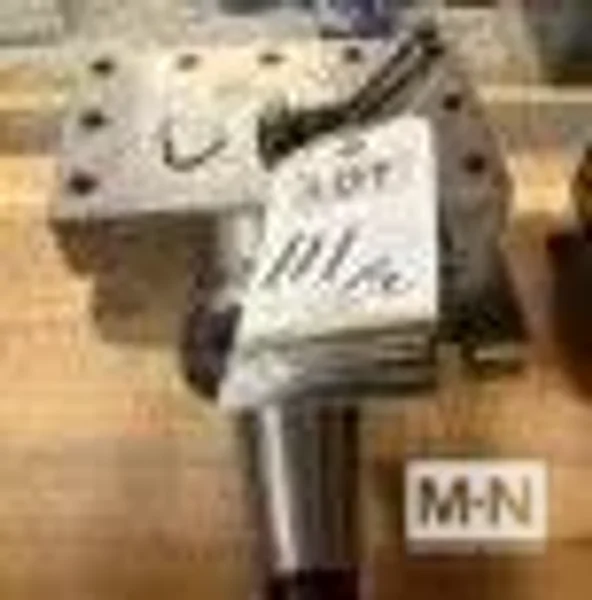

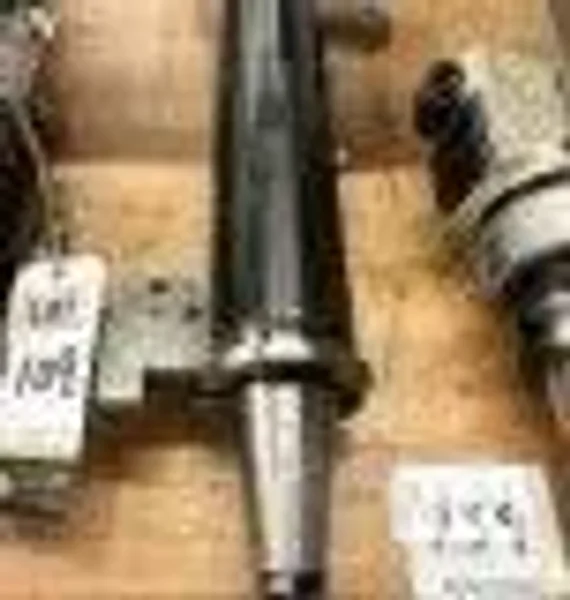

Automatic tool changer 18 - 9 turning / 9 rotating tools
Table capacity 17,640 LBS
Max. Torque on table 20,000 N-m
Max. cutting force 25,000 N-m (5620 lbs)
X axis travel 63.43"
Z axis travel 39.94"
Ram size 9" x 9"
Min. ID for ram pass 13"
Crossrail stroke 31.52"
Crossrail steps 7.874" x 5
Turning tool shank size 1.26"
Max. tool length 15.74"
Max. Drill diameter 1.969" Carbon steel
Max. tap diameter 1.181" Carbon steel
Max. torque for drilling 145 lbs-ft
C axis feed rate 0 -800 deg/min.
Pull stud P50T-2 (mas403)
Approx. Machine Weight 37,500 lbs
Floor space required 201" X 142" X 192.5"
