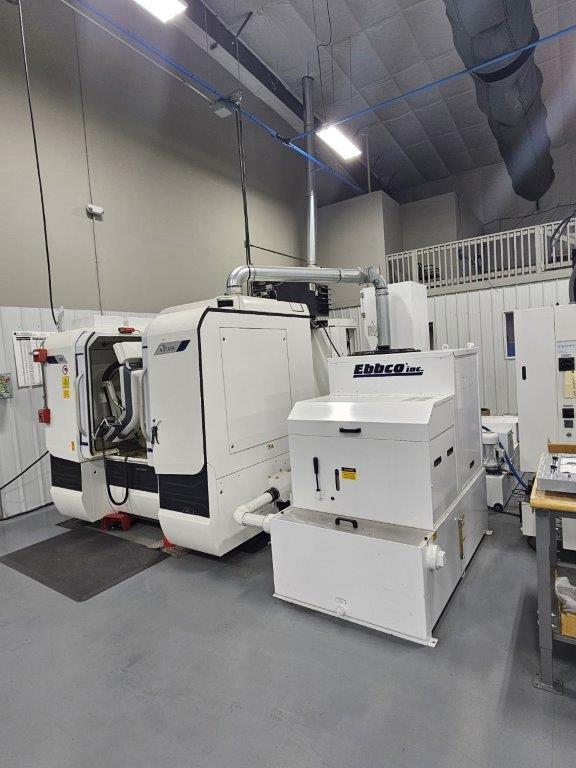

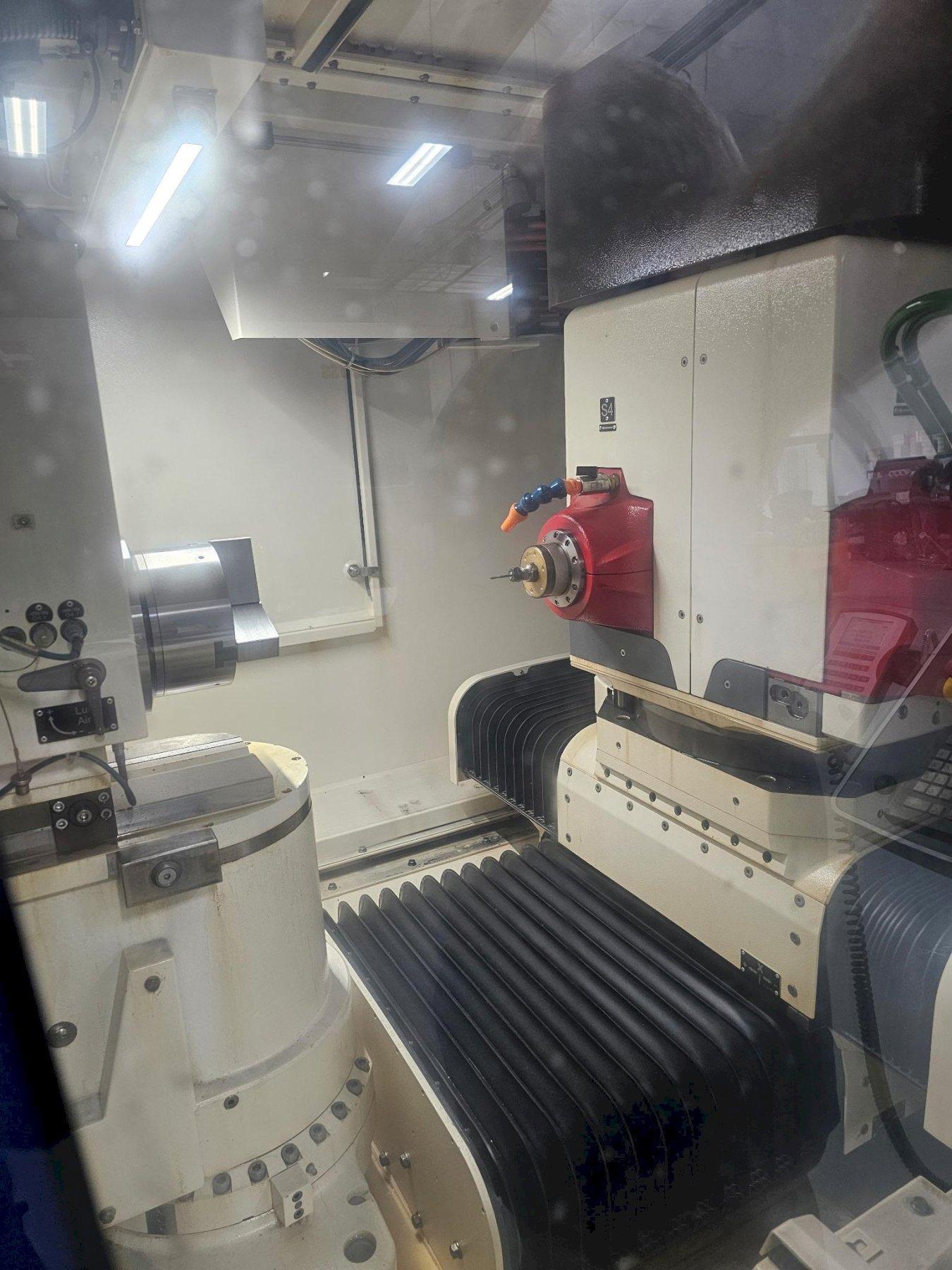

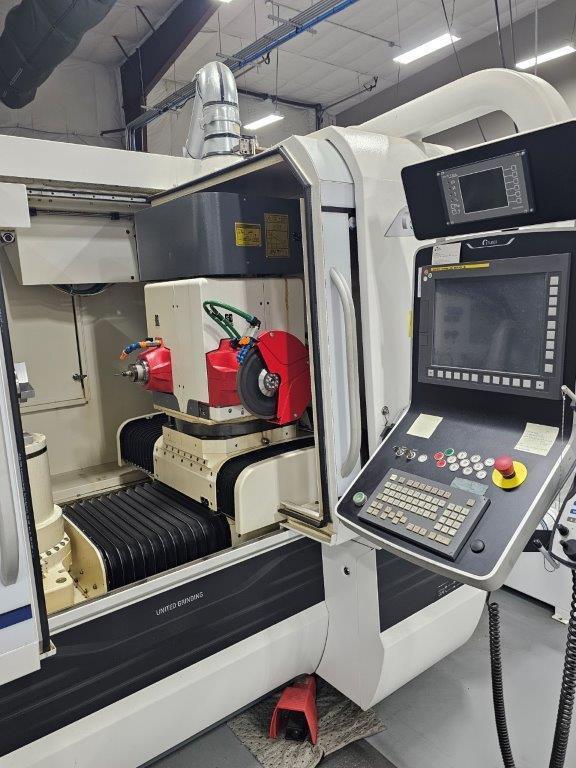

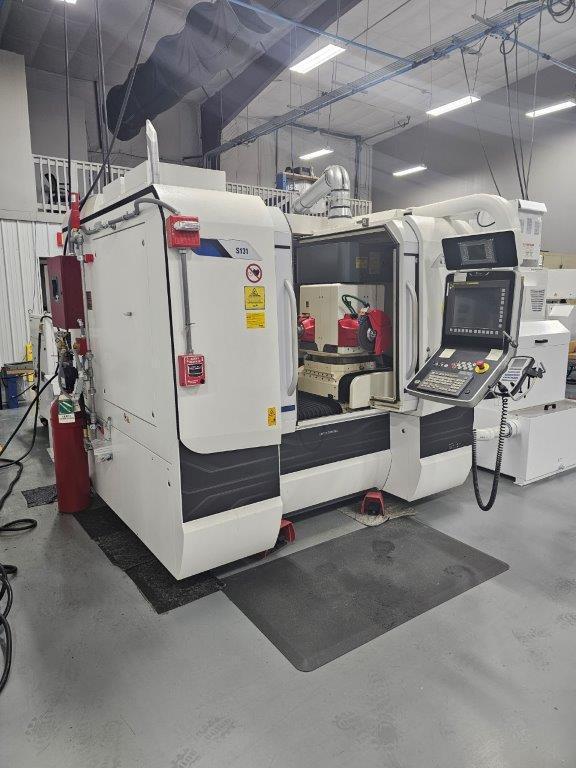

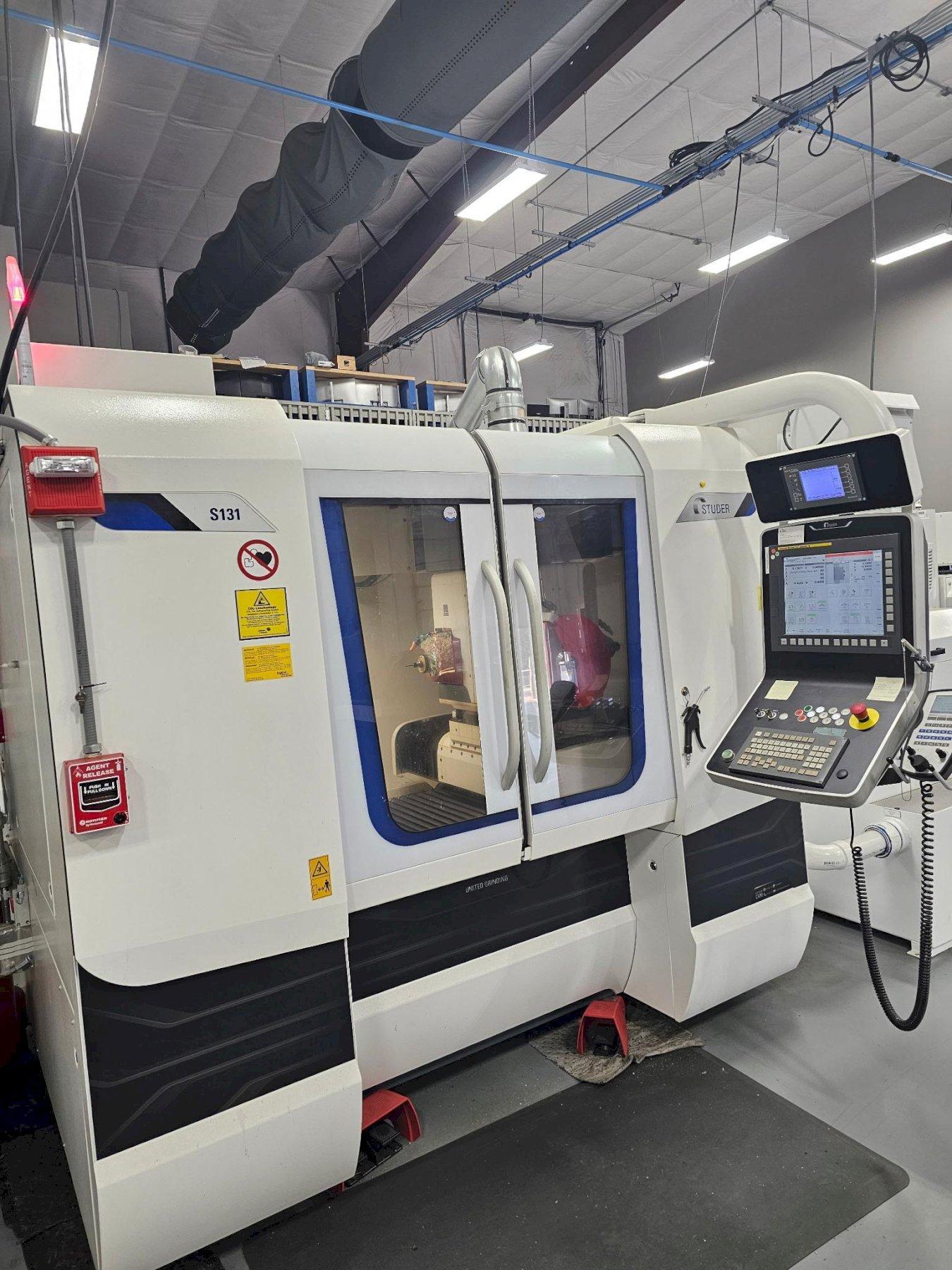

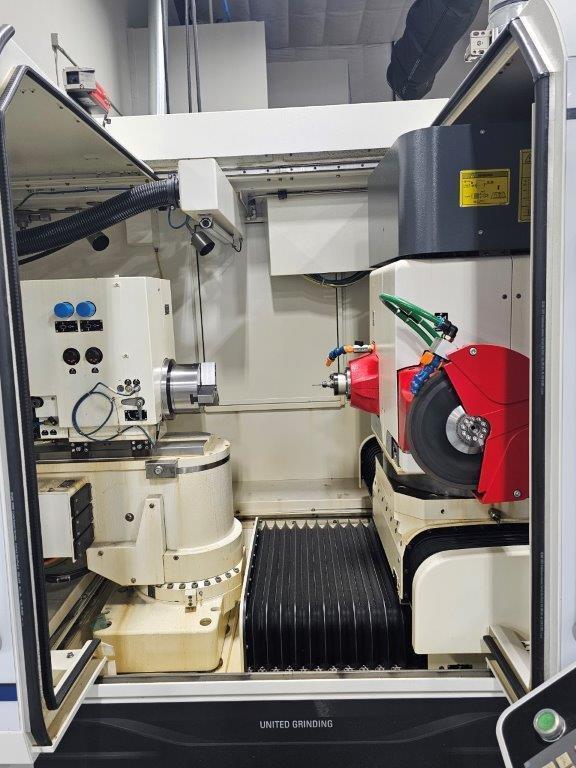

Studer S131R Cylindrical Grinder, 2020 – Rotary Dressing, Probe, External/Internal Grinding

Max Swing: 11.81″ Max. Workpiece Weight: 220 LBS Max. Workpiece Diameter (external): 6.3″ Max. Workpiece Length: 11.81″ Max Grinding Wheel Diameter: 9.84″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Grinding length/diameter, external: 4.7″/6.3″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,X-Axis Travel: 13.78″ Z-Axis Travel: 15.75″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Swiveling range of the workpiece table: -60deg. to +91deg. Swiveling range of tool table with B1-axis: -50deg. to +280deg.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Internal grinding spindles: 24,000 – 120,000 rpm External grinding wheel, dia. x width x bore: 250 x 25 (F5) x 50 mm (10” x 1” (F 5) x 2”)

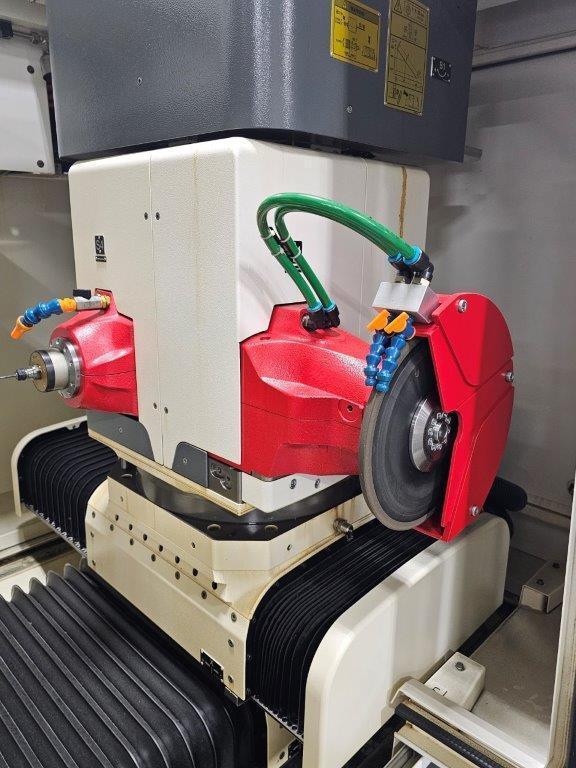

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Arrangement: Turret Number of Spindles: 4

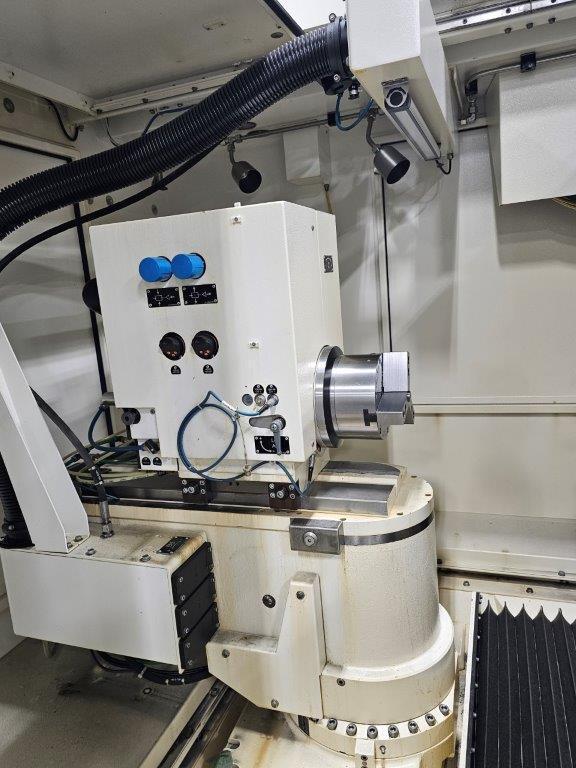

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Chuck Workhead: High Precision: 1-1200 RPM Standard Version: 1-1500 RPM Spindle Bore: 1.4″ Driving Power: 4 HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,C-axis for form grinding: Standard, indirect measuring system: 0,0001°

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Weight: 13,000 LBS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

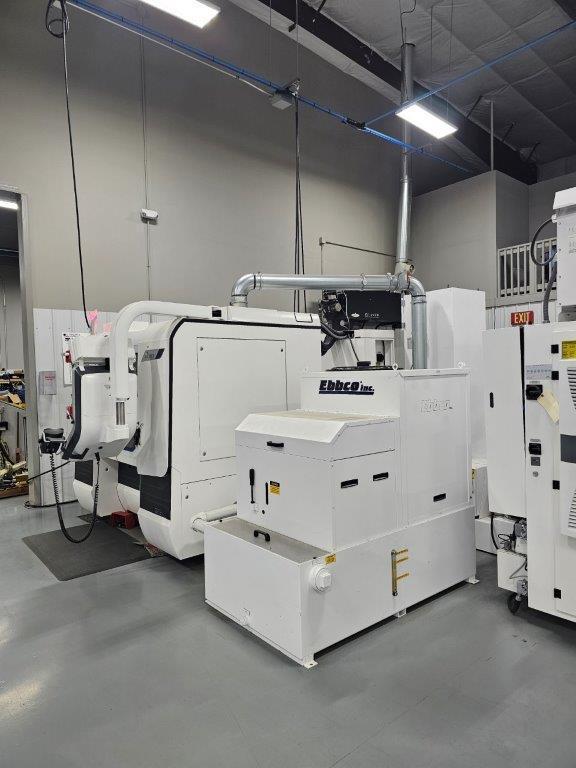

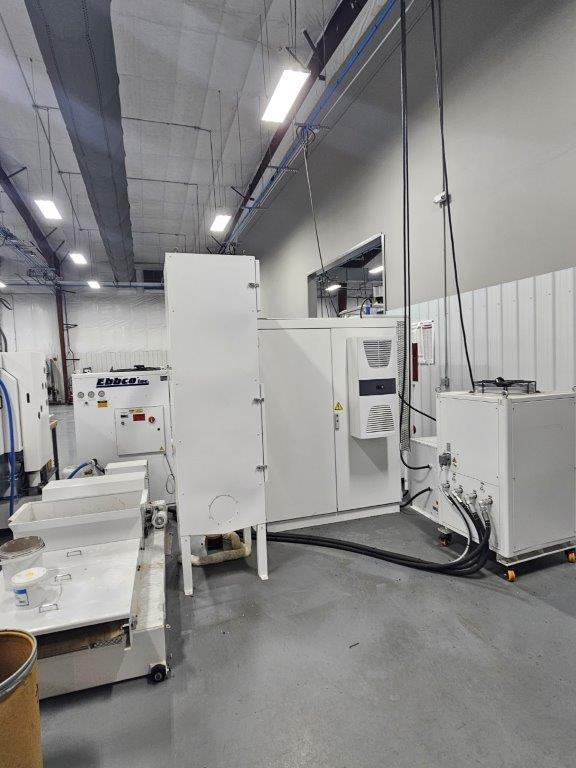

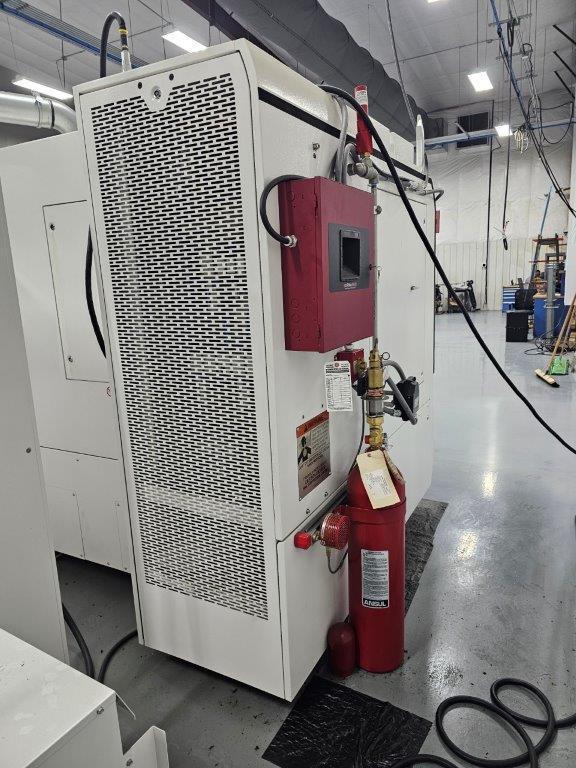

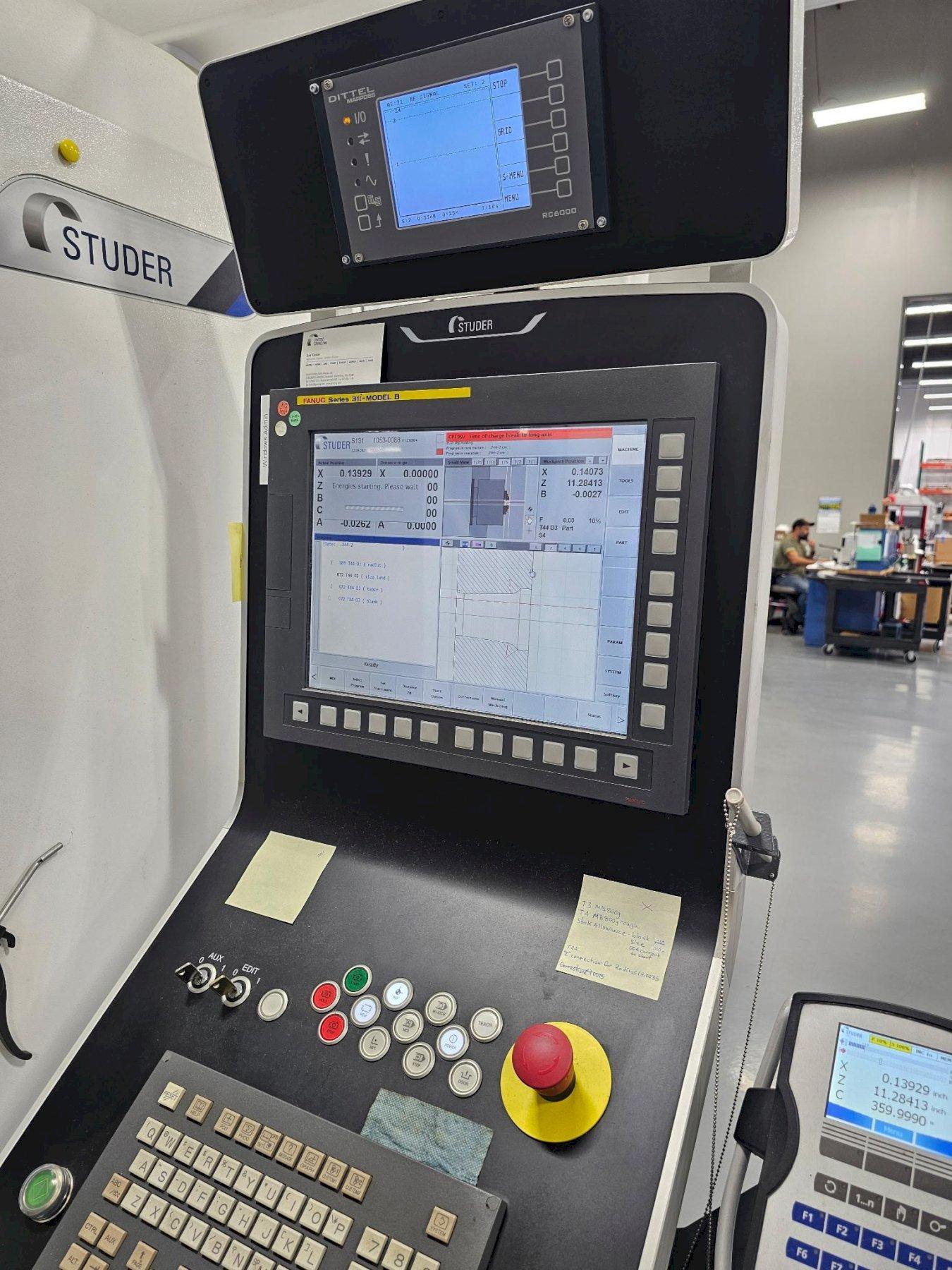

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fanuc 31i-Model B Control External Grinding T1 Internal Grinding T2 (60k RPM) Internal Grinding T4 (90K RPM) – T3 with internal grinding attachment for dia. 120mm Internal Grinding T4 (90k) – T4 with internal grinding attachment for dia. 100mm Chuck Workhead MT5/A4 Rotary Dressing Portable operating unit Studer PCU terminal II with graphics RJ45 Ethernet Interface Contact Detection Length Positioning Probe Machine Coolant Equipment & Acc. Foot Pedal TouchControl for diameter Non-round software (c-axis is on machine in the workhead section) United Grinding Digital Solutions/OPC-UA Fire Suppression System Coolant Filter for oil Coolant Filtration System and Mist Collection
