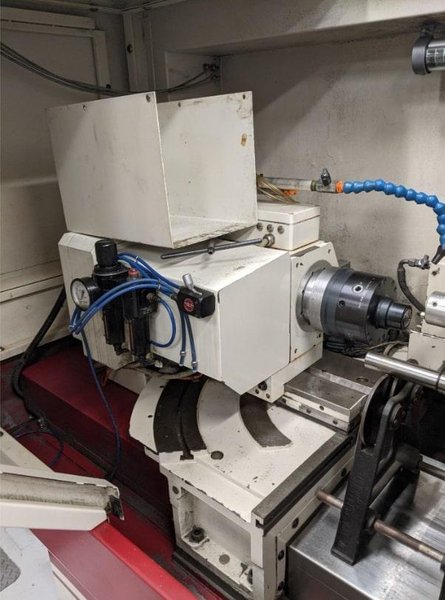

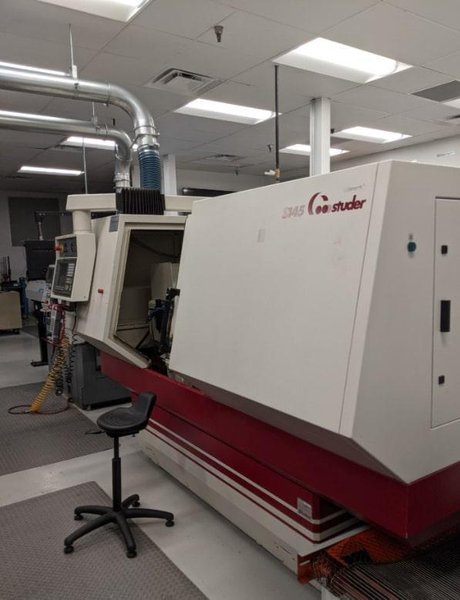

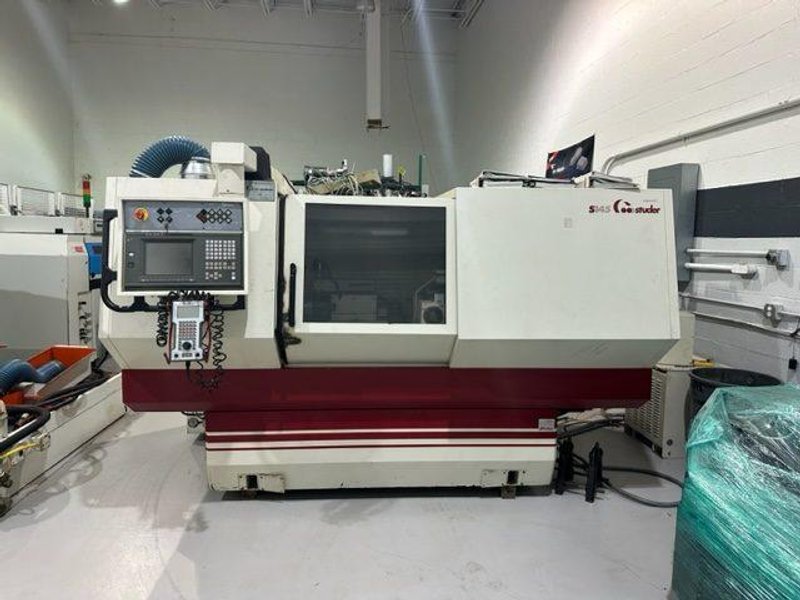

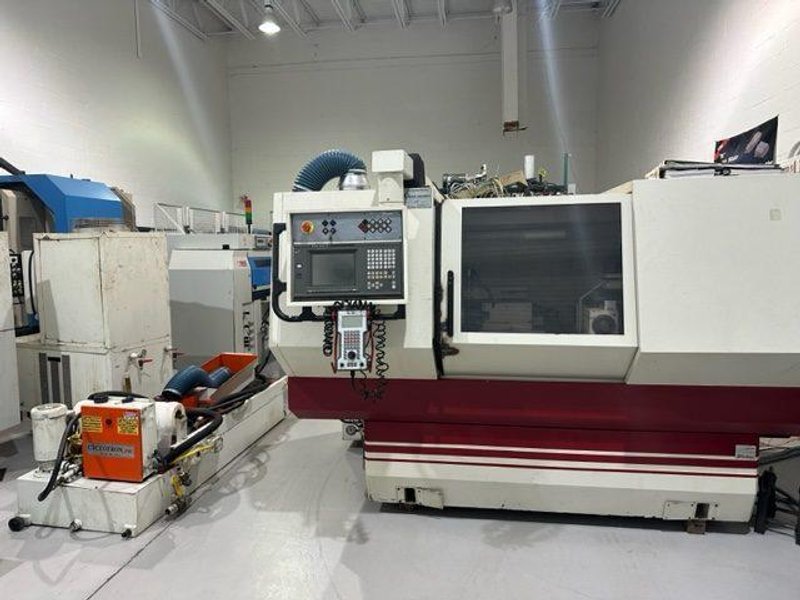

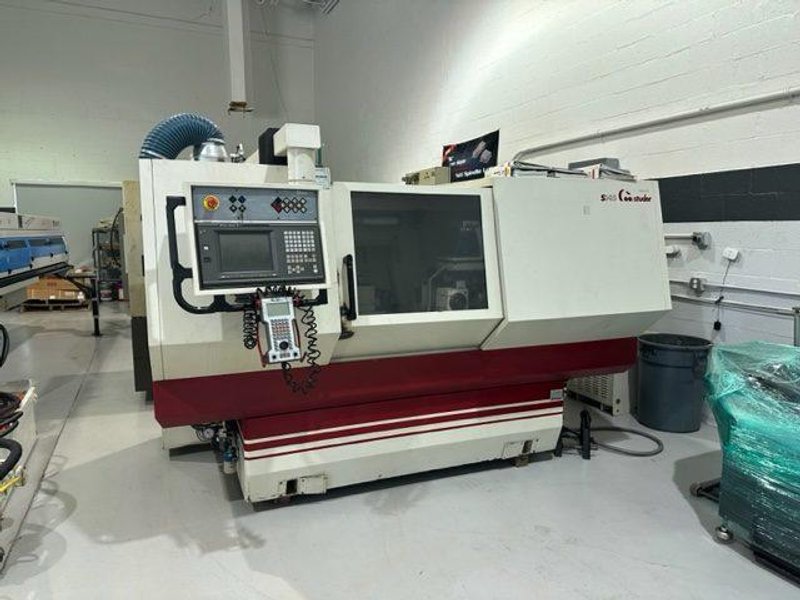

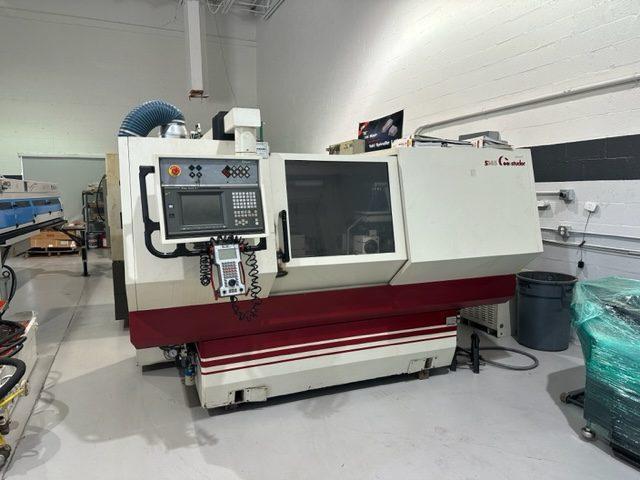

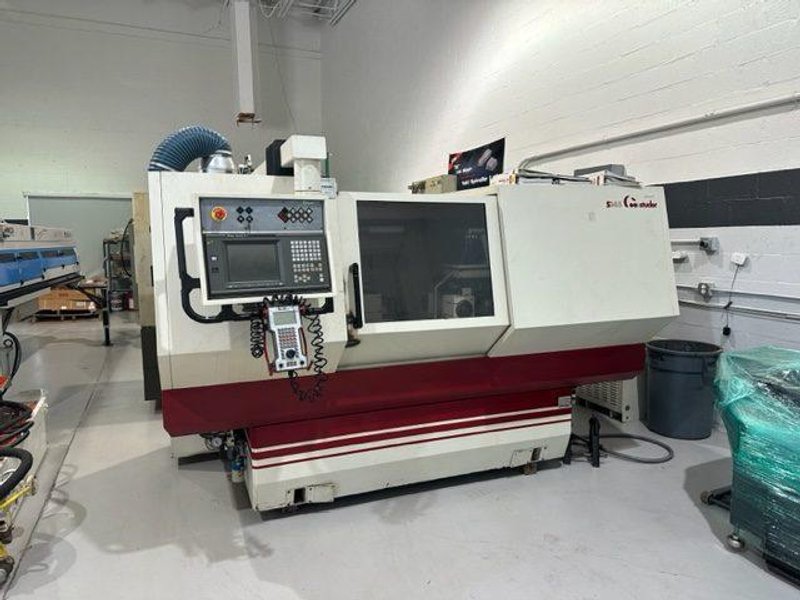

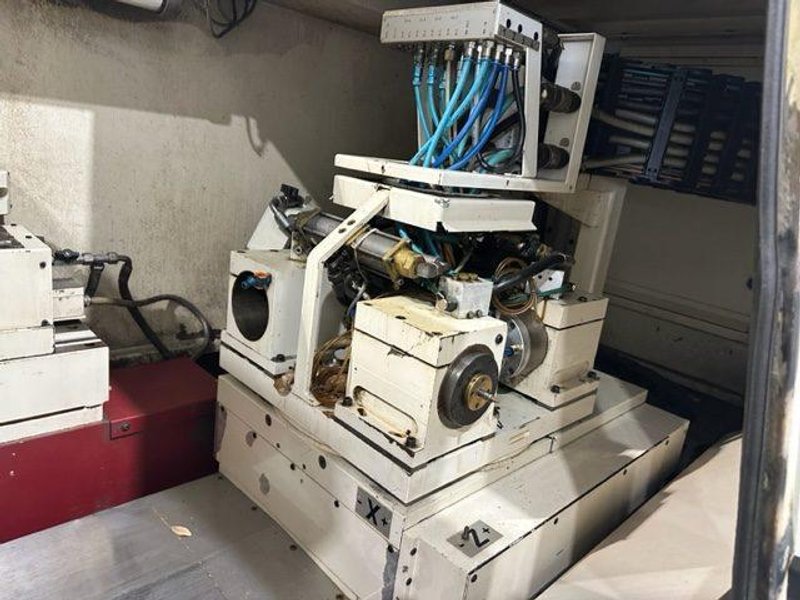

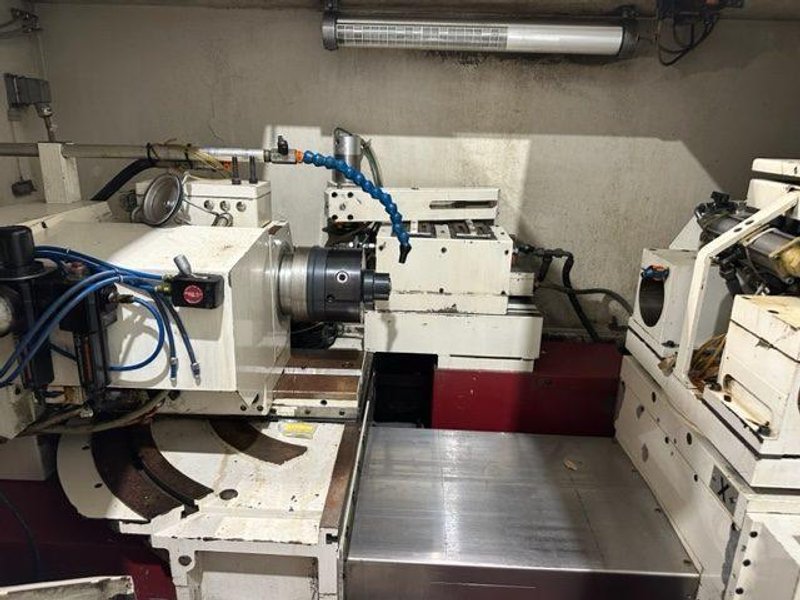

Studer S145 CNC Grinder, 2000-4 I.D. Spindles, C Axis, Q Axis

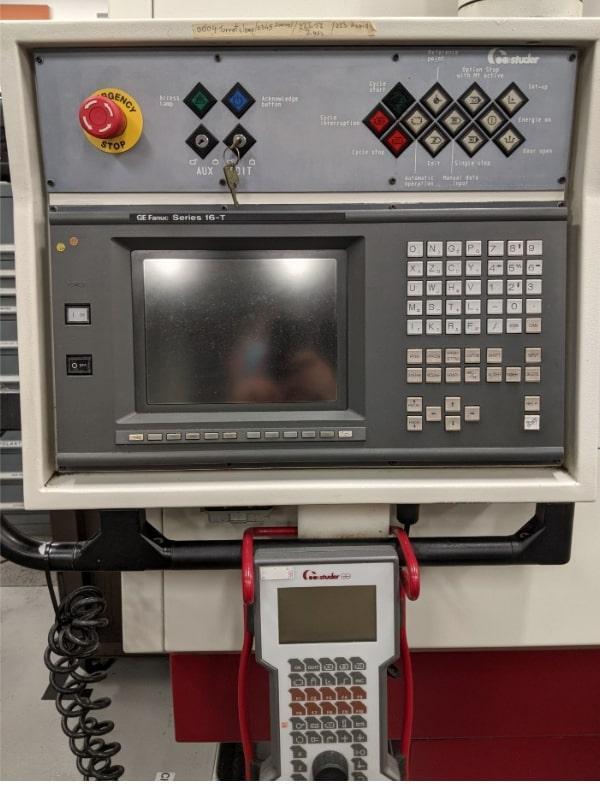

Type of CNC Control-Fanuc 16i: TB Capabilities and Features C-Axis for Form & Thread Grinding / Q-Axis for Swivel of head / 4-Position Internal Grinding Spindles Workpiece Envelop 19.700″ x 4.700″ Z-Axis Travel: 19.700″ X-Axis Travel: 4.700″ ID Grinding Diameter(s): Max. 11.811″ ID Grinding Depth: 4.700″ Max. Swing over Bed: 13.800″ Center Height : 7″ Number of Programmable Grinding Spindles: 4 ID Spindles Spindle Speeds: 24,000 RPM to 120,000 RPM Angle Adjustment on Wheel Head: 0.000 Degrees OD Grinding Wheel Dimensions-10″ x 1″ Workload 176 Lbs.

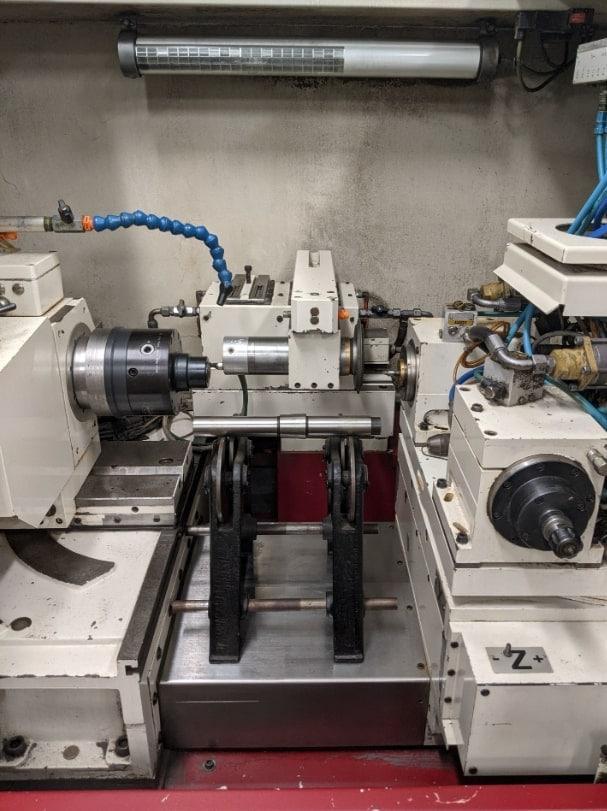

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Turret-Type Wheelhead With 4 Tool Positions For Internal Grinding Spindles Q-Axis with a Swivel Range of +/-30 Deg Frequency-Controlled Internal Grinding Spindles C-Axis for the Workhead for Form and Thread Grinding Large Selection of Multi-Range Spindles Full Enclosure with Sliding Door Machine Base Made of Granitan Standardised Interface for Loader and Peripheral Devices Extensive Range of Chucks and Accessories Specifications: Center Height 7&Quot; Workpiece Weight 176 Lbs. Number of Grinding Spindles 4 Spindle Speed (Rpm) Up To 120,000 Od Grinding Wheel Dimensions 10 X 1&Quot; Visit Grinding.Com

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Specs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,S145 High-Performance Universal Internal Cylindrical Grinder Grinder Type: Cylindrical-Id

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Operation: CNC Cnc Brand: Fanuc 16i-Tb

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Workpiece Envelope Grinding Id Grinding Diameter(S) Max: 11.811 Id Grinding Depth Max: 4.700&Quot; Swing Diameter 13.800 Inches Workload 176 Lbs. Grinding Wheel and Spindle Grinding Wheel Dia.: 10.000 Inches Width: 1.000 Inches Wheel Head 24,000 Rpm Opt: 120,000 Rpm Angle Adjustment: 0.000°

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Axes Specifications Travel Max Feed Rapid Rate Longitudinal 19.700 Inches Cross 4.700 Inches
