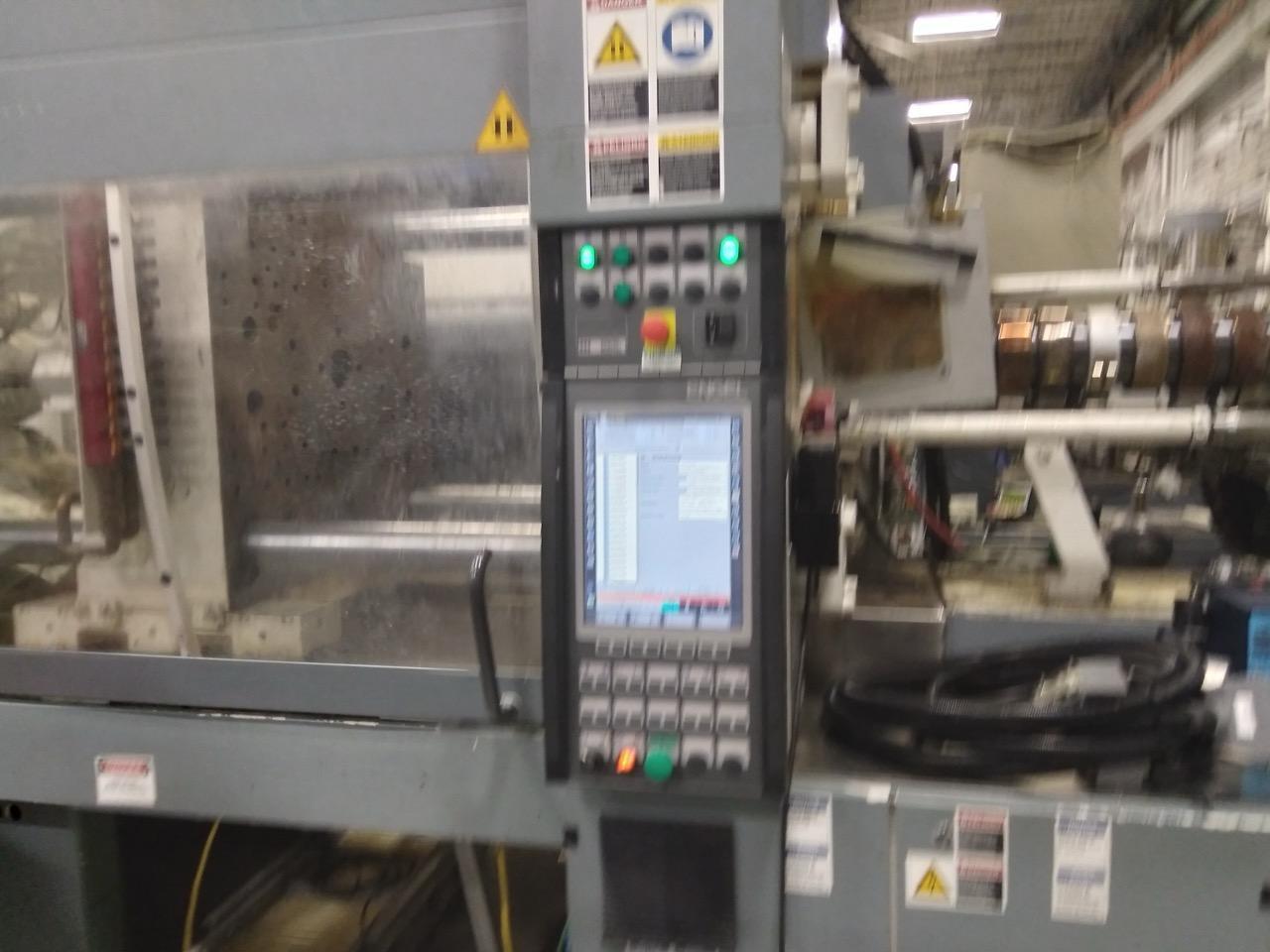

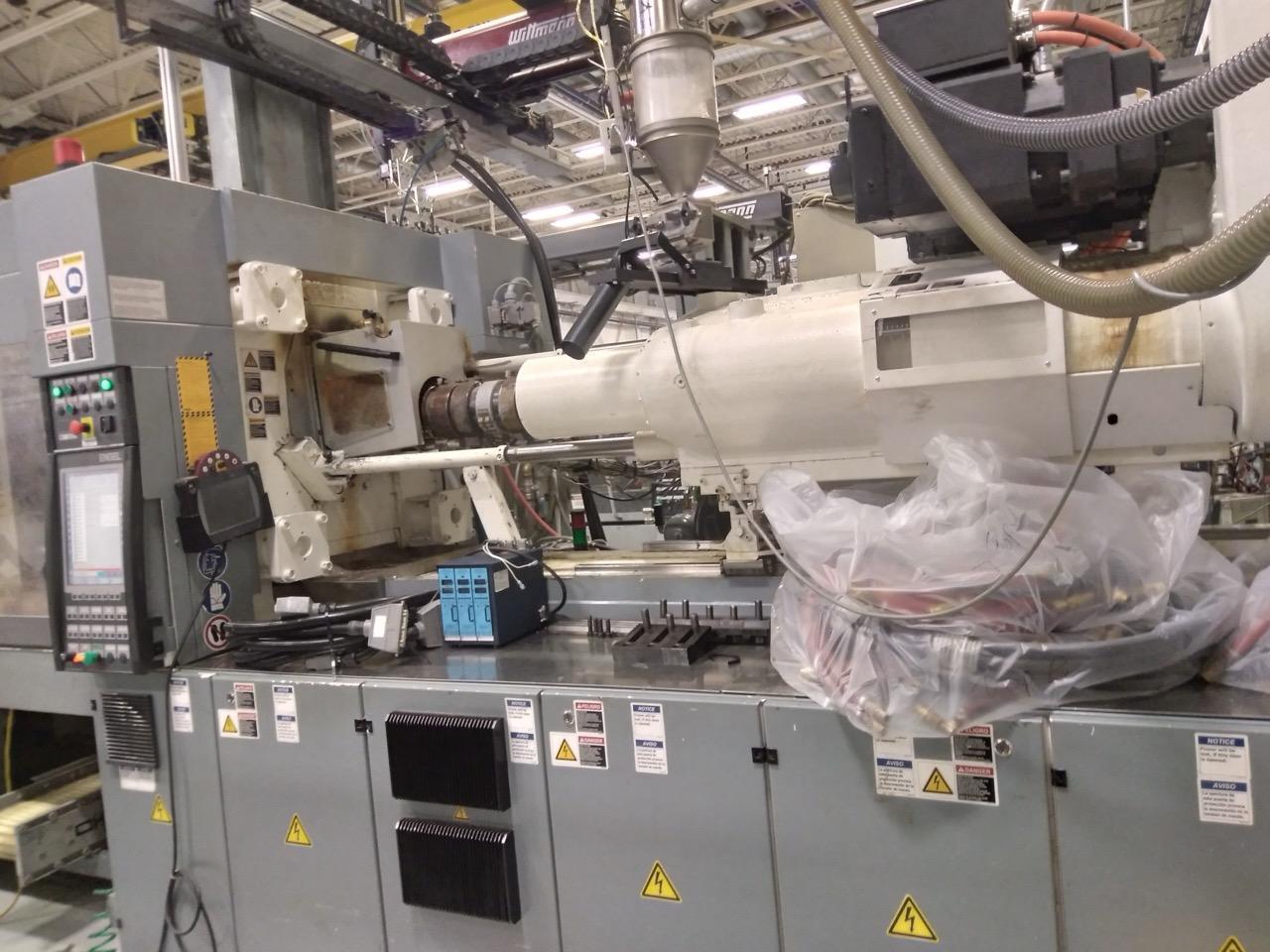

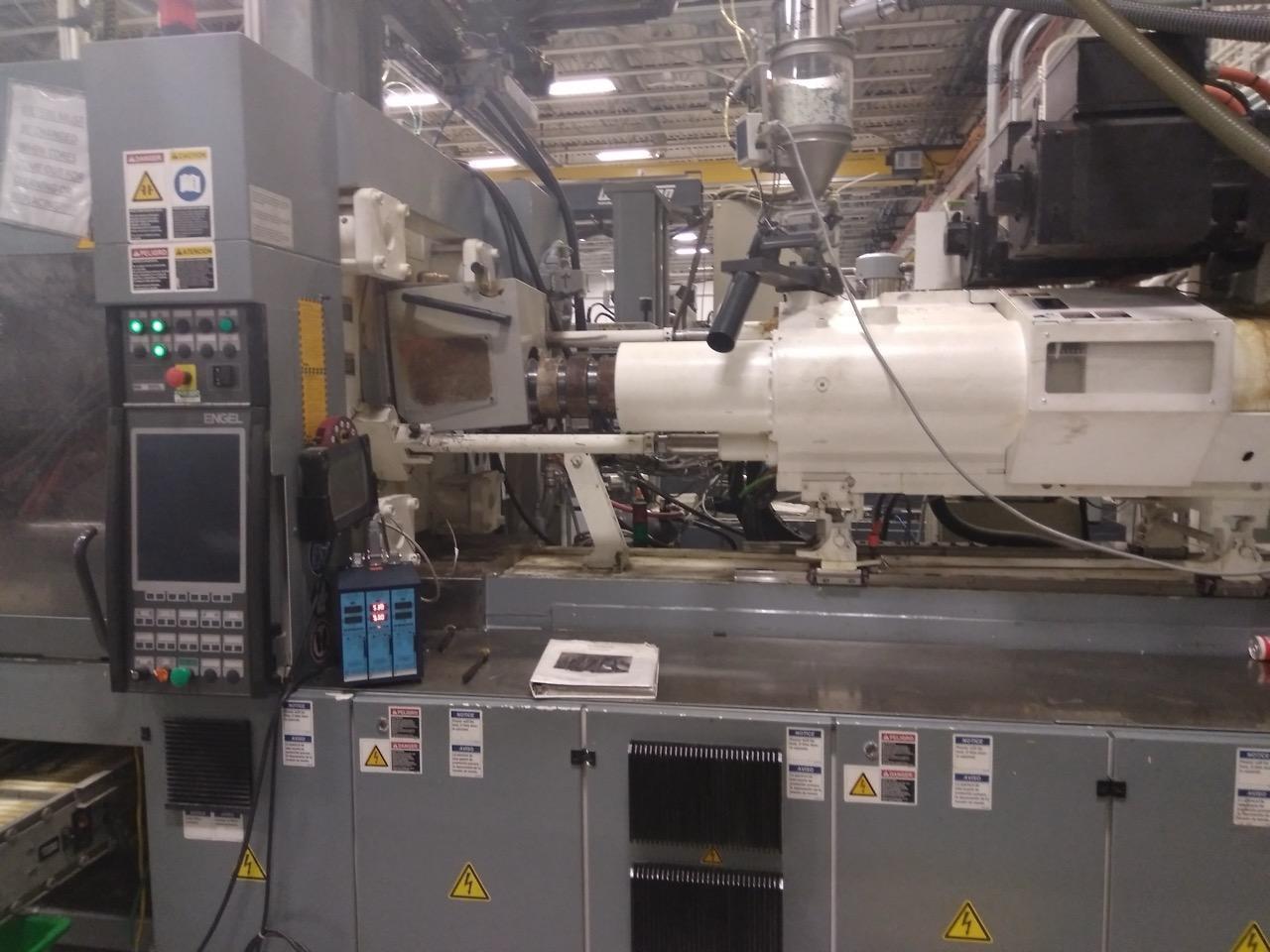

310 Ton, 23.8 oz Engel e-motion 1340/310 T US Injection Molding Machine, 2011

Clamping Force: 310 Ton

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rated Voltage: 480Y/277V, 3 Phase (solidly grounded wye source only)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Frequency: 60 Hz

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Connected Load: 125 kW

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Full Load Current: 158 A

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Largest Motor Load: 97 A

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Largest Heater Load: 12.0 A

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Control Voltage: 115V AC / 24V DC

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Short Circuit Current Rating: 5 kA rms symmetrical, 480V max

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Enclosure: UL Type 1

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight: 15,500 kg

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
