Turnkey 720‑Ton Nissei PH660S420B Injection Molding System with Yushin Robot & QC Cell

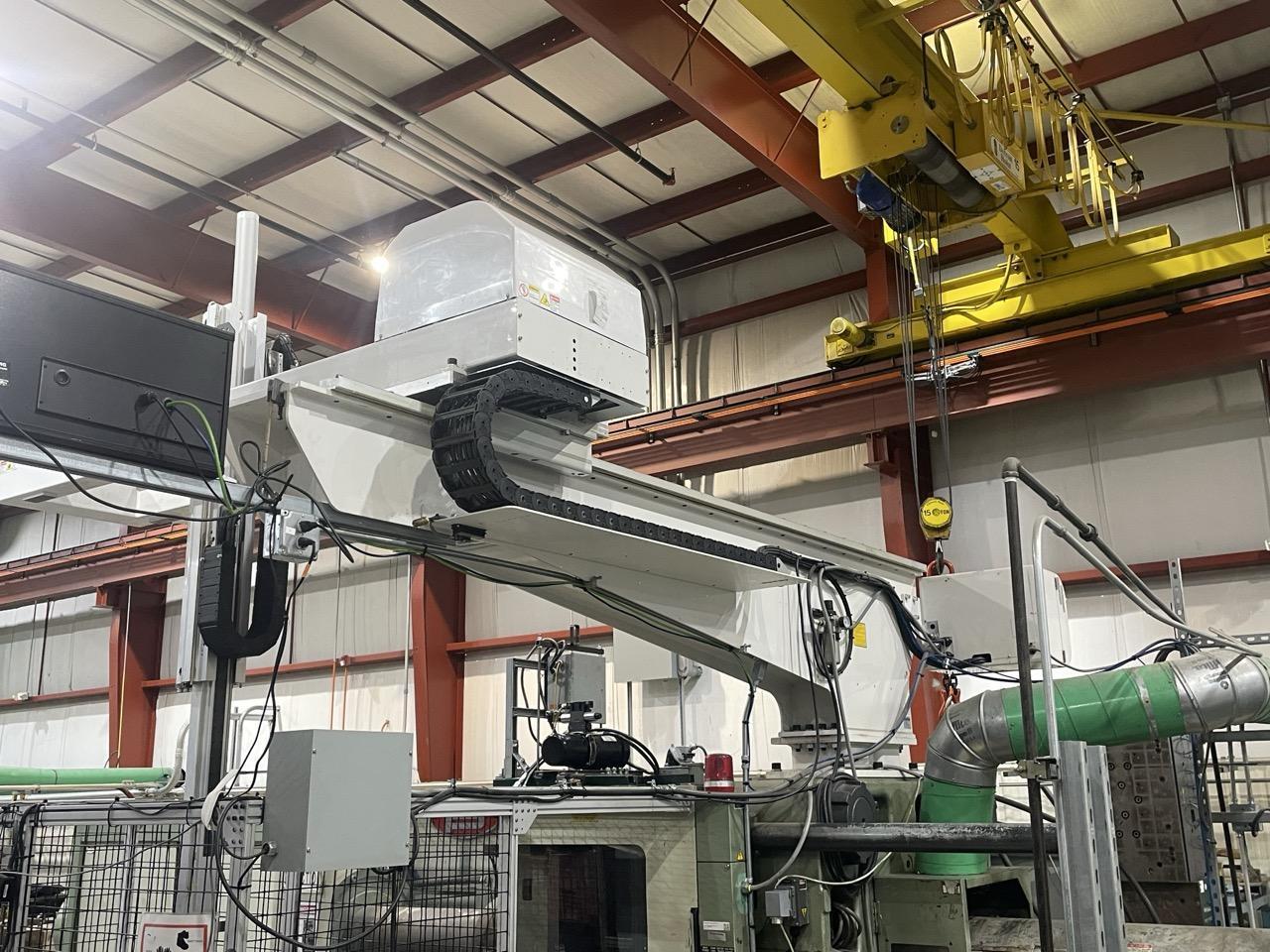

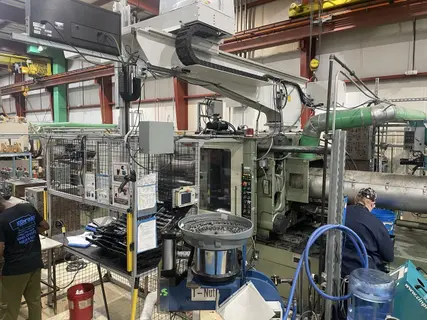

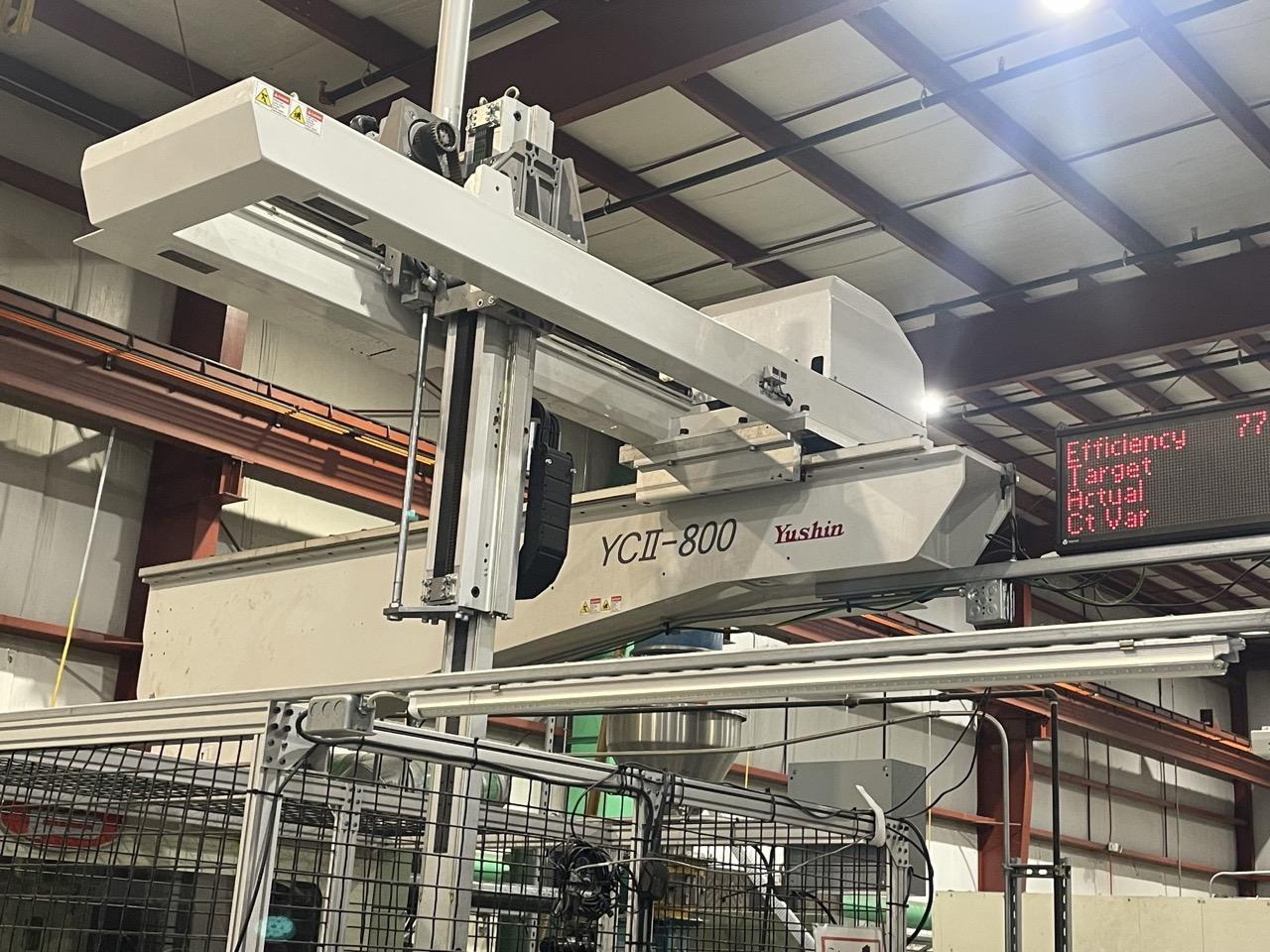

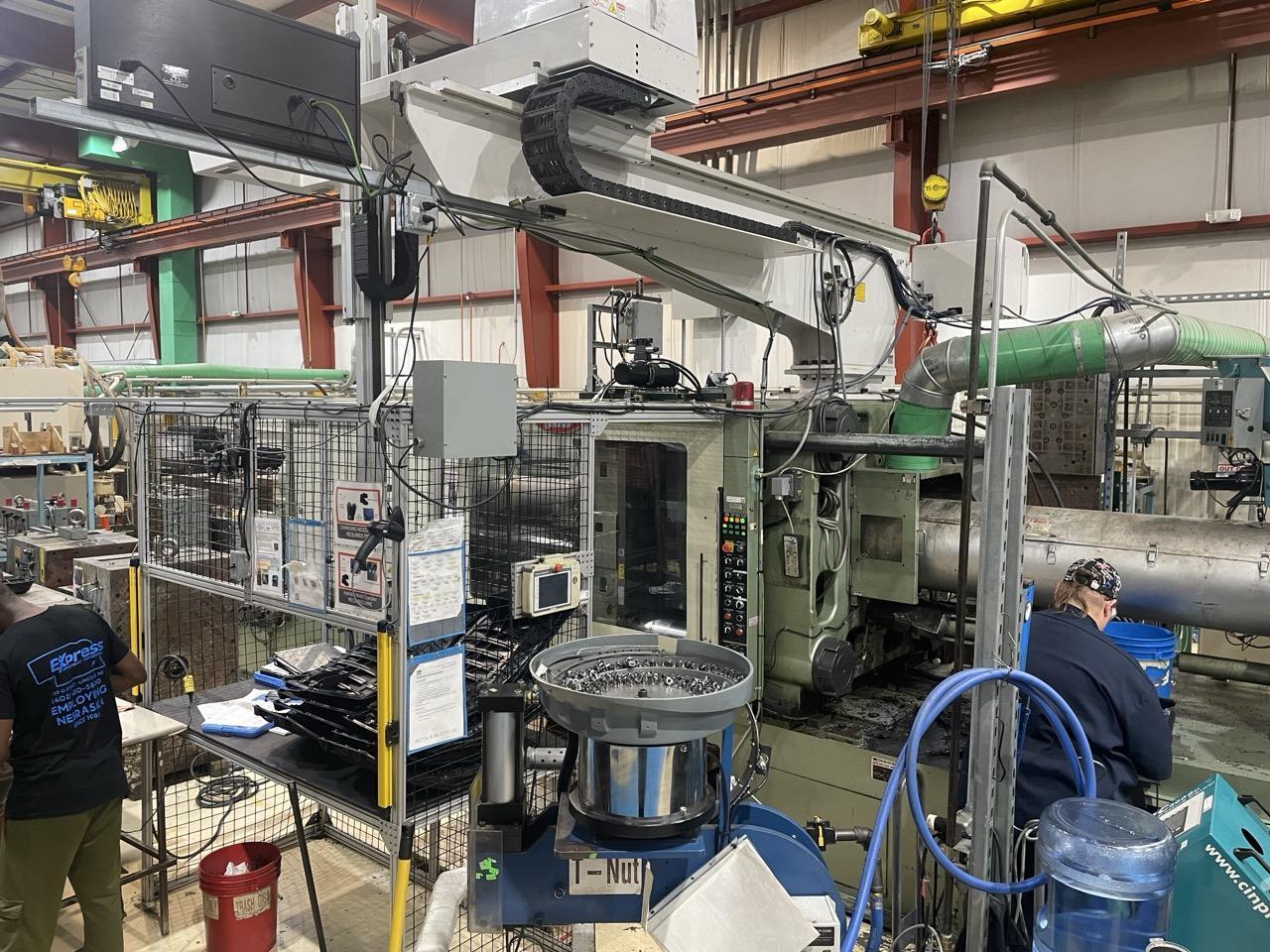

Equipment Overview A 720‑ton Nissei PH660S420B hydraulic injection molding press outfitted with a Yushin YCII‑800 traverse robot, vibratory feeder, guarding, QC station, and magnetic clamping system. The system is production‑ready and designed for high throughput thermoplastic part manufacturing, with integrated automation reducing buyer’s setup cost.

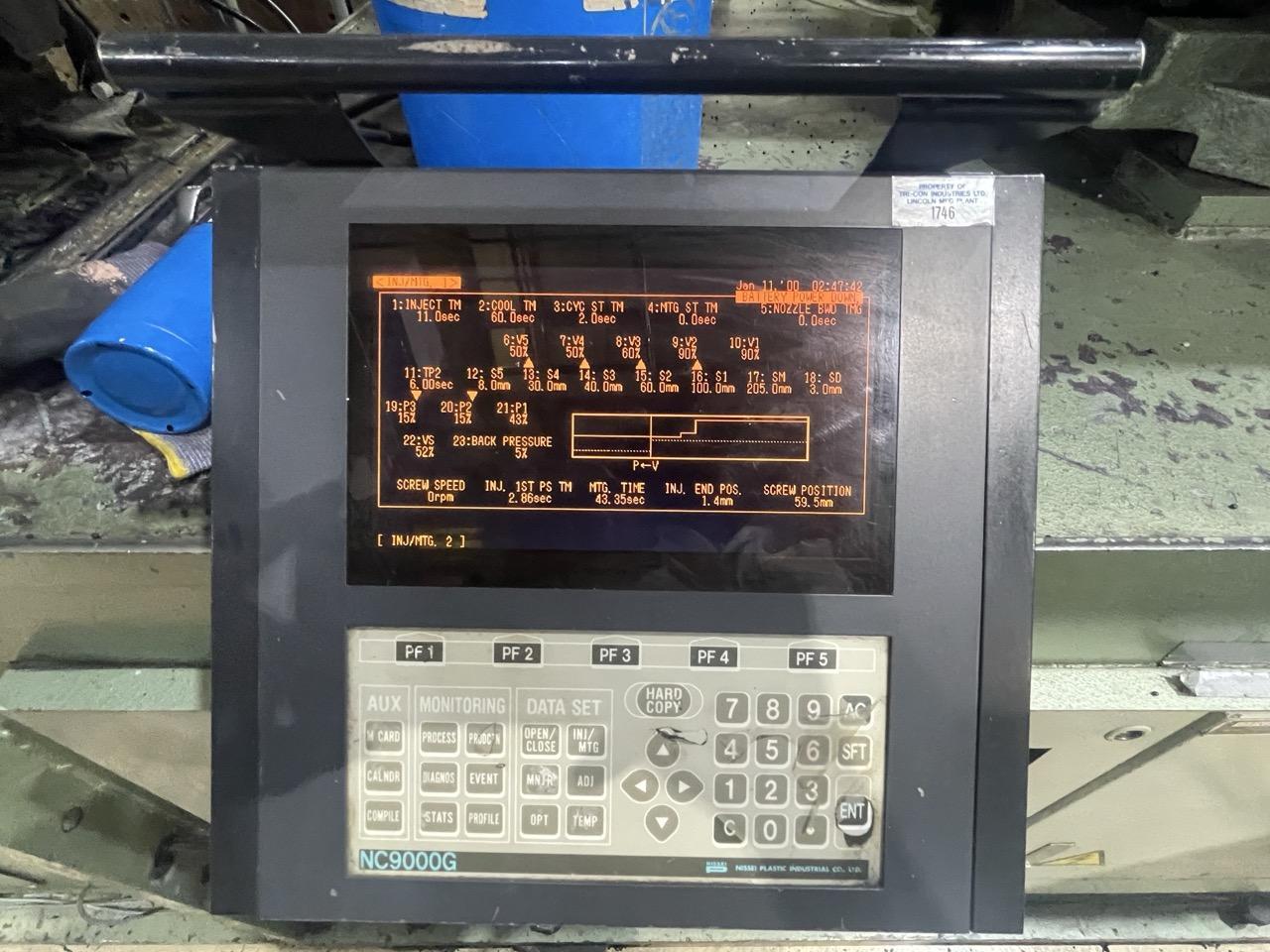

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features & Specifications – Clamp Force: 720 US tons – Shot Capacity: ~131 oz (per comparable listing) – Platen Dimensions: 55.1″ × 55.1″ – Tie Bar Spacing: 37.8″ × 37.8″ – Clamp Stroke / Daylight: 35.4″ stroke; 17.7″ – 71.3″ daylight – Heater Power: 53.5 kW – Motor / General Power: 55 kW – Electrical: 230 / 460 V, 3‑phase, 60 Hz – Controller: NC9000G – Automation: Yushin YCII‑800 traverse robot, integrated guarding, vibratory feeder, QC station – Accessories: Magnetic mold clamping, robotic interface I/O – Parts Support: OEM and aftermarket support for screws / barrels

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
