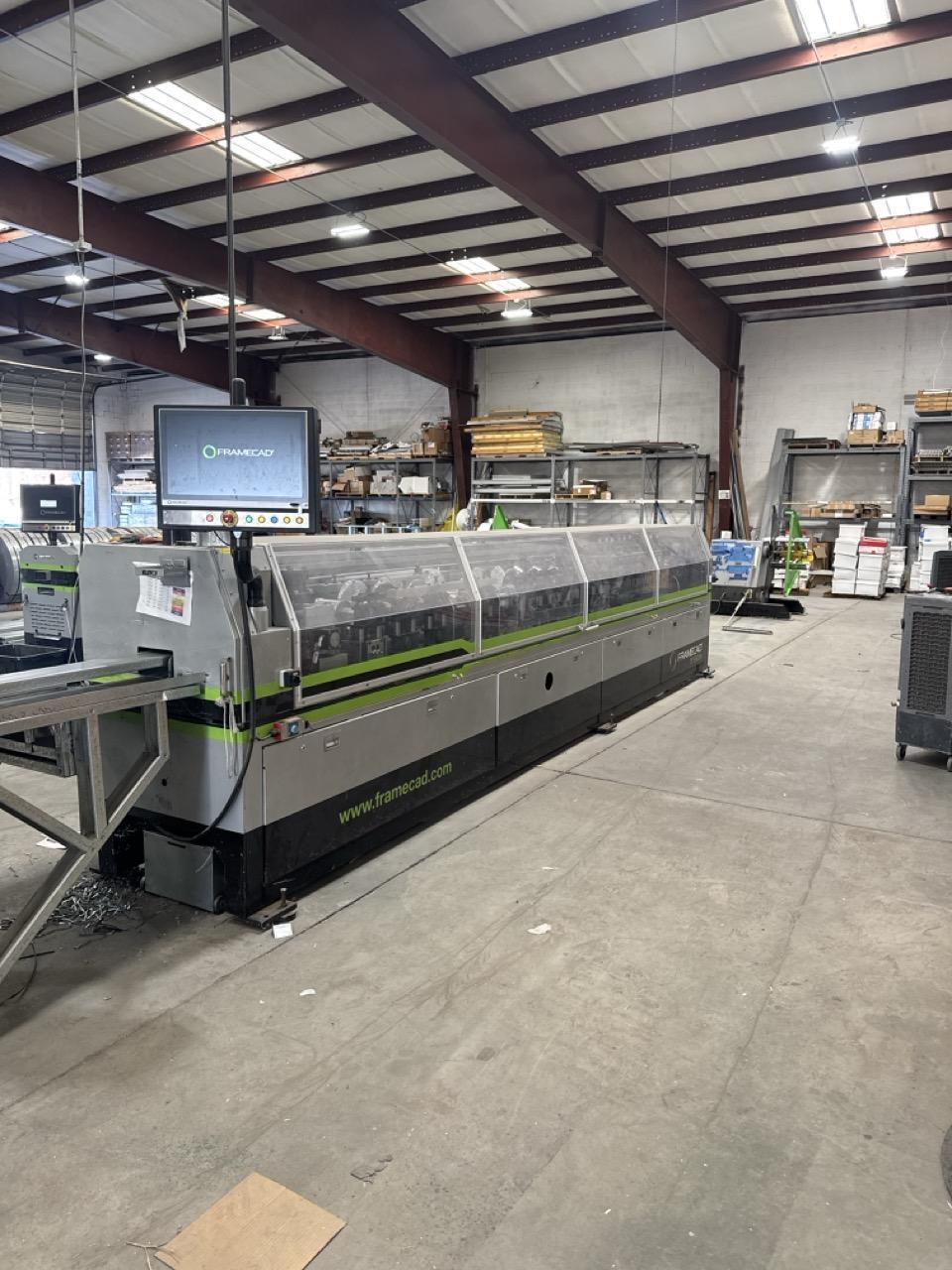

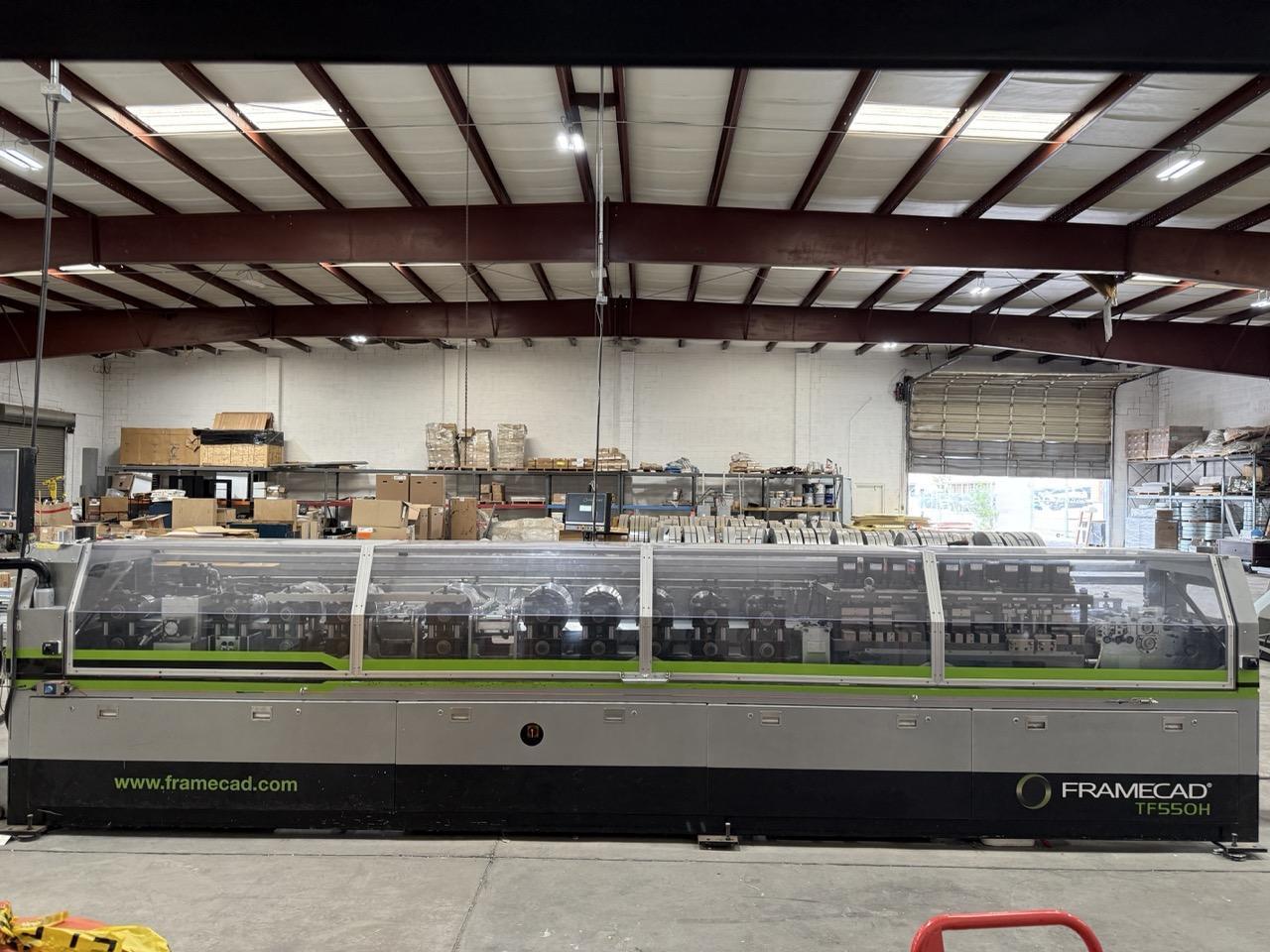

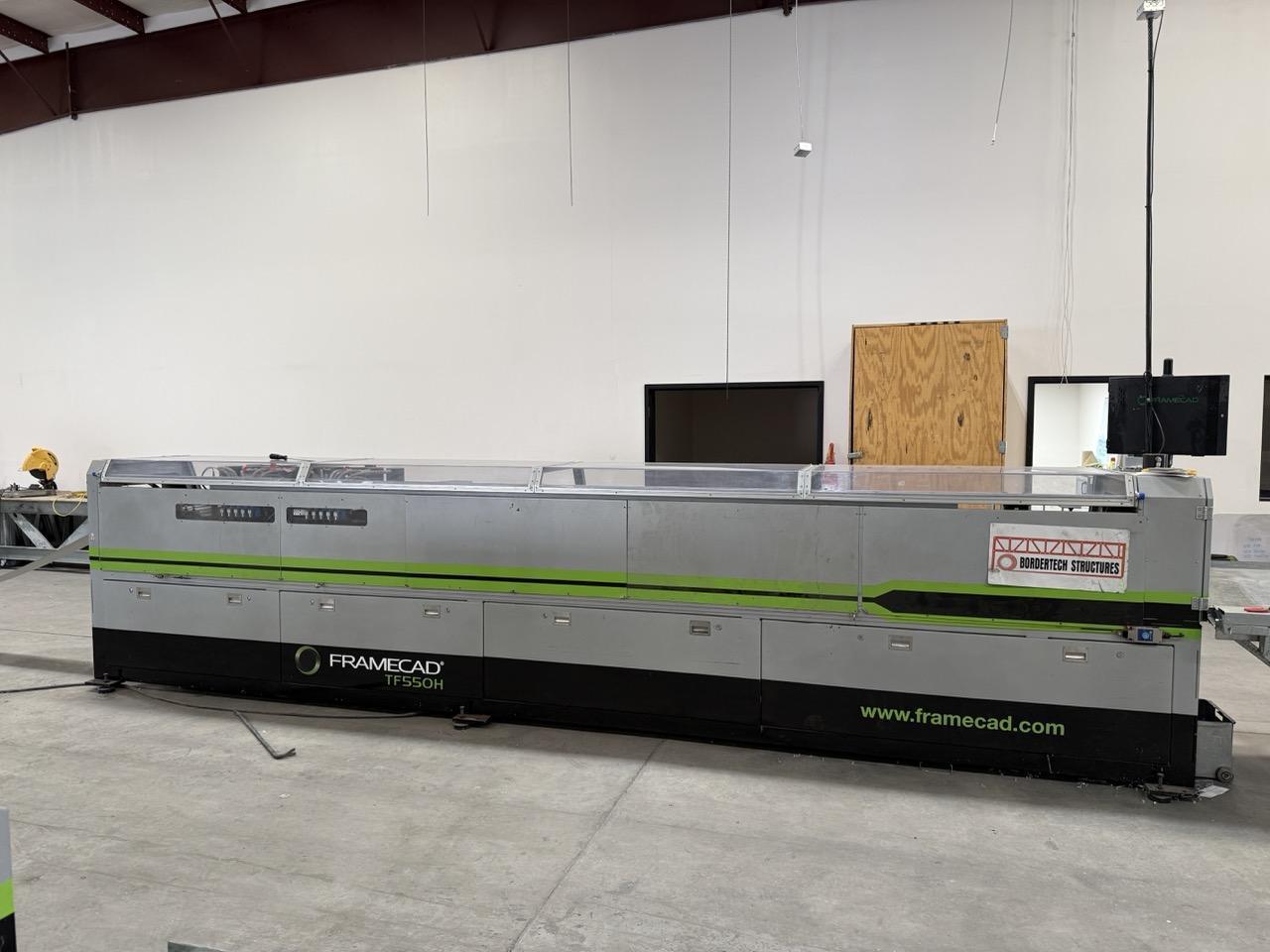

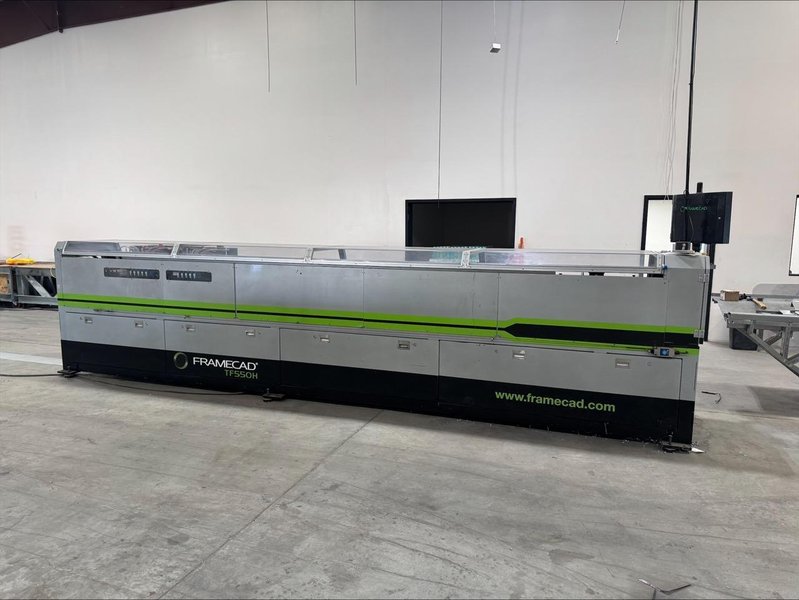

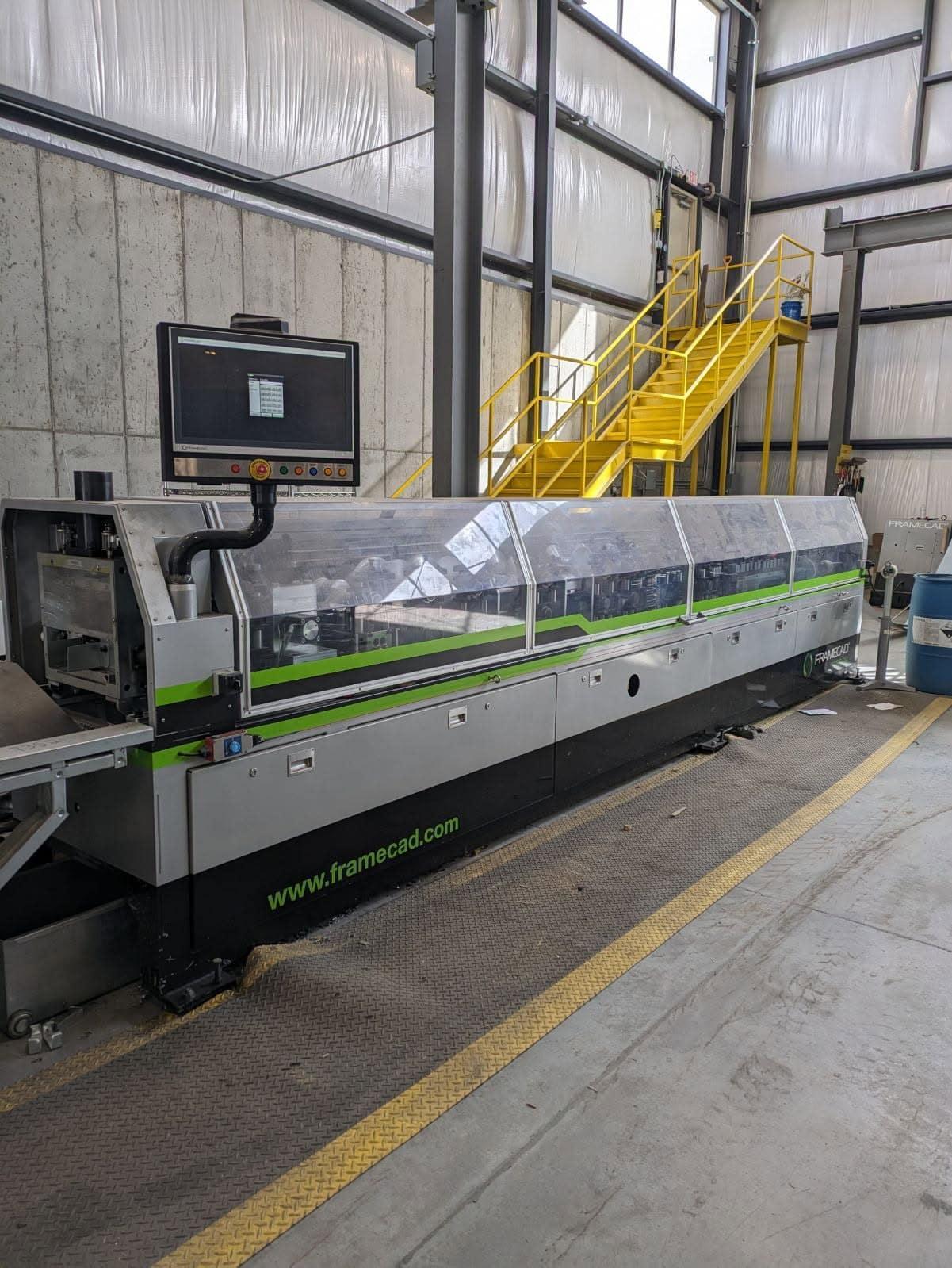

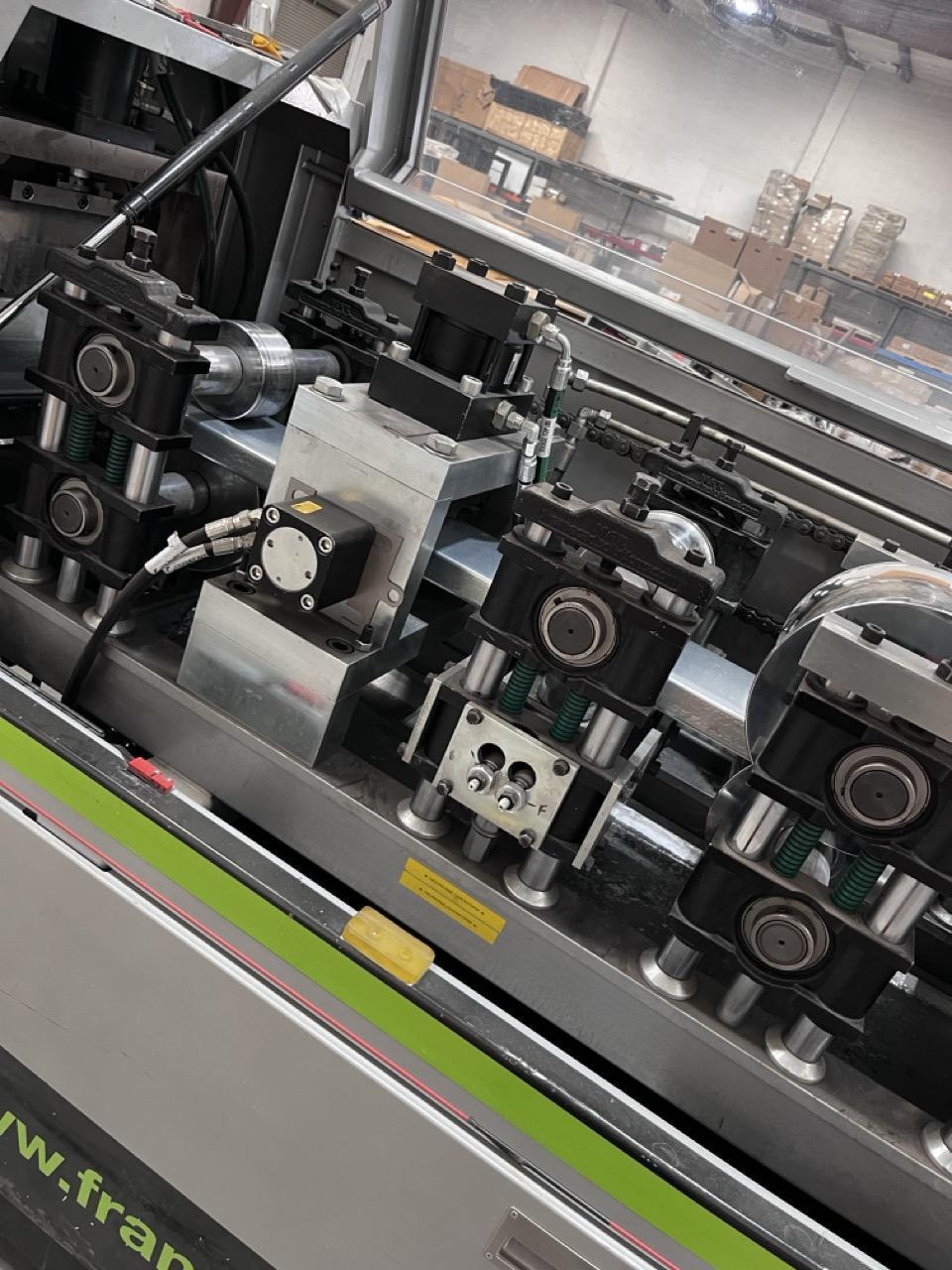

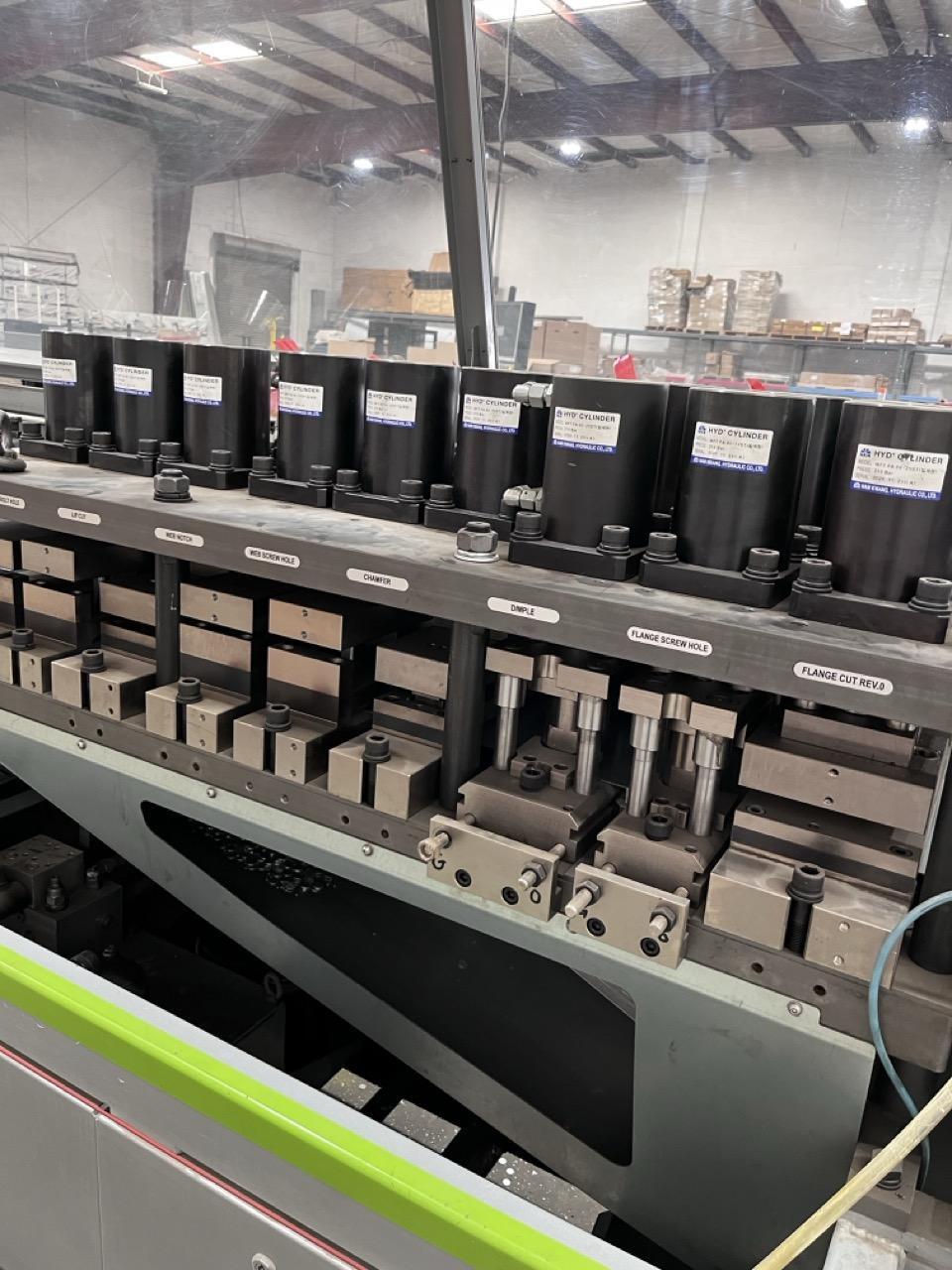

Framecad TF550H Roll Former, 2021 – 3MT HD Powdered Decoiler

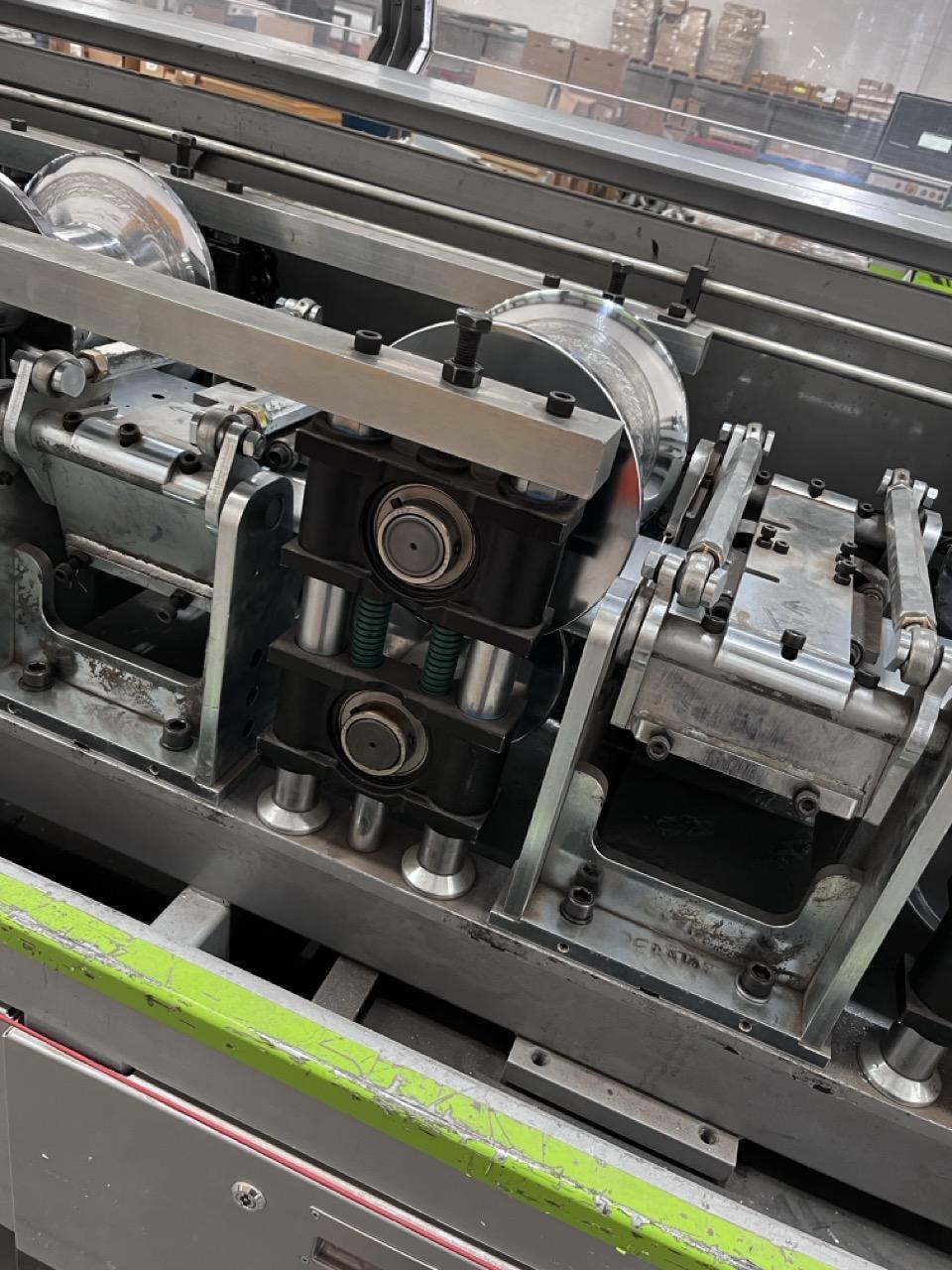

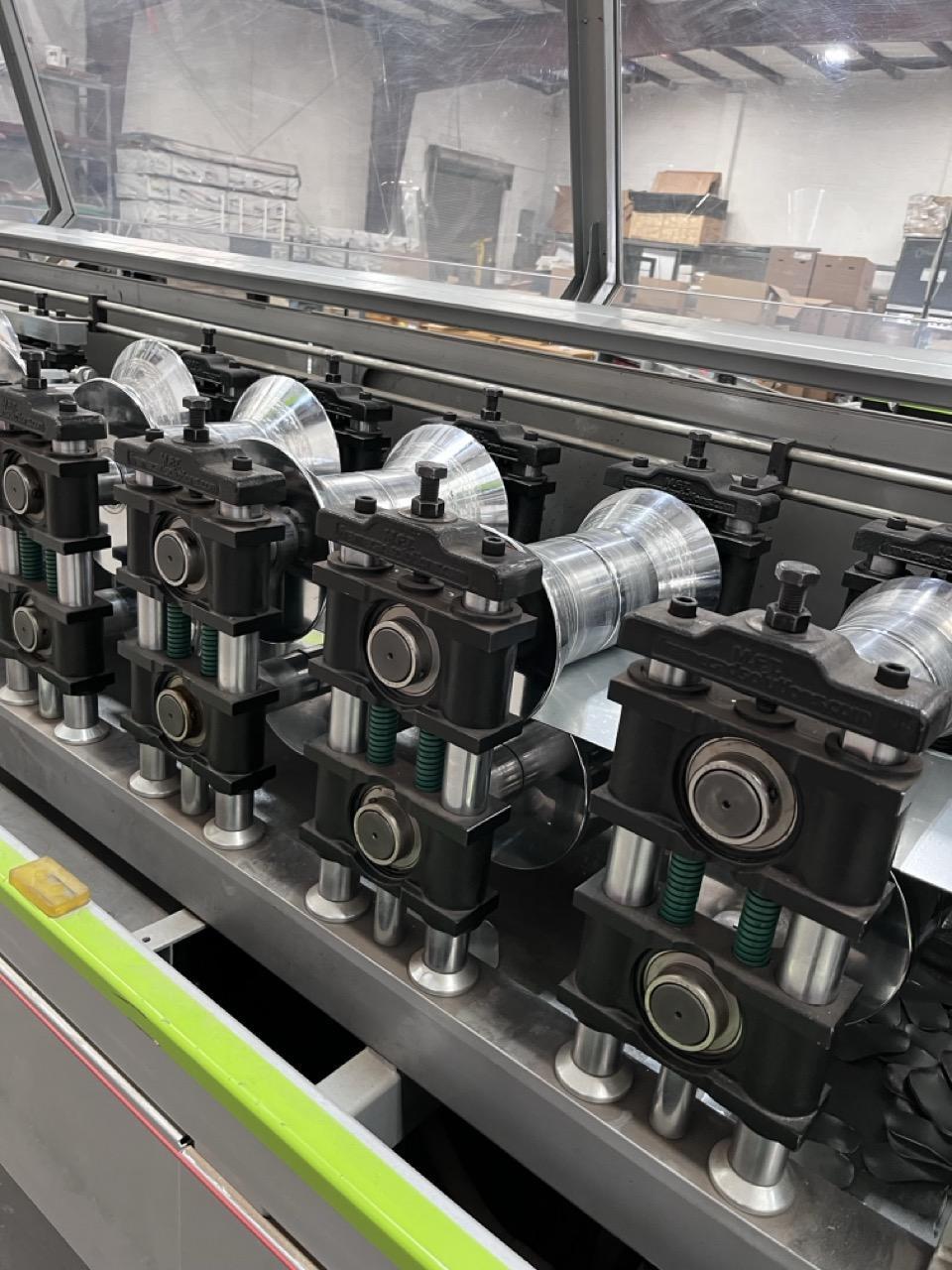

Profile Width (Web): 3.5″ to 6″ Profile Height (Flange): 1.33″ to 2″ Material Thickness: 0.037″ to 0.078″ Roll Forming Stations: 13 Punching Stations: 12 Maximum Line Speed: 4,430 feet per hour Typical Production Speed: 985 to 1,970 feet per hour Main Drive Power: 15 HP Hydraulic Power: 10 HP Machine Dimensions: 256″ L × 44.5″ W × 63″ H Machine Weight: 10,630 lbs Labeling: Dual printer heads for part identification

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Framecad 3MT HD Powered Decoiler Coil Capacity: 6,600 lbs Coil Width Range: Typically supports up to 12″–14″ wide coils (varies by profile) Drive Type: Motorized feed (powered decoiler) Frame: Heavy-duty reinforced steel Integration: Designed to feed TF550H continuously at full line speed

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
