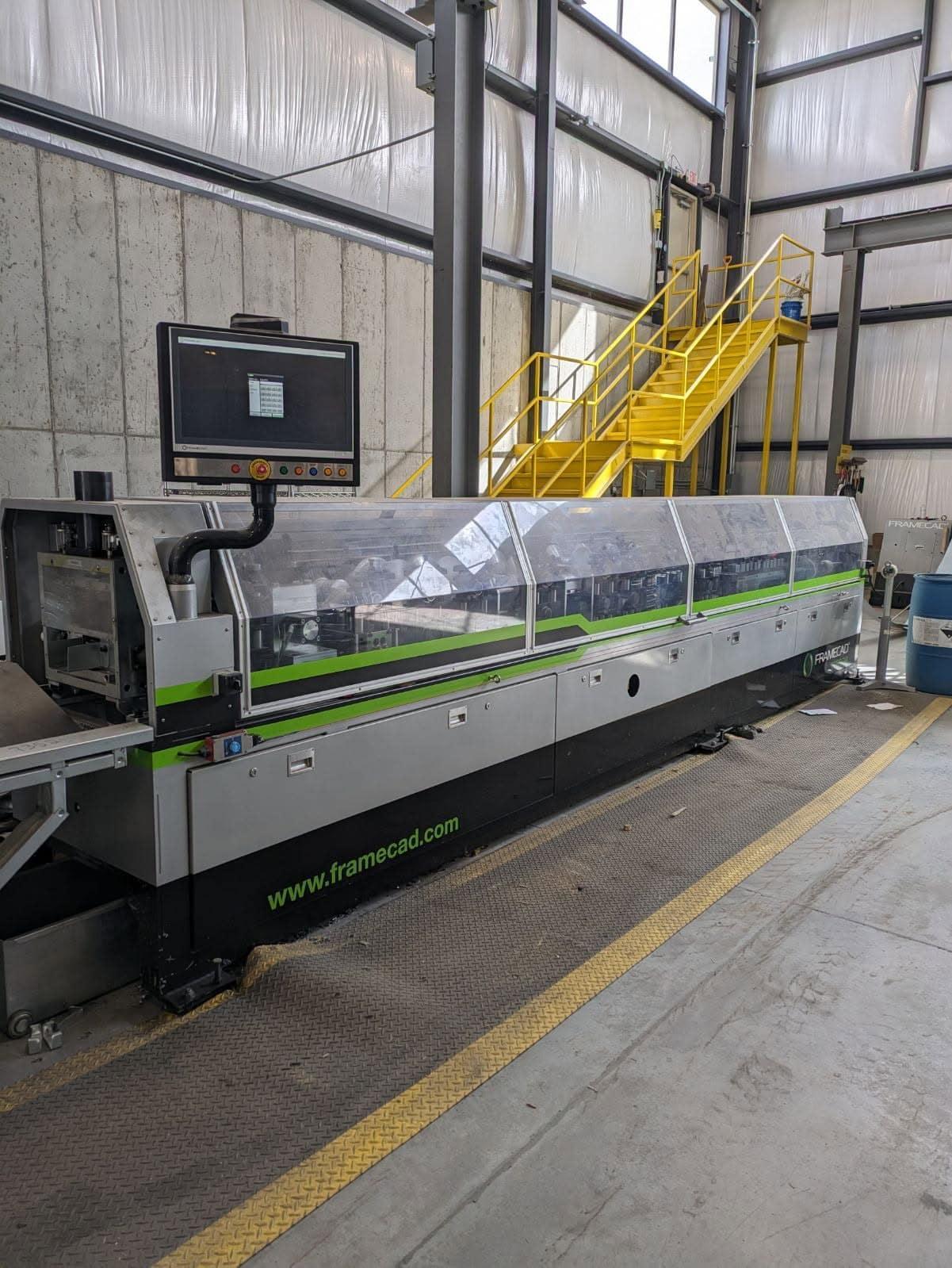

Framecad TF550H Frame, Truss & Joist Rollformer System, 2019 – LOW HOURS

Product Profiles: 1 x C, 1 X U Material Thickness (BMT): 43 – 77 mil Roll Forming Stations: 14 Max Line Speed (Plain C or U Section): 4430 ft/hr Typical Production Output (design dependent): Joist: 985 ft/hr, Wall: 1970 ft/hr Main Drive Power: 15 hp Hydraulic Power: 10 hp Hydraulic Reservoir: 32 US gal gal Power Requirements: 380V-480V, 50-60HZ, 3PH, 40A Ambient Temperature Range: 32-104°F Humidity Range: 85% Altitude Range: 4400ft Approx. Dimensions: 19′ x 3’7″ x 4’7″ Approx. Weight: 6,500 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Web Width (dedicated): 600 1/100in Flange Heights (options): 162/162 & 250/250 1/100in Lip Width (actual dependent on coil width): 045 1/100in Dimple Pan Diameter: 043 1/100in Dimple Screw Hole Diameter: 015 1/100in Flange Screw Hole Diameter: 0.0 1/100in Second Flange Screw Hole Diameter: N/A 1/100in Service Hole Size (Must be <50% of Web Width): 325/150 1/100in Web/Bolt Hole(s) Diameter: 015/053/015 1/100in Web Screw Hole Diameter: 015 1/100in

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Calculated Strip Width*. Dependent on Gauge, Lip Width, Thickness & Steel Grade: 9.57″ Most Common Steel Gauge to be Used: 54 mil

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
