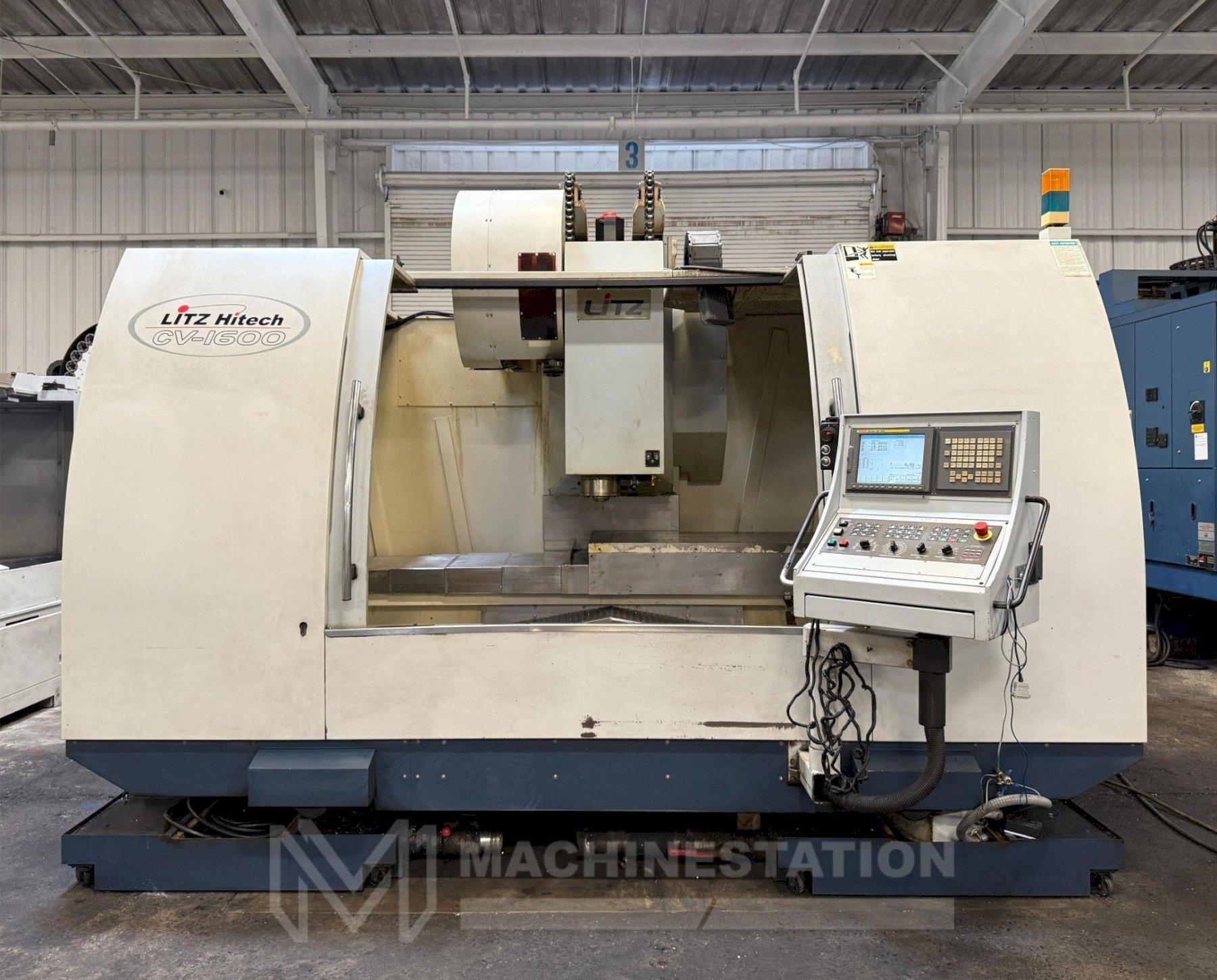

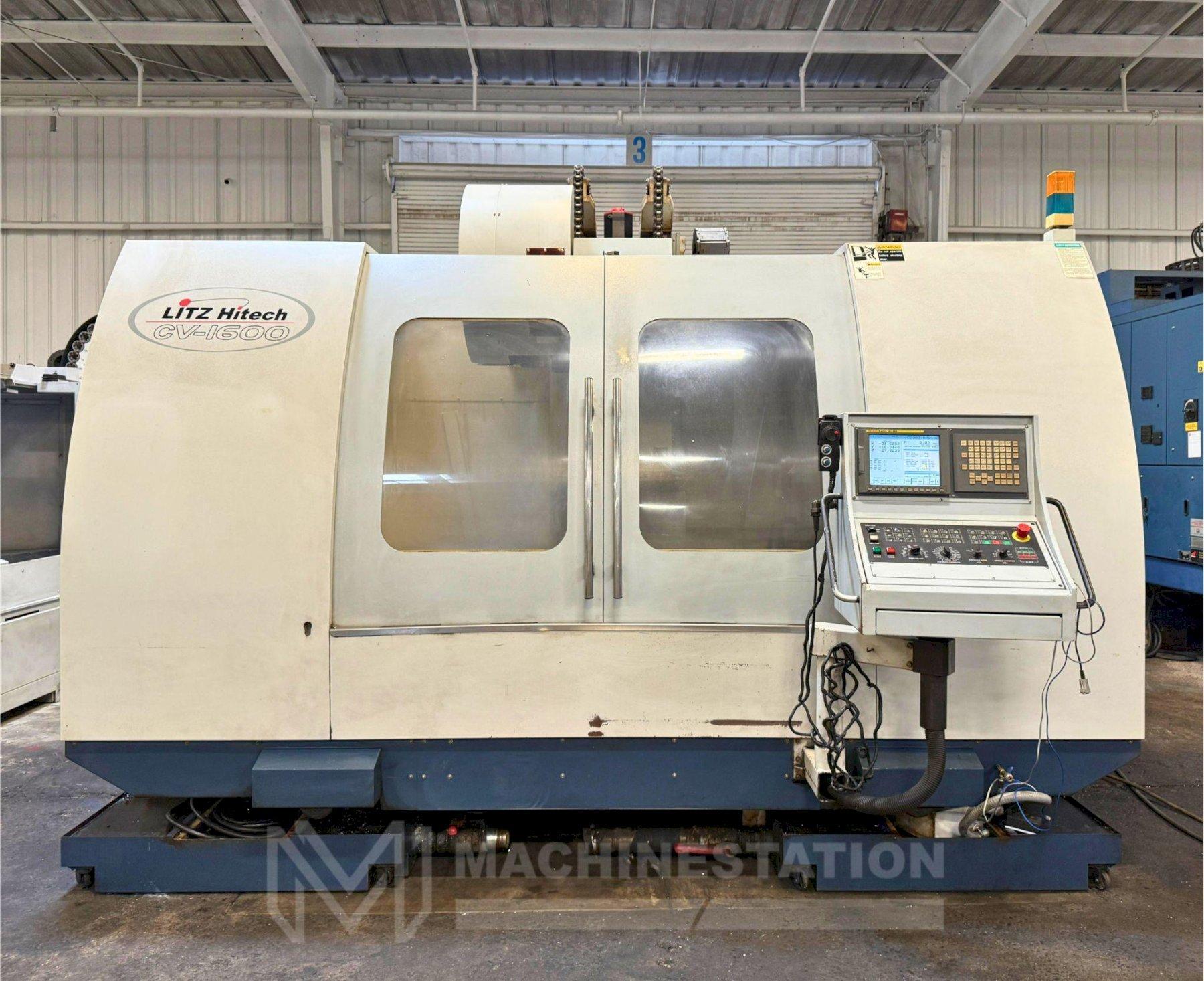

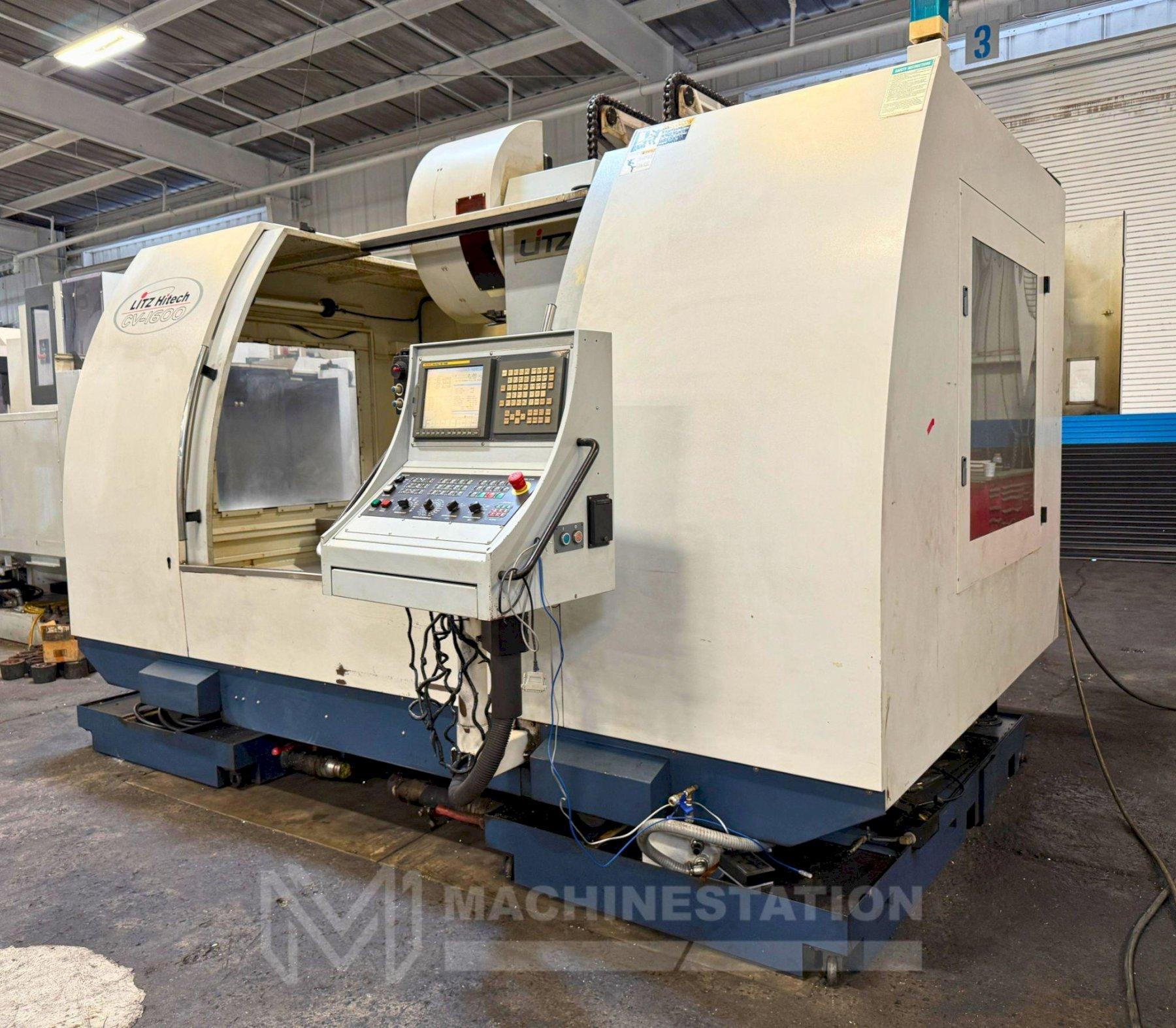

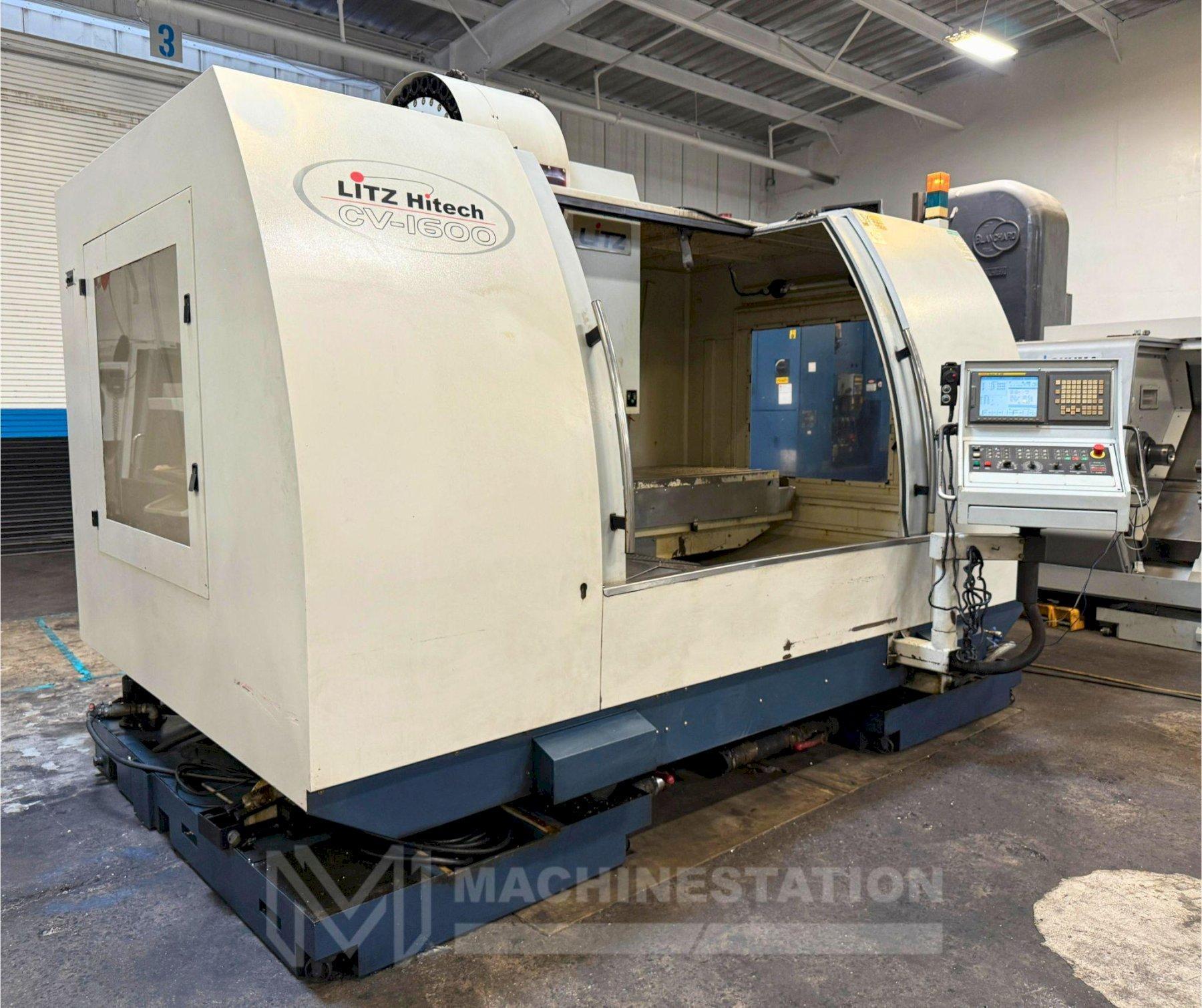

Name: Litz Hitech CV-1600 CNC Vertical Machining Center – Mill
Brand: LITZ
SKU: 112876
Availability: PreOrder

Brand

LITZ

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU:	112876
Make:	Litz Hi-tech
Model:	CV-1600
Year of Manufacture:	2007

Equipped With:

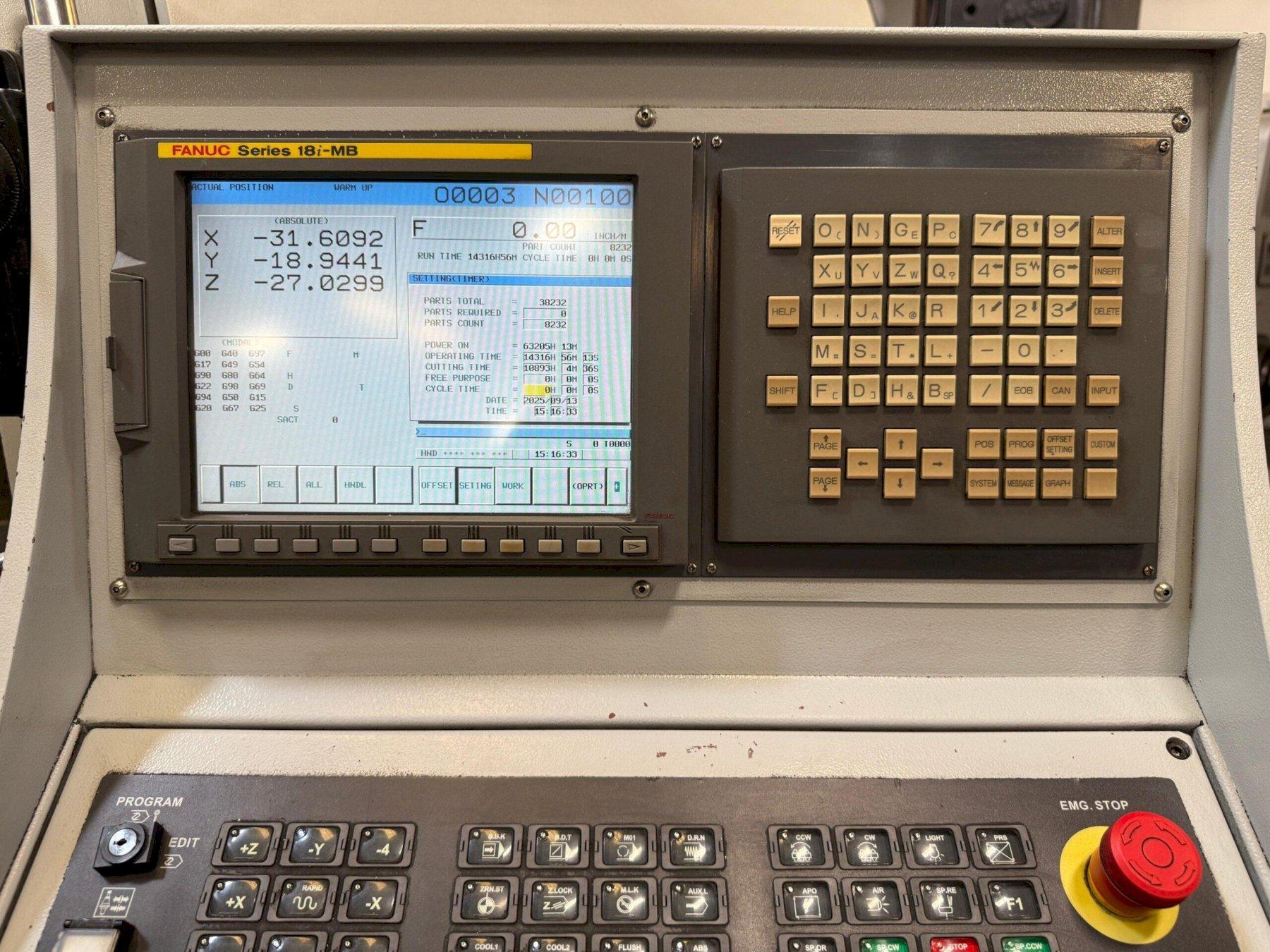

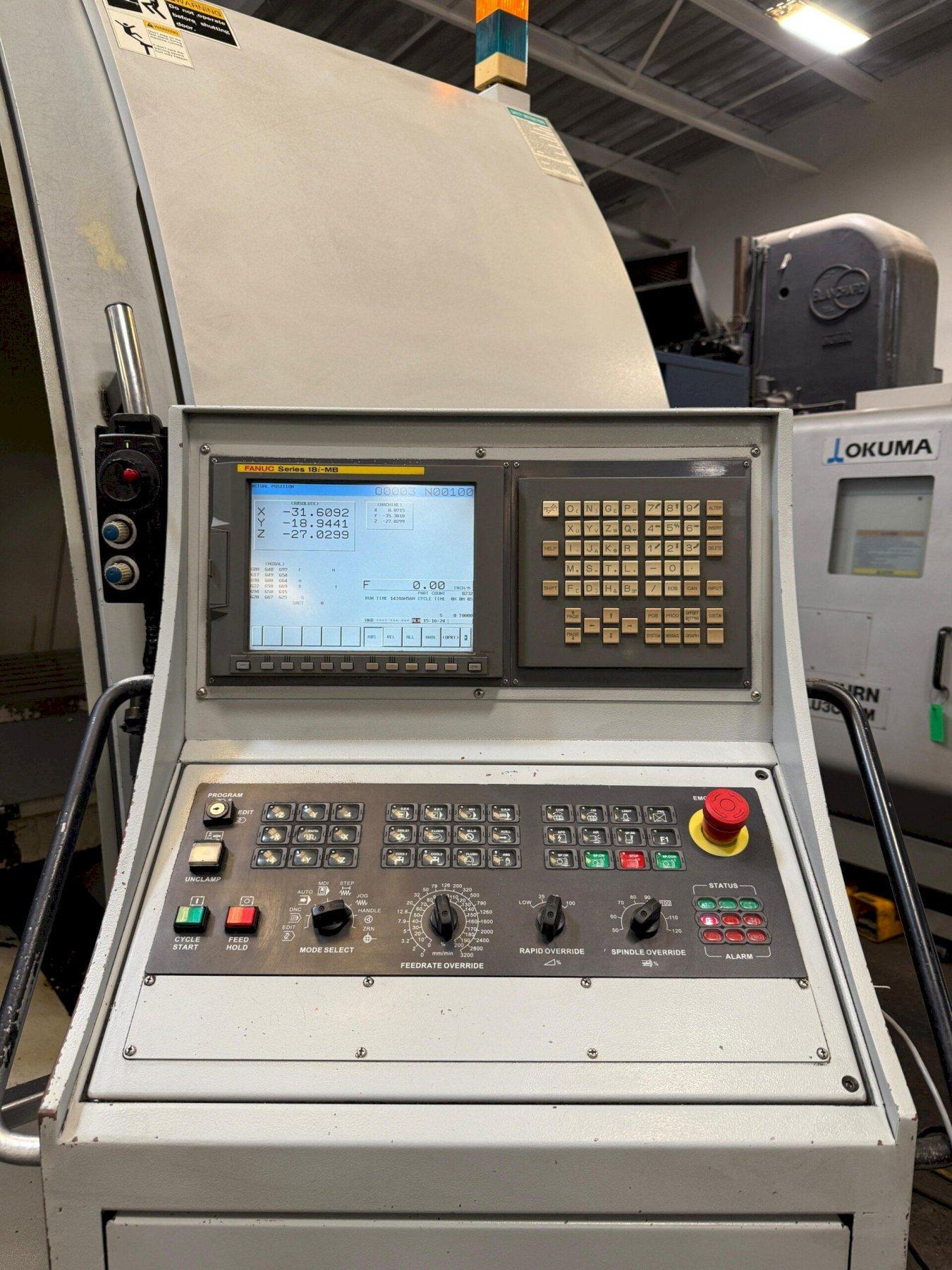

Fanuc Series 18i-MB CNC Control
Linear Guideways Construction
10,000 RPM High Speed Spindle
40 Spindle Taper
30 Station Automatic tool changer
Spindle Chiller Unit
MPG Hand Wheel Control
Rigid Tapping
Coolant System
Dual Chip Auger

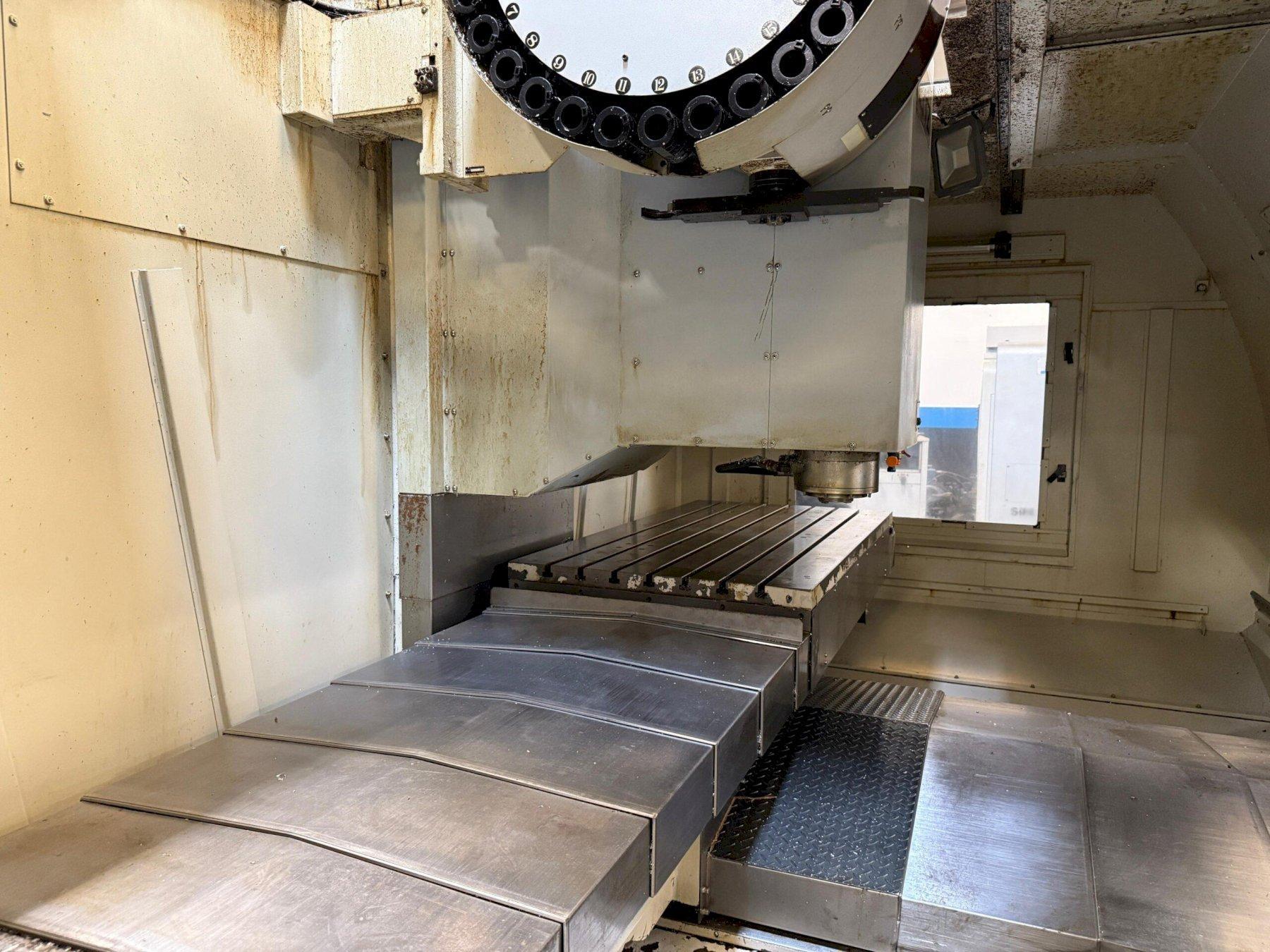

Table:
Length: 66.93″
Width: 33.46″
Number of Std T-Slots: 7
Max Weight on Table: 4,410 lbs

Travel:
X-Axis: 62.99″
Y-Axis: 35.43″
Z-Axis: 31.49″
Rapid Traverse Rates X & Y Axis: 787 Inch Per Minute
Rapid Traverse Rates Z Axis: 590 Inch Per Minute
Cutting Feed Rates: 314 Inch Per Minute
Spindle Nose to Table: (Min.- Max.): 3.93″ – 35.43″

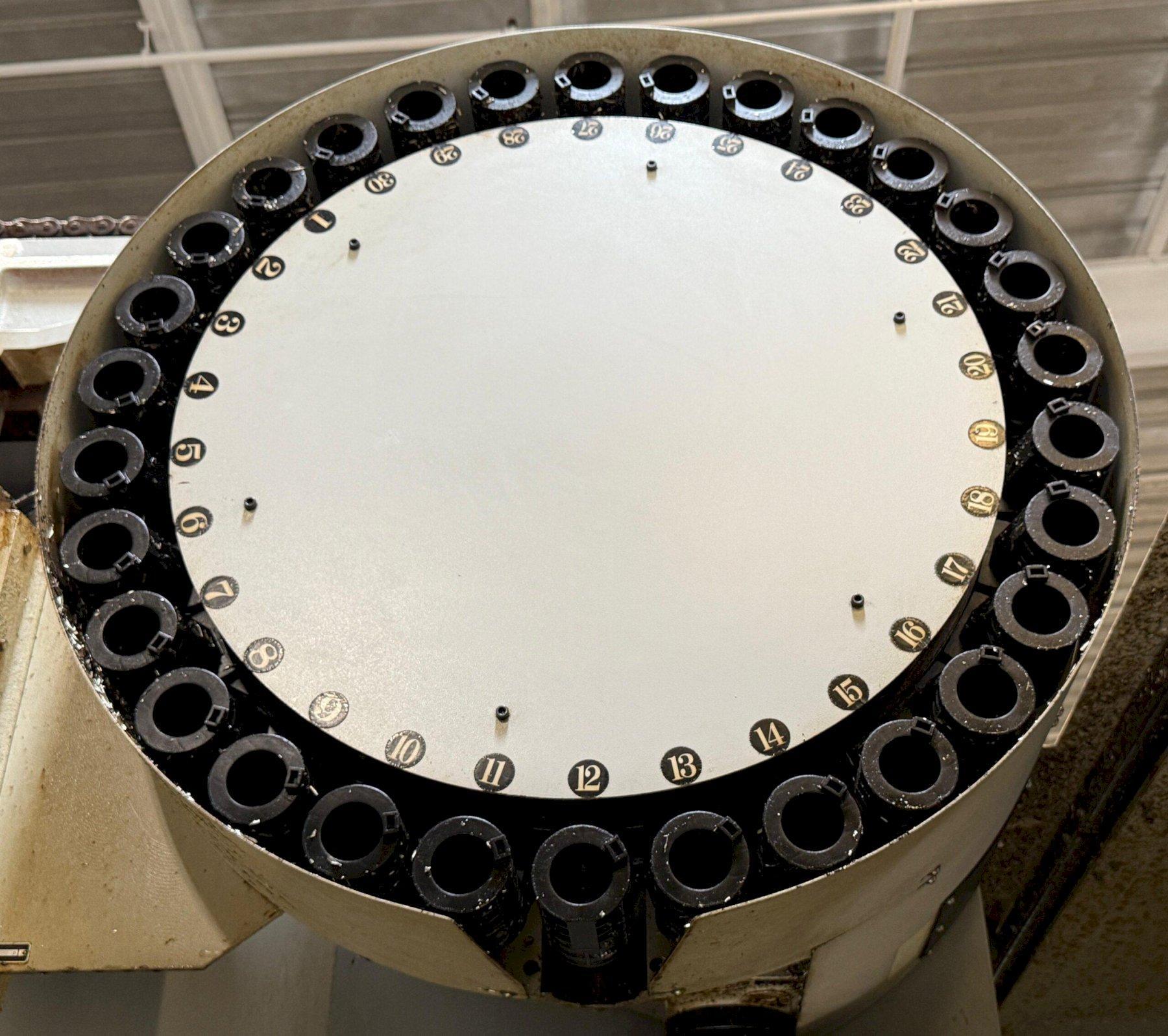

Automatic Tool Changer:
Capacity: 30 Station
Max Tool Dia: 4.921″
Max. tool length: 13.78″
Max. tool weight: 33.06 lbs

Spindle:
Taper Size: 40
Speed Range: 10,000 RPM
Spindle Power: 20 HP

General:
Air Required: 85 psi 6 scfm

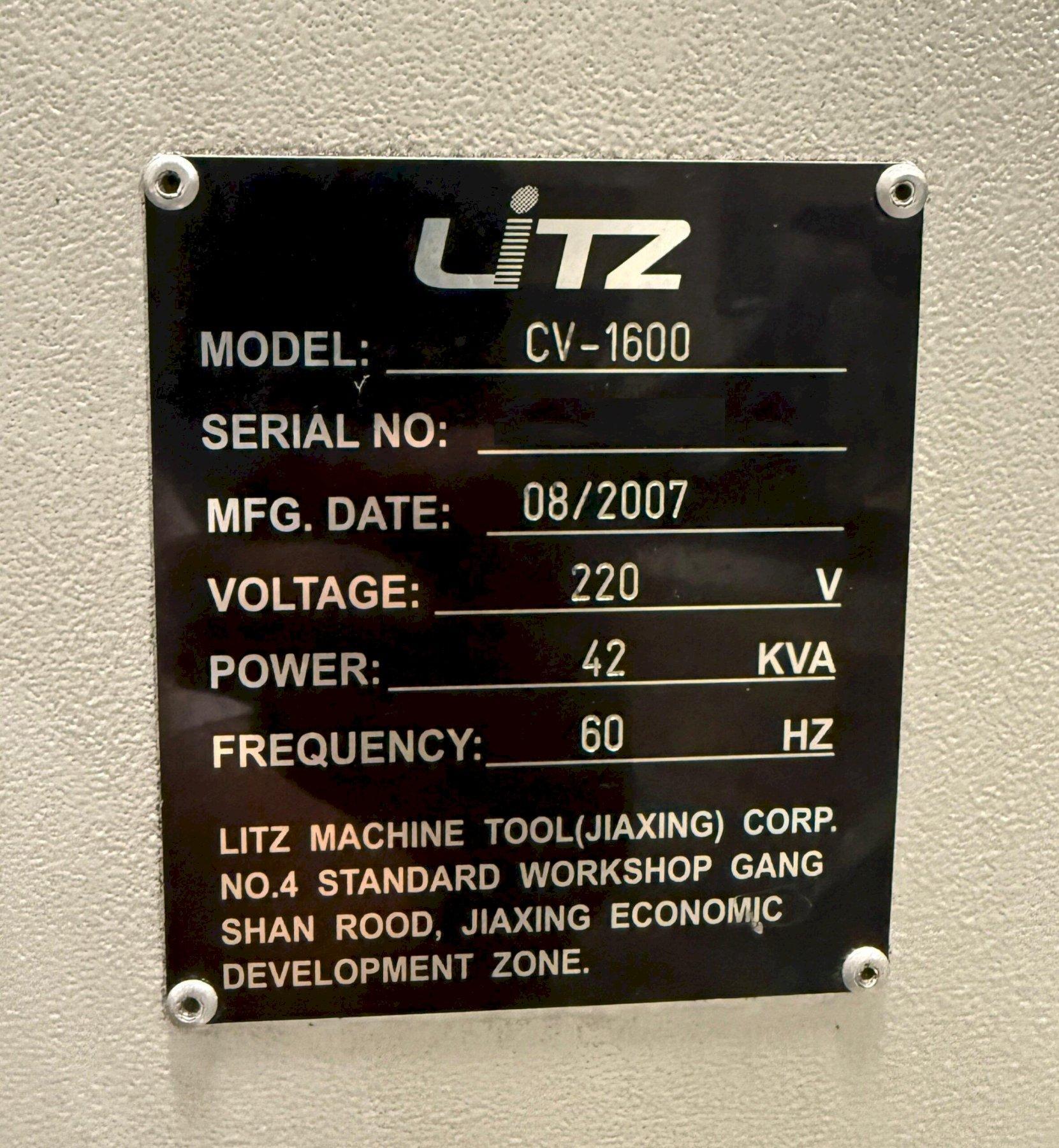

Power: 220v / 50/60 Hz / 3-Phase / 42 kva
Machine Diemensions: 152″ x 144″ x 132″ High Approx.
Weight: 41,887 lbs Approx.
