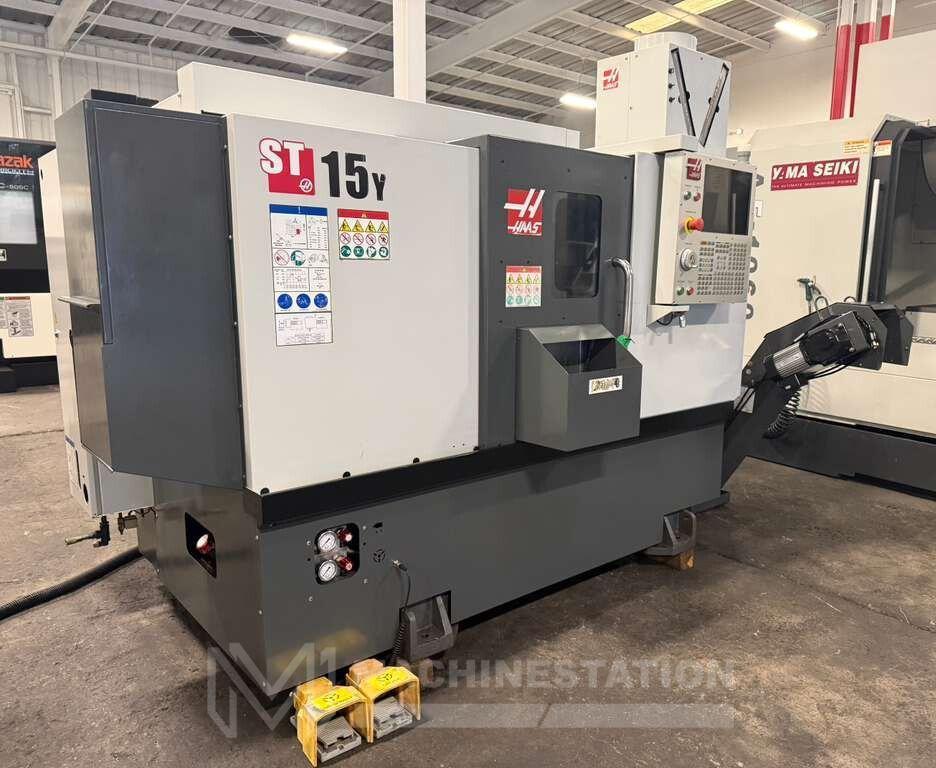

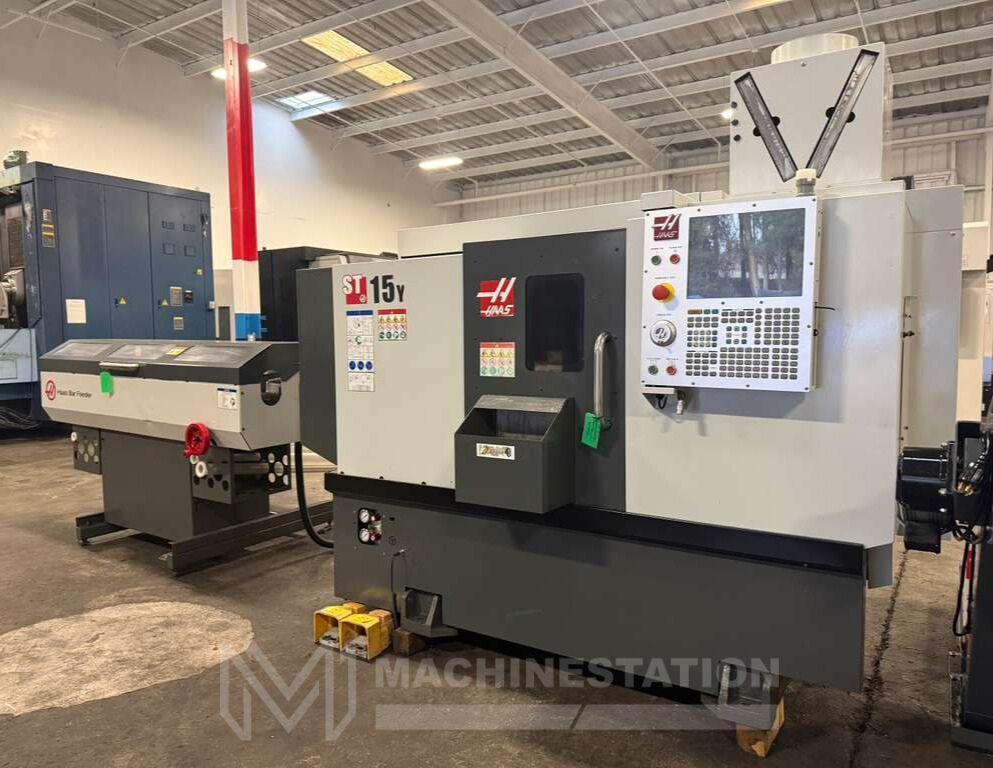

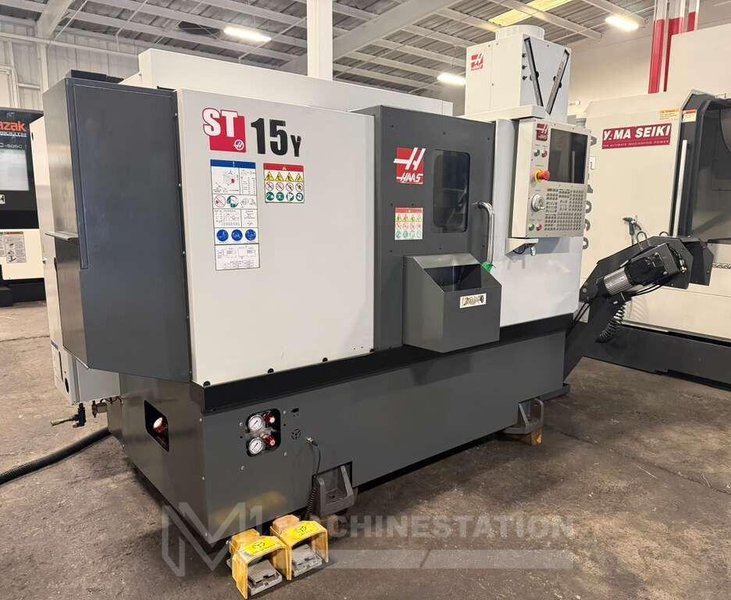

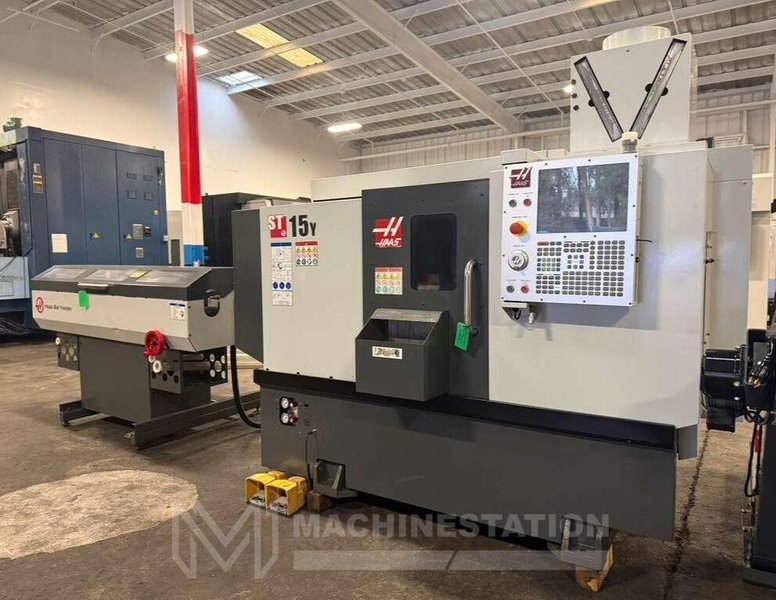

Haas ST-15Y CNC Turning Center – 2019 Y Axis Sub Spindle Bar Feeder Lathe

Brand
HAAS
Category
Lathes & Turning Machines
Type
Turning Centers
Model
ST-15Y
Stock #
112886
Year
2019
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:Haas
Model:ST-15Y
Year:2019
Condition:Used – Excellent
Equipped With:

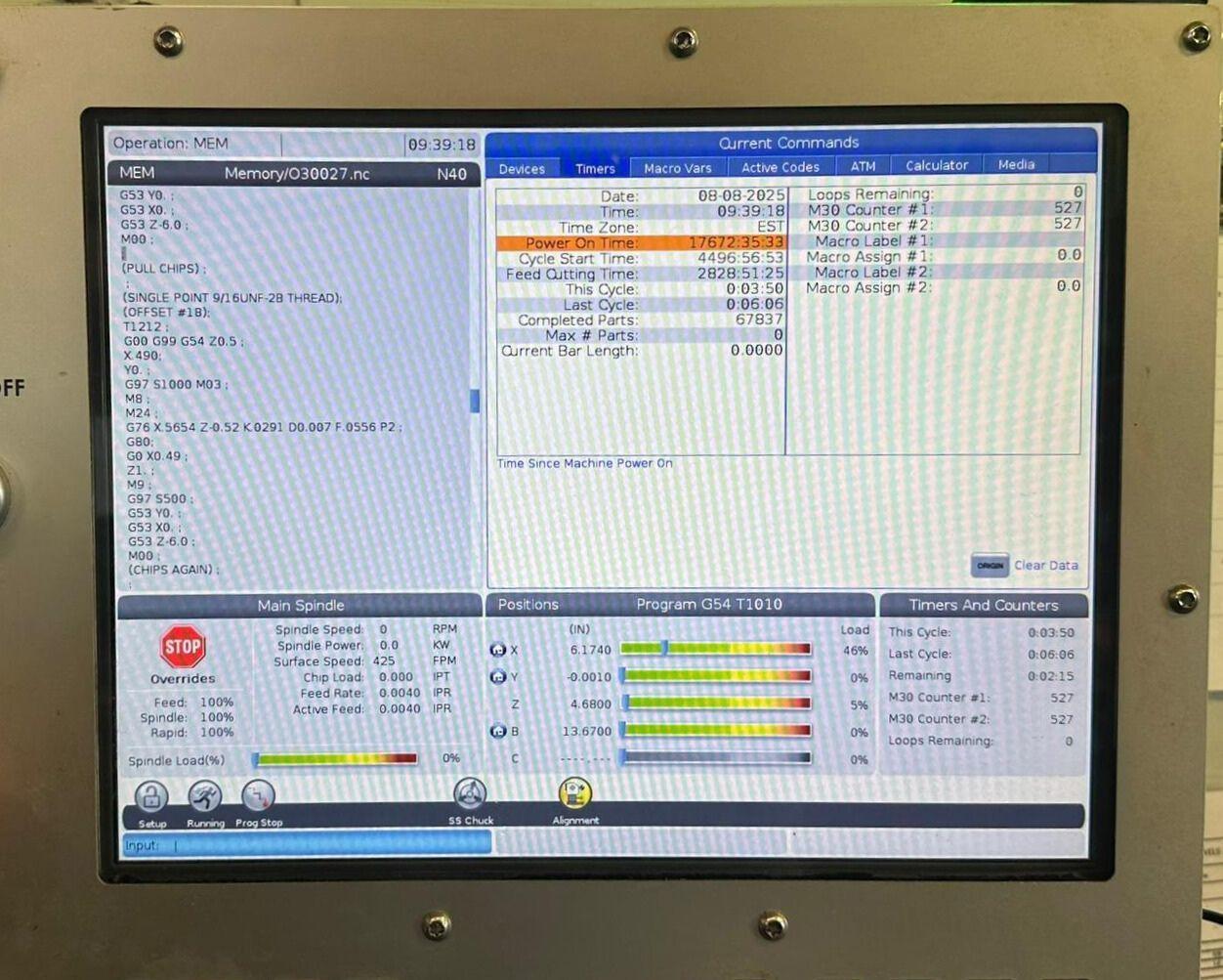

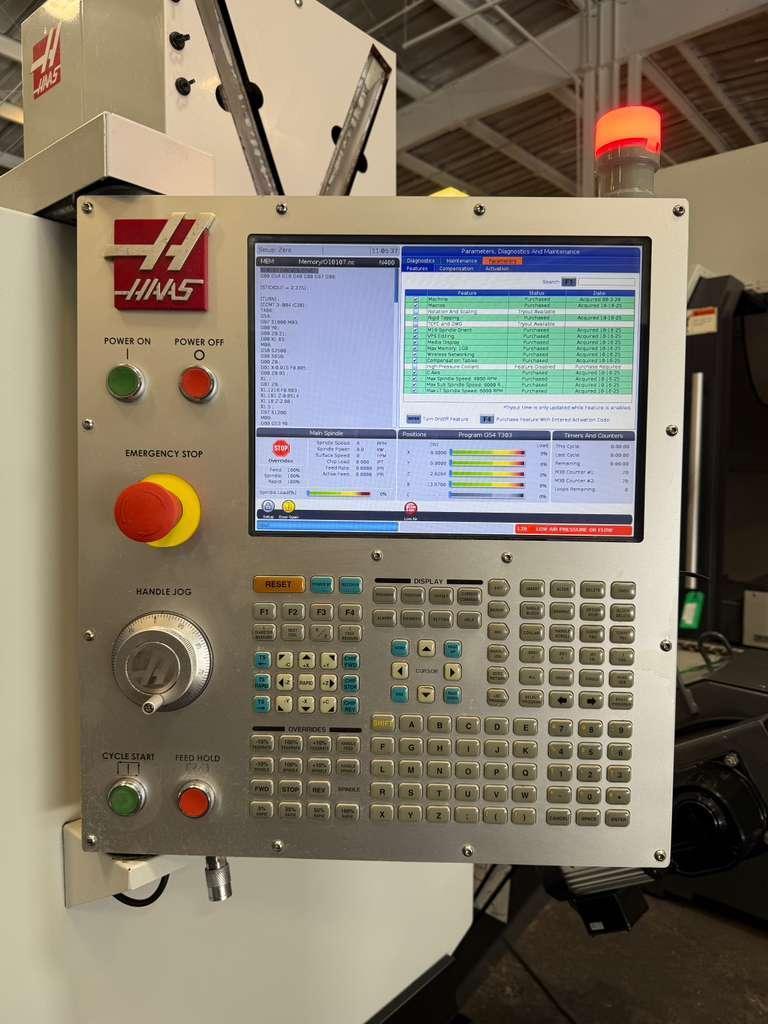

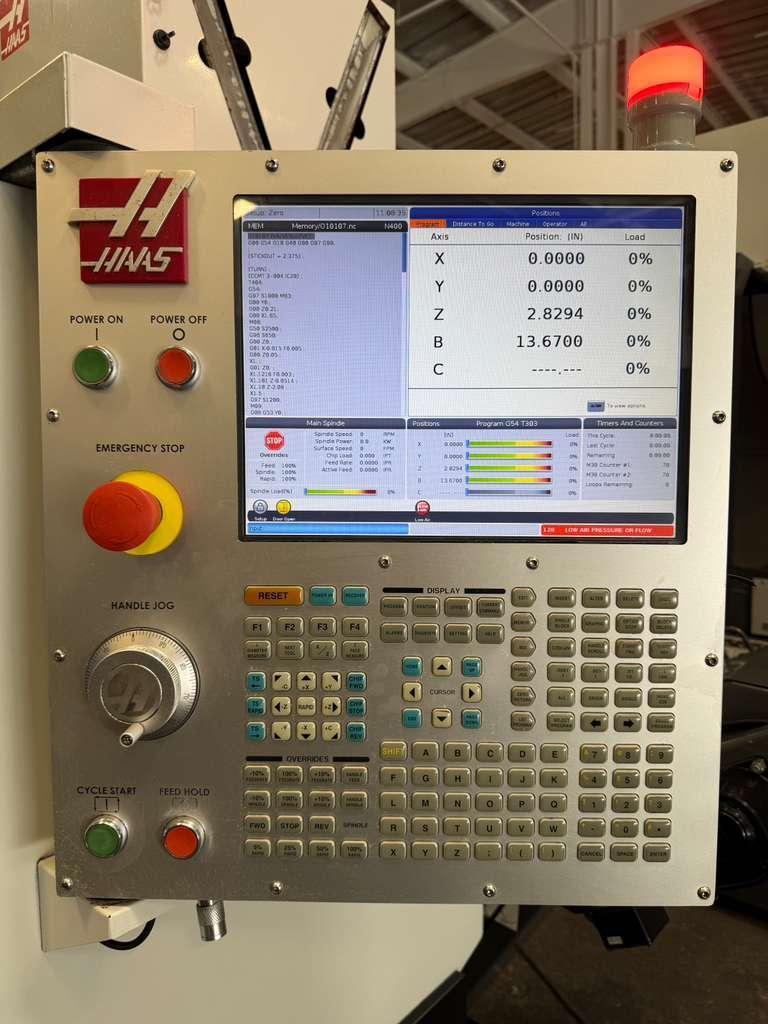

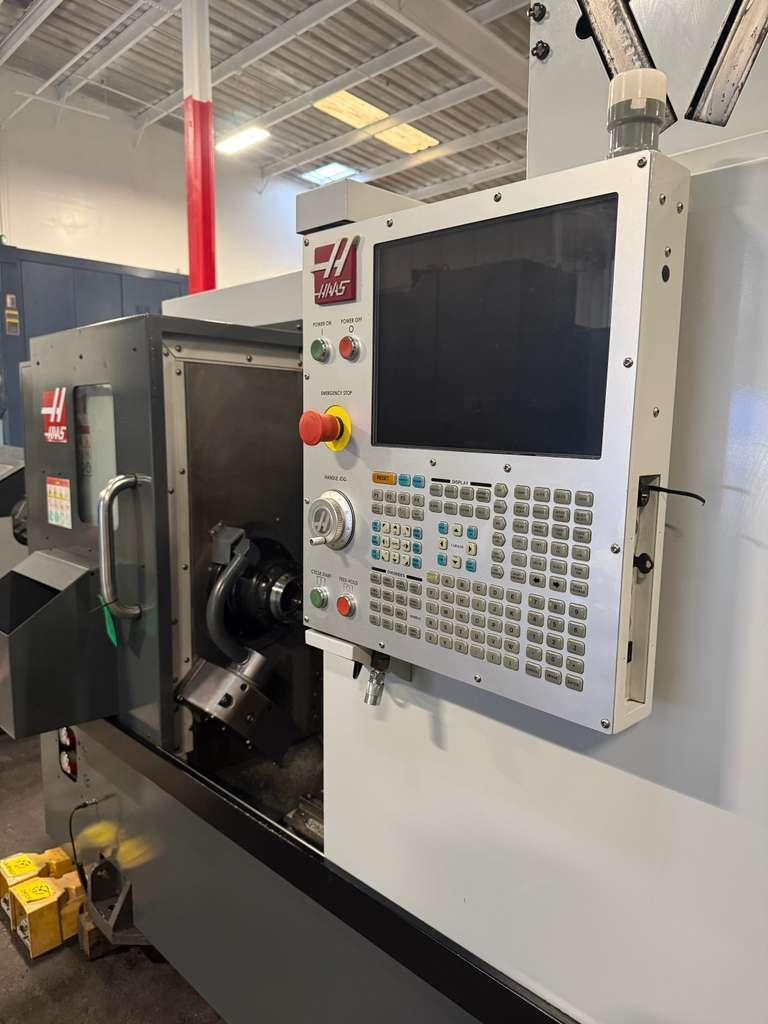

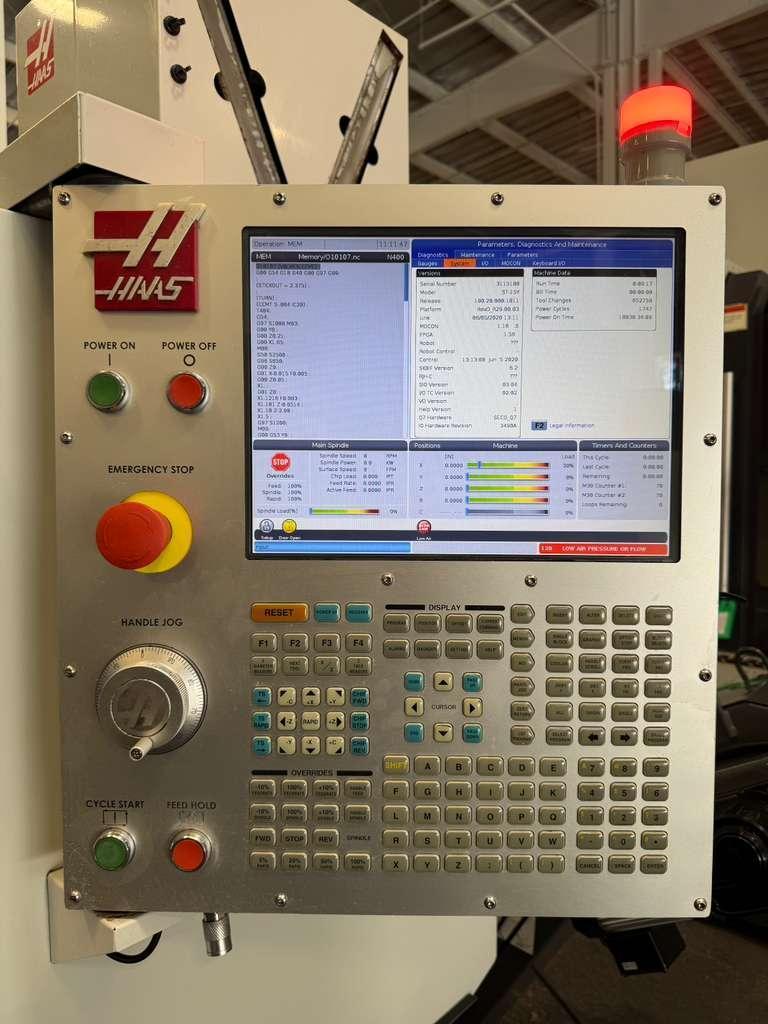

Haas CNC Control

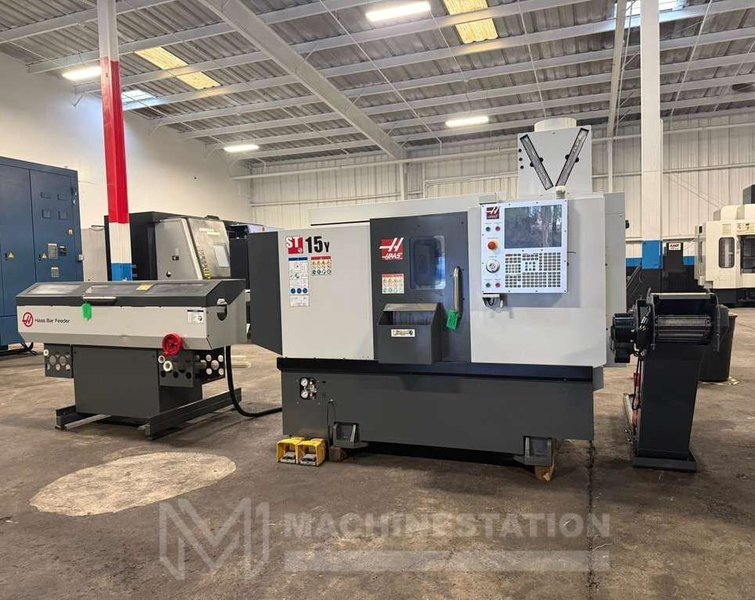

Haas Servo Bar Feeder (Upgraded $20,995 value Included) – For Automate Part Production

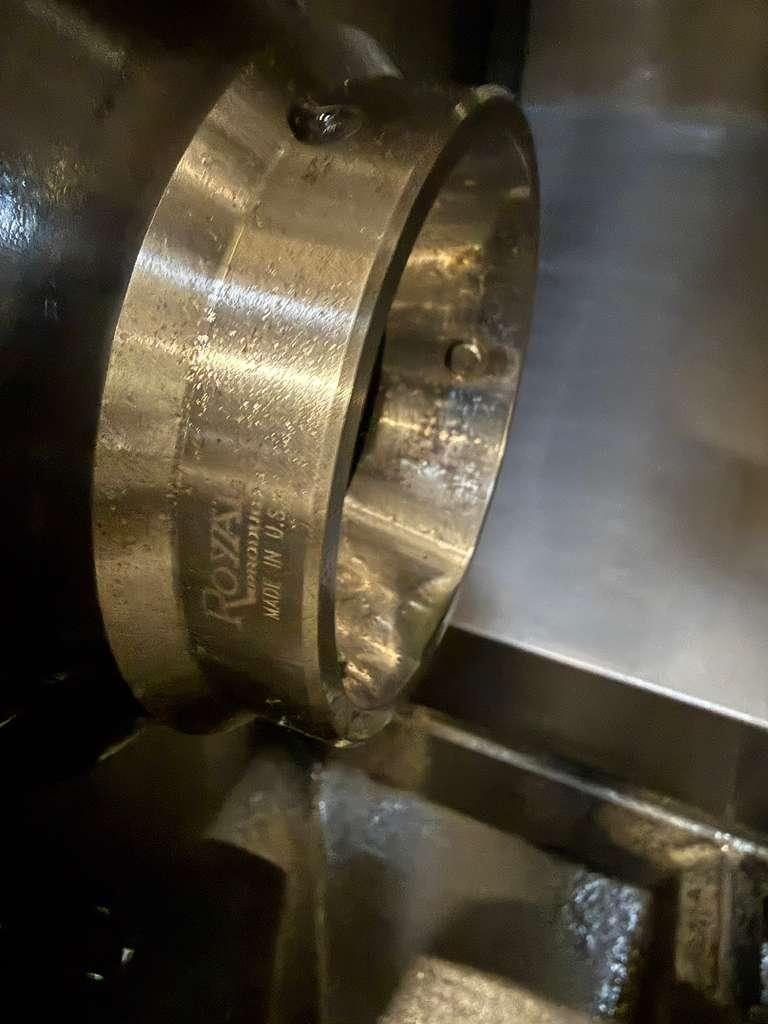

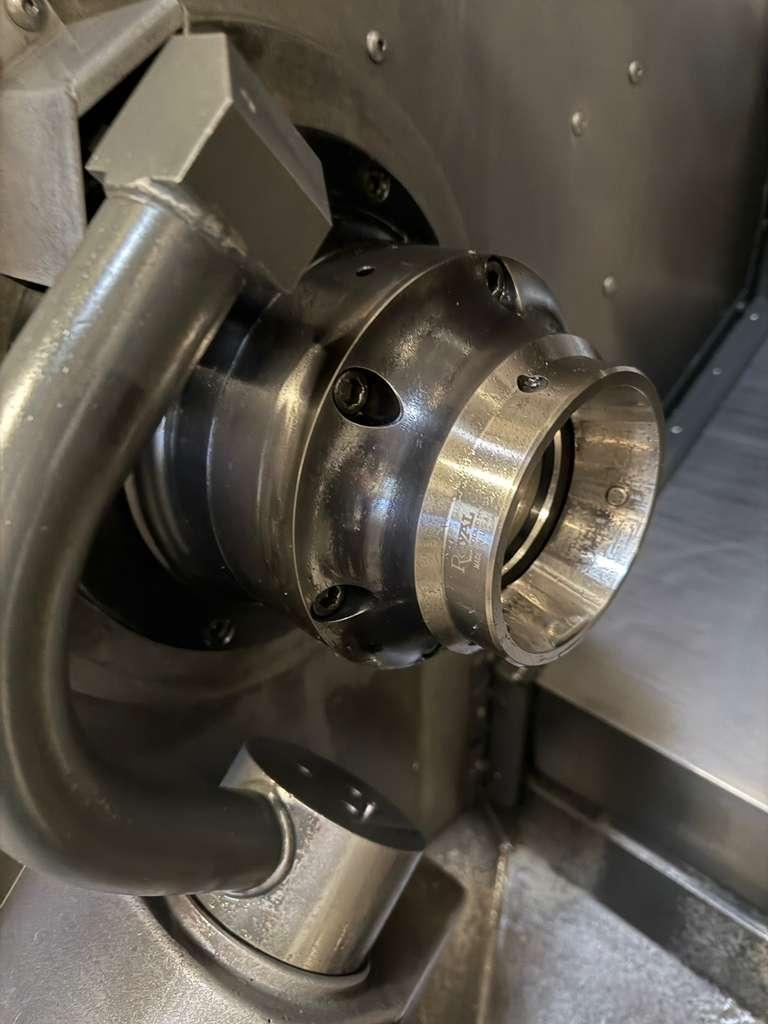

Collet Chuck on Main Spindle

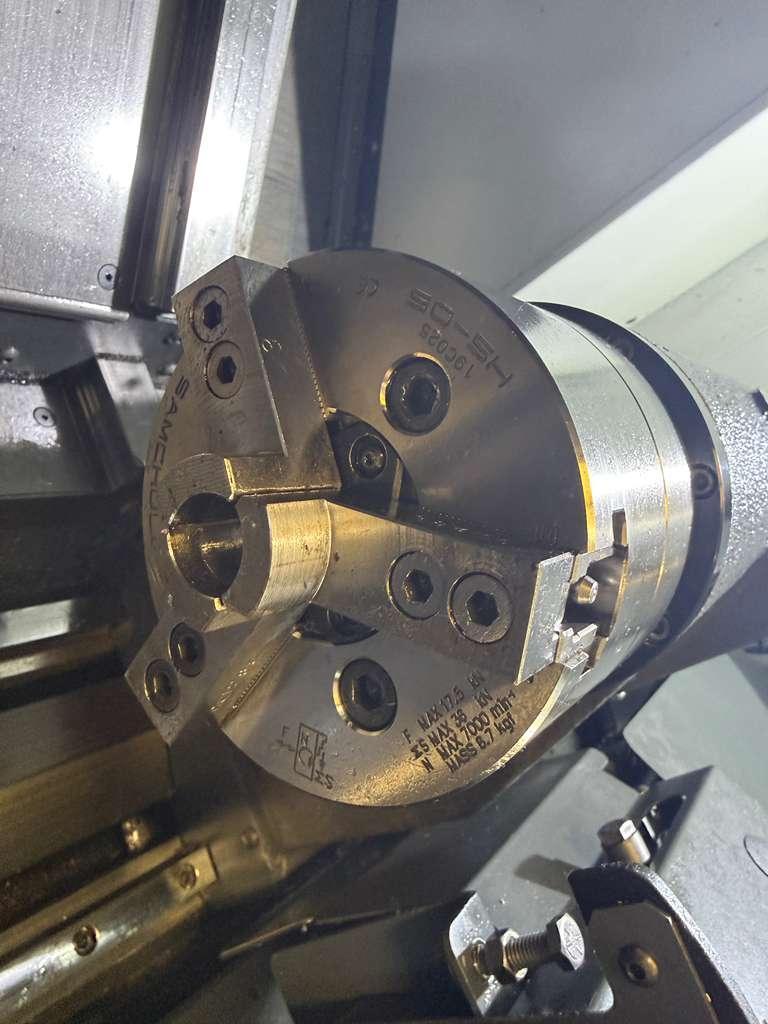

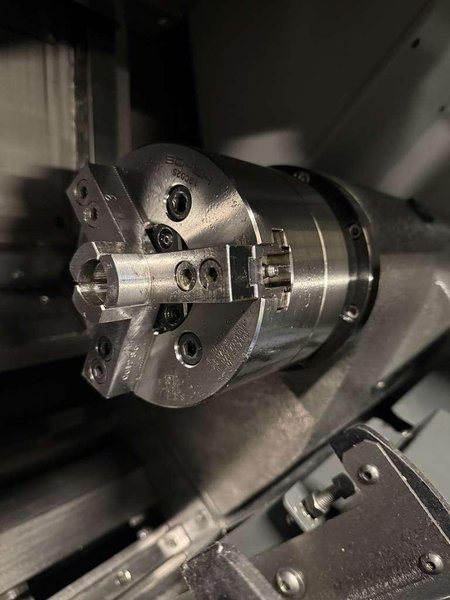

6″ 3-Jaw Chuck on Sub Spindle
Sub Spindle (Upgraded $29,295 value Included) – For Finishing the 2nd-op side of the part,
Servo Controlled C Axis on Both Spindles

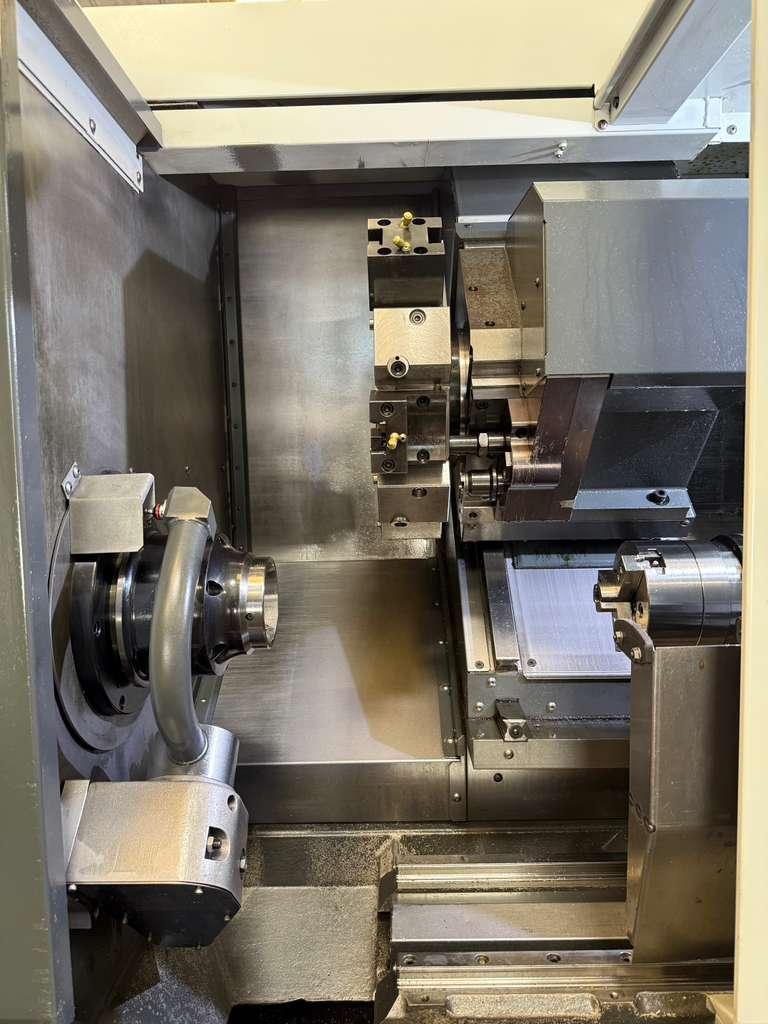

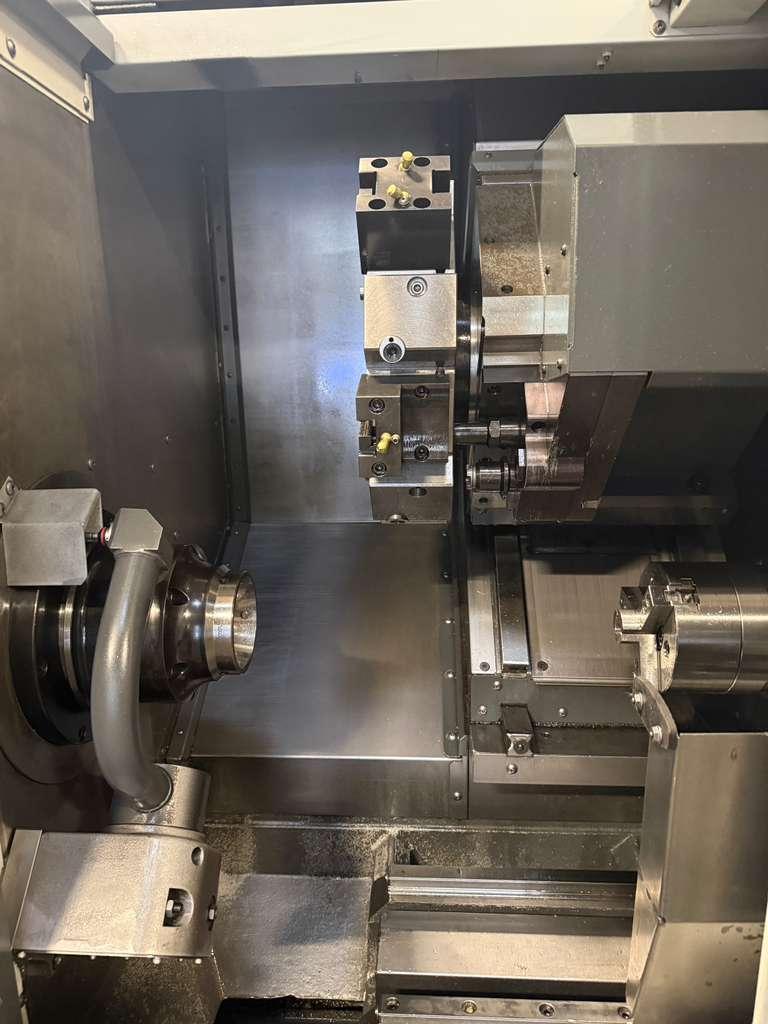

12 Station Live Tool Turret
Y Axis on Turret
Automatic Tool Presetter (Upgraded $5,895 value Included) – Set Tool Length Offsets Quickly
Part Catcher (Upgraded $3,595 value Included) – For Catch a Finished Part as it is cut off, allows for unattended machining
Enclosure Exhaust System (Upgraded $2,195 value Included) – Keeps the machine’s interior clear of mist and smoke

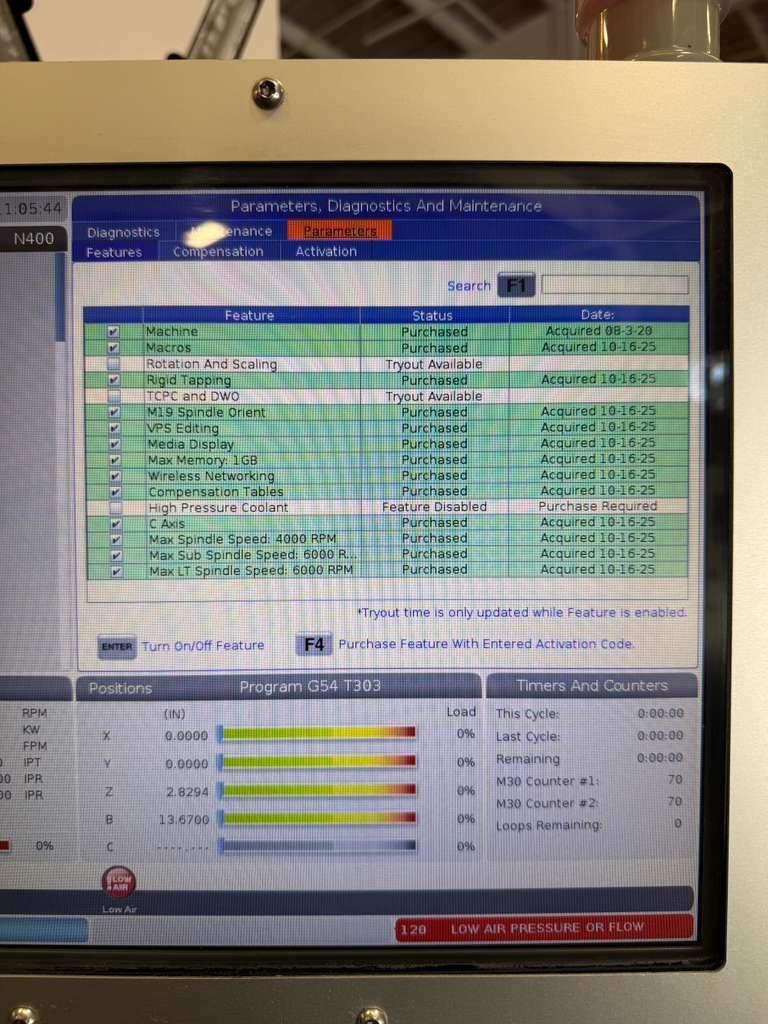

User Definable Macros
Spindle Orientation
VPS Editing
Media Display
1GB Max Memory
Wireless Networking
WiFi Camera
Compensation Tables
Coolant System
Belt Type Chip Conveyor (Upgraded $5295 value Included) – High-volume chip removal for increased productivity
Capacity:
Max Turning Diameter : 11.0″
Max Swing Over Bed : 16.5″
Max Turning Length: 16.0″
Max Bar Capacity : 2.5″
Travels:
X Axis Travel : 7.88″
Y Axis Travel : ± 2.0″
Z Axis Travel : 16.00″
C Axis (Both Spindles): 0.001 Degree
Feedrate:
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Y Axis: 472 IPM
Rapid Traverse Z Axis: 1200 IPM
Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.5″
Spindle Speed: 4000 RPM
Spindle Motor: 20 HP
Sub Spindle:
Spindle Nose: A2-5
Spindle Bore: 1.5″
Spindle Speed: 6000 RPM
Turret:
Turret Capacity: 12 Stations
Live Tool Speed: 4000
Tool Holders Type: VDI-40
General:
Air Requirement: 4 scfm @ 100 psi
Machine Dimensions: 126″ x 70.0″ x 81.0″ High
Machine Weight:7,900 lbs Approx.
No files or videos to display

Want to request a quote from the owner of this listing?
