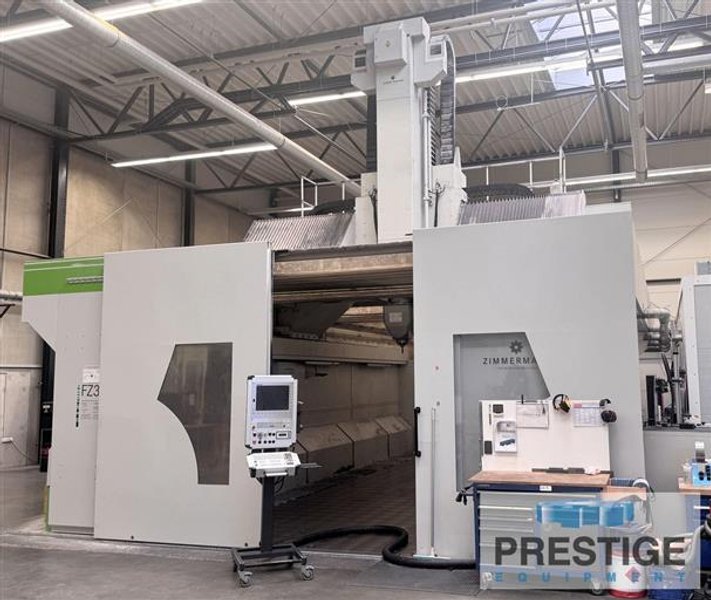

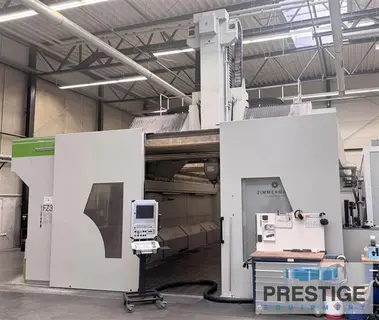

Machining Centers Vertical Bridge Type CNC

SPECIFICATION:
Table Dimensions 118.11" x 391.73"
X-Axis Travel 314.96"
Y-Axis Travel 137.79"
Z-Axis Travel 98.42"
A-Axis Travel +/- 110°
C-Axis Rotation +/- 360°
Max. Workpiece Weight 11,000 Lbs./Sq. M
Spindle Speed 25,000 RPM
Spindle Taper HSK A63
Spindle Motor 60 HP
Feed Rate, X/Y/Z Axes 2362.20 IPM
Max. Tool Diameter 4.92"
Max. Tool Length 11.81"
Max. Tool Weight 17.6 lbs



Equipped With:

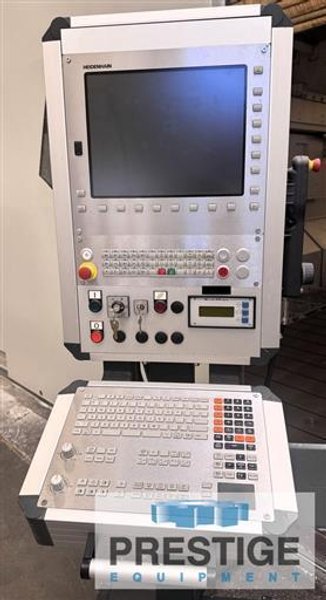

Heidenhain iTNC 530 CNC Control

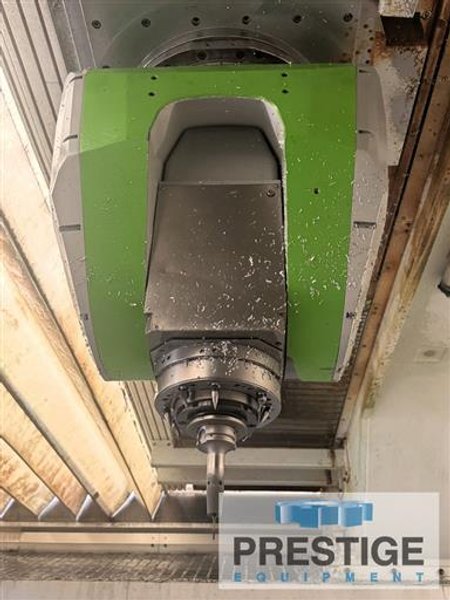

2-Axis Nutating VH20 Milling Head
High Pressure Coolant Thru Spindle

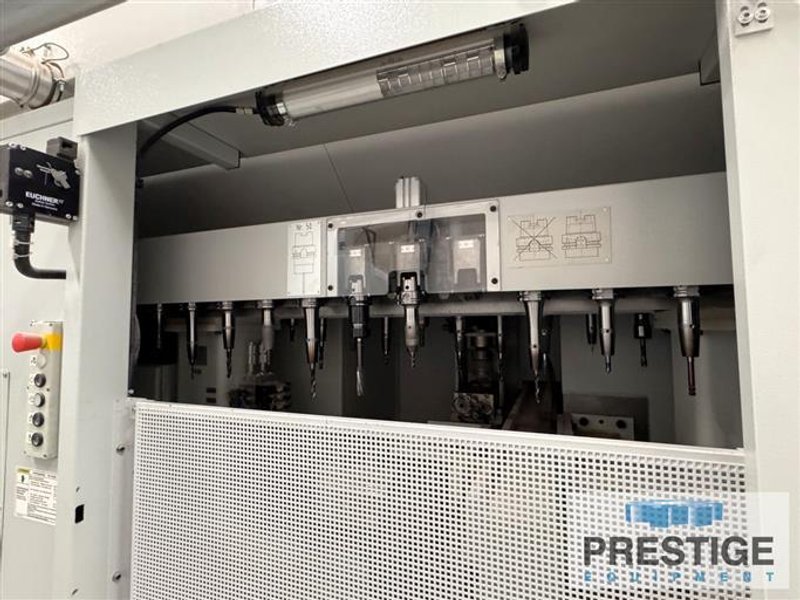

50-Station Automatic Tool Changer
High Speed Gantry Style
High Pressure Through Spindle Coolant System

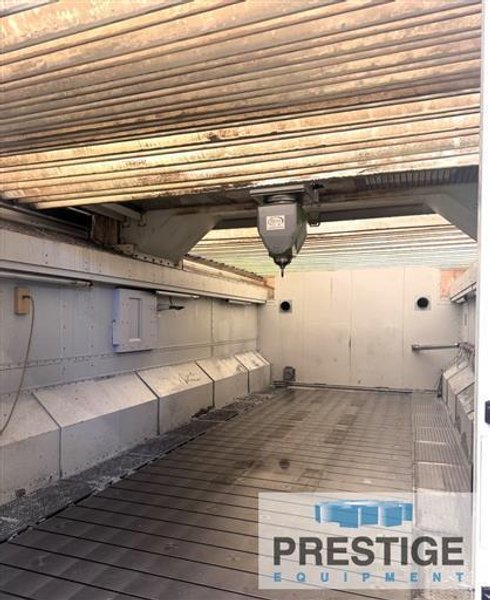

Full Enclosure, Closed Cabin
Workpiece Sensor
Central Lubrication System
Probe
Chip Conveyor
