ZIMMERMANN FZ30 5-AX 2011

Name: ZIMMERMANN FZ30 5-AX 2011
Brand: ZIMMERMANN
SKU: 39380
Availability: InStock

Brand

ZIMMERMANN

Location

Not specified

Specifications
Files & Videos

Overview

Type:

Gantry Machining Centers (incld. Bridge & Double Column)

Manufacturer:

ZIMMERMANN

Model:

FZ 30

Condition:

Excellent

Year:

2011

Stock #:

39380

Status:

For Sale

Description

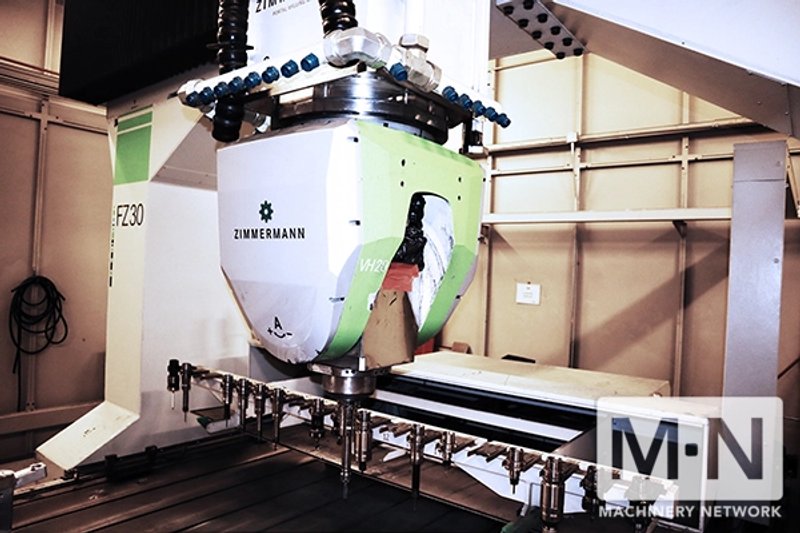

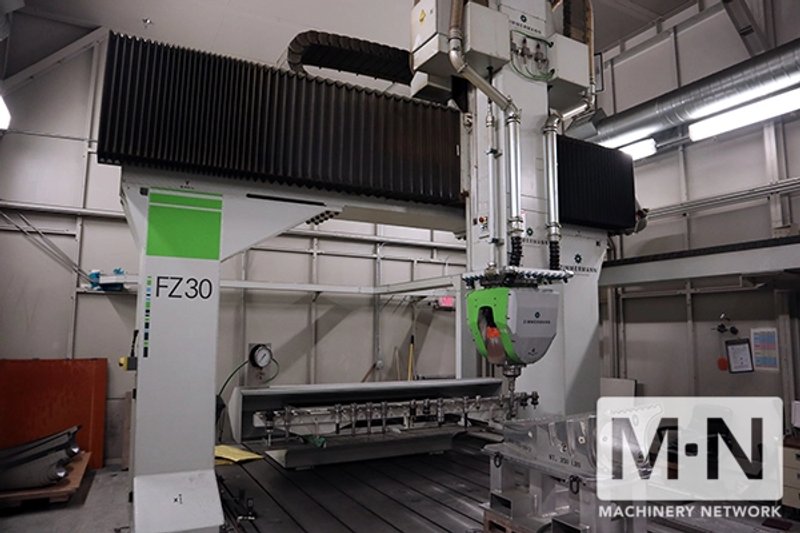

2011 ZIMMERMANN FZ30 CNC Bridge Type Vertical Machining Center. Large capacity 8000x3000mm table, HSK-63A tool holder, high-power milling spindle. Used, with advanced axis features.

X-AXIS TRAVEL 6,300 mm / 248"
Y-AXIS TRAVEL 3,360 mm / 132.2"
Z-AXIS TRAVEL 1,500 mm / 59"
TABLE SIZE 8,000 mm x 3,000mm / 314.96 x 118.1"
TABLE HEIGHT 400 mm / 15.78"
C-AXIS ± 360°
A-AXIS ± 110°
MAX TABLE LOAD 30,000 kg/m2
PITCH OF T-SLOTS 250 mm
ACCELERATION LINEAR AXES 1,5 m/s2
TORQUE A-AXIS 1,200 Nm
TORQUE C-AXIS 1,047 Nm
HOLDING TORQUE 3,000 Nm (clamped)
POSITIONING ACCURACY A-, C-AXIS 10"
FEEDRATE ABOUT A-, C-AXIS 360°/s
REPEATABILITY A-, C-AXIS 6"
MILLING SPINDLE 40 kW
SPINDLE POWER S1 (100%) 40 kW S6 (40%/2min) 53 kW
MAX TORQUE S1 max. (100% ED) 48 Nm S6 (40%/2min) 63 Nm

CONSTANT POWER 8000 - 25000 RPM

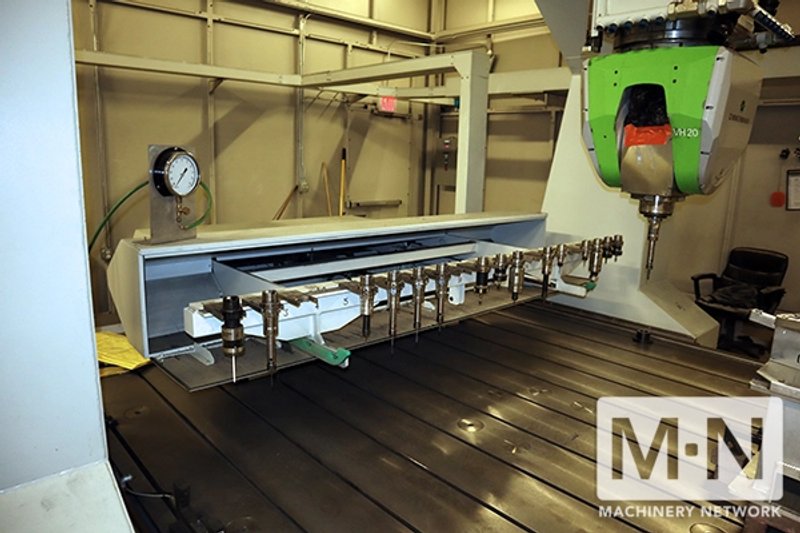

TOOL HOLDER HSK-63A
SWIVEL AXIS – SPINDLE NOSE 286 MM
TOOL CLAMPING SPRING CLAMP

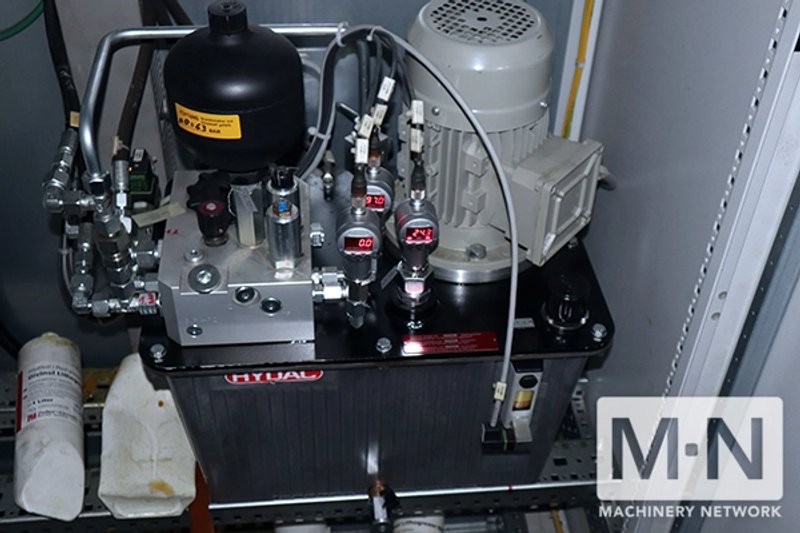

TOOL RELEASE HYDRAULIC
LUBRICATION PERMANENT GREASE LUBRICATION
COOLANT SUPPLY
MINIMUM-QUANTITY LUBRICATION
AIR BLOWING EXTERNAL AND THROUGH TOOL
