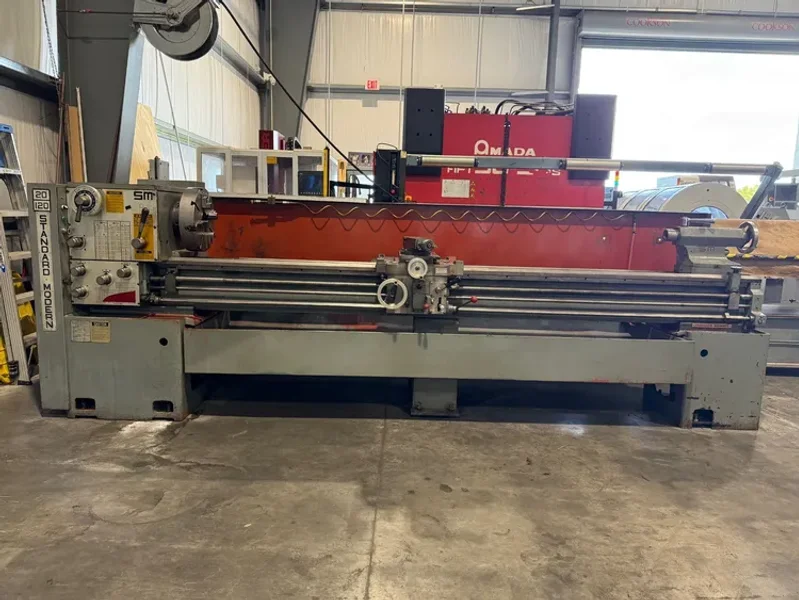

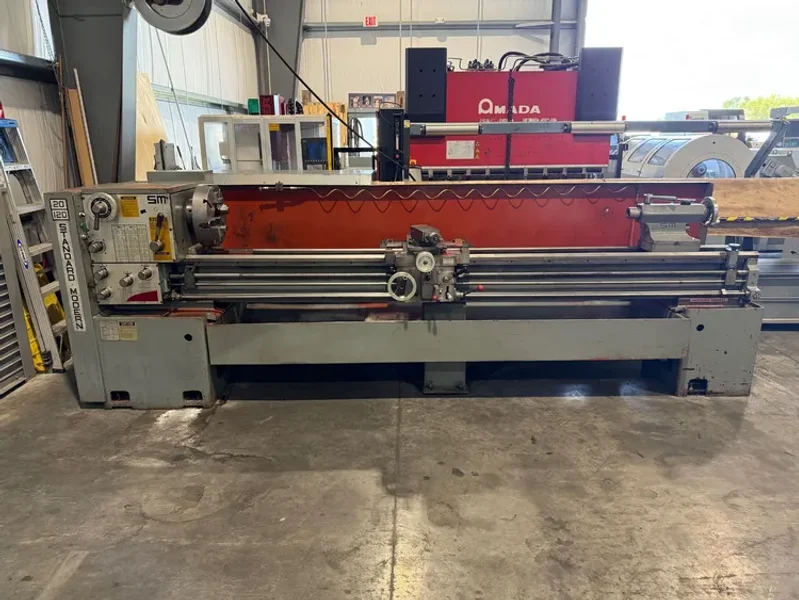

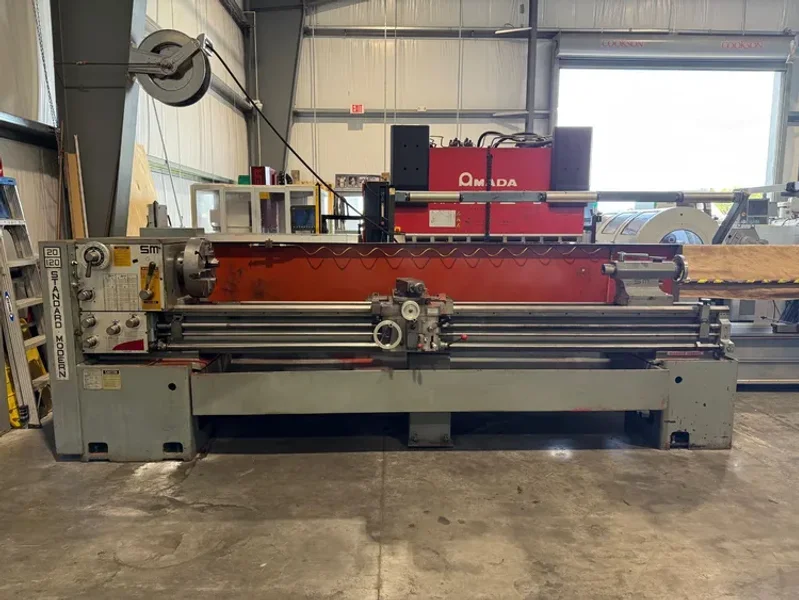

STANDARD MODERN 20120 20” x 120”cc Engine Lathe #7696

STANDARD MODERN 20120 20” x 120”cc Engine Lathe #7696

Name: STANDARD MODERN 20120 20” x 120”cc Engine Lathe #7696
Brand: STANDARD MODERN
SKU: 7696
Availability: PreOrder

Brand

STANDARD MODERN

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Engine Lathes

Manufacturer:

STANDARD MODERN

Model:

20120

Stock #:

7696

Status:

For Sale

Description

STANDARD MODERN 20120 20” x 120”cc Engine Lathe #7696

ImperialMetric

Swing	20"	508 mm
Centers	120"	3,048 mm
Spindle Bore	3.06"	77.724 mm
Power	15 hp	11.2 kW
RPM	1,600 RPM	1,600 RPM
Swing Over Cross Slide	12"	304.8 mm
Dimensions	186”L x 56” W x 65” H	186”L x 56” W x 65” H
Weight	7500 Lbs.	7500 Lbs.

STANDARD MODERN 20120 20” x 120”cc Engine Lathe #7696
Reference # 7696
Model # 20120

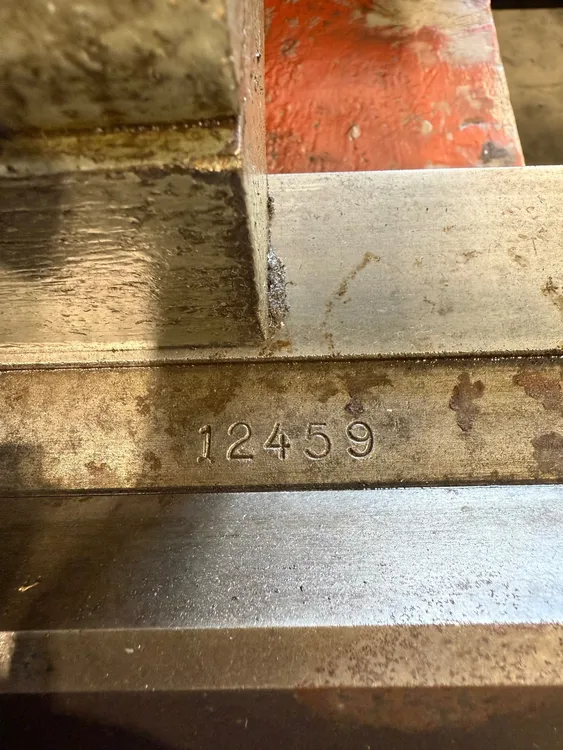

Serial # 12459
Swing over bed- 22”
Swing over saddle- 20”
Swing over cross slide- 12”
Distance between centers- 120”cc

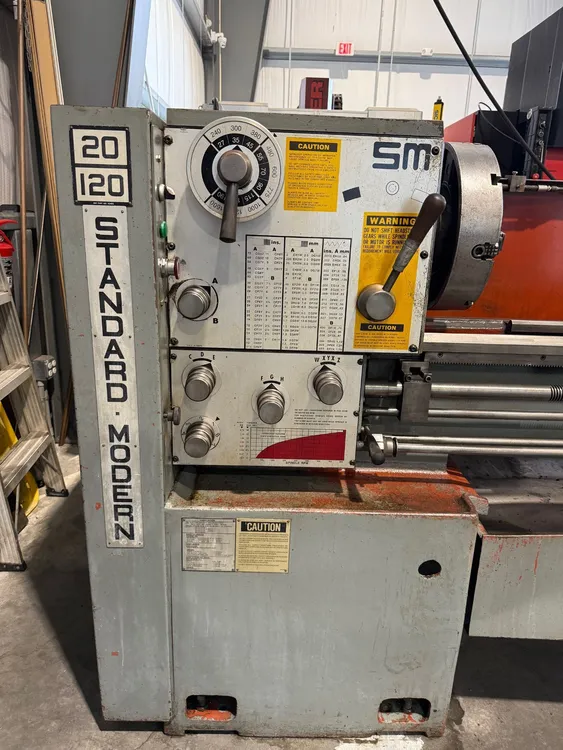

Spindle speeds- (18) 27 – 1,600 R.P.M.
Spindle taper- D1-8
Spindle bore- 3”
Longitudinal feeds- .0015 - .105 I.P.R.
Inch threads- 2 – 127 T.P.I.
Metric threads- .2 – 14 mm

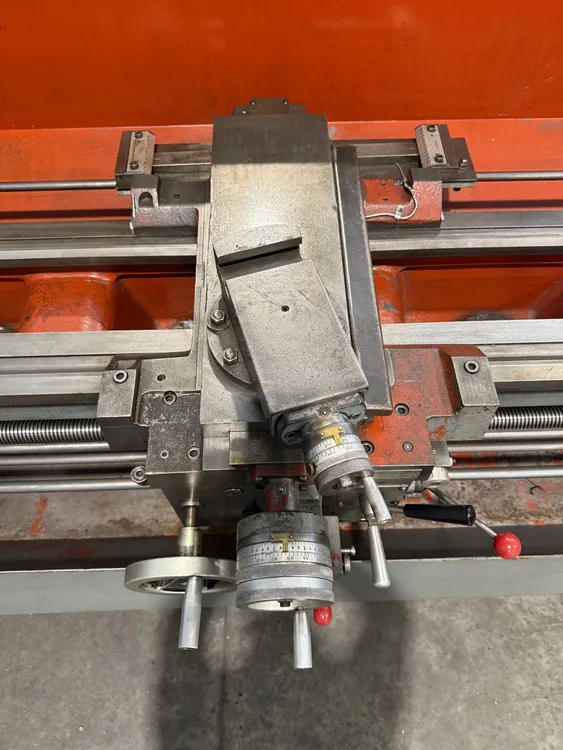

Cross slide travel- 12”
Compound travel- 5”
Bed width- 14”

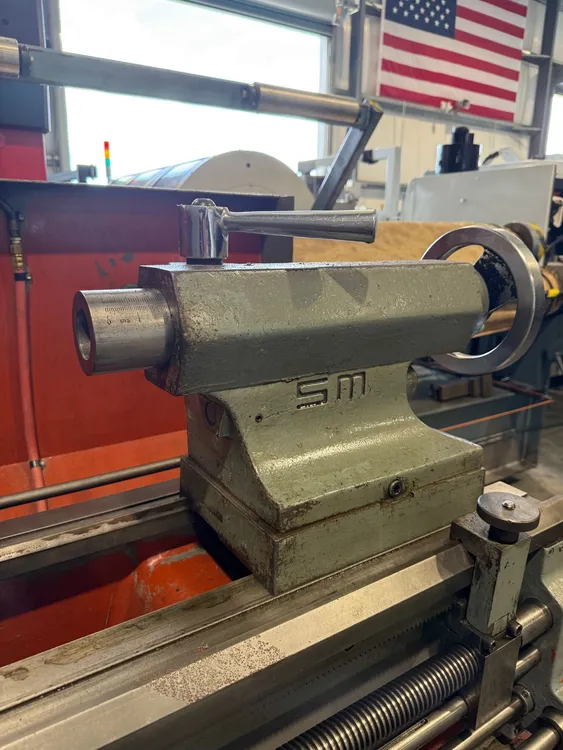

Tailstock taper- #5 Morse
Tailstock quill travel- 8”
Tailstock quill diameter- 2.94”

Inch/Metric dials
Threading dial

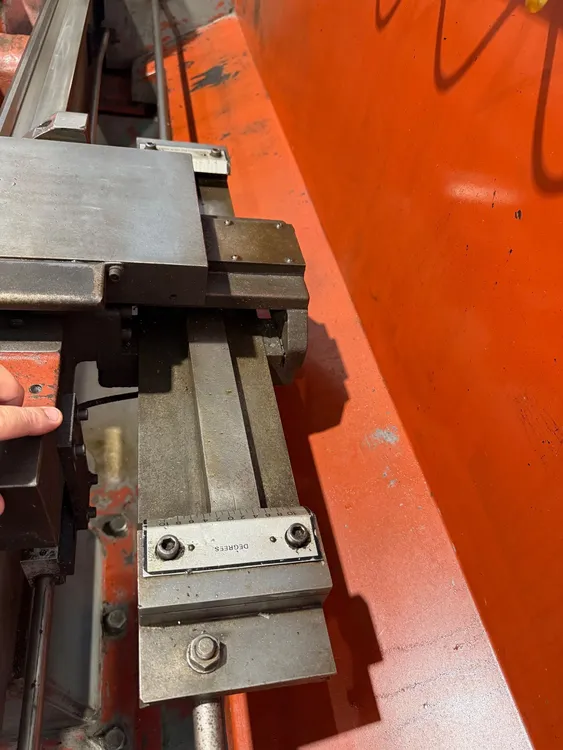

Taper attachment

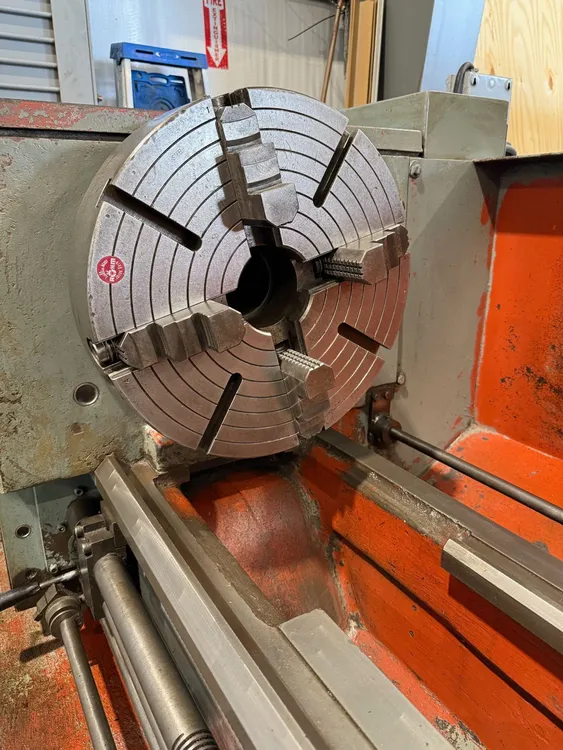

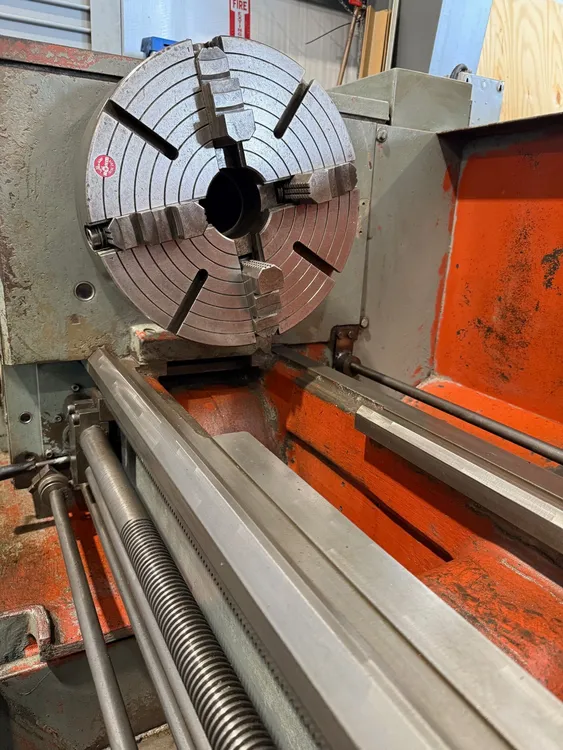

15-1/2” ROHM 4 Jaw Chuck
15 H.P. Main motor
Machine is wired 460 volt / 3 phase / 60 H.Z.
Machine dimensions- 186”L x 56” W x 65” H
Machine weight- 7500 Lbs.
Machine location- F.O.B. Sarasota, Florida
