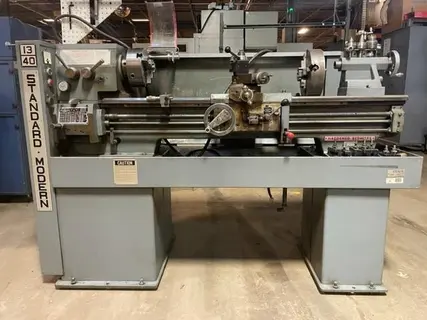

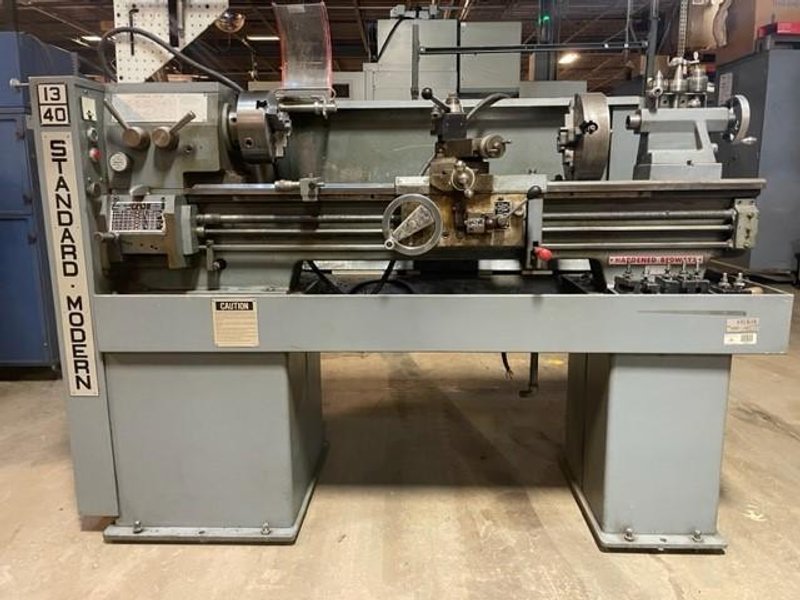

Standard Modern 1340 ENGINE LATHE, 13" SWING, 40" CENTERS
Brand
Category
Type
Model
1340
Stock #
21123
Year
Not specified
Condition
Not specified
Location
Pennsylvania
| Spindle Speed RPM | 2000 |
| Main Motor | 3 |
| Swing | 13 inches |
| Centers | 40 inches |
| Spindle Bore | 1.375 inches |
| Power | 3 horsepower |
| RPM | 2000 |
| Swing Over Cross Slide | 7.75 inches |
|

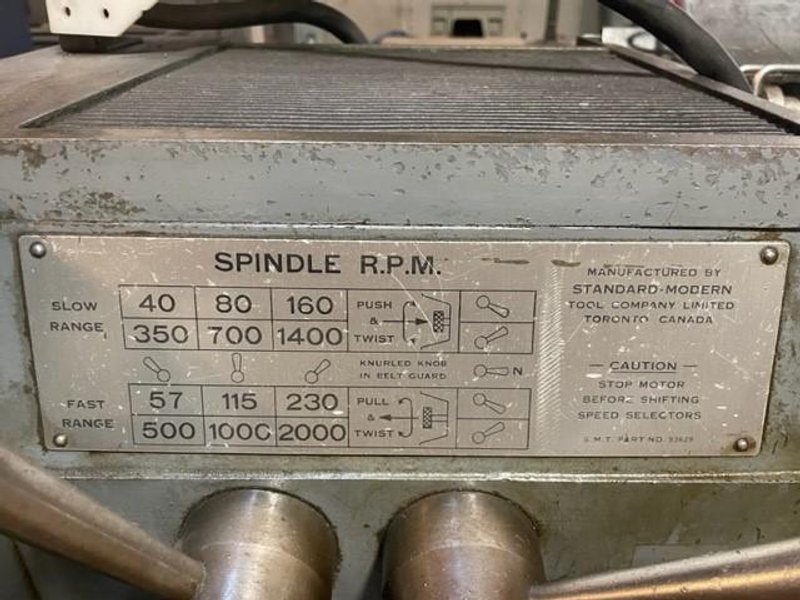

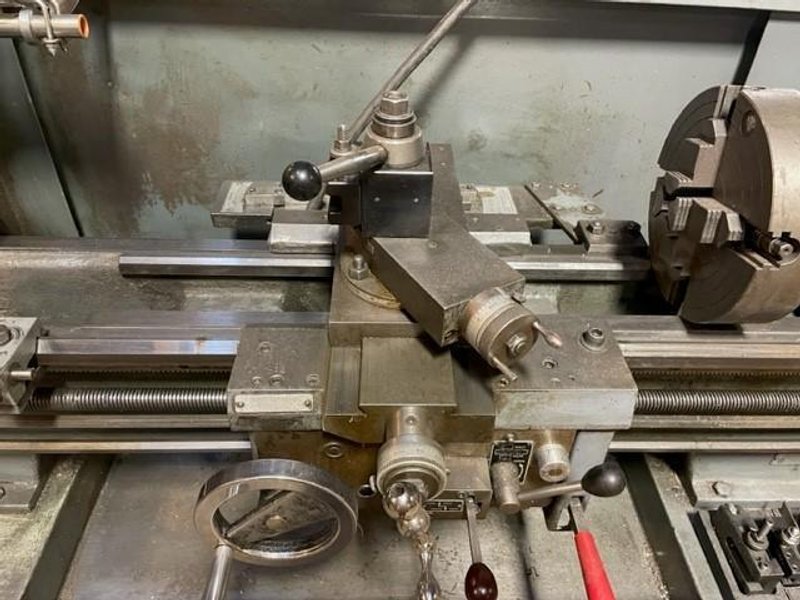

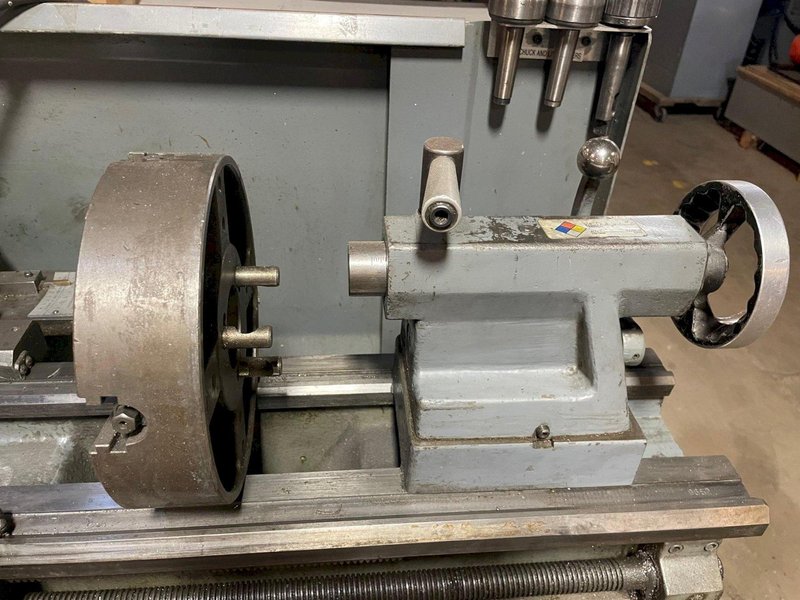

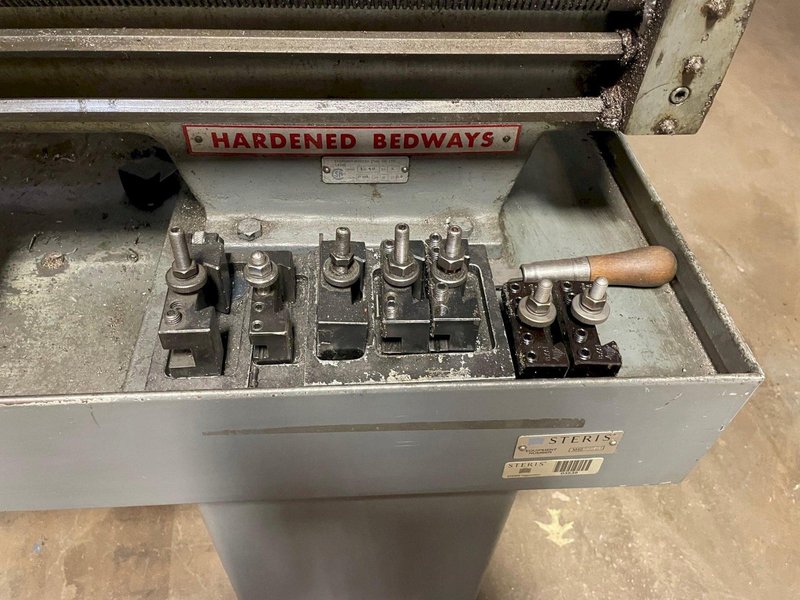

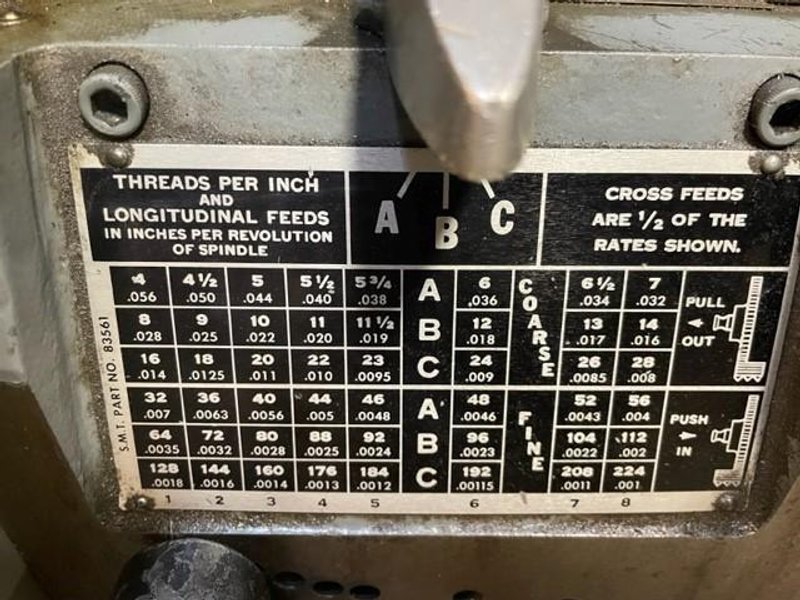

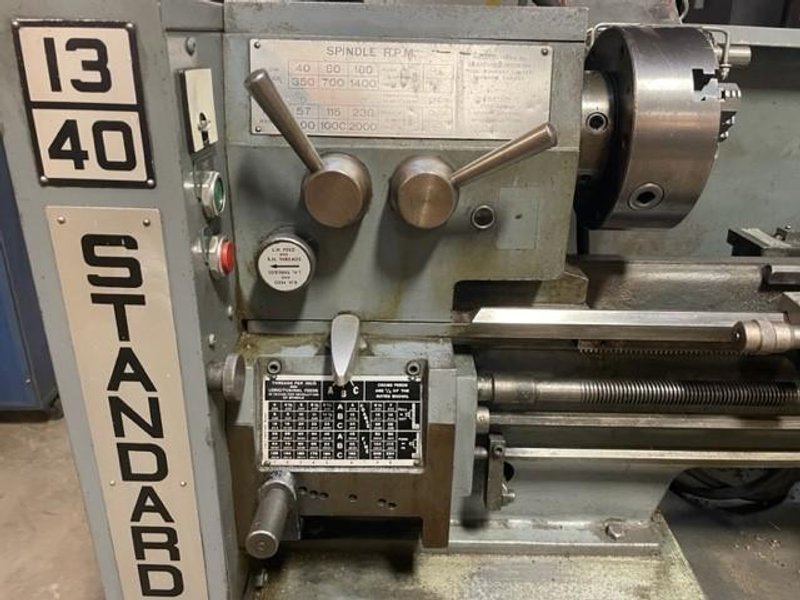

Machine Swing Over Bed: 13” Swing Over Cross-Slide: 7.75” Distance Between Centers: 40” Main Drive Motor: 3 HP Bar Capacity: 1.375” Headstock Spindle Speed Ranges: 12 Speed Range: 40 – 2,000 RPM Spindle Nose Camlock: D1-4 Spindle Hole: 1.375” Spindle Center: 3 MT Feedbox Number of Feed Changes: 54 (in/mm) Number of Thread Changes: 54 (in/mm) Inch Feed Range, Longitudinal: .001 - .062 IPR Inch Feed Range, Cross: .0005 - .031 IPR Inch Thread Range: 4- 224 TPI Metric Feed Range, Longitudinal: .031 – 1.74 mm/rev Metric Feed Range, Cross: .015 - .87 mm/rev Metric Thread Range: .125 – 7 mm lead Carriage Cross-Slide Cross-Slide Travel: 7" Compound Travel: 3.25” Tailstock Tailstock Spindle Diameter: 1-56” Tailstock Spindle Travel: 4" Tailstock Spindle Taper: 3 MT Equipped With 3-Jaw Chuck 4-Jaw Chuck Quick Change Tool Post with Holders Lathe Centers Jacobs Tailstock Drill Chucks |
|
