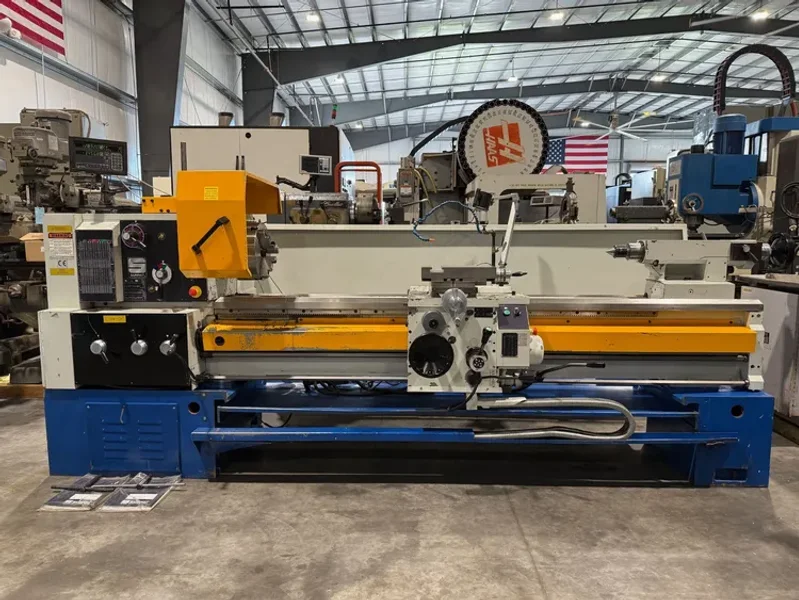

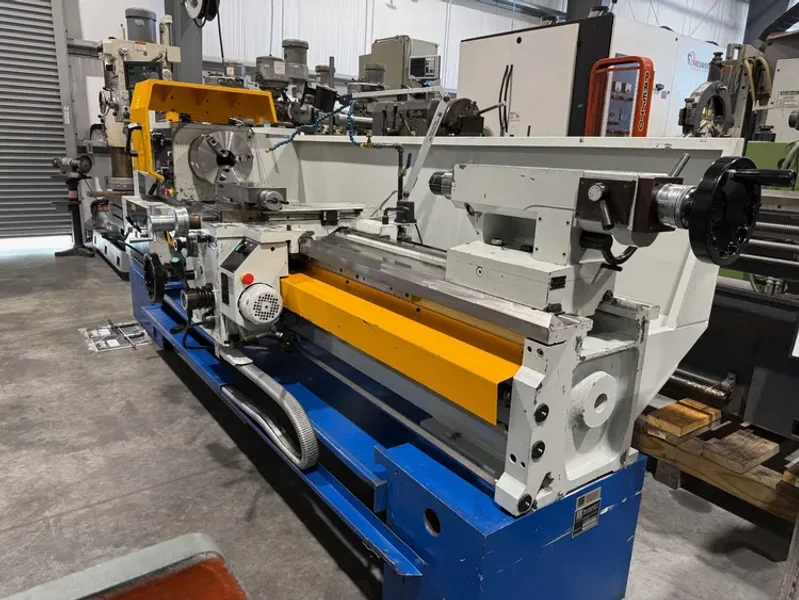

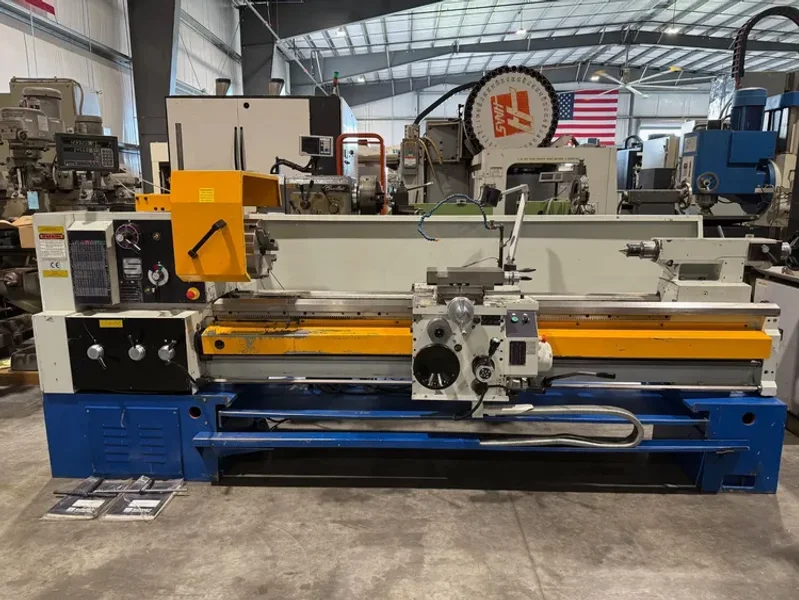

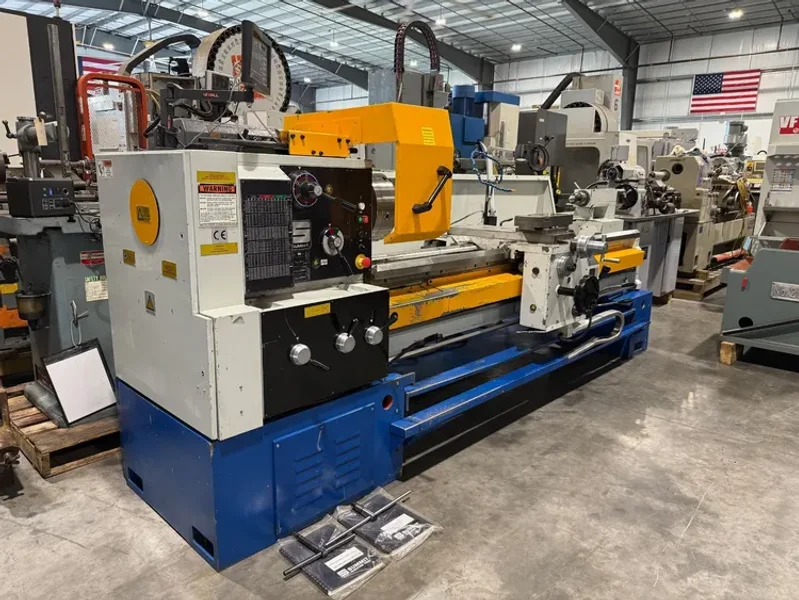

SUMMIT 20”/27” x 80”cc Removable Gap Lathe European 2020’ #7751

SUMMIT 20”/27” x 80”cc Removable Gap Lathe European 2020’ #7751
Reference # 7751
Model # 20-4 x 80B
Serial # 43368
Year of manufacture- 2020’
Swing over bed- 20-1/4”
Swing over cross slide- 11-7/8”
Swing over gap- 27-5/8”
Length of gap- 15”
Distance between centers- 80”

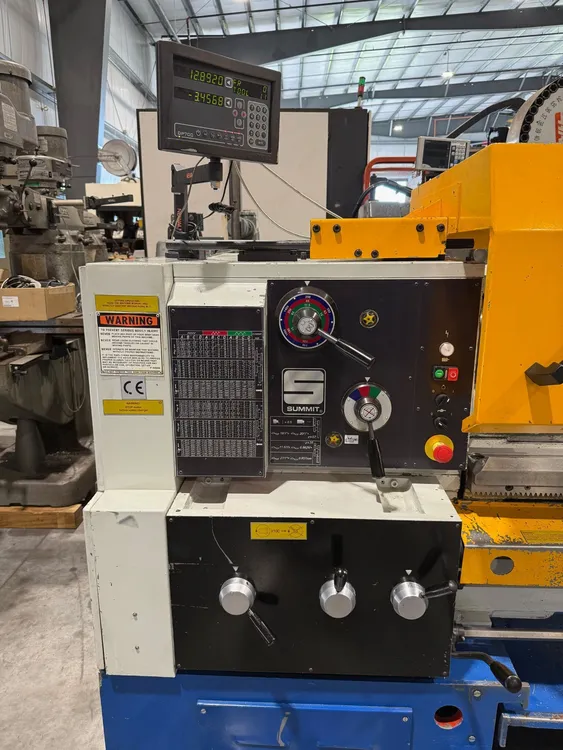

Spindle speeds- (15) 11-1/2 – 1,400 R.P.M.
Spindle hole- 4-1/8”

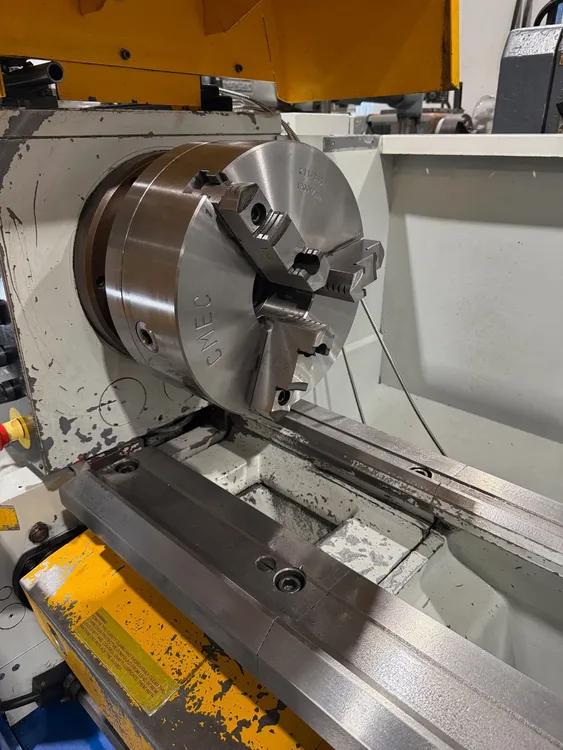

Spindle nose- D1-8 Camlock
Inch threads- (64) ¼” - 60 T.P.I.
Metric threads- (64) .5 – 120 mm
Module threads- (64) .125 – 30
Diametral pitch- (64) 1 – 240
Longitudinal feeds- (124) .00145 - .44474
Cross feeds- (124) .0007 - .22237
Leadscrew diameter- 2”

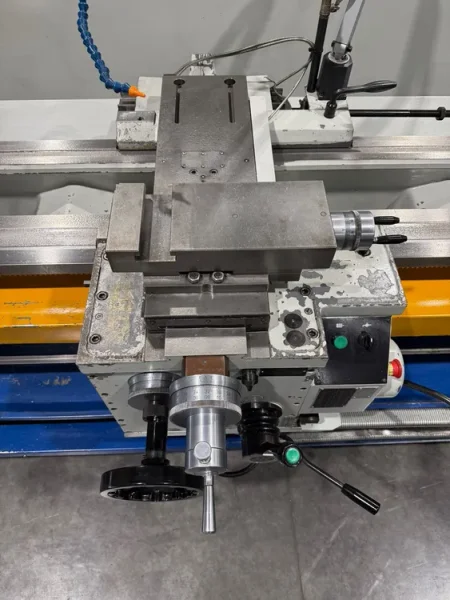

Cross slide travel- 11-3/8”
Compound rest travel- 5-3/8”

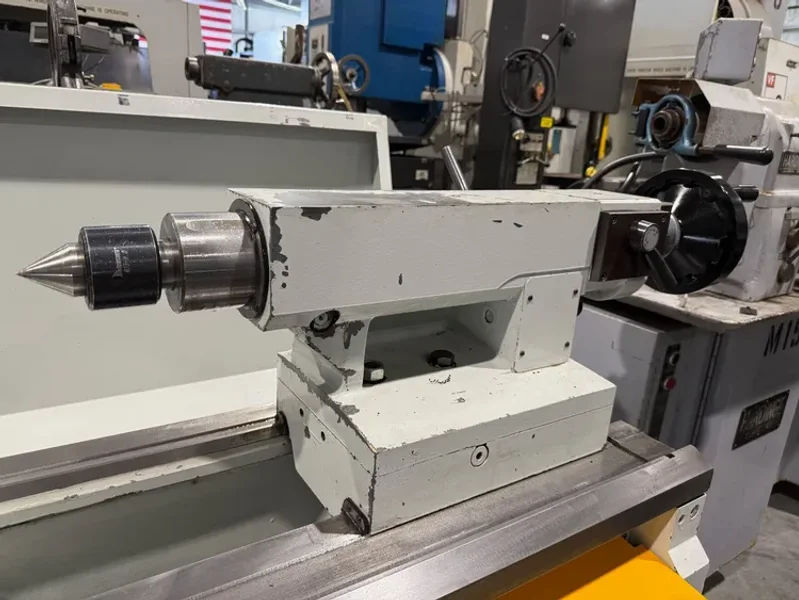

Tailstock quill travel- 9-1/2”
Tailstock quill diameter- 2-15/16”
Tailstock taper- #5 Morse
Bed width- 15-3/4”
