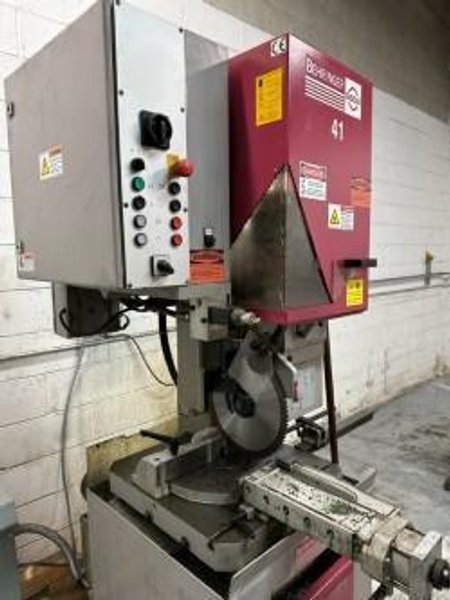

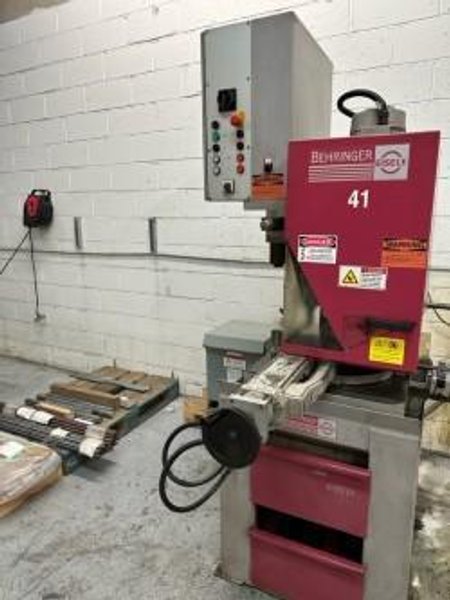

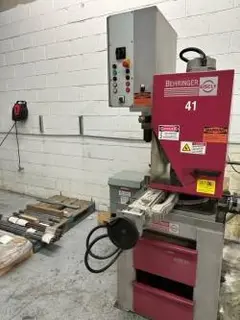

BEHRINGER #VMS400H SAWING MACHINE

MODEL: VMS-400H,  S/N: 10000195,  MFG: 2009



SPECIFICATIONS:

CAPACITY:

-ROUND @ 90 .......................... 5.5"

-ROUND @ 45 .......................... 5.5"

-ROUND @ 30 .......................... 4.3"

-SQUARE @ 90 ......................... 4.7"

-SQUARE @ 45 ......................... 4.7"

-SQUARE @ 30 ......................... 3.9"

-SQUARE TUBE @ 30 .................... 4-3/4"

-FLAT @ 90 ........................... 7.9" X 4.7"

-FLAT @ 45 ........................... 5.5" X 4.7"

-FLAT @ 30 ........................... 3.9" X 3.9"

SAW BLADE ............................ 15.7" / 400mm

SAW MOTOR ............................ 2.7 / 3.5 HP

CUTTING SPEEDS ....................... 10/20 -40/80 RPM

OVERALL MACHINE DIMENSIONS ........... 40" X 60" X 84"

APPROX WEIGHT ........................ 1,700 LBS



EQUIPPED WITH:

- SWIVELING HEAD

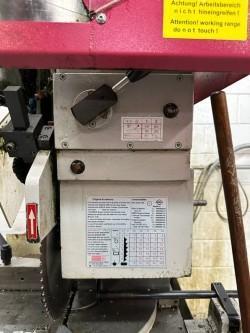

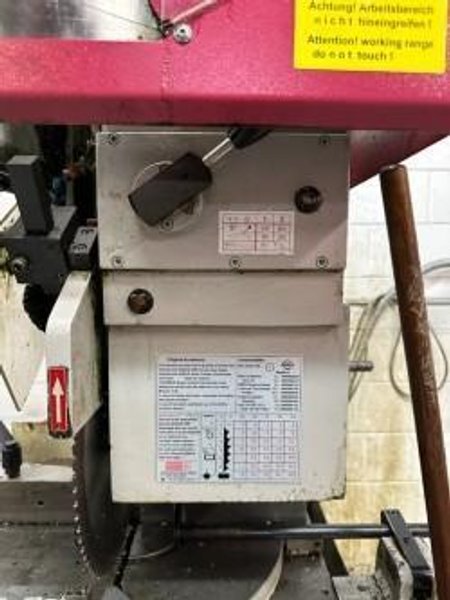

- IDEALLY DESIGNED GEARBOX OFFERS LONG BLADE LIFE

      WORM GEARED UNIT

- 20" ADJUSTABLE STOP

- COOLANT PUMP

- HYDAULIC SAW FEED & CLAMPING  VISE



THE SAW HEAD MOVES VERTICALLY ON SQUARE, ADJUSATBLE GUIDES WITH LARGE SURFACE AREAS FOR ADDED STABILITY



INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
