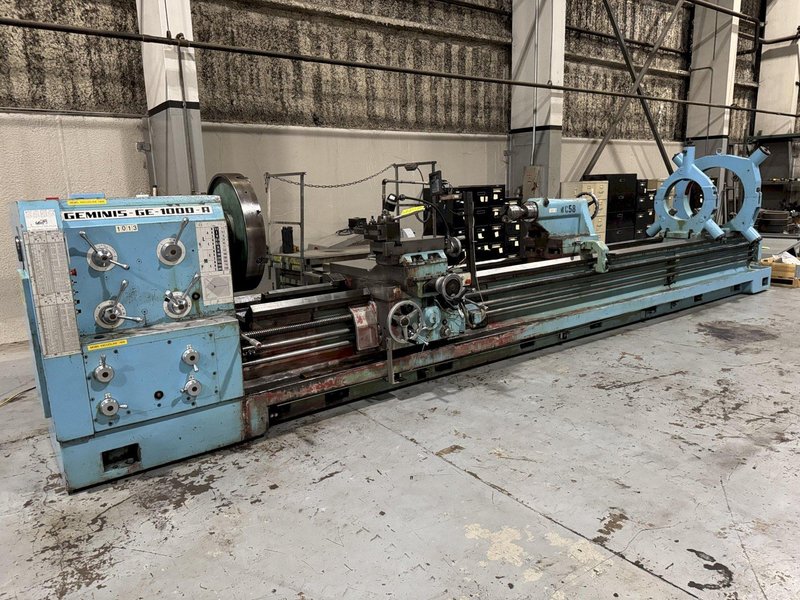

39" x 236" Gemenis GE-1000A Gap Bed Engine Lathe
Brand
Category
Type
Model
GE-1000
Stock #
TM395
Year
1987
Condition
Good
Location
Illinois
| Max Swing Over Bed | 1000mm/39.3" |
| Max Swing Over Carriage | 650mm/ 25.9" |
| Max Swing Over Gap | 1300mm/51.18" |
| Length Of Gap | 450mm/ 17.7" |
| Maximum Distance Between Centers | 6000mm/ 236" |
| Main Spindle Bore | 104mm/4.09" |
| Spindle Nose | A-11 |

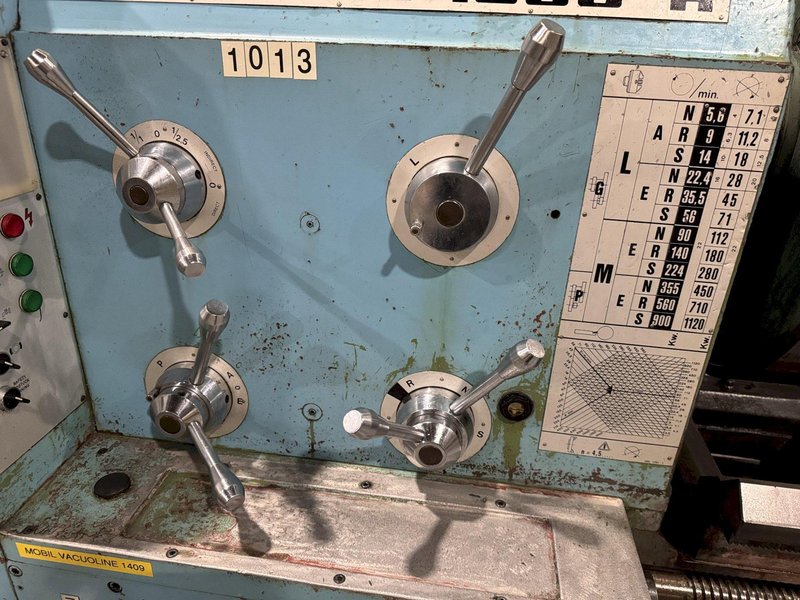

| Spindle Speeds | 5.6-1120 RPM |
| Main Motor | 30KW/ 44 HP |
| Metric Threads (154) | 0.4-600 |
| Module Threads | 1-150 |
| Whitworth Threads | 40- 3/32 TPI |
| Tailstock Quill Diameter | 140mm/ 5.51" |
| Travel Of Quill | 300/11.8" |
|

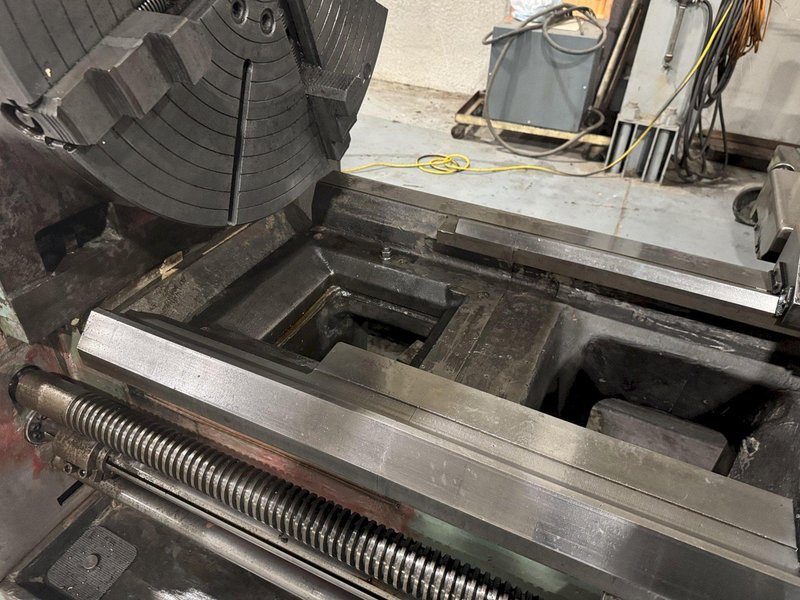

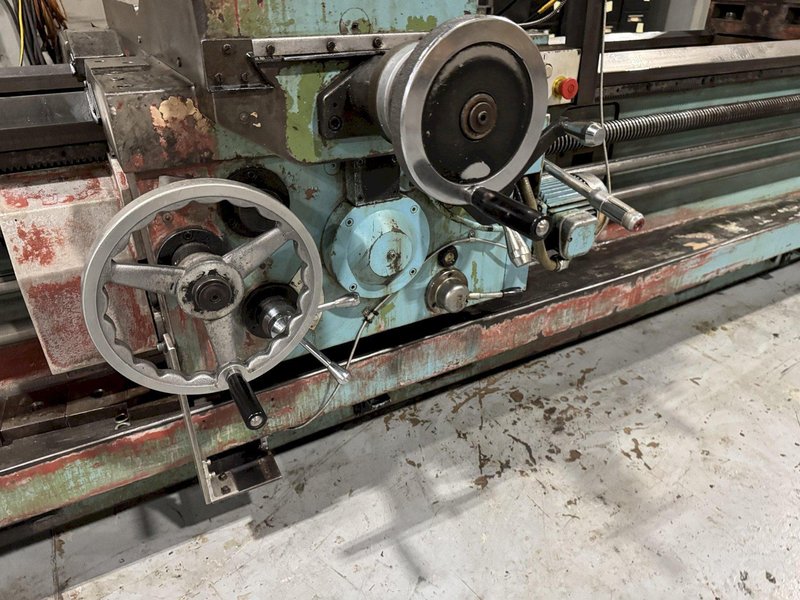

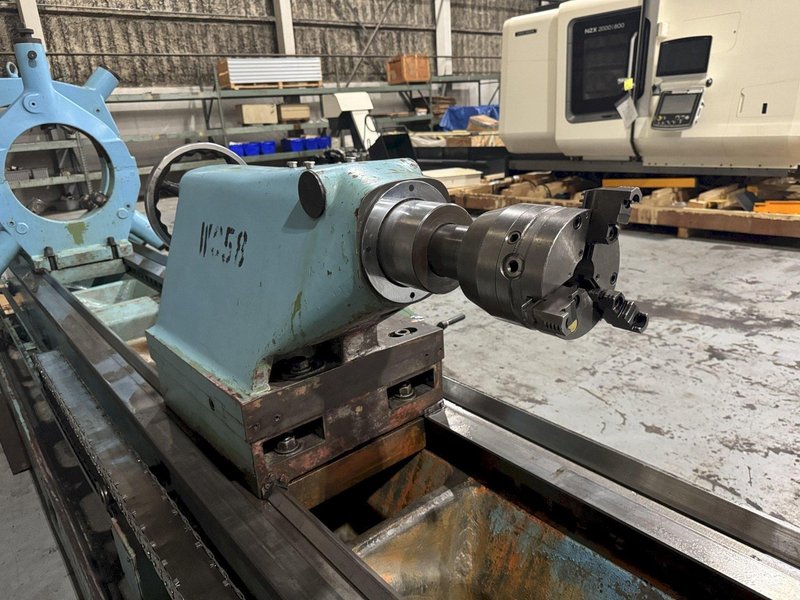

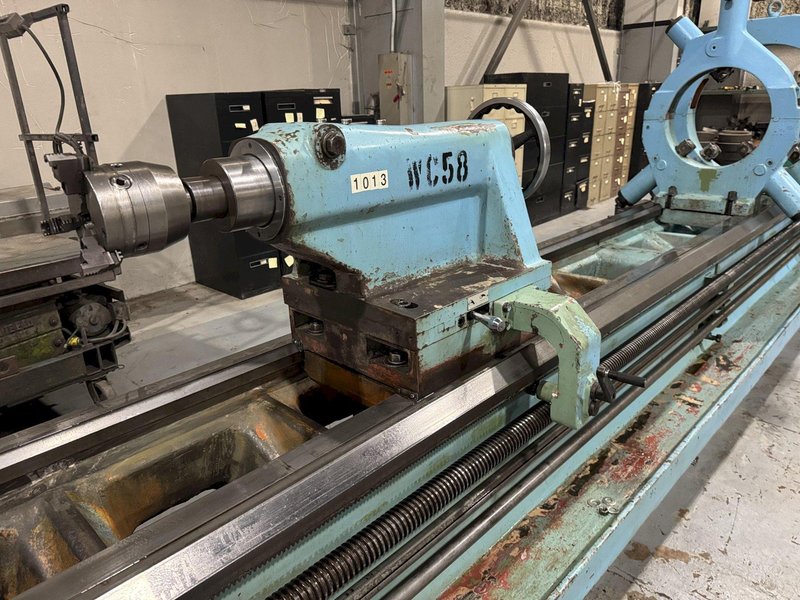

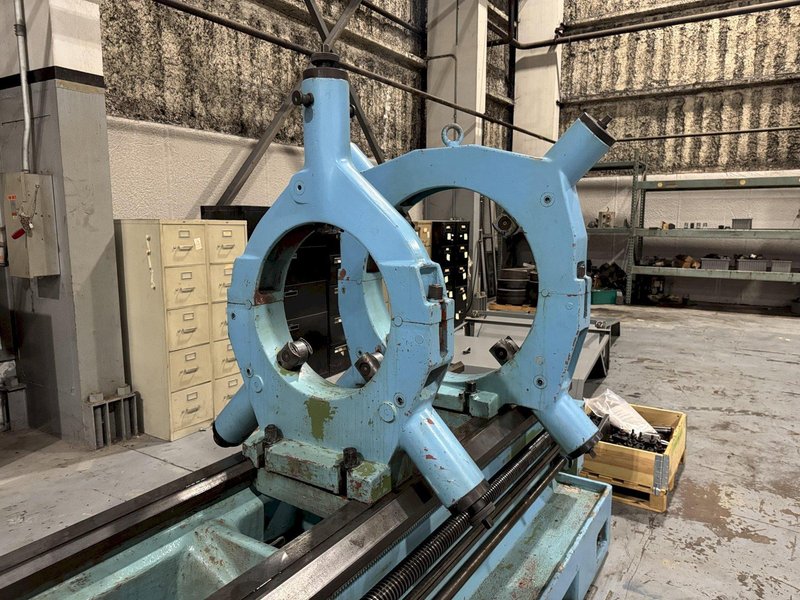

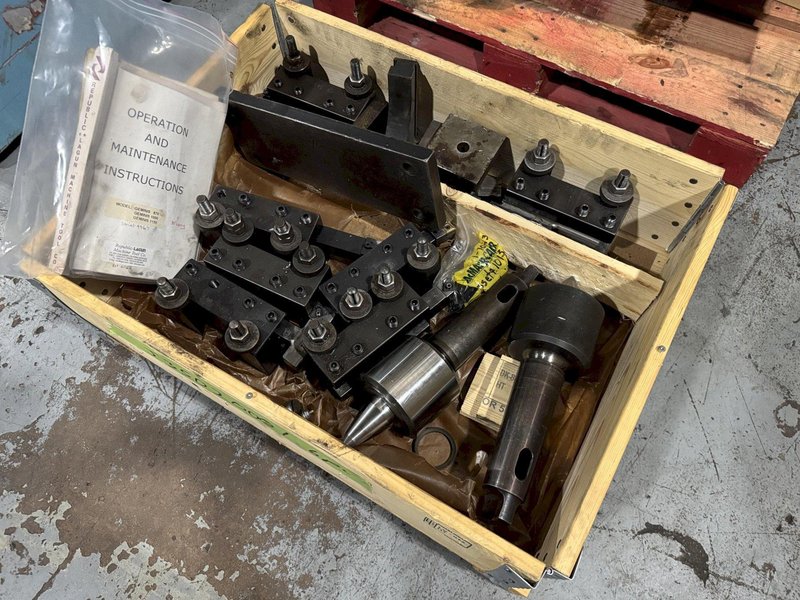

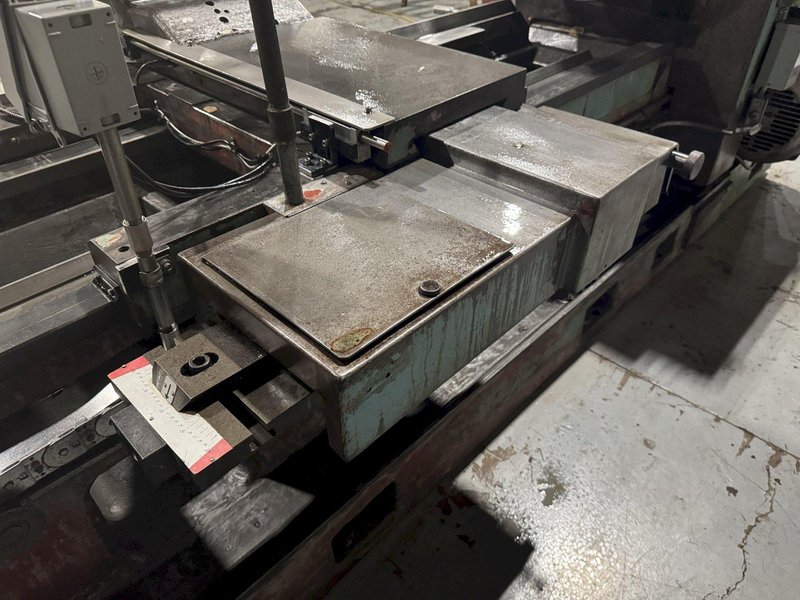

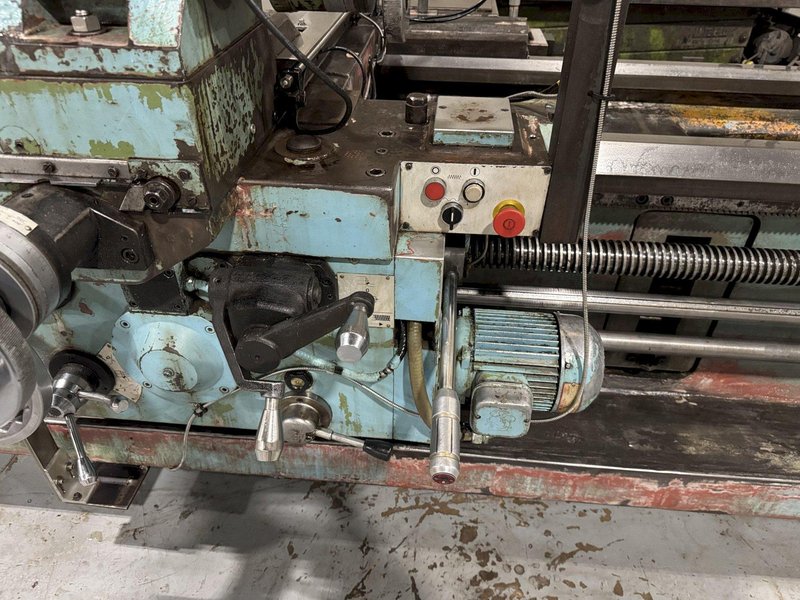

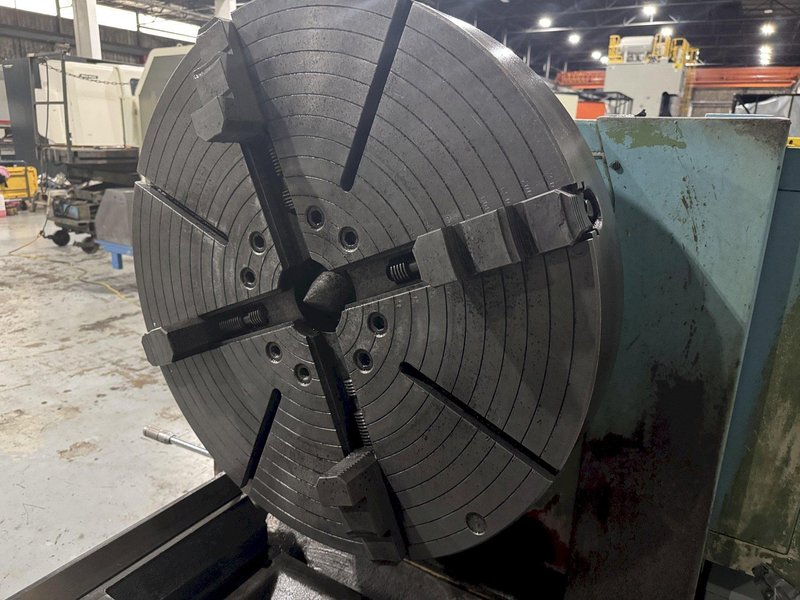

Equipped With: 31" 4 Jaw Independent Scroll Chuck and Center. In/mm Threading. Removable Gap. 4-Way Power Compound with Rapid Traverse. Square Tool Post with (6) InterchangeableTool Clamp bodies. Newall DP 700 2-Axis DRO. Taper Attachment. Tailstock with Handweel Quill Positioning, Locking Mechanism, (2) Live Centers. 6" 3-Jaw Chuck. 15" Capacity 3-Point Steady Rest. 24" Capacity 4-Point Steady Rest. (2) 24" Custom Fabricated 4-Point Steady Rest. Coolant Pan. Rolling Chip Guards. Work Light. Levelling Pad. Operators and Parts Manual.
|
|
