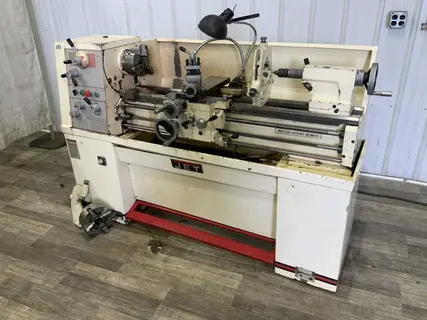

13"X 40" JET MODEL GH1340 GAP BED LATHE: STOCK #79685

SERIAL ..................... BU12191A

MODEL ...................... GH-1340A

STOCK # ..... 32150

SWING OVER WAYS ............ 13"

SWING IN GAP ............... 18-3/4"

LENGTH OF GAP .............. 8-1/8"

SWING OVER CROSS SLIDE ..... 7-25/32"

DISTANCE BETWEEN CENTERS ... 40"

SPINDLE SPEEDS ............. (8) 70 TO 2000

DIAMETER OF SPINDLE HOLE ... 1-1/2"

ENGLISH THREADS ............ (40) 4 TO 112 TPI

METRIC THREADS ............. (27) 0.2 TO 6 TPMM

FEEDS LONGITUDINAL ......... (40) 0.0036 TO 0.1005 IPR

FEED CROSS ................. (40) 0.0012 TO 0.00345 IPR

CHUCKS .......................... 3 & 4 JAW

TAPER IN TAILSTOCK ......... #3 MT

STEADY REST & FOLLOW REST .. 4-1/2" 3 POINT

FOOT BRAKE ...... YES

COOLANT WITH CHIP PANS ..... YES

MAIN MOTOR ................. 2 HORSEPOWER
