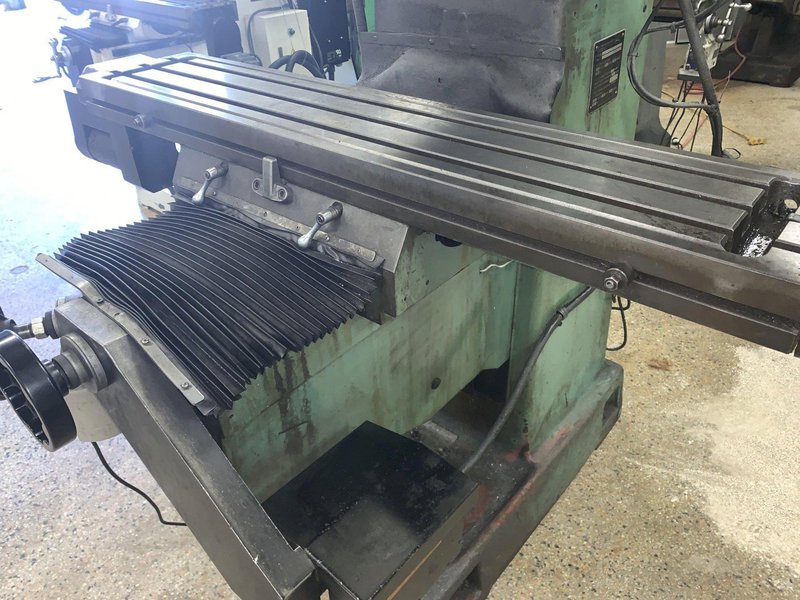

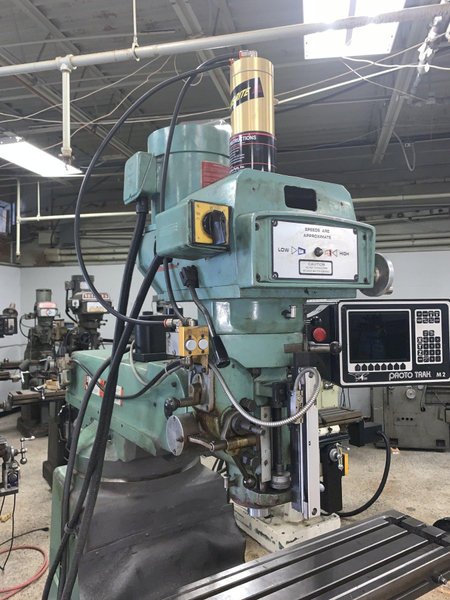

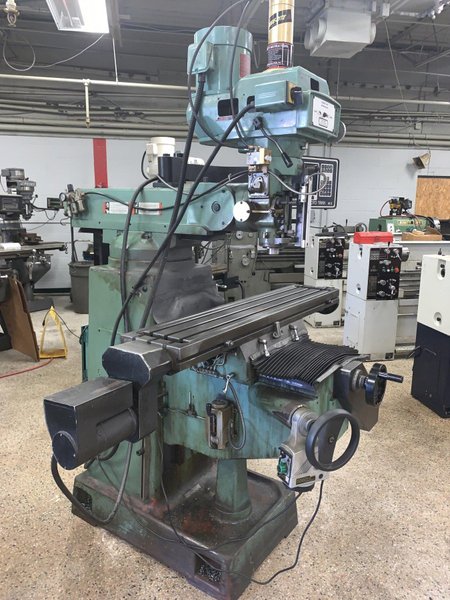

SWI Trak Sport K3 2-Axis Milling Machine with M2 control, New 2001.
Brand
Category
Type
Model
K3
Stock #
34907
Year
2001
Condition
Not specified
Location
Ohio
|
Preliminary Specifications:
Table Size - 10" x 50" Table Travel - 32" Saddle Travel - 15" Knee Travel - 16" Ram Travel - 5" Maximum Quill Travel - 5" Quill Diameter - 3-3/8" Spindle Taper - R8 Spindle Speeds - 60 - 4200 RPM Head Tilt - 45 F-B / 90 L-R Spindle Motor - 3 HP Max Rapid Feed - 100 IPM Electrics - 3/60/220 Volt Table Weight Capacity - 850 Lbs. Distance Spindle Nose to Table, Max - 17-1/8" Machine Dimensions - 71" x 59" x 84" Machine Weight, Approx - 2850 Lbs. Equipped with: Prototrak M2 Control Servo Type Power Feed to Knee 1-Shot Lubrication Z-Axis Glass Scale Feedback Maxi-Torque Power Drawbar Specifications subject to independent verification by the buyer. Machine located in Dayton OH warehouse and can be inspected under power by appointment. Seller can load. |
