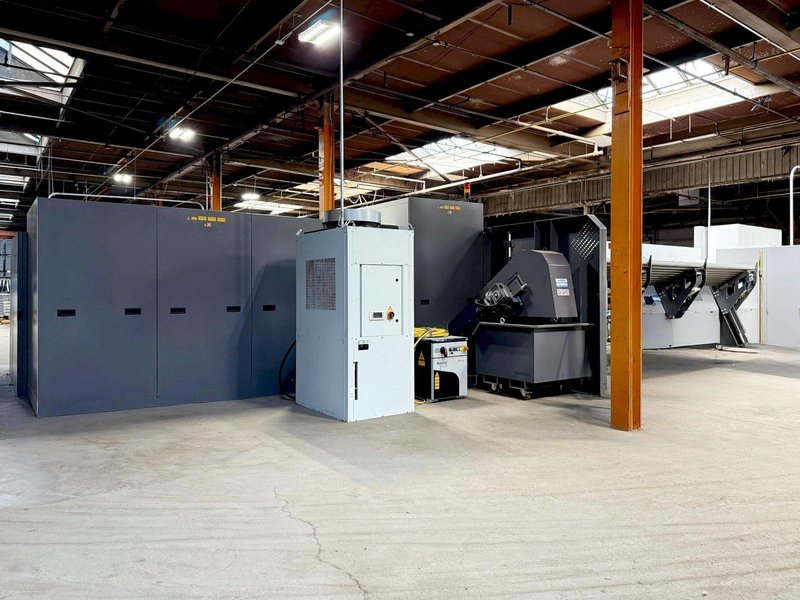

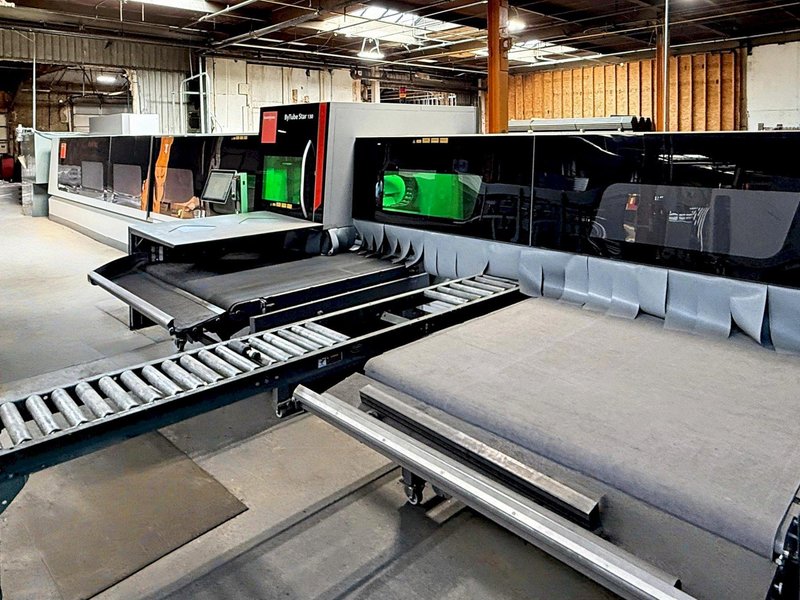

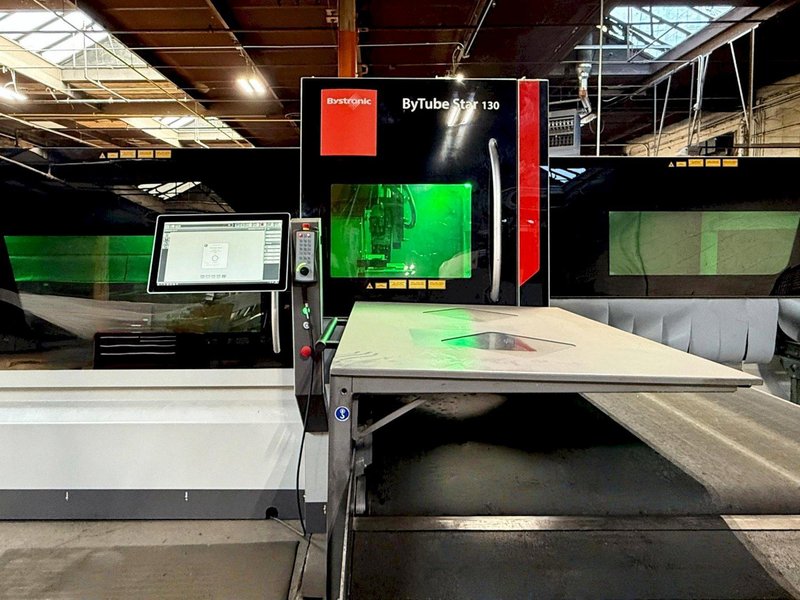

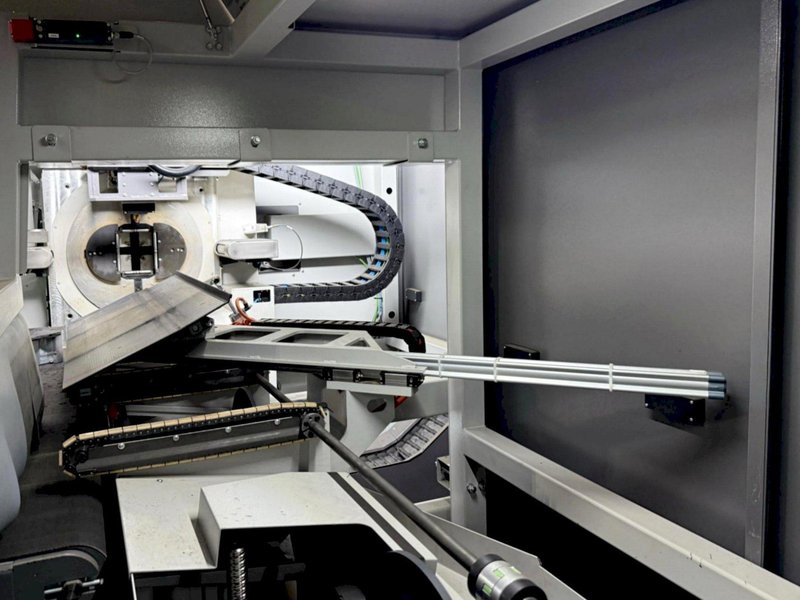

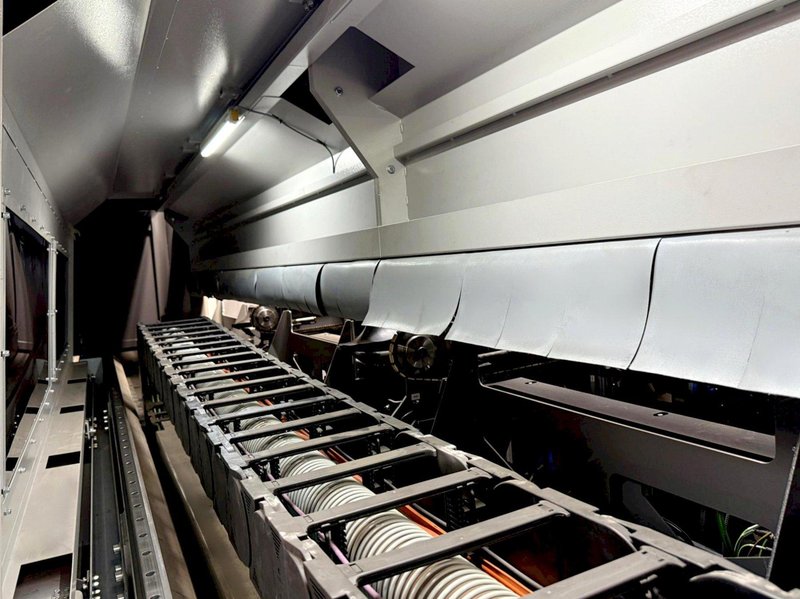

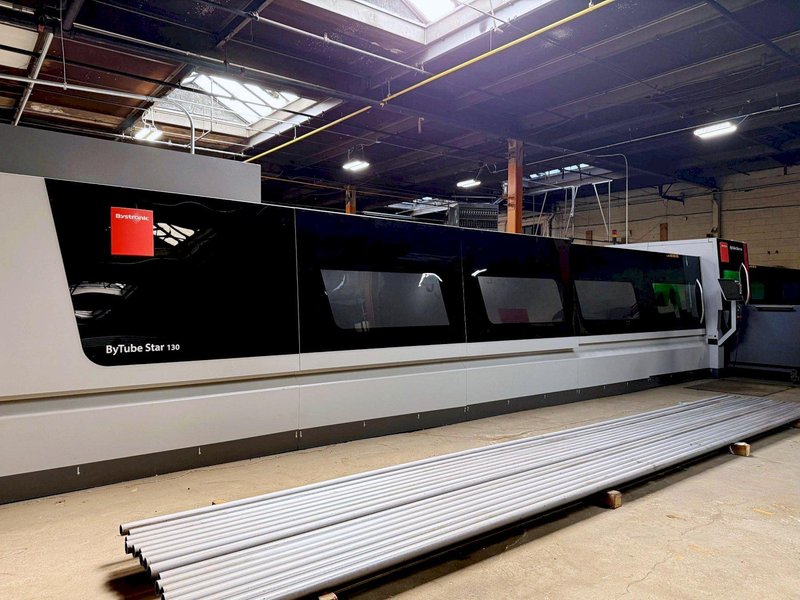

Bystronic ByTube Star 130 Fiber Tube Laser

Name: Used BYSTRONIC ByTube Star 130 For Sale 100602
Brand: BYSTRONIC
SKU: 100602
Availability: PreOrder

Brand

BYSTRONIC

Not specified

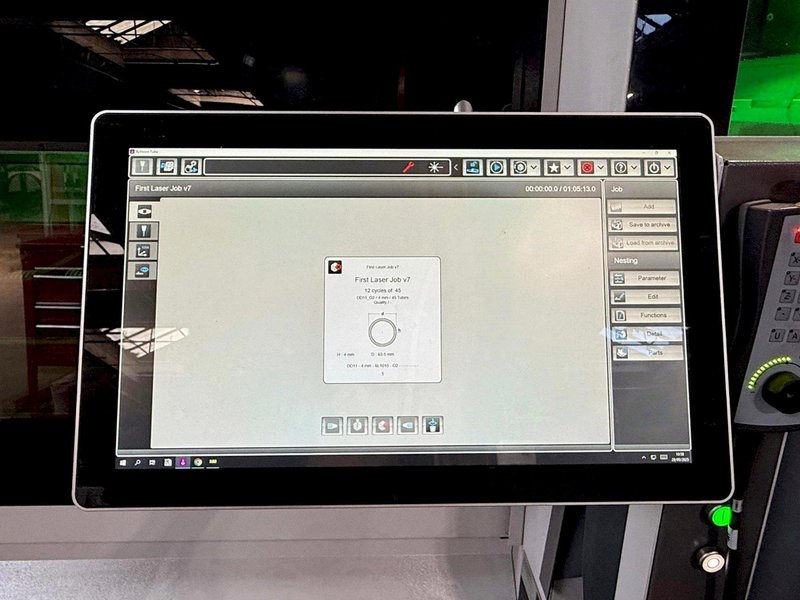

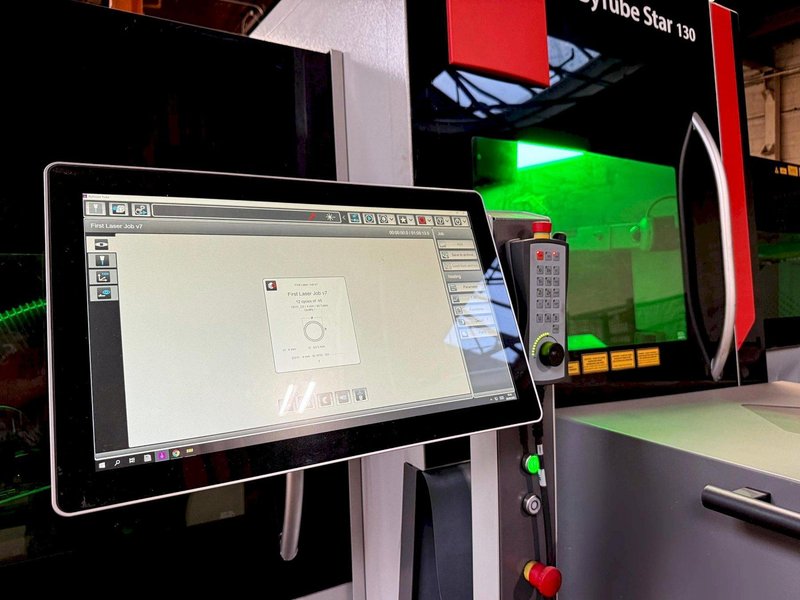

Control	BySoft Cell Control Tube
Power Source	Fiber

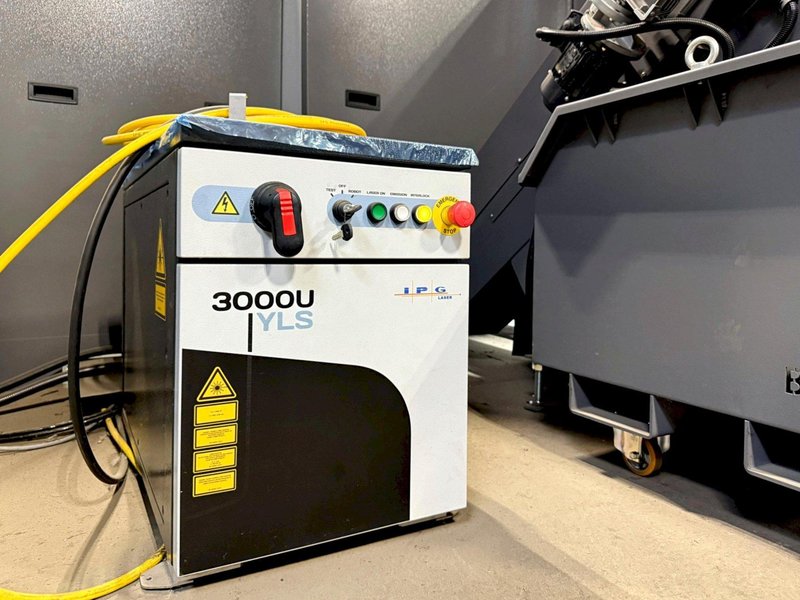

Power Source	YLS 3000U
Power Output	3 kW

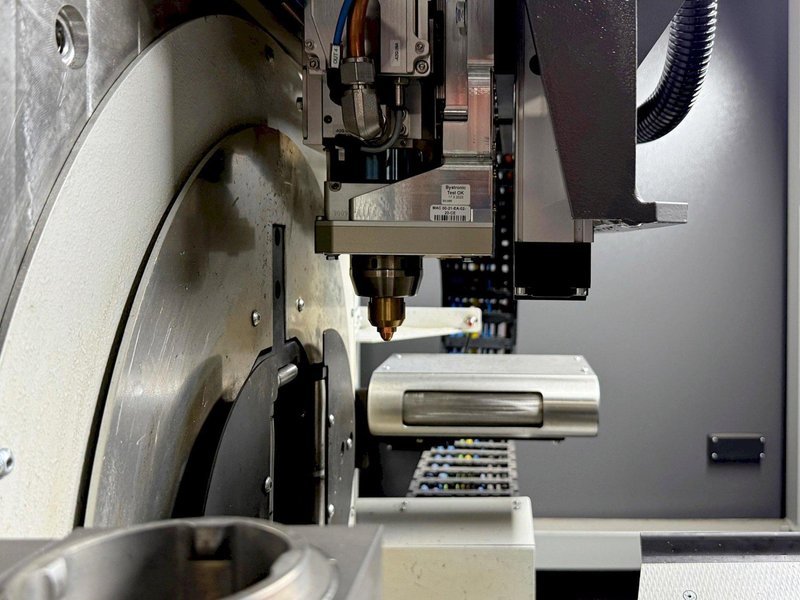

Cutting Head Type	2D
Tube Type	Closed Tubes, Angles, Channels, Flat bars, Ellipses
Min. Tube Length W/ Auto Loading	8.2"
Max. Tube Length	21'
Max. Tube Weight	11 lb/ft
Material Diameter - Round	.375" to 5"
Rectangle Tube Diameter	.375" x .375" to 5" x 5"
Flat Bar Diameter	1.5" to 5"
Thickness Flat Bars	.2" to .59"
Max. Linear Speed Of Axis X	656.16 Ft/Min
Max. Linear Speed Of Axis Y	196.8 Ft/Min
Max. Linear Speed Of Axis Z	196.8 Ft/Min

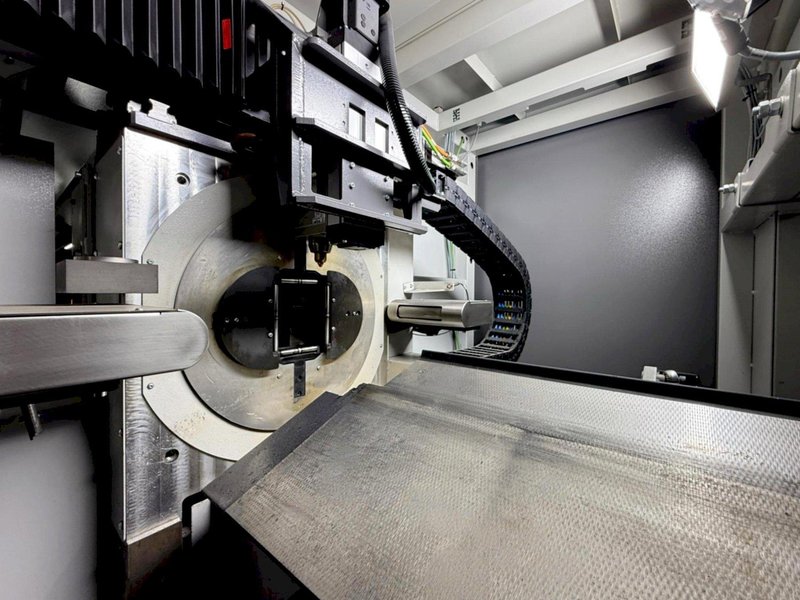

Max. Rotation Speed Of Mandrels	250 r.p.m.
Max. Piece Length Unloading	13.12"
X, Y, Z Axis Positioning Precision	± 0,003"
Number Of Controlled Axis	8
Machine Weight	23,000 lbs.

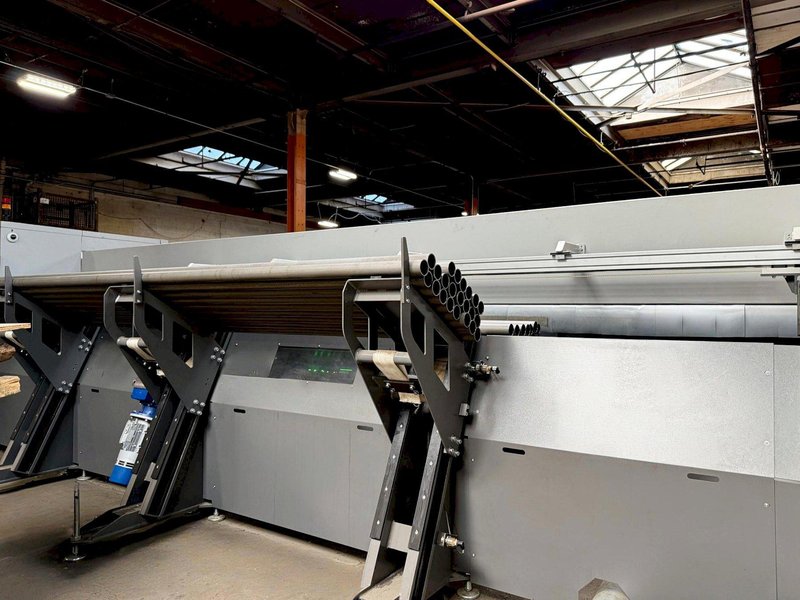

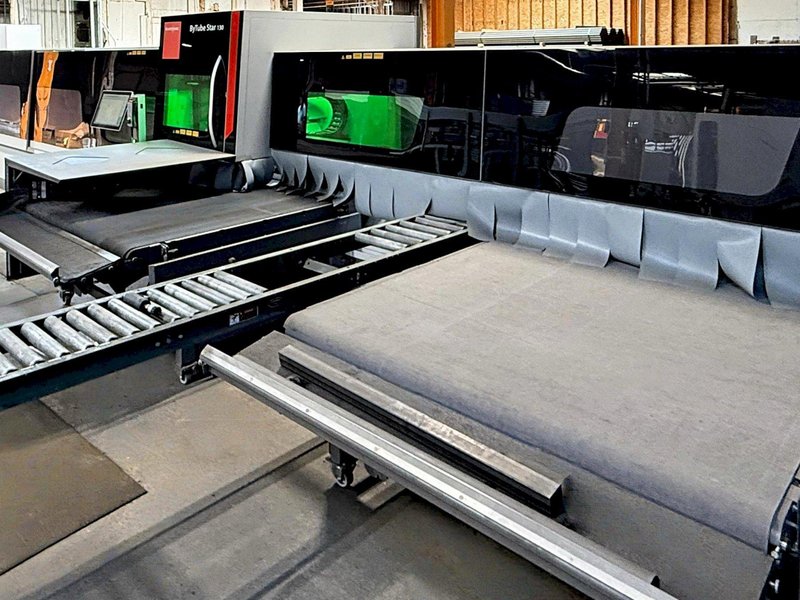

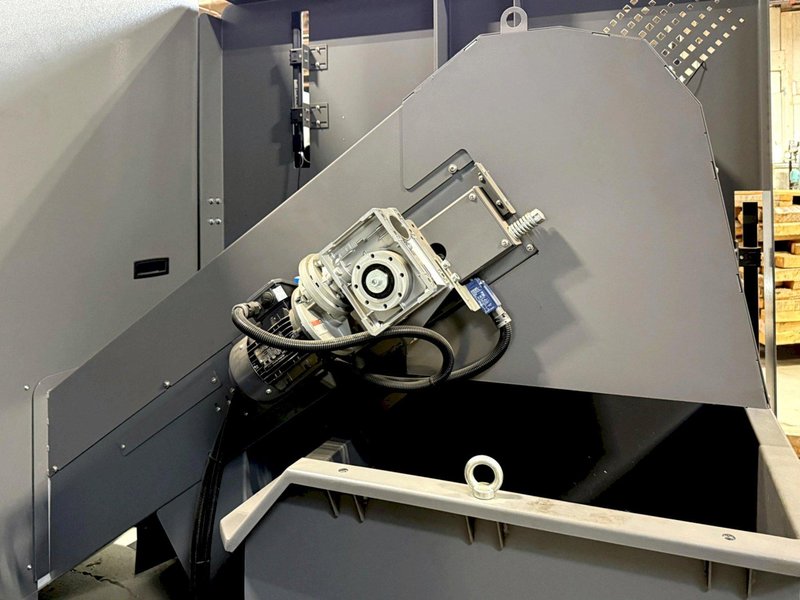

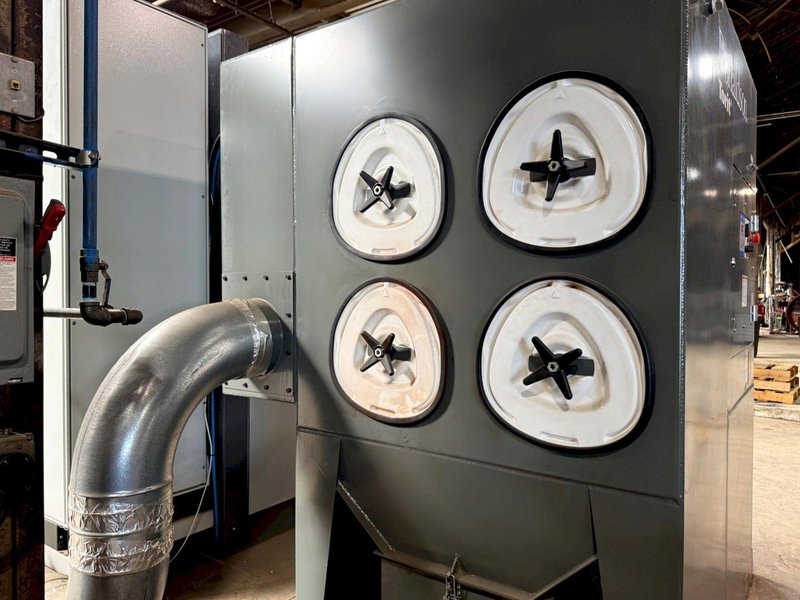

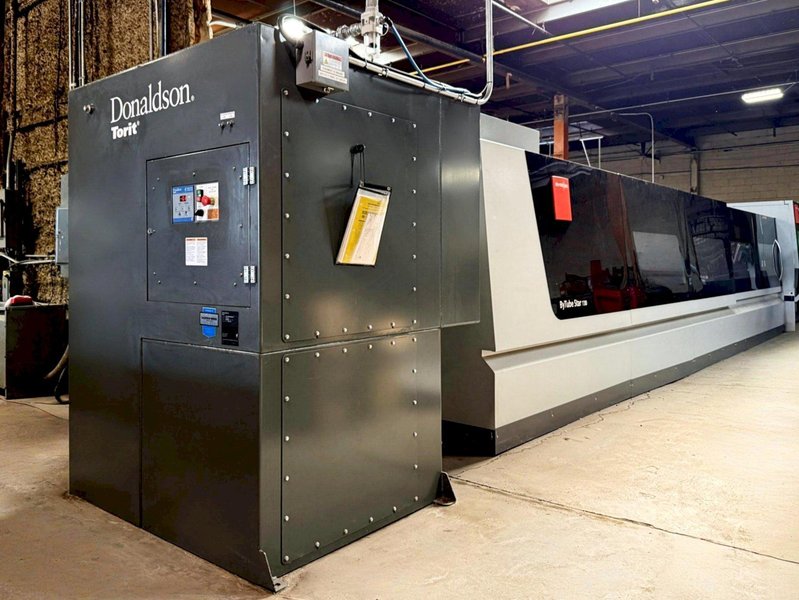

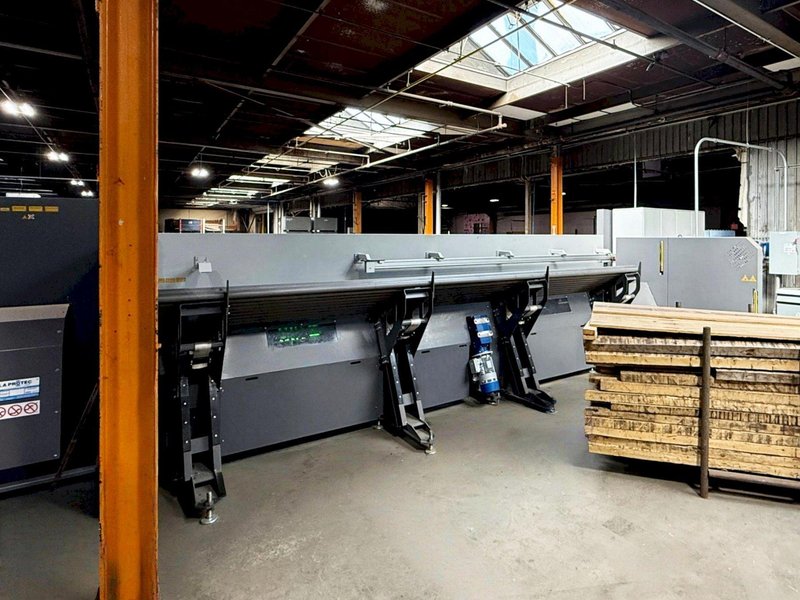

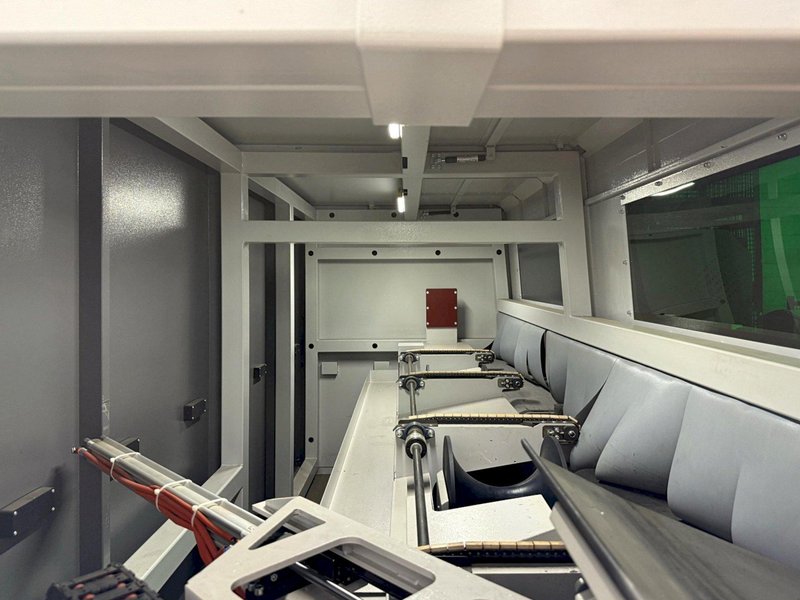

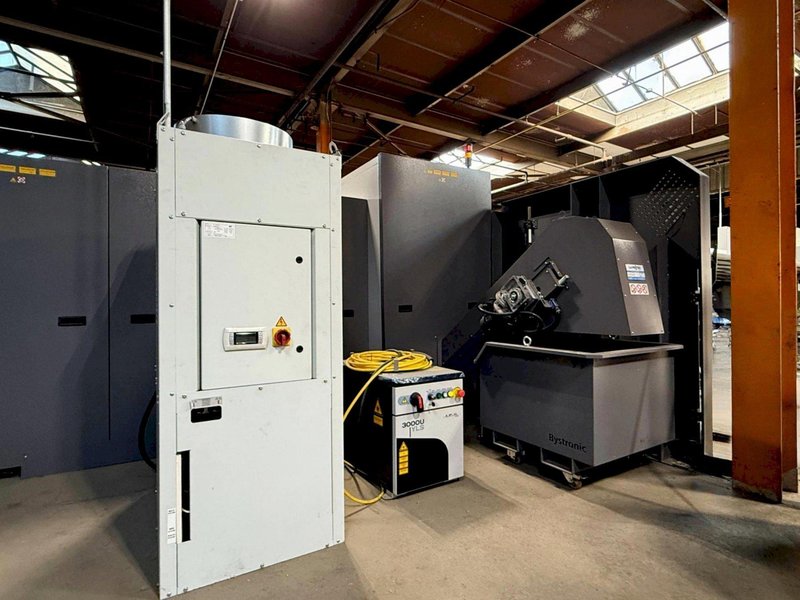

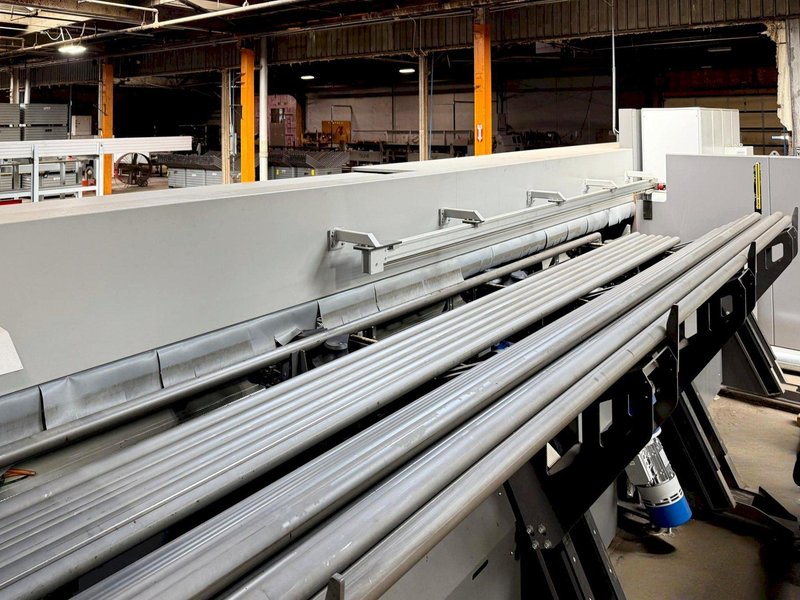

Equipped With: BySoft Cell Tube Control IPG YLS 3000U Fiber Power Source Auto Bundel Loader Auto Finished Parts Unloader w/ Conveyor Laserscan Option Optical Weld Seam Detection Quick Cut Option Open Sections Option Scrap and Parts Conveyor Chiller (Cooling) Unit Donaldson Torit DFLS 4 Dust Collection System
