Coe Press Coil Reel And Straightener Combination 15,000 Lbs. x 18" Wide
Brand
Category
Model
CPR-PO-15024 / CPPS-350
Stock #
5577B
Year
2015
Condition
Used
Location
Not specified
| Coil Weight Capacity: | 15000 pounds |
| Stock Width Capacity | 18.00 inches |
| Minimum Expansion Range: | 20 inches |
| Maximum Expansion Range: | 24 inches |
| Coil O.D. Capacity: | 72 inches |
|
Stock thickness capacity: .080" x 18" Wide

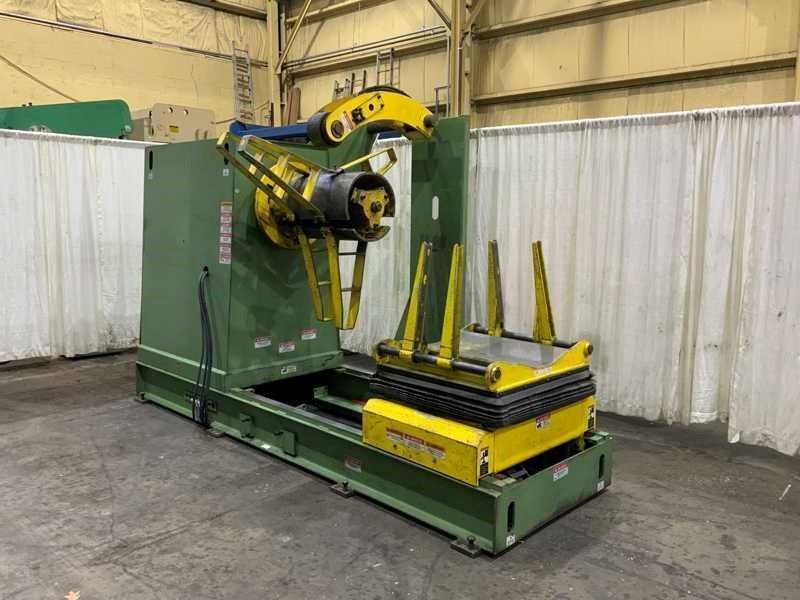

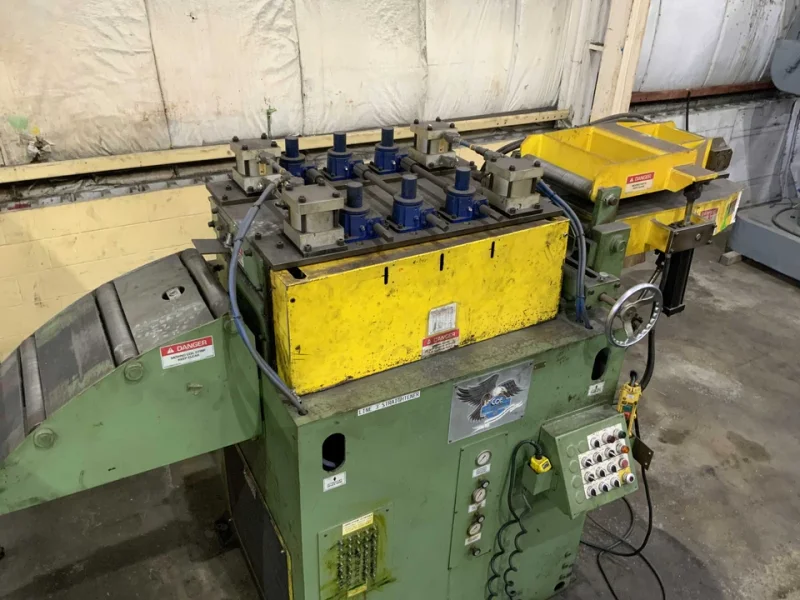

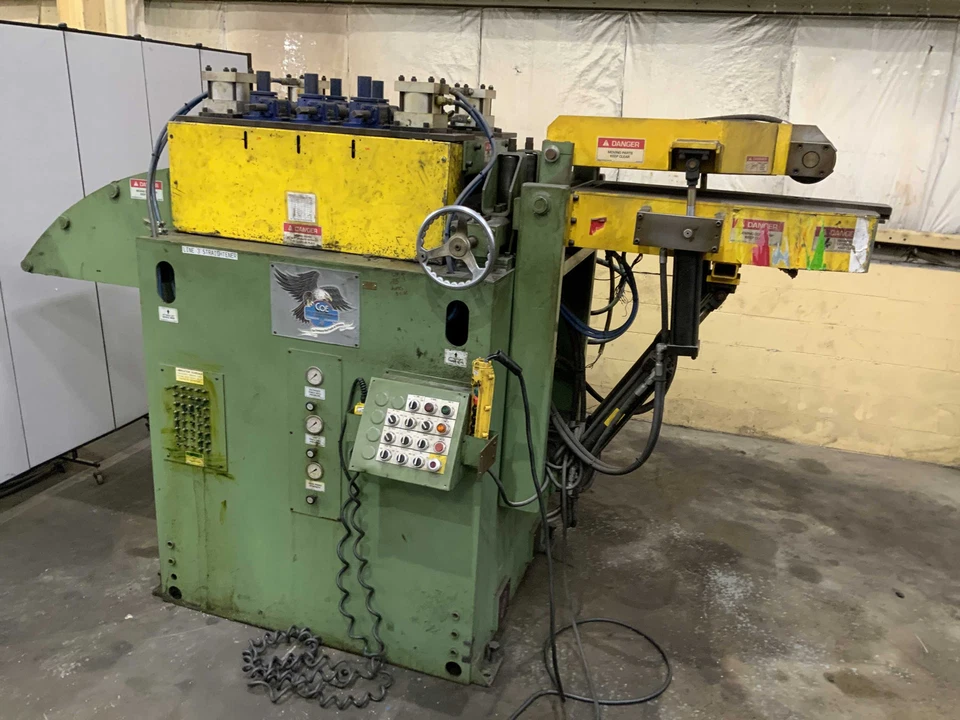

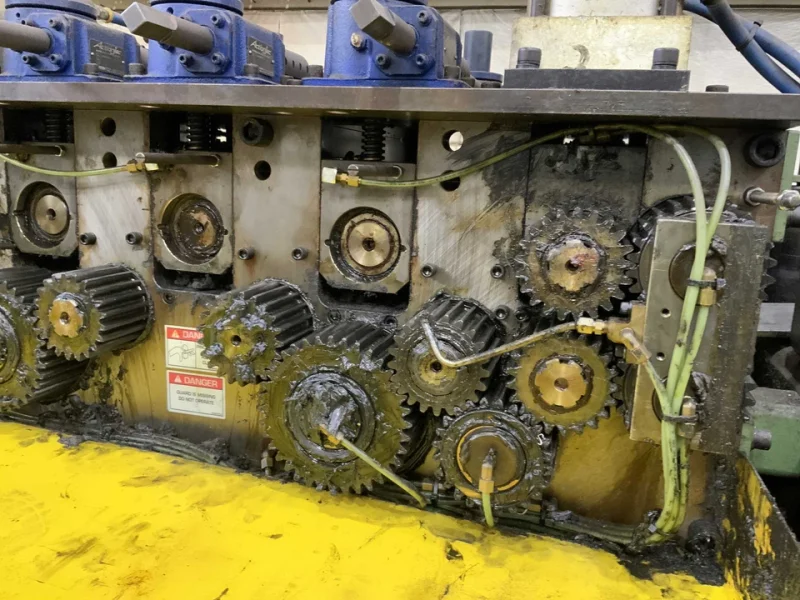

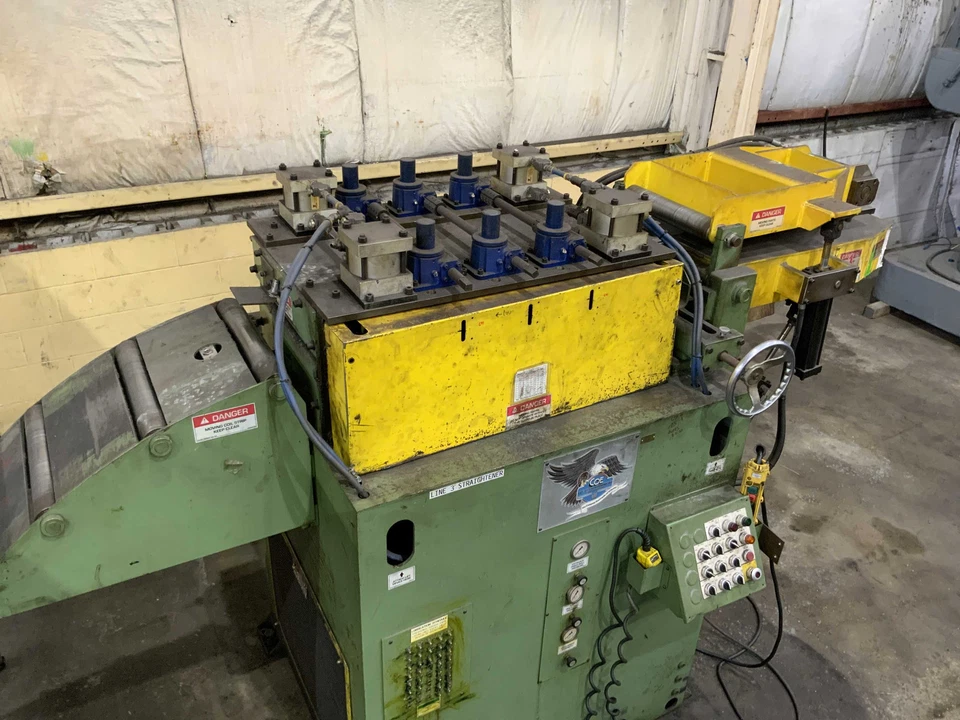

Stock thickness capacity: .250" x 12" Wide Coe Press Coil Reel And Load Car CPR-PO-15024 Hydraulic mandrel expansion Adjustable coil guides Coil hold down arm with motorized end wheel Air brake mounted on main spindle Threading drive for jog forward and reverse Self contained hydraulic pump unit Traveling coil load car Powered lift and travel Coe Press Powered Coil Straightener Model No. CPPS-7402-4-18 Seven straightening rolls Entry and exit pinch roll with air operated upper roll adjustments Adjustable stock width edge guides Alligator style stock peeler, debender and threading station AC VFD Control system Variable speed payout with laser loop control Operator's control station |
|
