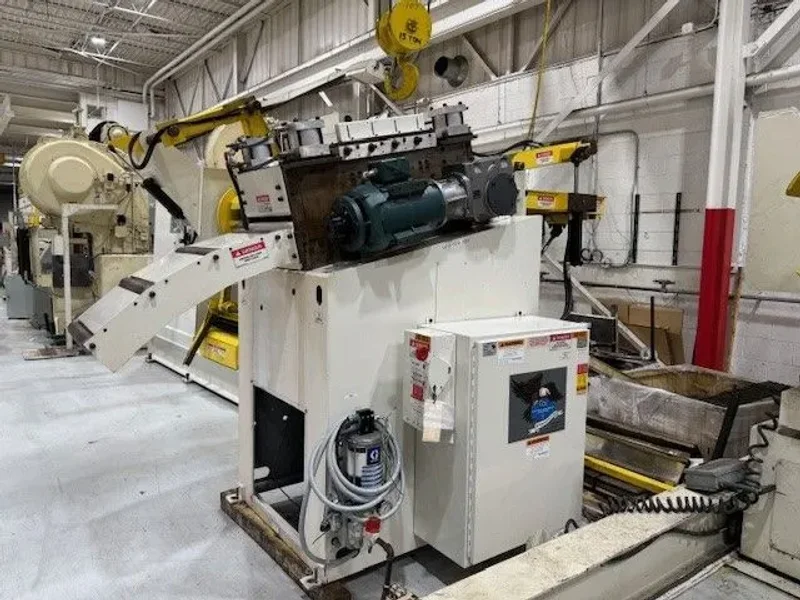

Coe Press Coil Reel And Straightener Combination 15,000 Lbs. x 18" Wide
Brand
Category
Model
CPR-PO-15024 / CPPS-350
Stock #
5548B
Year
2017
Condition
Not specified
Location
Michigan
| Coil Weight Capacity: | 15000 pounds |
| Stock Width Capacity | 18.00 inches |
| Minimum Expansion Range: | 20 inches |
| Maximum Expansion Range: | 24 inches |
| Coil O.D. Capacity: | 72 inches |
|
Stock thickness capacity: .100" x 18" Wide

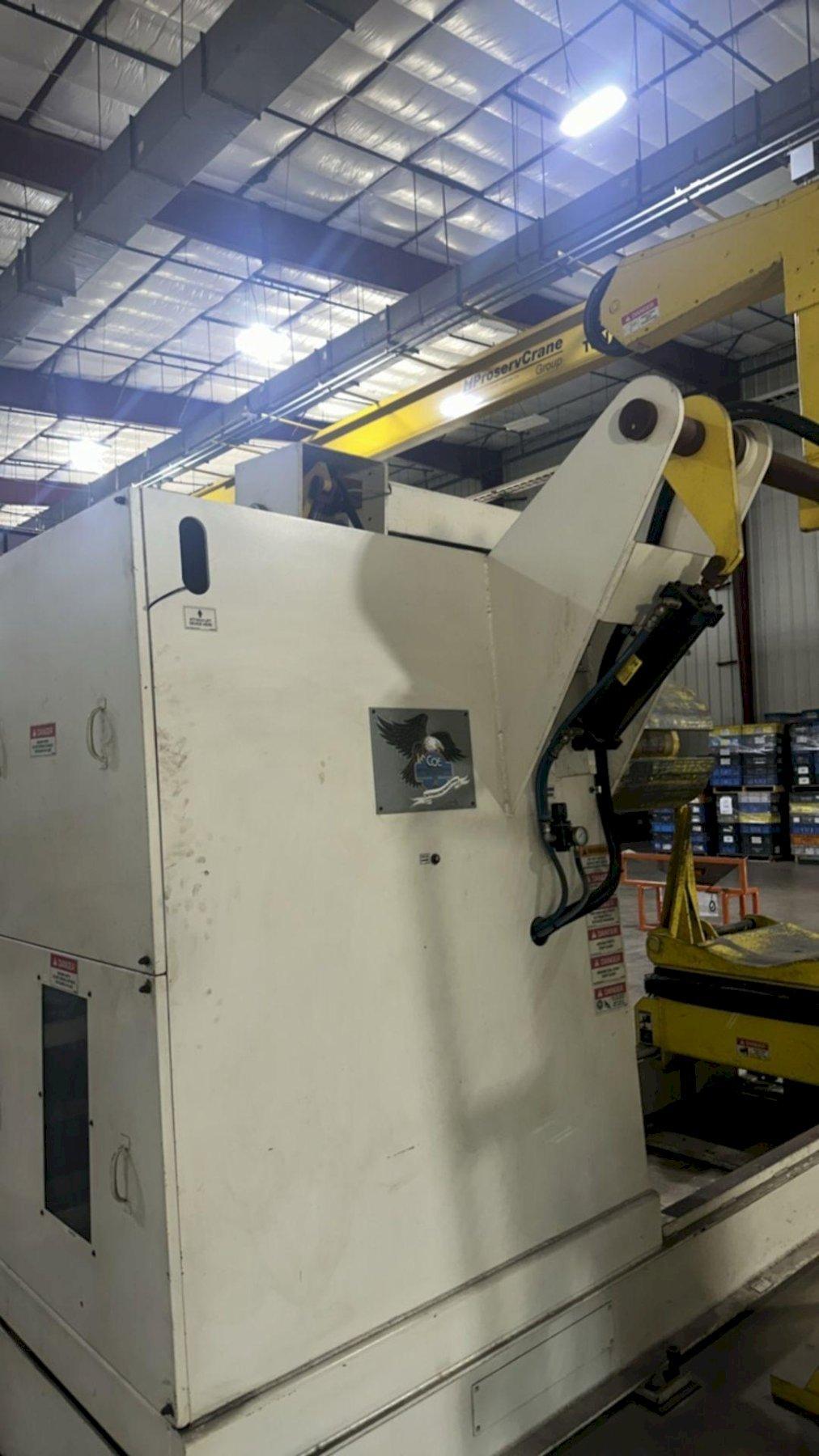

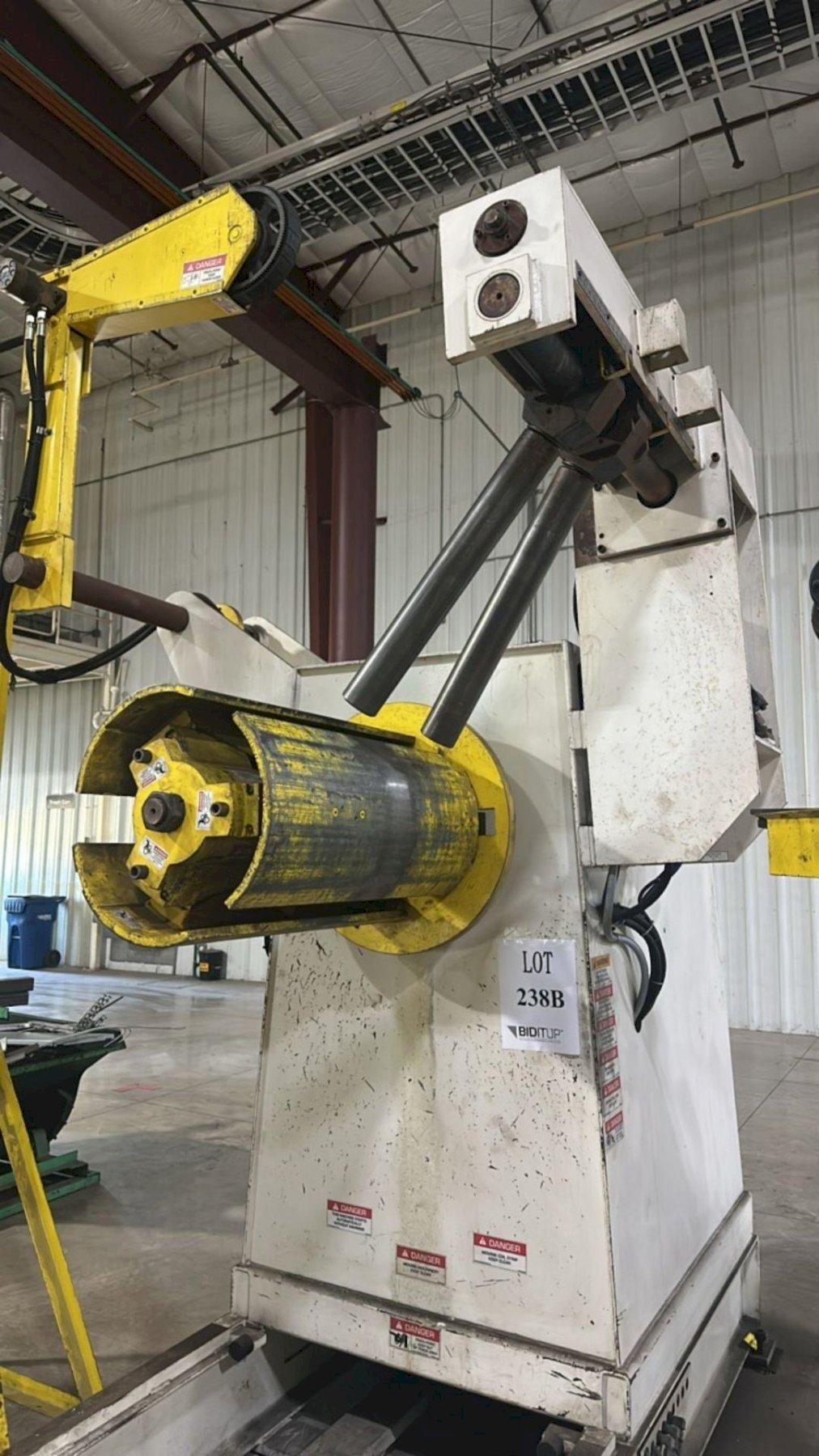

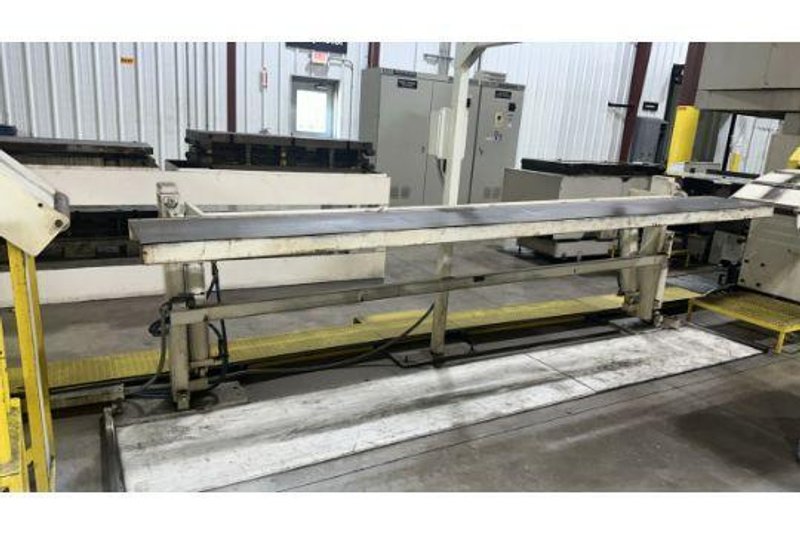

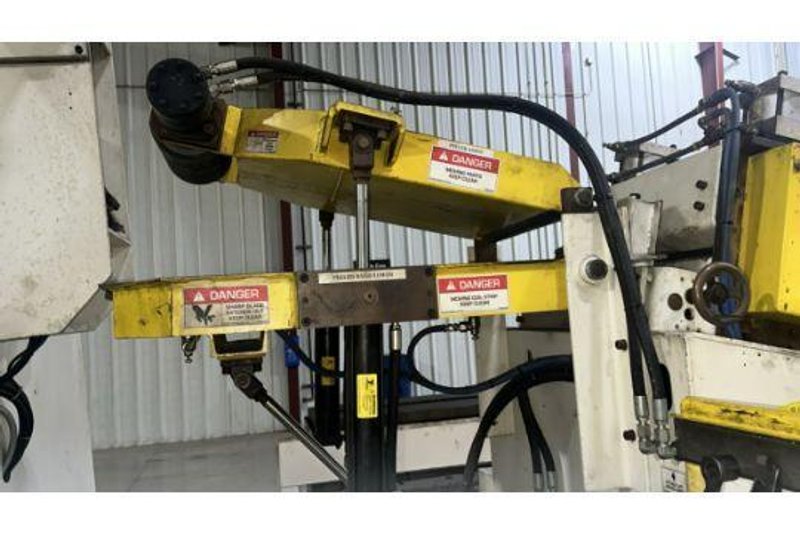

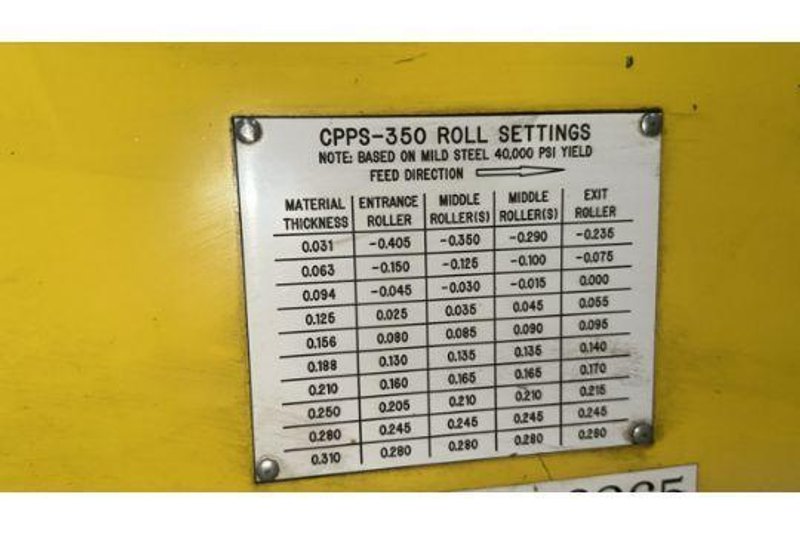

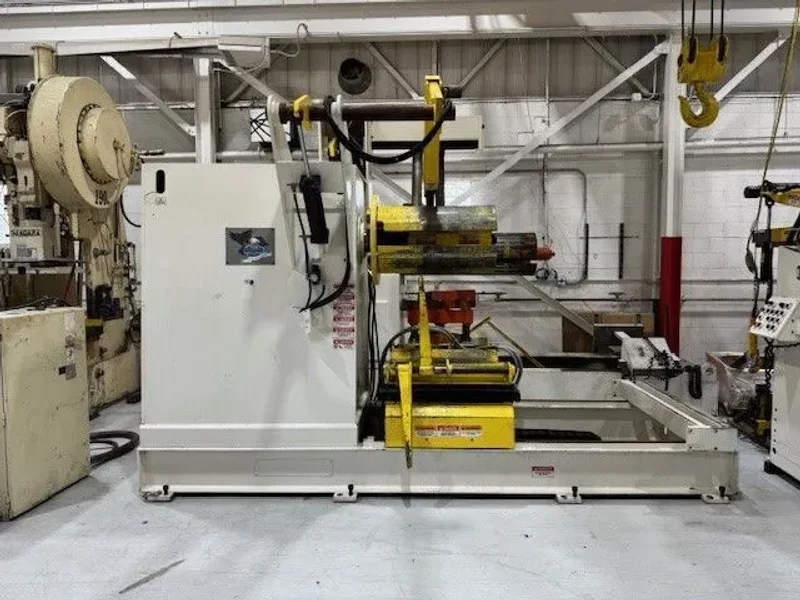

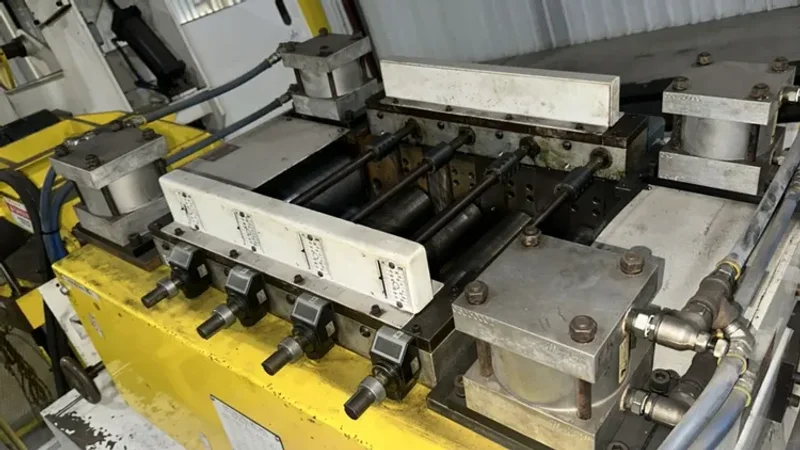

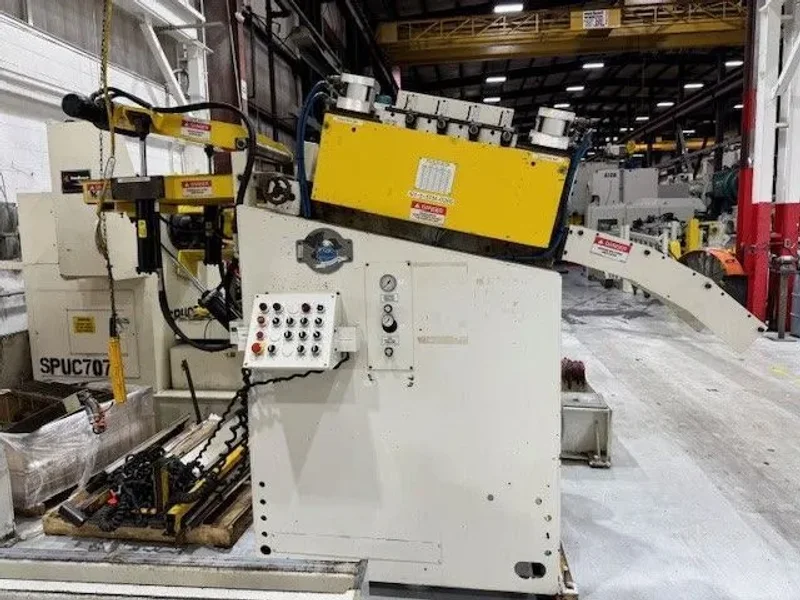

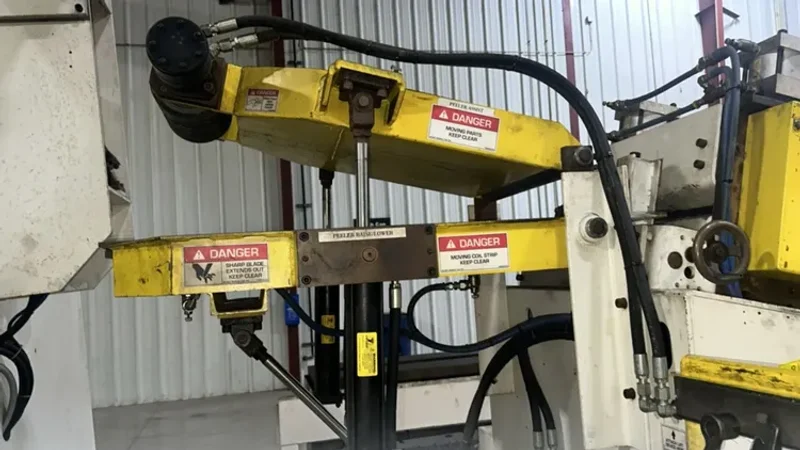

Stock thickness capacity: .125" x 10" Wide Coe Press Coil Reel And Load Car CPR-PO-15024 Hydraulic mandrel expansion Adjustable coil guides Coil hold down arm with motorized end wheel Air brake mounted on main spindle Threading drive for jog forward and reverse Self contained hydraulic pump unit Traveling coil load car Powered lift and travel Coe Press Powered Coil Straightener Model No. CPPS-350-18 9 - Straightening rolls x 3.5" diameter with depth indicators Entry and exit pinch roll with air operated upper roll adjustments Adjustable stock width edge guides Alligator style stock peeler, debender and threading station AC VFD Control system Variable speed payout with laser loop control Operator's control station Coe Press Exit Threading Table Model CPTT-18 Flat top bomb-bay door design Air operated actuation |
|
